Description

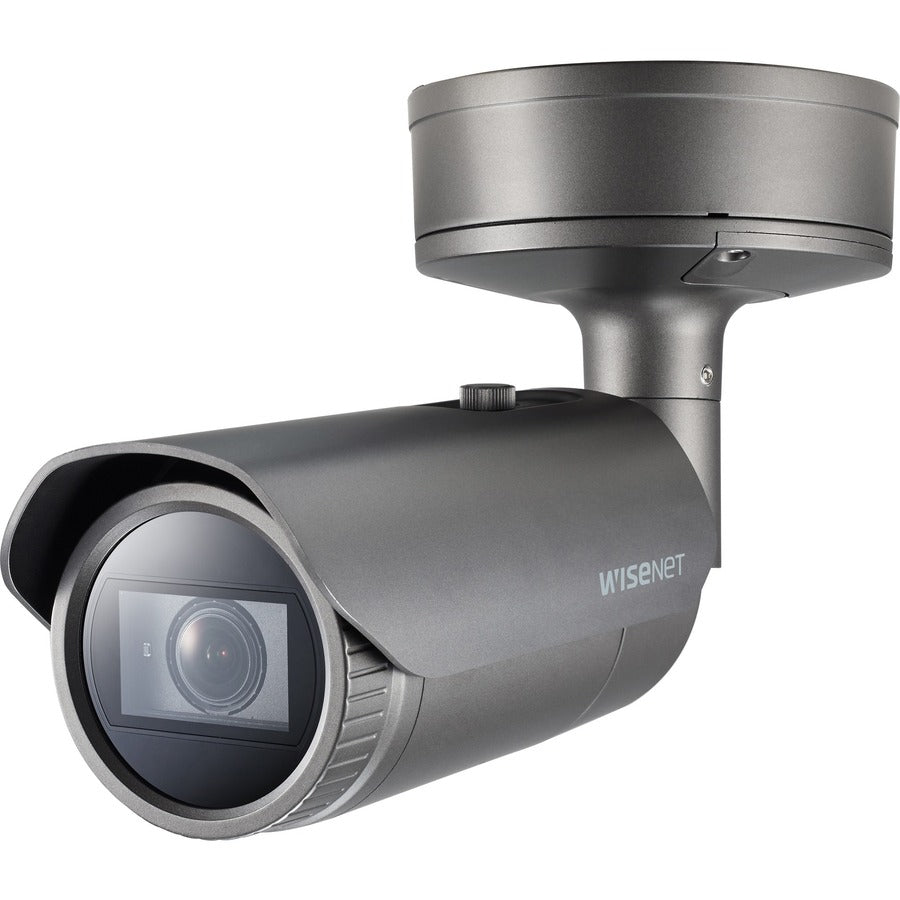

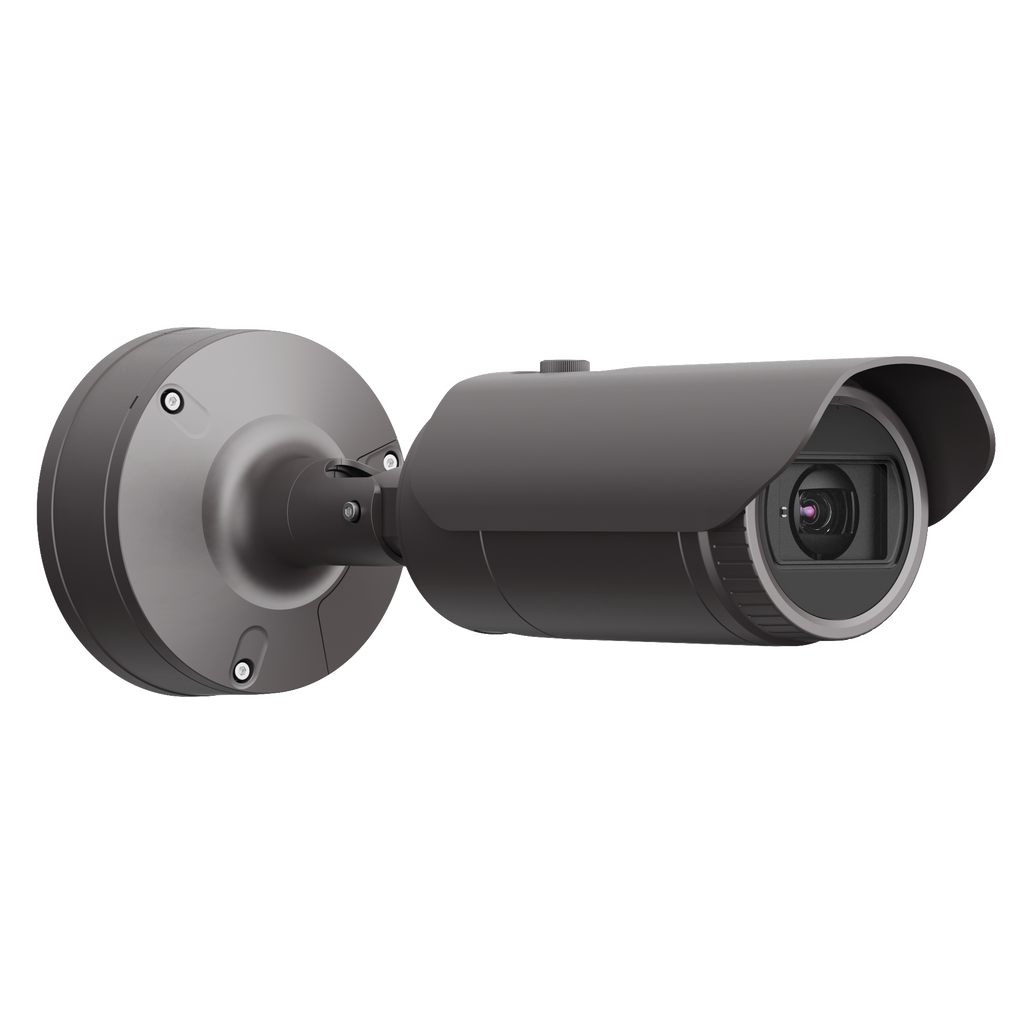

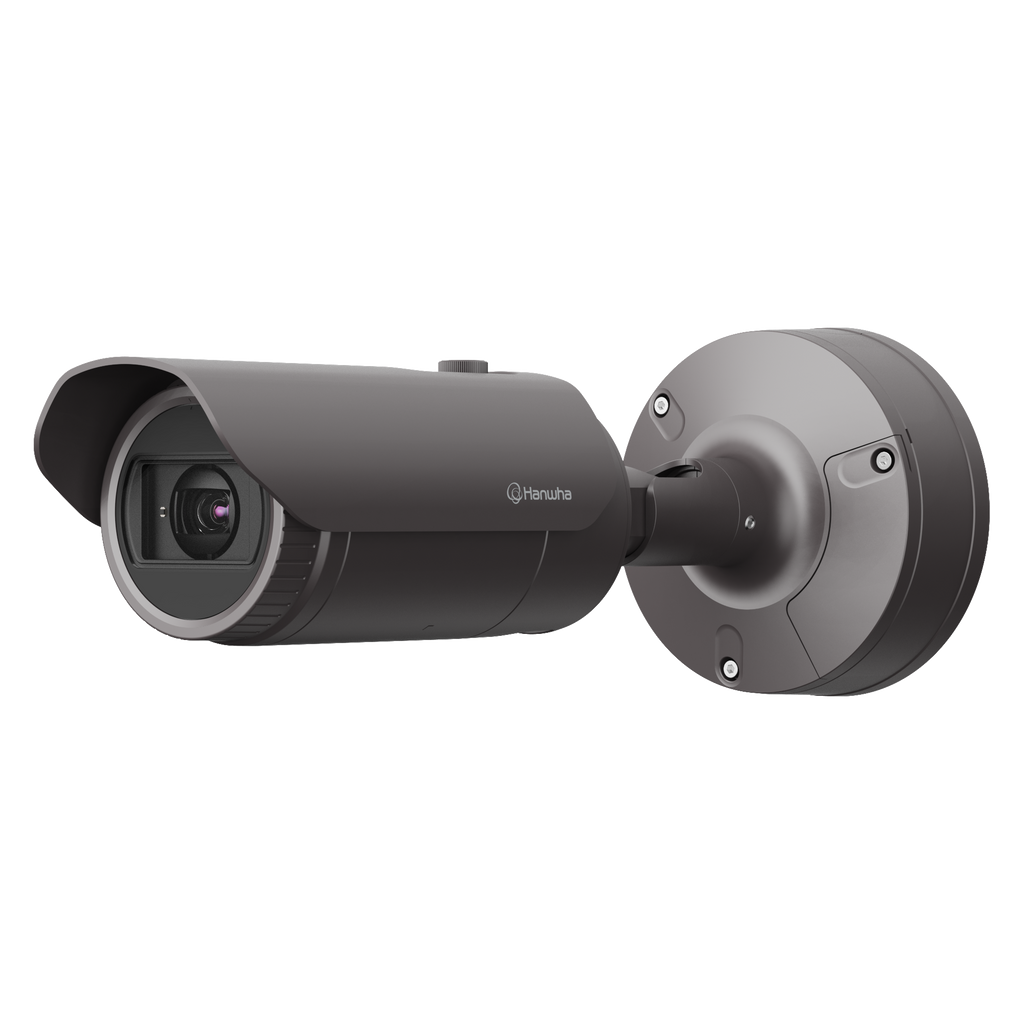

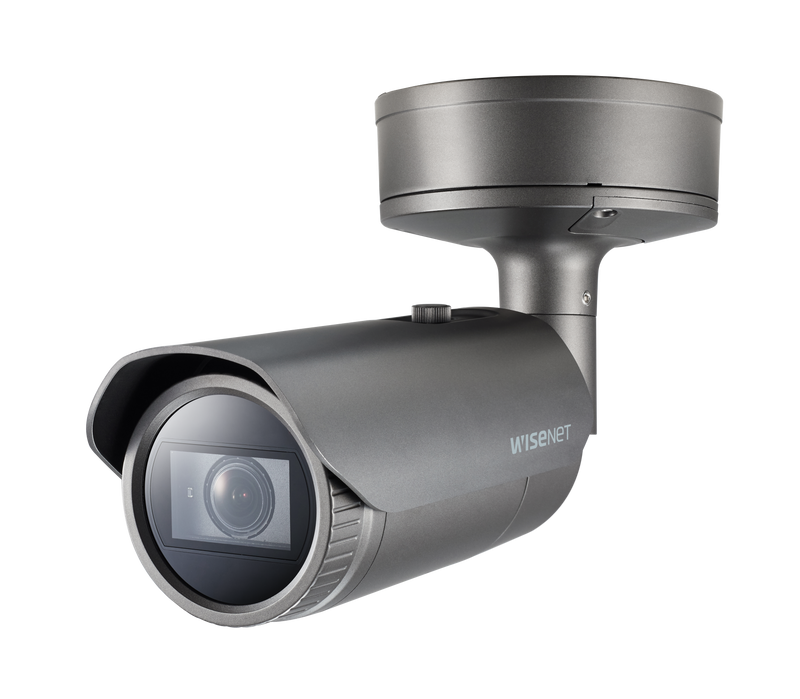

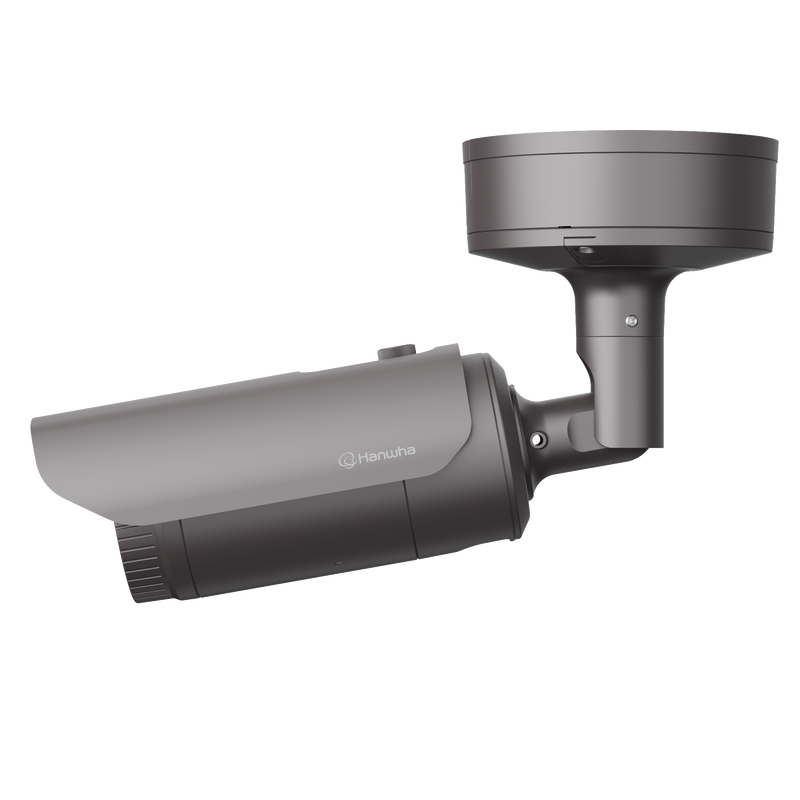

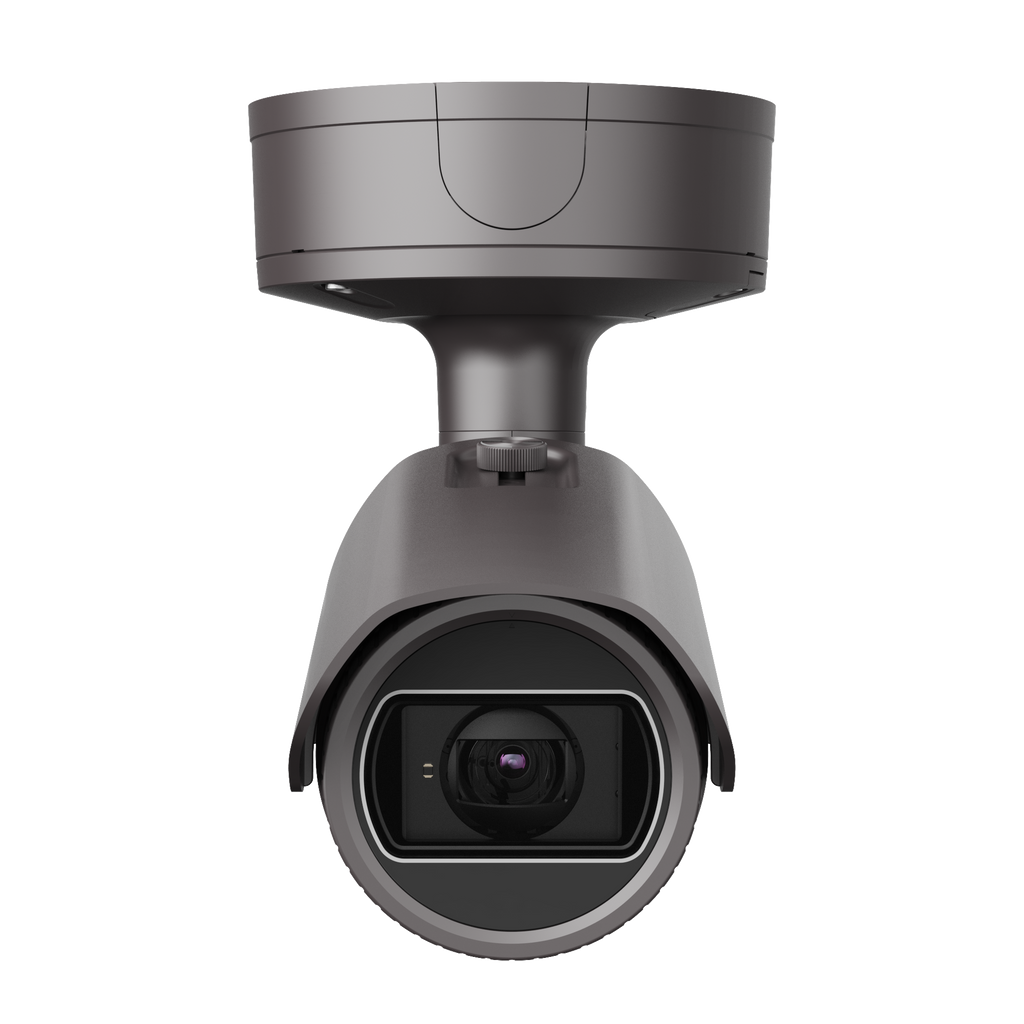

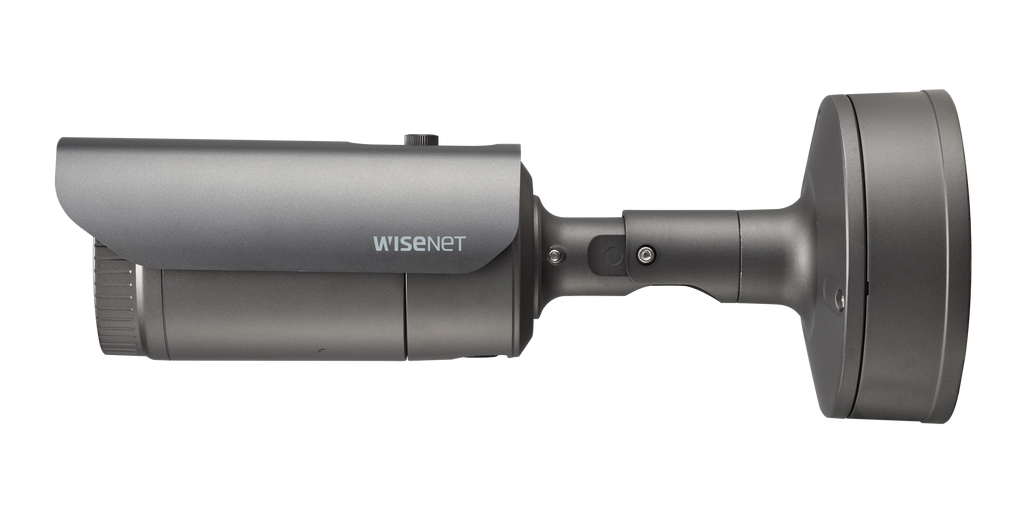

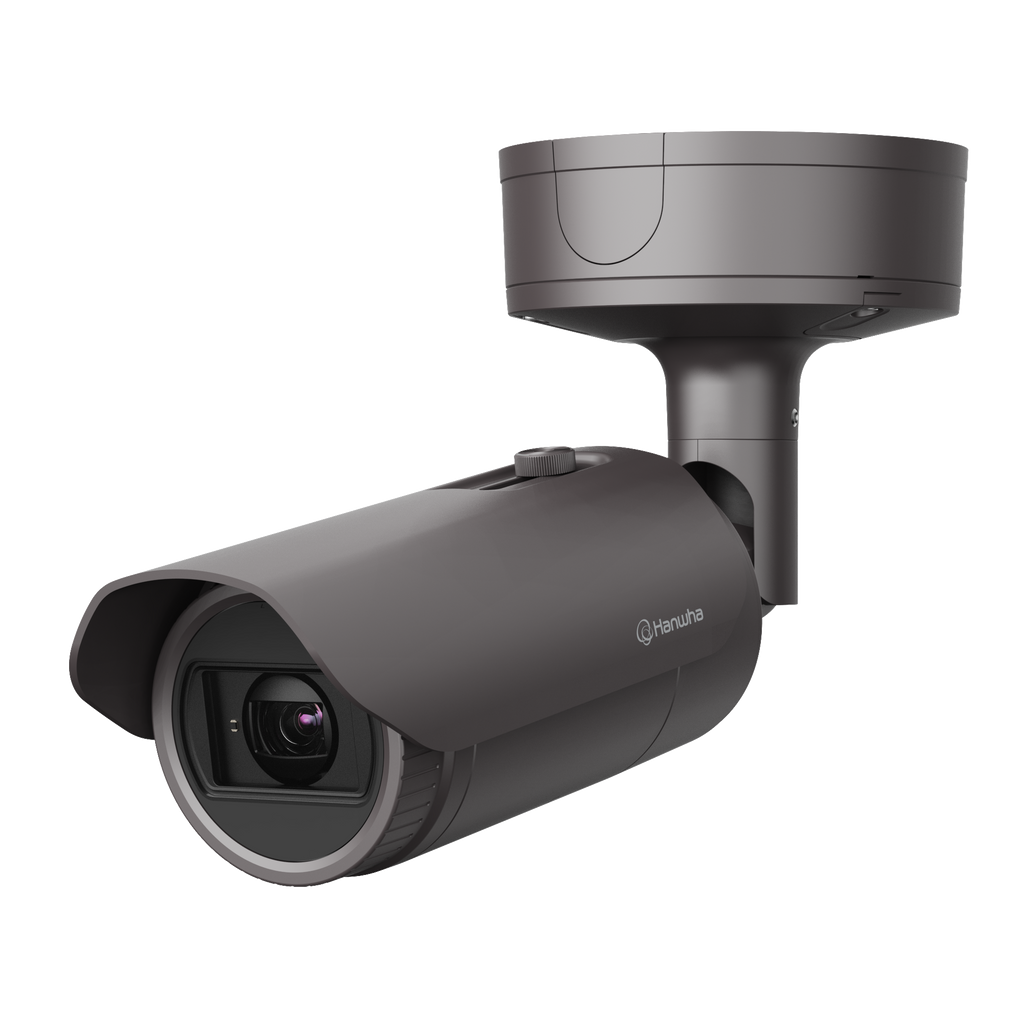

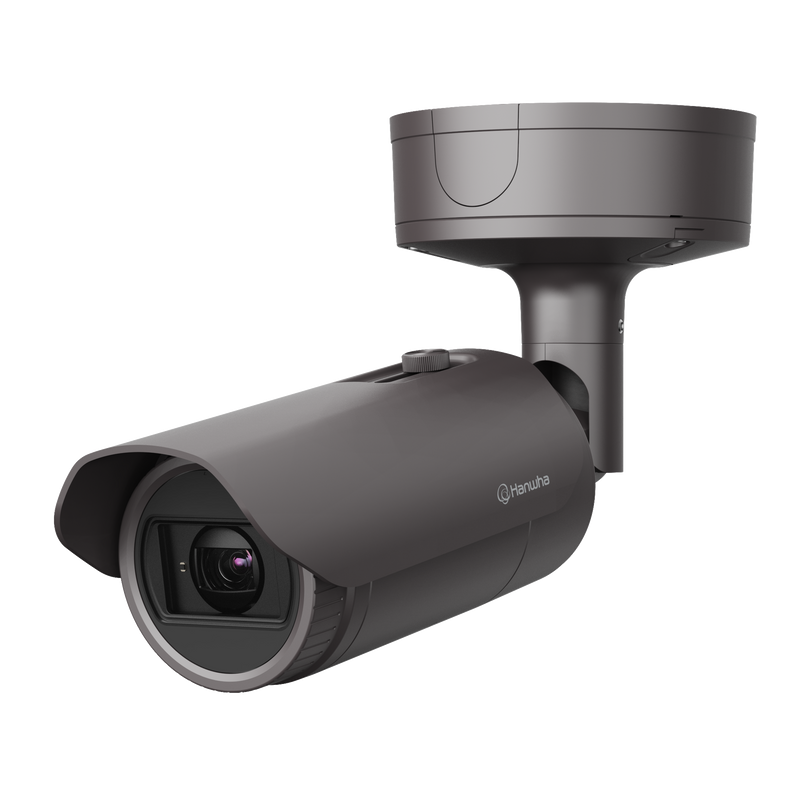

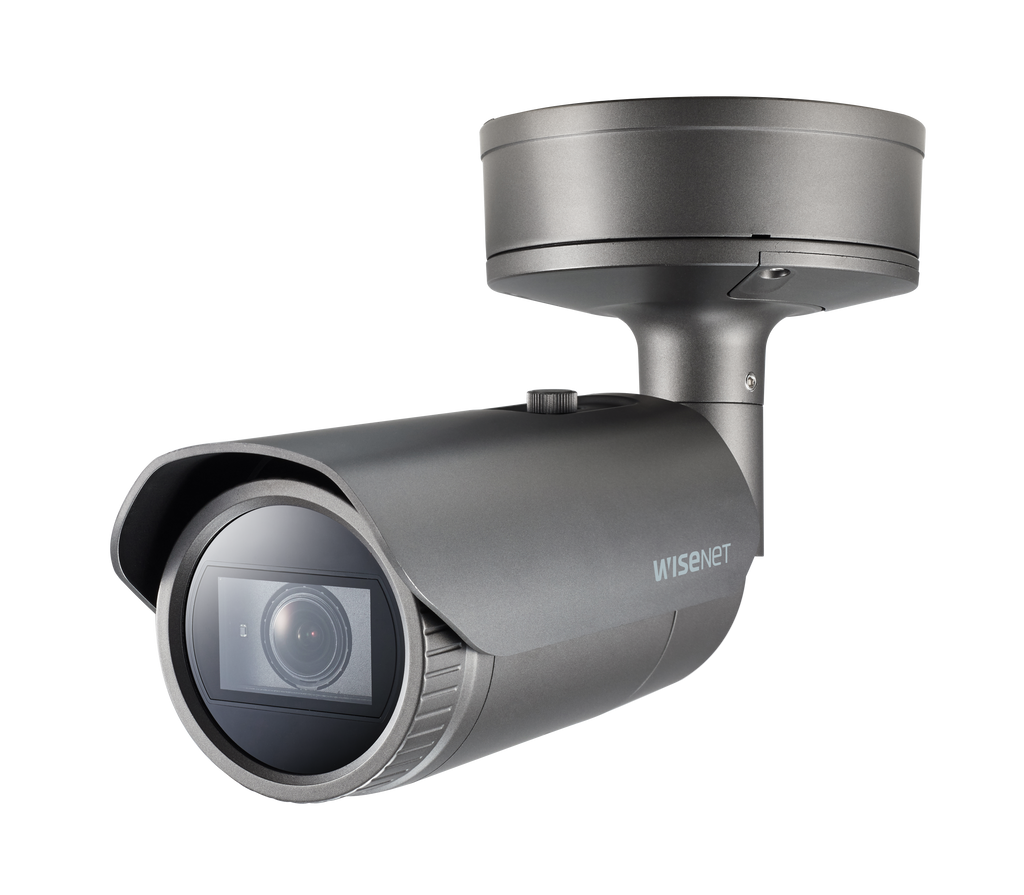

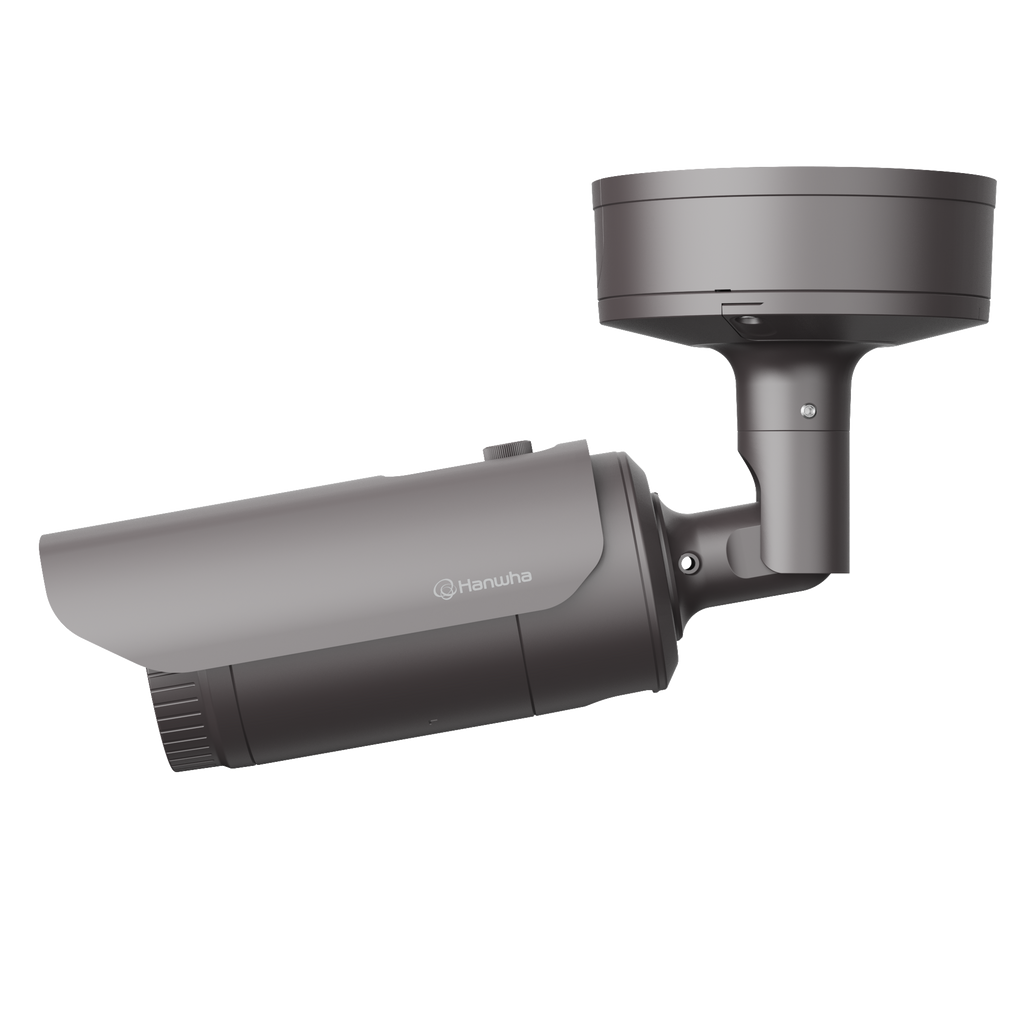

The Hanwha XNO-9082R is a high-performance 4K IR outdoor bullet camera engineered for demanding surveillance environments. Designed with a 1/2.8" CMOS sensor, motorized 2.8–8.4mm varifocal lens, and advanced 120dB WDR, it delivers exceptional image clarity in both day and night scenarios.
With built-in IR providing visibility up to 40 meters, enhanced analytics such as face and upper-body detection, shock detection, virtual line/area analytics, and digital auto-tracking, this camera offers precise situational awareness for security-critical applications.
Dual SD card slots (up to 1TB total), PoE power support, and rugged IP66/IP67, IK10, and NEMA 4X environmental protection make the XNO-9082R ideal for outdoor installations requiring durability, intelligence, and ultra-high-resolution video capture.
| Category | Specification |
|---|---|
| Image Sensor | 1/2.8" CMOS |
| Resolution | Up to 3840×2160 (4K UHD) |
| Max Frame Rate | 30fps @ 4K (H.265/H.264) |
| Min. Illumination | Color: 0.05 Lux; B/W: 0.005 Lux (0 Lux with IR) |
| Lens | 2.8–8.4mm motorized varifocal, 3× optical zoom |
| Field of View | H: 114°–40° / V: 62°–22° / D: 133°–46° |
| IR Distance | Up to 40m (WiseIR) |
| Day/Night | ICR (Auto) |
| WDR | 120dB |
| Image Enhancements | SSNRV, DIS (gyro), Defog, LDC |
| Analytics | Motion, Defocus, Tampering, Face/Upper-body detection, Queue mgmt, Heatmap, Virtual line/area, Shock detection, Digital auto-tracking |
| Audio I/O | Mic/Line-in selectable, Line-out |
| Video Compression | H.265, H.264 (Main/High/Baseline), MJPEG |
| Smart Codec | WiseStream II |
| Edge Storage | Dual SD/SDHC/SDXC slots, up to 1TB total |
| Network Interface | RJ-45 (10/100/1000BASE-T) |
| Protocols | IPv4/IPv6, TCP/IP, UDP/IP, HTTP/HTTPS, RTSP/RTP, NTP, DHCP, QoS, SNMPv1/v2c/v3, MQTT, ONVIF S/G/T |
| Cybersecurity | Secure boot, encrypted firmware, IEEE 802.1X, UL CAP |
| Power | PoE (802.3af Class 3), 12VDC, 24VAC |
| Power Consumption | PoE: Max 12.95W |
| Operating Temperature | –50°C to +60°C |
| Ingress Protection | IP66 / IP67, IK10, NEMA 4X |
| Dimensions | Ø91 × 368.6mm |
| Weight | 2.2kg (4.85 lbs) |
| Color | Dark Grey |
