Description

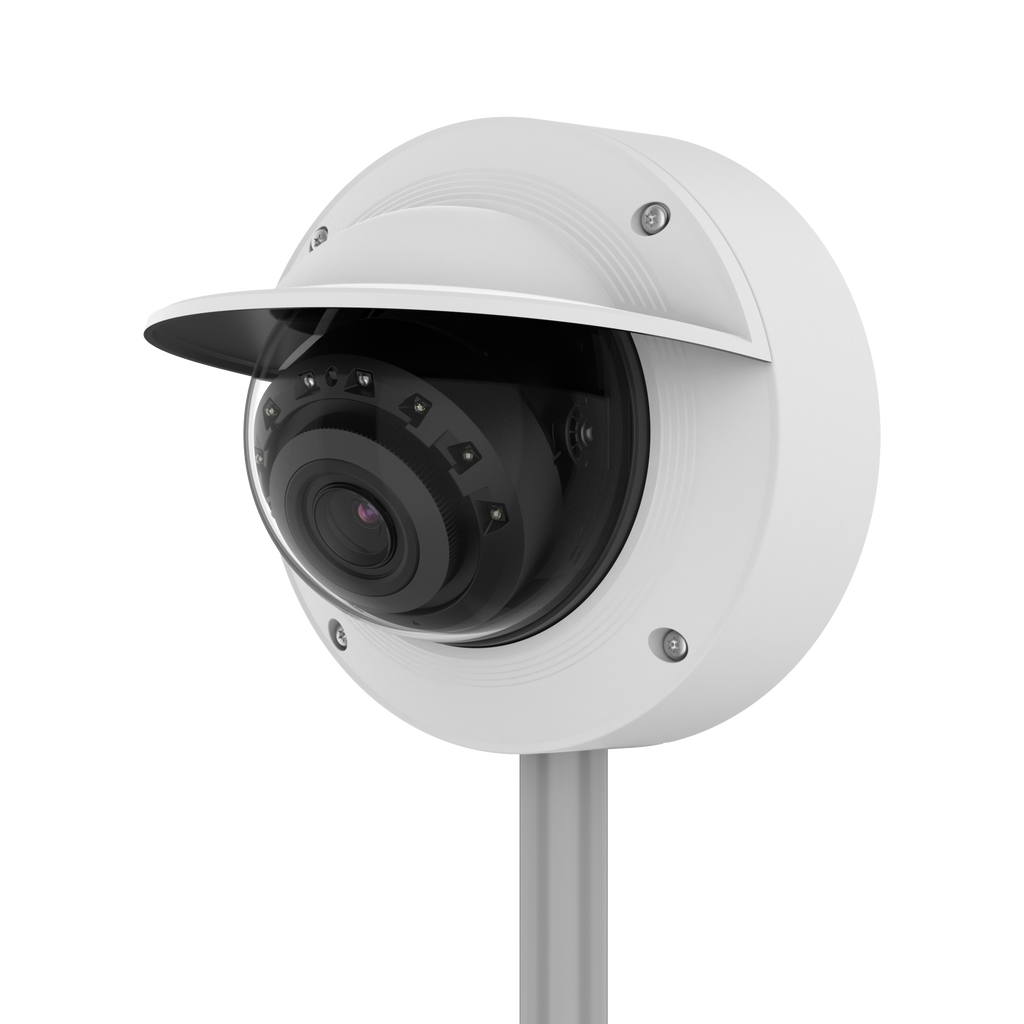

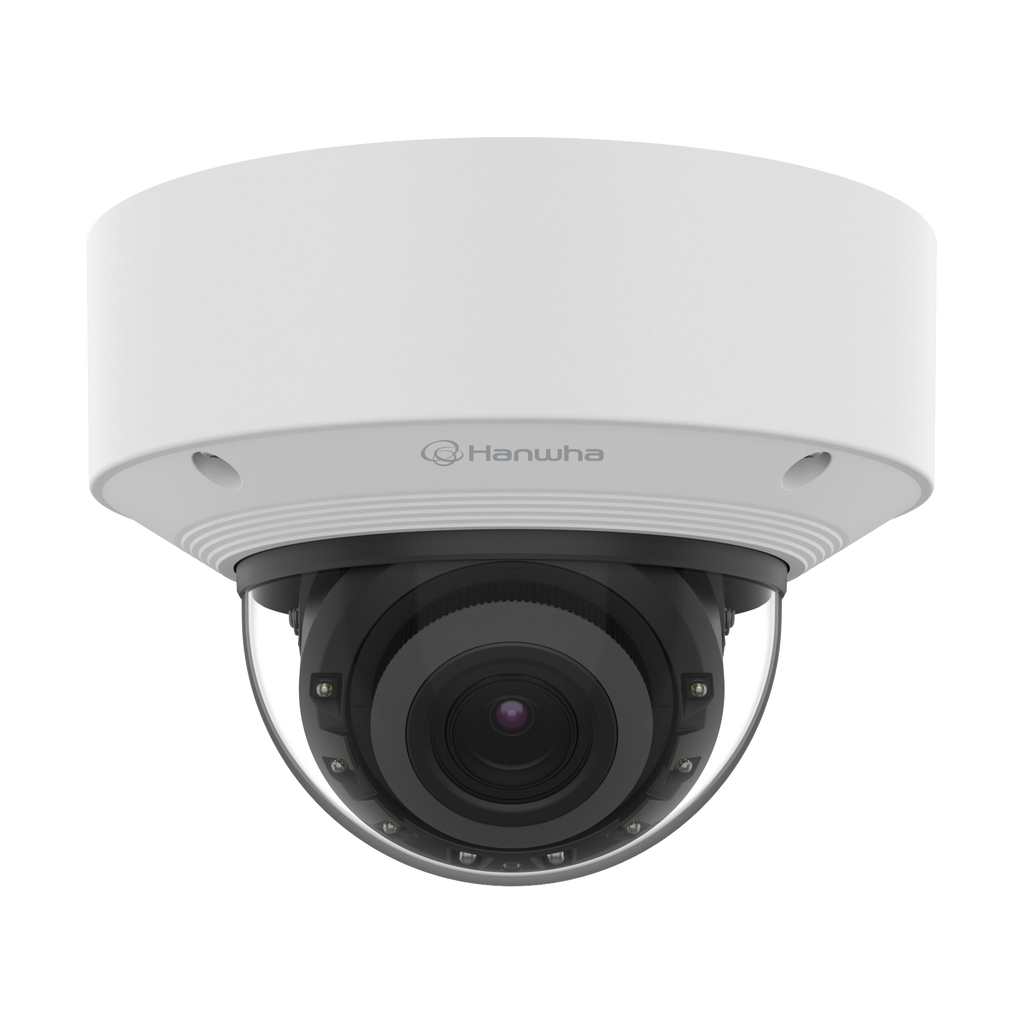

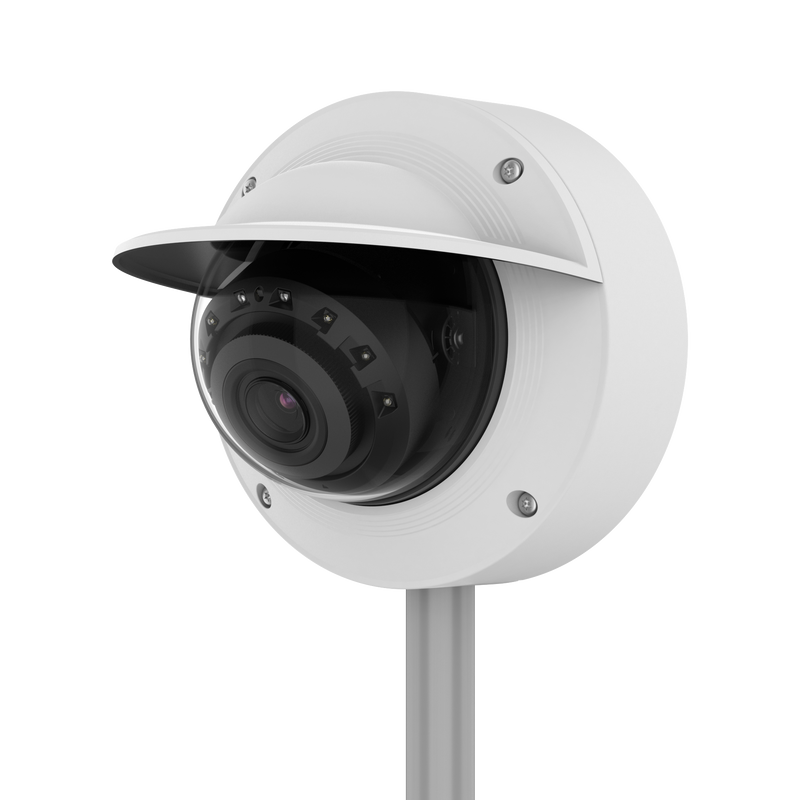

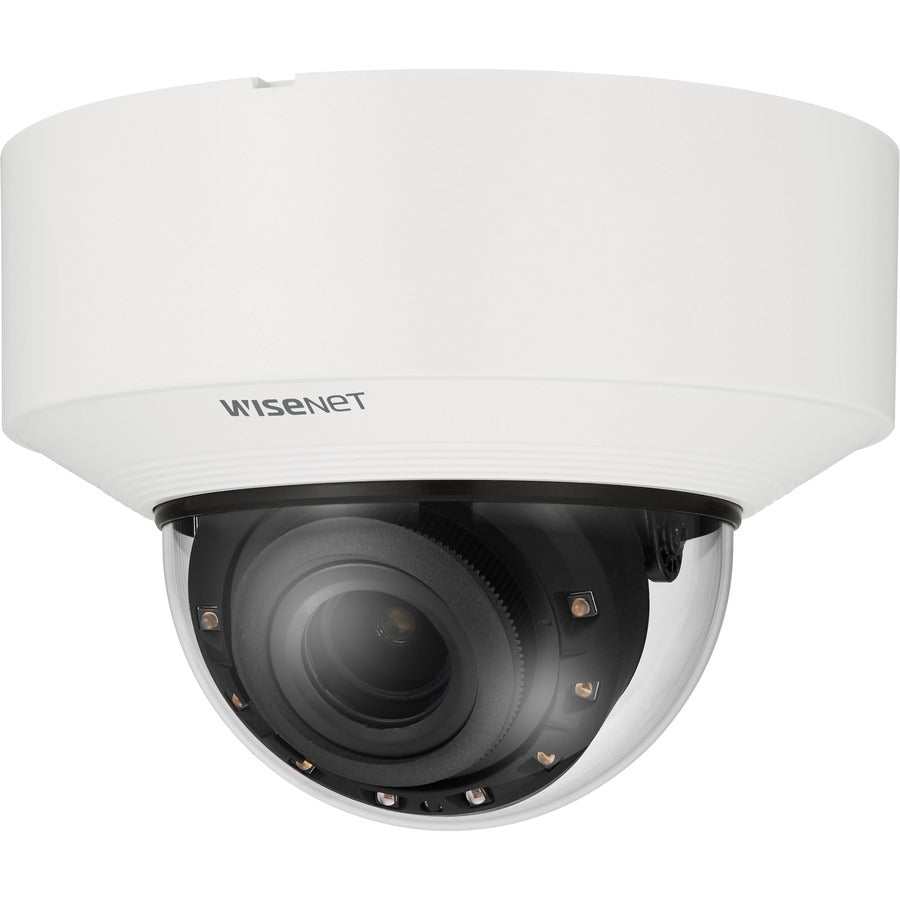

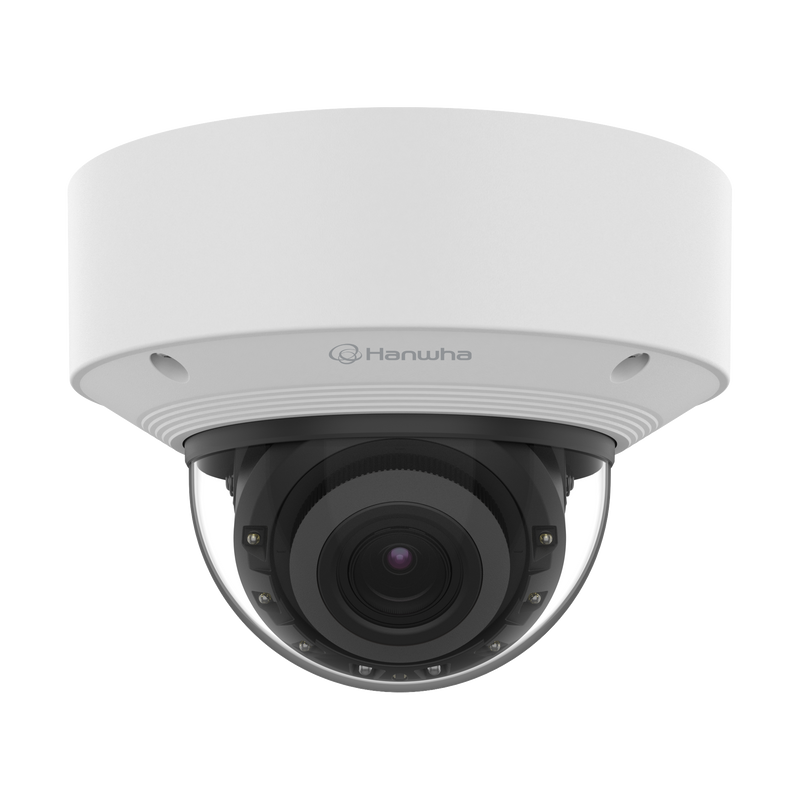

The Wisenet XNV-C9083R is a premium 4K AI-powered vandal-resistant dome camera designed for professional surveillance in demanding indoor and outdoor environments. Built with a large 1/1.8" CMOS sensor and advanced AI analytics, it delivers exceptional image clarity, intelligent detection, and reliable performance in all lighting conditions.
Equipped with a 4.4–9.3mm motorized varifocal P-iris lens, the camera ensures optimal optical precision with wide-to-tele coverage and supports WiseIR for up to 40m IR night vision. With 120dB extreme WDR, WiseNR II AI-based noise reduction, and a robust IK10/IP66/IP67/NEMA4X design, this unit is ideal for high-security applications such as commercial buildings, transportation hubs, critical infrastructure, and city surveillance.
The onboard NPU provides advanced analytics including person/face/vehicle detection, license plate detection, virtual line/area monitoring, loitering, intrusion, sound classification, and business intelligence features such as people counting, heatmap visualization, and queue management.
The XNV-C9083R also offers secure firmware, encrypted data protection, and compatibility with ONVIF S/G/T/M profiles for flexible system integration.
| Category | Details |
|---|---|
| Camera Type | 4K AI IR Vandal Dome Camera |
| Image Sensor | 1/1.8" CMOS |
| Max Resolution | 3840 × 2160 (4K) |
| Frame Rate | 30fps (H.265/H.264), MJPEG up to 30fps (@ reduced fps at 8MP) |
| Minimum Illumination | Color: 0.04 Lux (F1.3) • B/W: 0.004 Lux • 0 Lux with IR |
| Lens | 4.4–9.3mm motorized varifocal, P-iris, IR-corrected |
| Field of View | H: 113°–47° • V: 58°–26° • D: 138°–54° |
| IR Illumination | WiseIR up to 40m (850nm) |
| WDR | 120dB extreme WDR |
| Focus Control | Simple focus, Manual |
| Pan/Tilt/Rotate | Pan 0–360° • Tilt 0–75° • Rotate 0–355° |
| AI Analytics | Person/face/vehicle/license plate detection, virtual line/area, enter/exit, loitering, intrusion, direction, motion; business intelligence: people counting, heatmap, queue management |
| Other Analytics | Defocus, tampering, fog detection, audio detection, sound classification, shock detection |
| Compression | H.265 / H.264 (Main/Baseline/High) / MJPEG |
| Smart Codec | WiseStream III (AI-based) |
| Audio | Audio In (mic/line selectable), Audio Out (line out) |
| Network Interface | RJ-45 (10/100BASE-T), ONVIF S/G/T/M, SUNAPI, Direct Cloud Connection |
| Edge Storage | microSD/SDHC/SDXC up to 512GB; OnCloud up to 1TB |
| Power | PoE (IEEE 802.3af Class 3) • 12V DC |
| Power Consumption | PoE: Max 12.95W • 12VDC: Max 13.2W |
| Operating Temperature | –40°C to +55°C (–40°F to +131°F) |
| Ingress / Impact Rating | IP66, IP67, IK10, NEMA 4X |
| Material / Color | Aluminum housing, hard-coated dome • White (RAL9003) |
| Dimensions | Ø160 × 118 mm (6.30 × 4.65 in) |
| Weight | 1.45 kg (3.20 lb) |
