Description

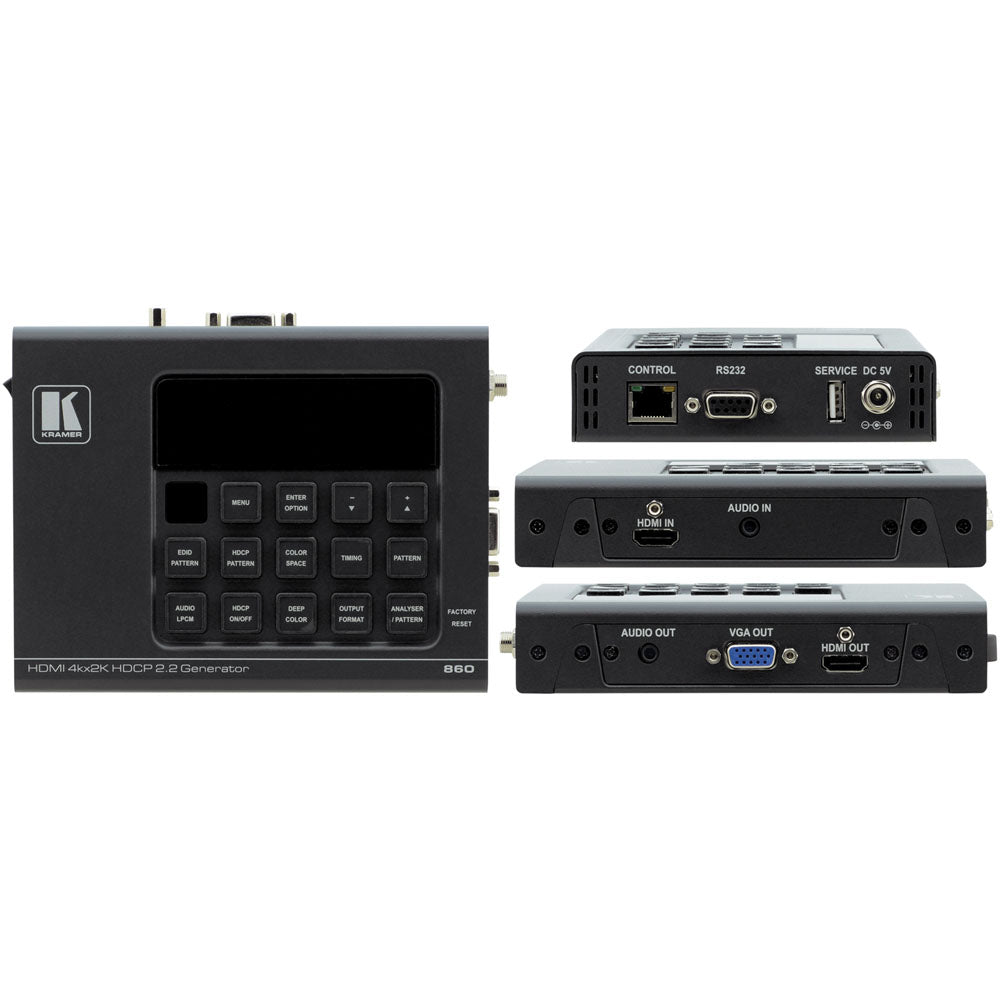

The Kramer 860 is a compact, professional-grade 18G 4K HDR signal generator and analyzer designed for AV integrators, engineers, and technicians who demand precise testing and verification of HDMI signal paths. Supporting 4K@60Hz (4:4:4), HDR10, Dolby Vision (input), HDCP 1.4/2.2, and an extensive library of 88 resolutions and 55 test patterns, this unit provides powerful diagnostics for any modern UHD workflow.
With advanced capabilities including EDID analysis and emulation, HDMI data packet inspection, SCDC monitoring, and up to 8-channel LPCM audio test generation, the Kramer 860 ensures accurate evaluation of both video and audio integrity. Its rugged metal construction, OLED display, multiple control interfaces, and included protective case make it an essential tool for field service and bench testing environments.
| Category | Details |
|---|---|
| Max Resolution | 4K@60Hz (4:4:4) |
| HDMI Compliance | HDMI 2.0; HDCP 1.4/2.2; HDR10 (input), Dolby Vision (input), xvYCC color (input) |
| Video Analysis & Generation | 88 built-in resolutions; 55 test patterns; HDMI timing generation up to 4096×2160@60Hz (4:4:4) |

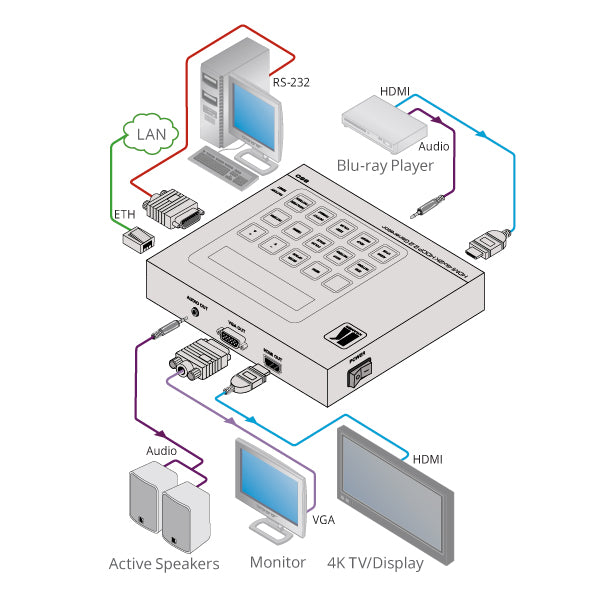

| Inputs | 1 HDMI; 1 stereo audio (3.5mm, 2Vrms max/20kΩ); RS-232; Ethernet; USB |
| Outputs | 1 HDMI; 1 VGA; 1 stereo audio (3.5mm, 2Vrms max/560Ω) |
| Audio Support | LPCM sinewave generation up to 8 channels; Dolby TrueHD/DTS-HD Master Audio bypass |
| EDID/HDCP/SCDC | EDID analysis & emulation; HDCP 1.4 & 2.2 analysis; SCDC monitoring |
| Control Options | Front-panel buttons, OLED display, OSD, RS-232, Ethernet (Telnet), IR remote |
| Max Data Rate | 18Gbps (6Gbps per graphic channel) |
| ESD Protection | ±8 kV (air), ±4 kV (contact) |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Storage Temperature | −20°C to +60°C (−4°F to 140°F) |
| Humidity | 20%–90% RH non-condensing |
| Power Requirements | 5V DC, 1.6A (includes 5.2V/4A supply) |
| Chassis | Metal |
| Safety Certification | CE |

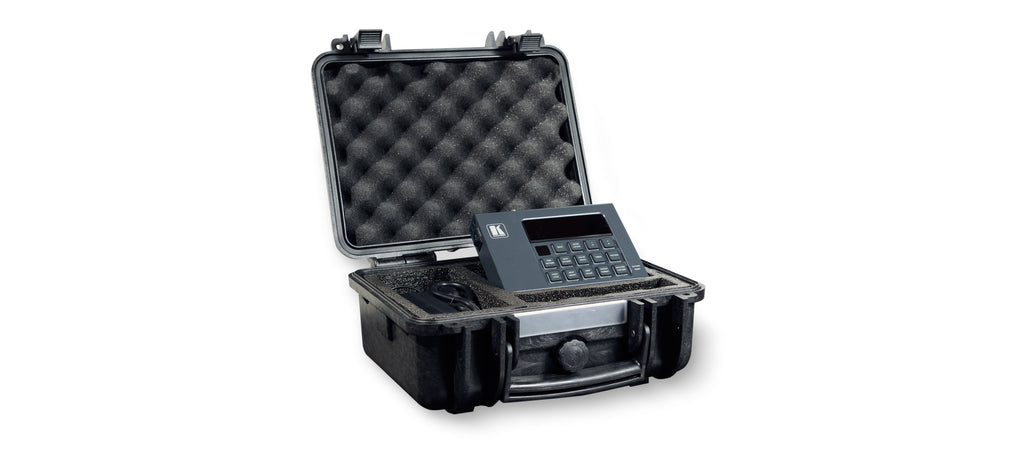

| Included Accessories | LR-40 remote control, power supply, protective carrying case |
| Product Dimensions (W×D×H) | 16.50 × 13.20 × 3.00 cm (6.50" × 5.20" × 1.18") |
| Product Weight | 0.8 kg (1.7 lbs) |
| Shipping Dimensions | 30.50 × 26.90 × 14.70 cm |
| Shipping Weight | 2.7 kg (5.9 lbs) |
