Description

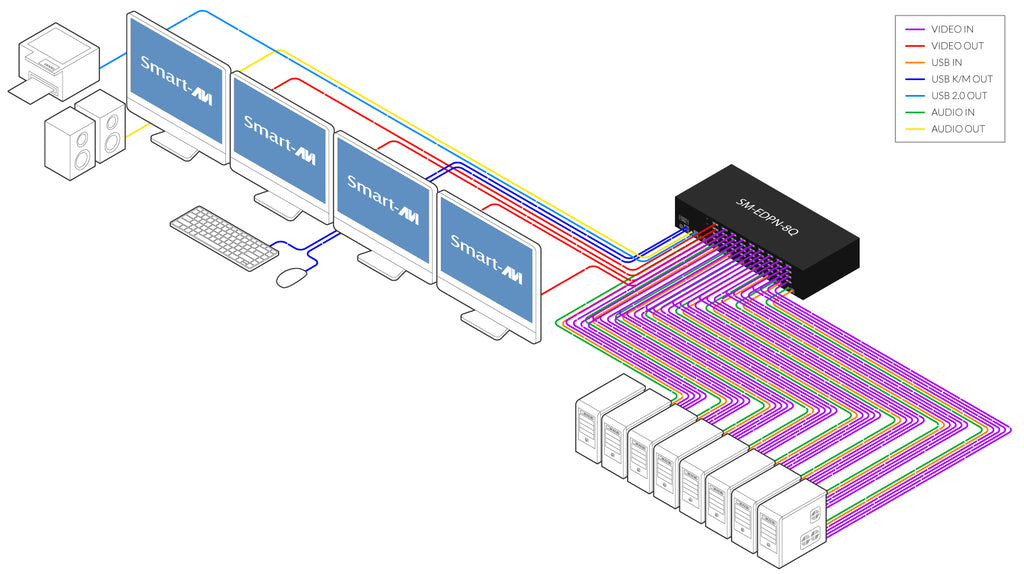

The SmartAVI SM-EDPN-8Q-S is an advanced quad-head DisplayPort KVM switch engineered for high-performance environments that demand stability, precision, and seamless multi-system control. Designed to support up to eight computers with four DisplayPort outputs, this enterprise-grade solution delivers ultra-high-definition 4K resolution at 60Hz while maintaining consistent display configurations through EDID (AUX) emulation.
Built for mission-critical operations such as control rooms, broadcast environments, and digital signage systems, this KVM switch ensures uninterrupted workflows by preserving screen resolution, icon placement, and multi-monitor alignment when switching between sources. Independent switching capabilities allow users to manage USB peripherals, audio, and video across different systems simultaneously, providing unmatched flexibility and efficiency.
With robust connectivity, RS-232 control integration, and broad OS compatibility, the SM-EDPN-8Q-S is a reliable and scalable solution for complex AV and IT infrastructures requiring precision switching and consistent visual performance.
| Specification Category | Details |
|---|---|
| Video Format | DisplayPort |
| Max Resolution | 3840 x 2160 @ 60Hz |

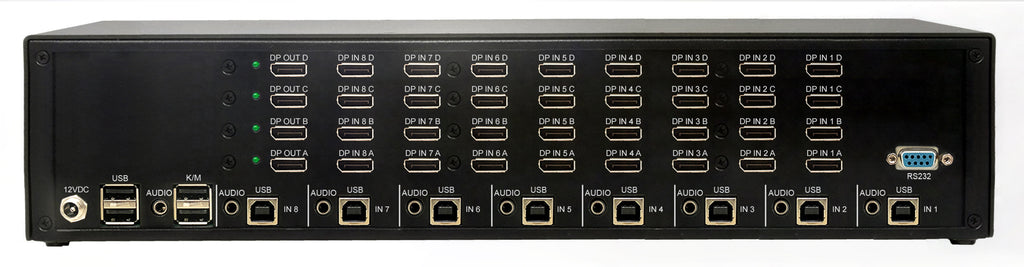

| Video Input Ports | 32 DisplayPort (8 systems x quad-head) |
| Video Output Ports | 4 DisplayPort |
| Color Depth | 24-bit |
| EDID Support | EDID (AUX) Emulation for stable display configurations |
| USB Support | USB 2.0, 1.1, and 1.0 with internal hub |
| USB Inputs | 8 USB Type B |
| USB Outputs | 2 USB 1.1 Type A (KVM), 2 USB 2.0 Type A (transparent) |
| Audio Input | 8 x 3.5mm stereo |
| Audio Output | 1 x 3.5mm stereo |
| Audio Frequency Response | 20 Hz to 20 kHz |
| Control Methods | Front panel buttons, hotkeys, RS-232 |
| RS-232 Control | Up to 115200 bps |
| Switching Capability | Independent switching of KVM, USB, and audio |
| Cable Distance | Up to 20 ft input/output |
| Power Supply | External 100–240 VAC / 12VDC 3A |
| Power Consumption | 24W |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Humidity | Up to 80% non-condensing |
| Dimensions | 17” W x 3.8” H x 6.69” D |
| Weight | 4.2 lbs |
| Compliance | UL, CE, RoHS |
| Operating Systems | Compatible with Windows, Mac, Linux, Unix, DOS and more |
