Description

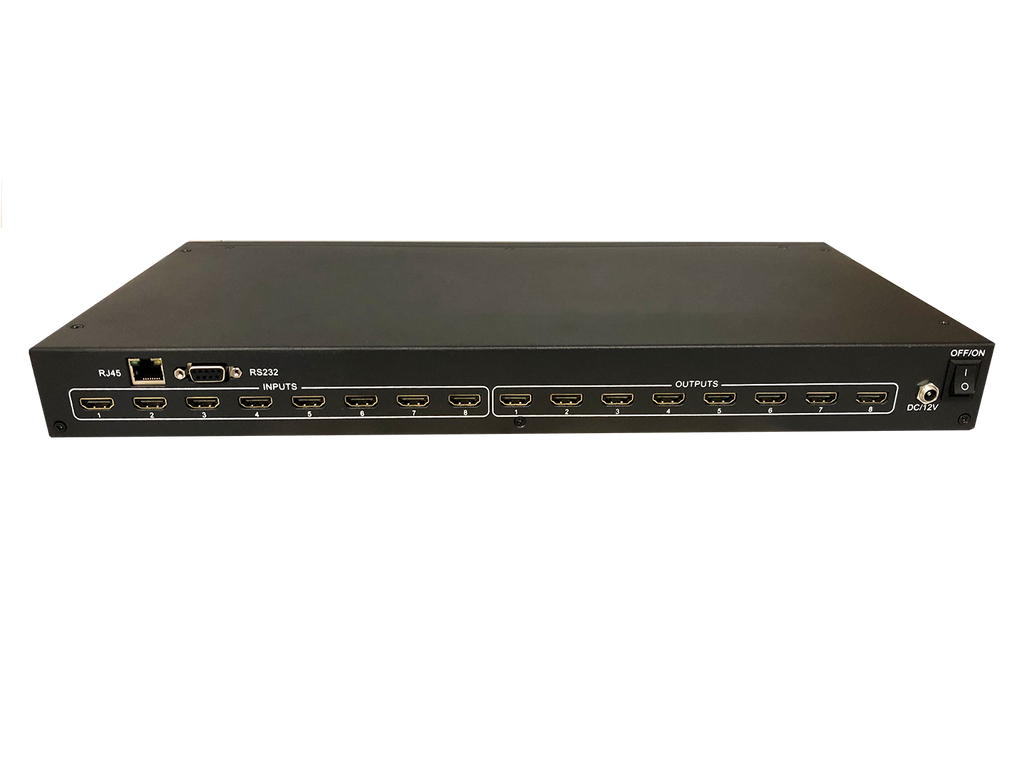

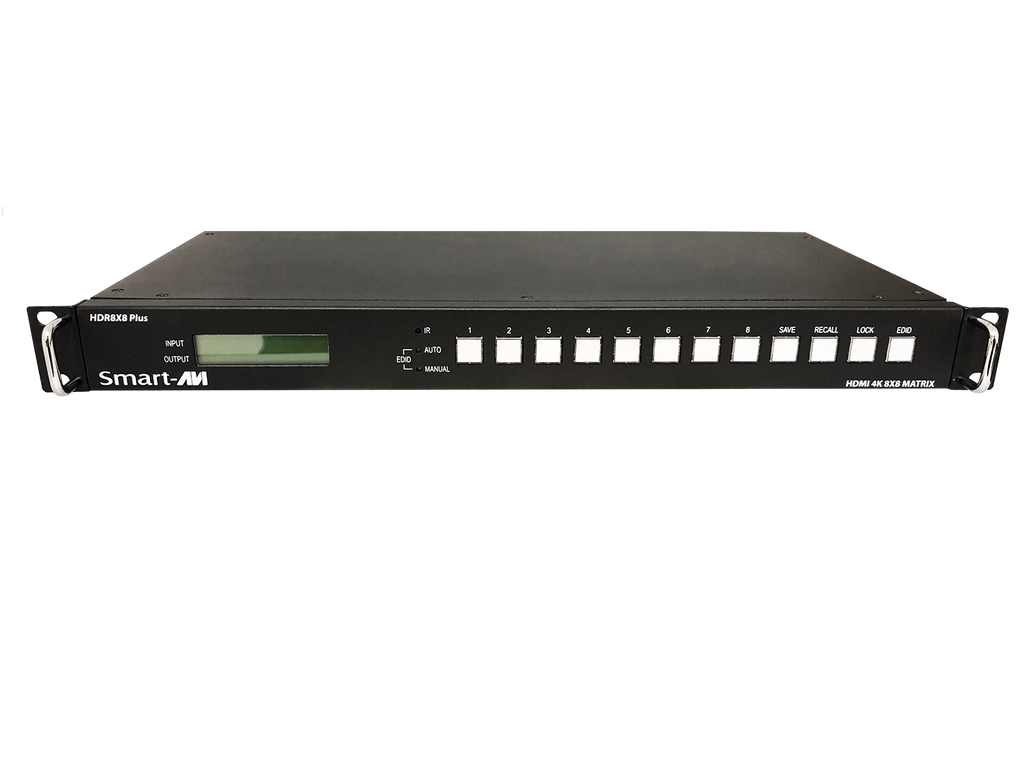

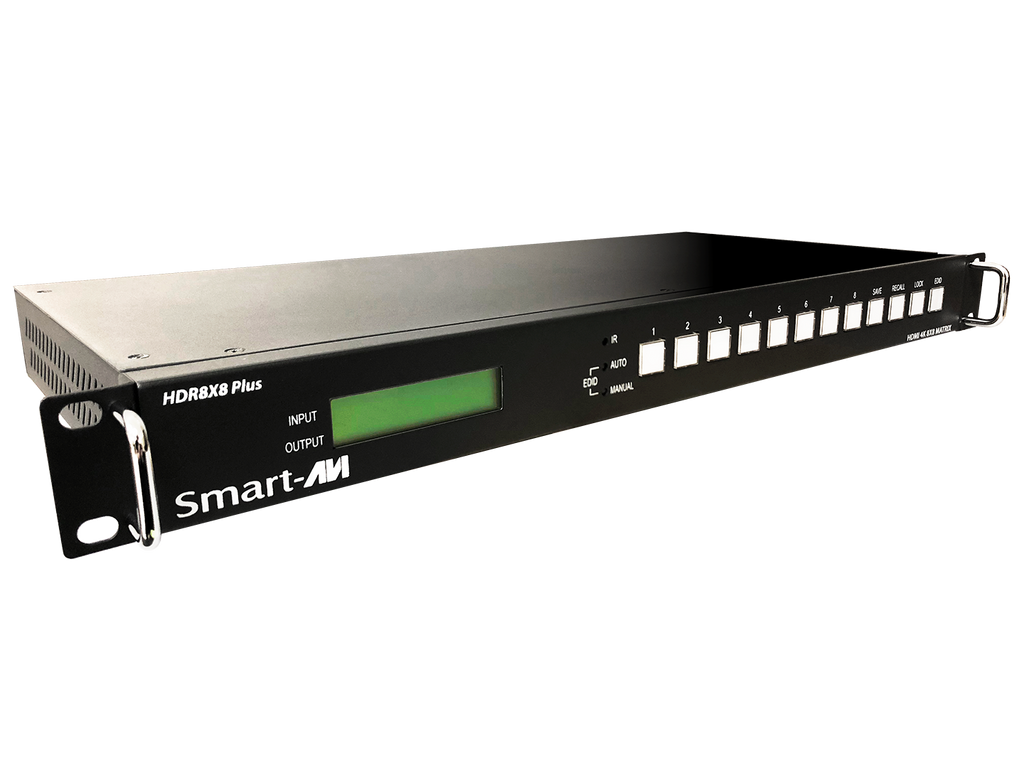

The SmartAVI HDR-UHD-8X8-S is a high-performance 4K60 HDMI matrix switch engineered for seamless signal distribution across demanding AV environments. Designed to route eight HDMI sources to eight displays independently, this non-blocking matrix ensures uninterrupted, real-time switching without signal degradation. Ideal for control rooms, digital signage, broadcast environments, and enterprise AV deployments, it delivers reliable Ultra HD video and multi-channel audio distribution.
With integrated RS-232, IR, and TCP/IP control, the HDR-UHD-8X8-S provides flexible system management through hardware interfaces or web-based control. EDID learning ensures optimal compatibility between connected devices, while support for HDMI and HDCP standards guarantees secure and stable signal transmission. Built for professional applications, this matrix switch simplifies complex AV routing while maintaining consistent performance and scalability.
| Specification | Details |
|---|---|
| Video Resolution | Up to 4K UHD (3840 x 2160 @ 30Hz) |
| Switching Type | 8x8 Non-blocking seamless HDMI matrix |
| Input Ports | 8 x HDMI (supports audio and video) |
| Output Ports | 8 x HDMI (supports audio and video) |
| HDMI Standard | HDMI 1.4 compliant |
| HDCP Support | HDCP 1.0 / 1.1 compliant |
| Video Bandwidth | Up to 10.2 Gbps |
| Audio Support | Multi-channel audio (up to 7.1) |
| EDID Management | EDID learning mode for optimal display compatibility |
| Control Methods | Front panel, RS-232, IR remote, TCP/IP (web-based control) |
| Network Control | Integrated TCP/IP with browser-based interface |
| Maximum Cable Length | Up to 20 ft (recommended) |
| Power Supply | External 100–240V AC, 12V DC adapter |
| Power Consumption | Approx. 20W |
| Operating Temperature | 0°C to 35°C |
| Storage Temperature | -20°C to 85°C |
| Humidity | Up to 95% non-condensing |
| Form Factor | Rackmount chassis |
| Dimensions | 17.25" W x 2.0" H x 9.0" D |
| Weight | Approx. 5.6 lbs |
| Compliance | UL, CE, RoHS certified |
