Description

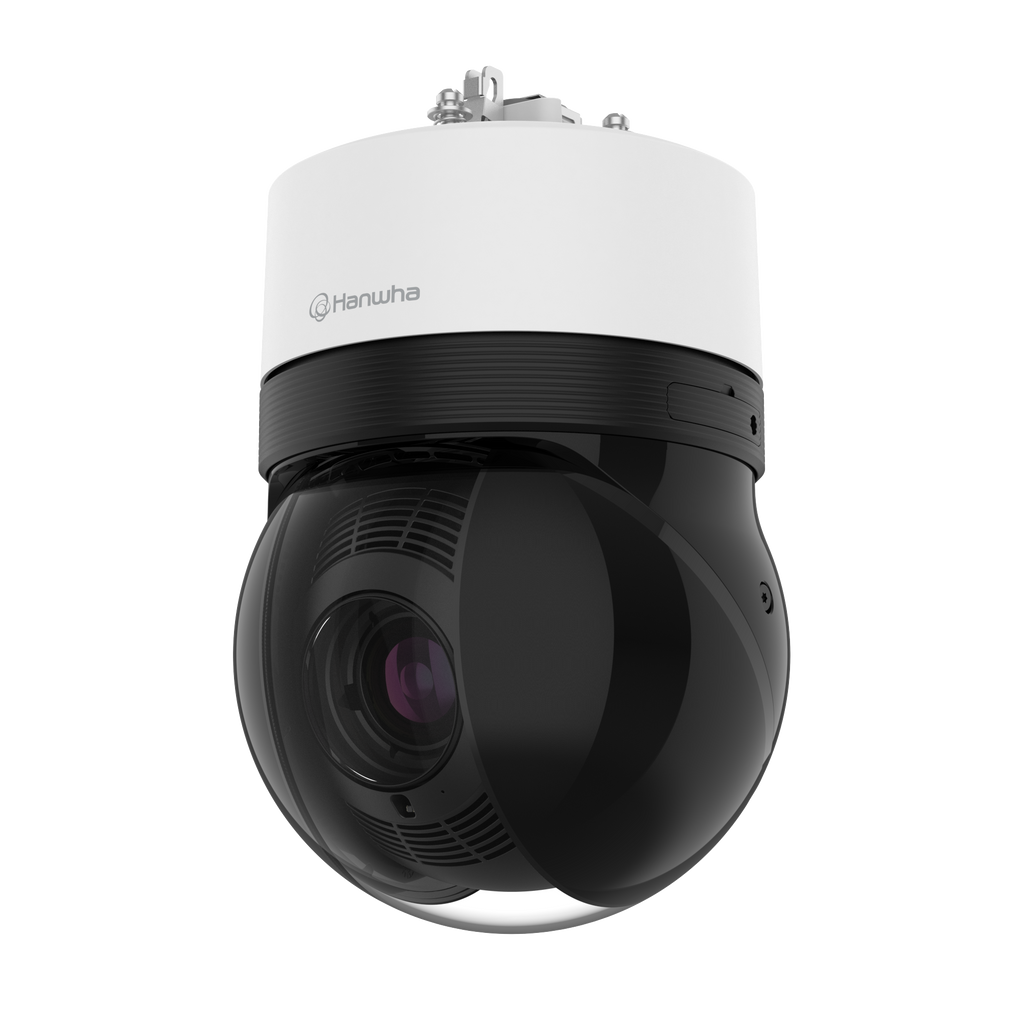

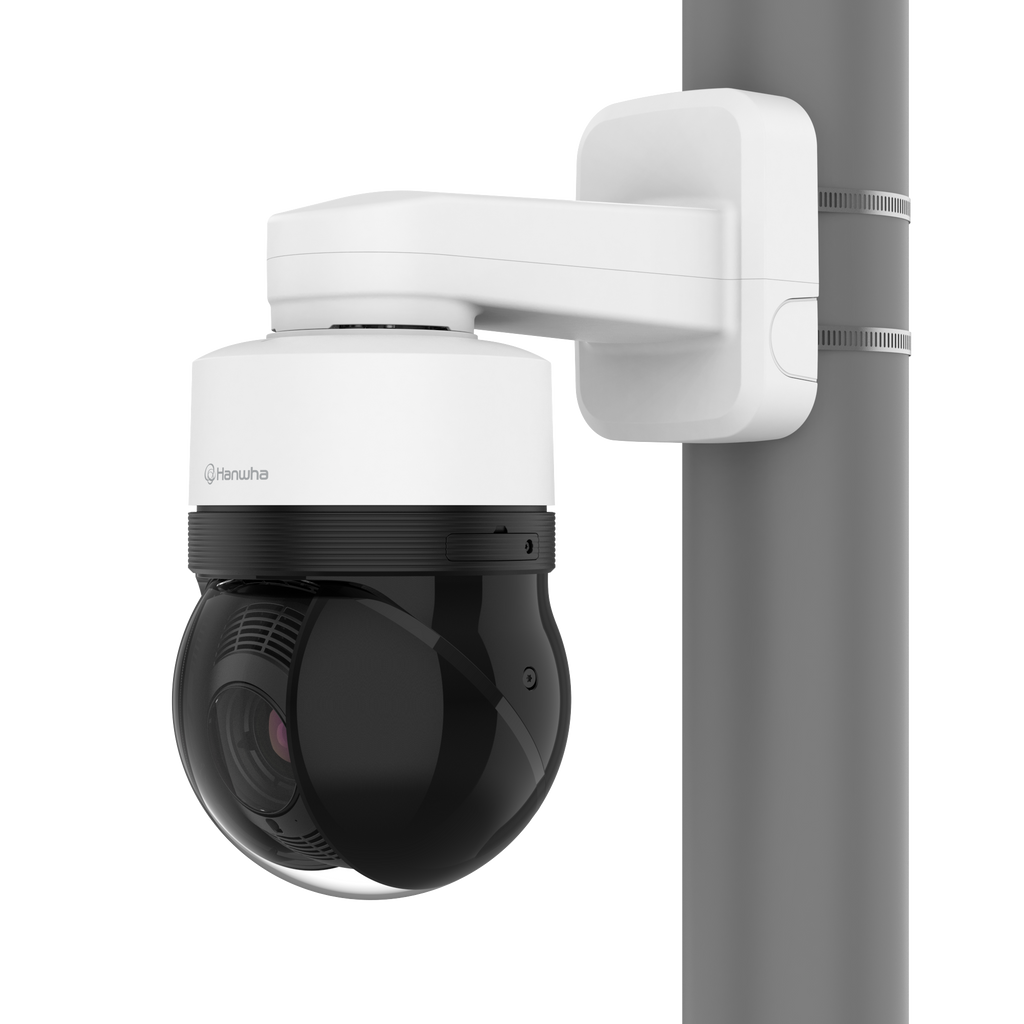

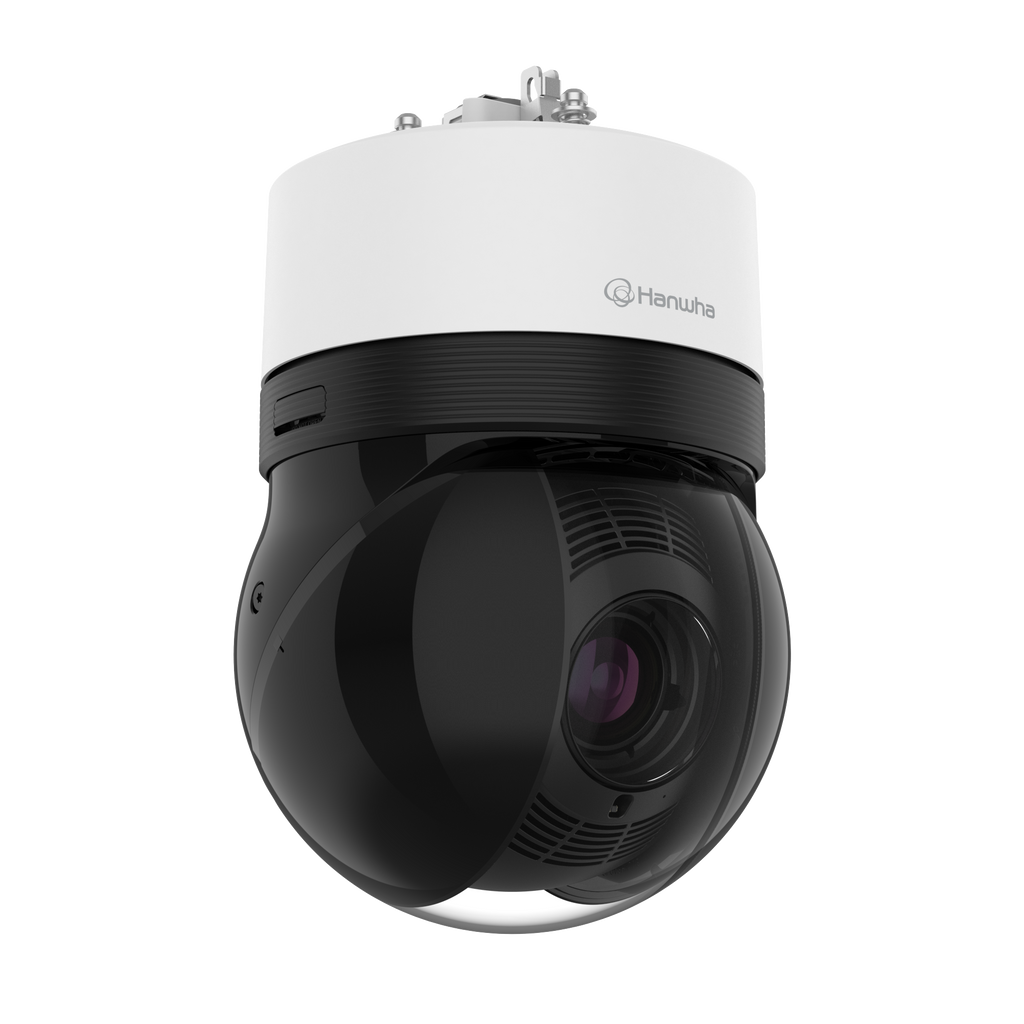

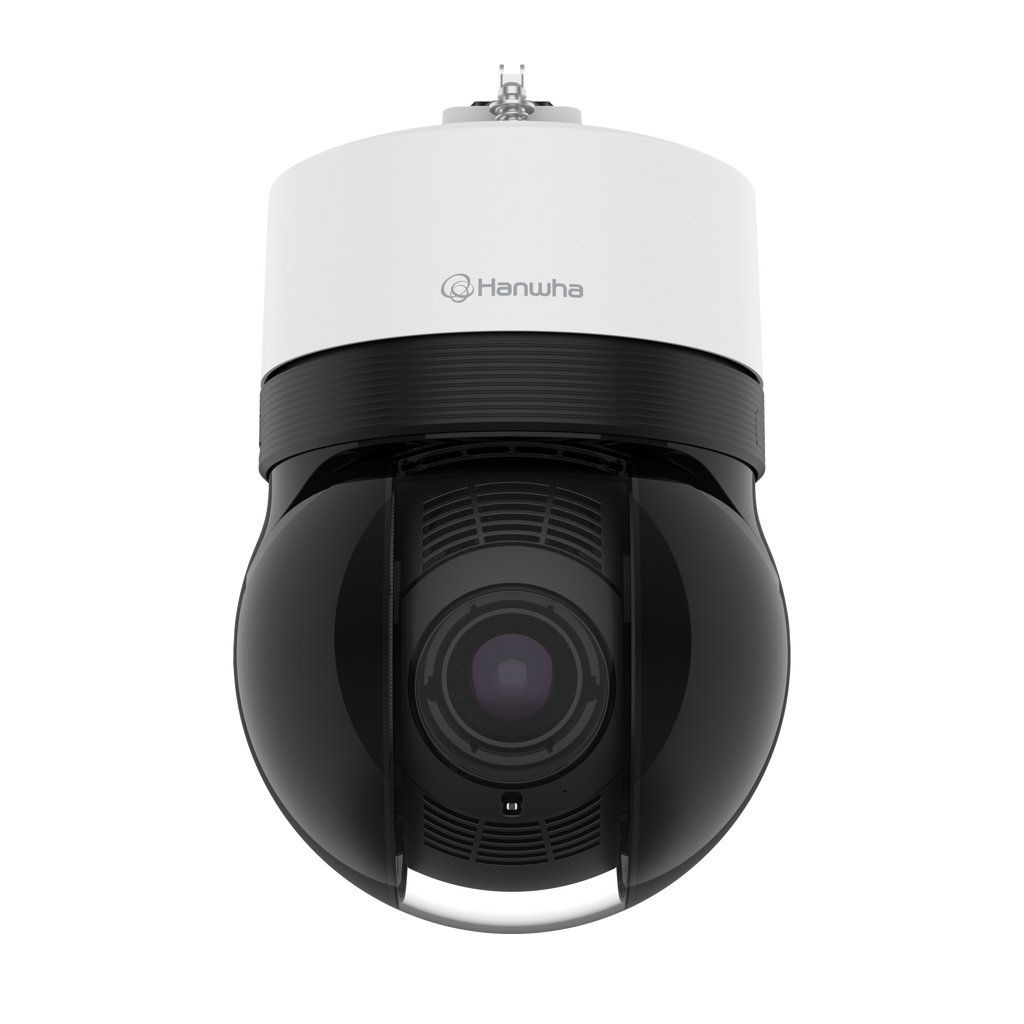

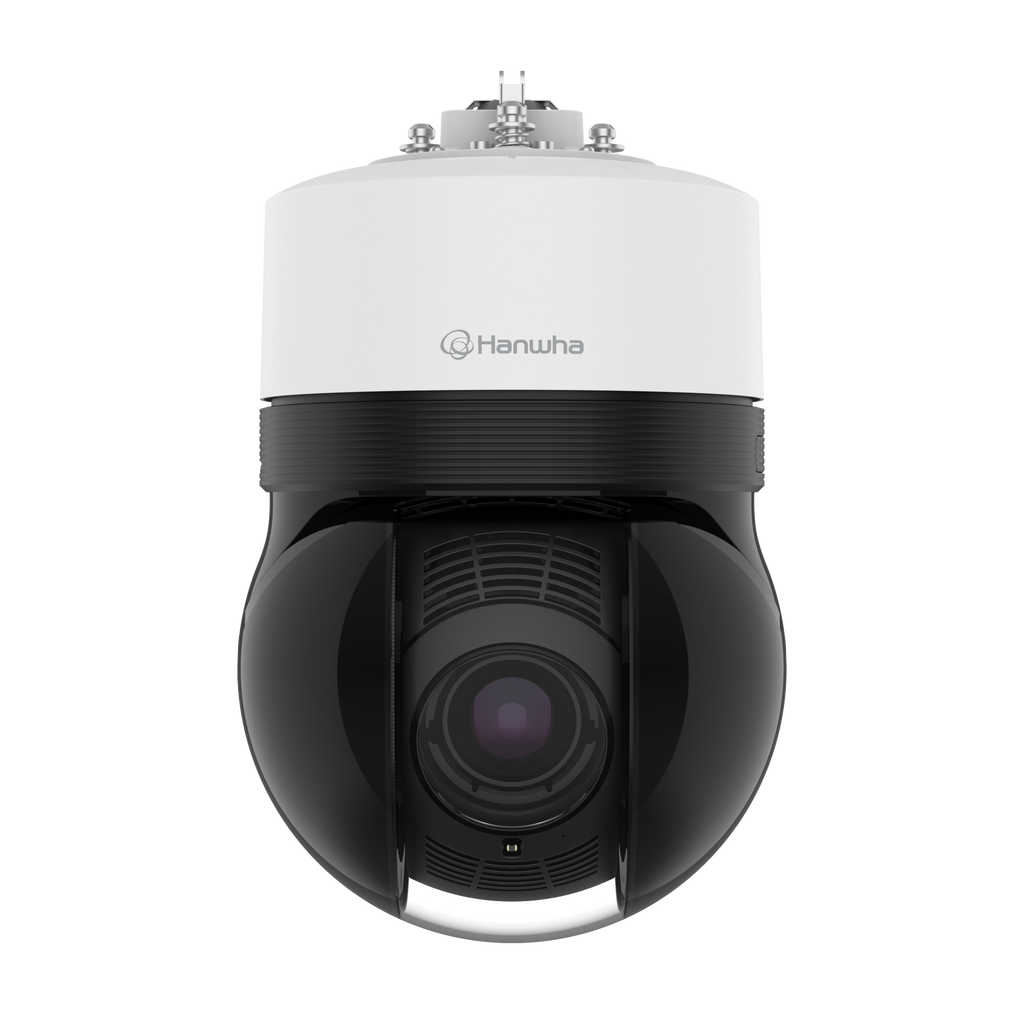

The Hanwha Vision XNP-C7310R is a powerful 4MP AI-enhanced PTZ camera engineered for long-range monitoring, perimeter security, and mission-critical surveillance environments. Its 31x optical zoom lens (6.91–214.7 mm) delivers exceptional clarity at wide and telephoto ranges, while the 300-meter Wise IR ensures vivid nighttime visibility even in complete darkness.
Built with an advanced AI engine, the camera supports object classification (person, face, vehicle, license plate), intelligent auto-tracking, virtual line and area detection, loitering, intrusion analytics, and AI-based noise reduction. Its rugged IP66/IP67, IK10, and NEMA 4X ratings make it ideal for harsh outdoor deployments, with operating temperatures down to −50°C.
With H.265/H.264/MJPEG support, WiseStream III compression, up to 10 streaming profiles, SD card edge storage, and comprehensive cybersecurity protections including TPM 2.0 with FIPS 140-2 Level 2, the XNP-C7310R provides a high-performance, secure, and reliable PTZ solution for enterprise, government, and critical infrastructure applications.
| Category | Details |
|---|---|
| SKU | XNP-C7310R |
| Image Sensor | 1/1.8" CMOS |
| Resolution Options | Up to 4MP (2592×1520) |
| Frame Rate | H.265/H.264: 60fps (WDR off), 30fps (WDR on) |
| Min. Illumination | Color: 0.04 Lux; B/W: 0.004 Lux; 0 Lux with IR |
| Lens | 6.91–214.7 mm motorized varifocal |
| Optical Zoom | 31x |
| Digital Zoom | 32x |
| Aperture (F-Stop) | F1.36 (Wide) / F4.6 (Tele) |
| Field of View | Horizontal 59.4°–2.54°; Vertical 35.8°–1.49° |
| IR Range | Up to 300 m Wise IR |
| PTZ Range | Pan 360° endless; Tilt +90° to −20° |
| PTZ Speed | Up to 550°/sec (preset) |
| WDR | 120 dB |
| Noise Reduction | WiseNR II, SSNR V |
| Image Stabilization | Gyro-based DIS |
| Video Compression | H.265, H.264, MJPEG, WiseStream II/III |
| Streaming | Up to 10 profiles; Unicast up to 20 users |
| AI Analytics | Person, face, vehicle, LPR; line crossing, intrusion, loitering, appear/disappear, shock detection, sound classification |
| Auto-Tracking | Person/vehicle auto-tracking, target-lock |
| Audio I/O | Via optional I/O box |
| Alarm I/O | Via optional I/O box |
| Edge Storage | Dual microSD/SDHC/SDXC (up to 1TB total) |
| Network Interface | RJ-45 10/100BASE-T |
| Protocols | IPv4/IPv6, TCP/IP, UDP, RTP/RTSP, HTTPS, SRTP, ONVIF S/G/T/M, MQTT, SUNAPI |
| Cybersecurity | TPM 2.0 with FIPS 140-2 Level 2, secure boot, signed firmware |
| Operating Temperature | −50°C to +55°C |
| Ingress/Impact Rating | IP66, IP67, IK10, NEMA 4X |
| Power Input | HPoE (IEEE 802.3bt Type 4, Class 8) |
| Power Consumption | Max 62W (typical 23W) |
| Dimensions | Ø188 × 264.9 mm |
| Weight | 4.4 kg (9.70 lb) |
| Available Colors | White, Black |
