Description

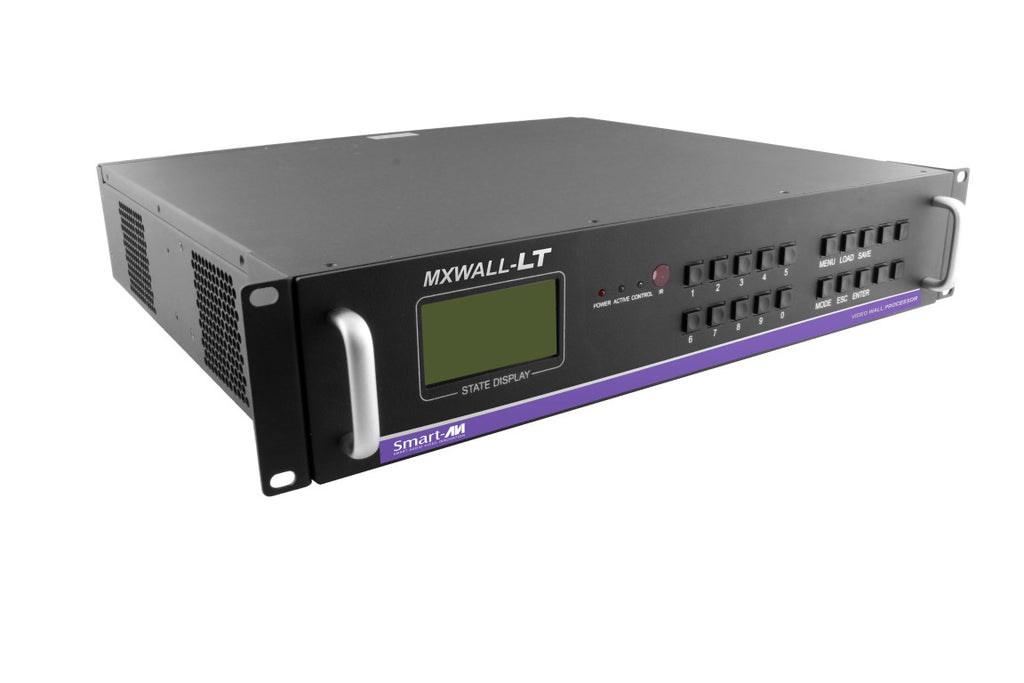

The SmartAVI MXWall-LT 4x12 is a powerful all-in-one HDMI matrix switch and video wall processor designed for seamless multi-display deployments. Built for reliability and ease of use, it supports up to 4 HDMI inputs and 12 HDMI outputs, making it ideal for mid-sized video walls in control rooms, retail environments, corporate spaces, and digital signage applications.

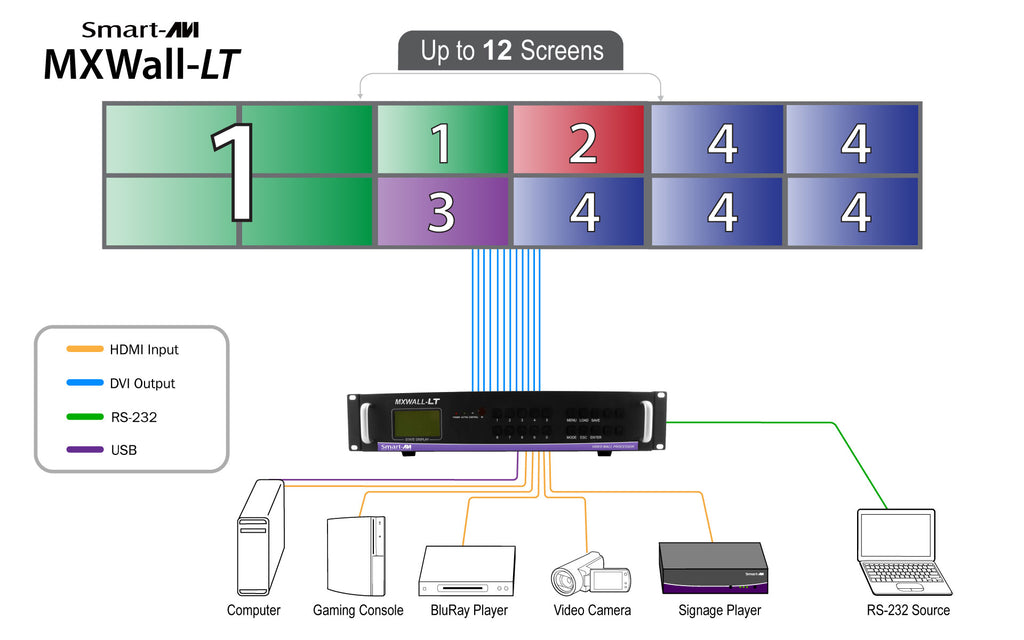

Delivering crisp Full HD 1080p resolution at 60Hz, the MXWall-LT ensures high-quality video performance across all connected displays. Its integrated scaling and flexible configuration modes allow users to create dynamic layouts including full video wall, quad view, or fully customized display arrangements. The intuitive MXWall Manager software simplifies setup and control with drag-and-drop functionality, while multiple control options such as front panel, RS-232, and TCP/IP provide operational flexibility.
Designed for plug-and-play deployment, the MXWall-LT eliminates the need for complex installations, enabling rapid setup and reliable performance in demanding AV environments.
| Specification | Details |
|---|---|
| Video Inputs | Up to 4 HDMI inputs |
| Video Outputs | Up to 12 HDMI outputs |
| Supported Resolution | Up to 1920x1080 @ 60Hz |
| Video Formats | RGB and YCbCr (various bit depths) |
| HDMI Compliance | HDMI 1.4, HDCP compliant |
| Scaling & Processing | Integrated scaler and video wall processor |
| Display Modes | Video wall, quad view, individual display, custom layouts |
| Control Methods | Front panel, RS-232, TCP/IP (Telnet), software |
| Software | MXWall Manager (Windows, Android) |
| Input Card Format | 4-port HDMI card |
| Output Card Format | 4-port HDMI card |
| Input Slots | Up to 2 cards (expandable) |
| Output Slots | Up to 3 cards (expandable) |
| Bandwidth | 3.2 Gbps |
| Pixel Clock | Above 165 Mpix/sec |
| Operating Temperature | 0°C to +55°C |
| Storage Humidity | 10% to 90% |
| Power Supply | 100–230 VAC, 50/60Hz |
| Power Consumption | 300W |
| Dimensions | 17 x 3.5 x 15 inches |
| Weight | 20 lbs |
| Connectivity | HDMI, RS-232, LAN (TCP/IP), USB |
| Installation Type | Rackmount |
