Description

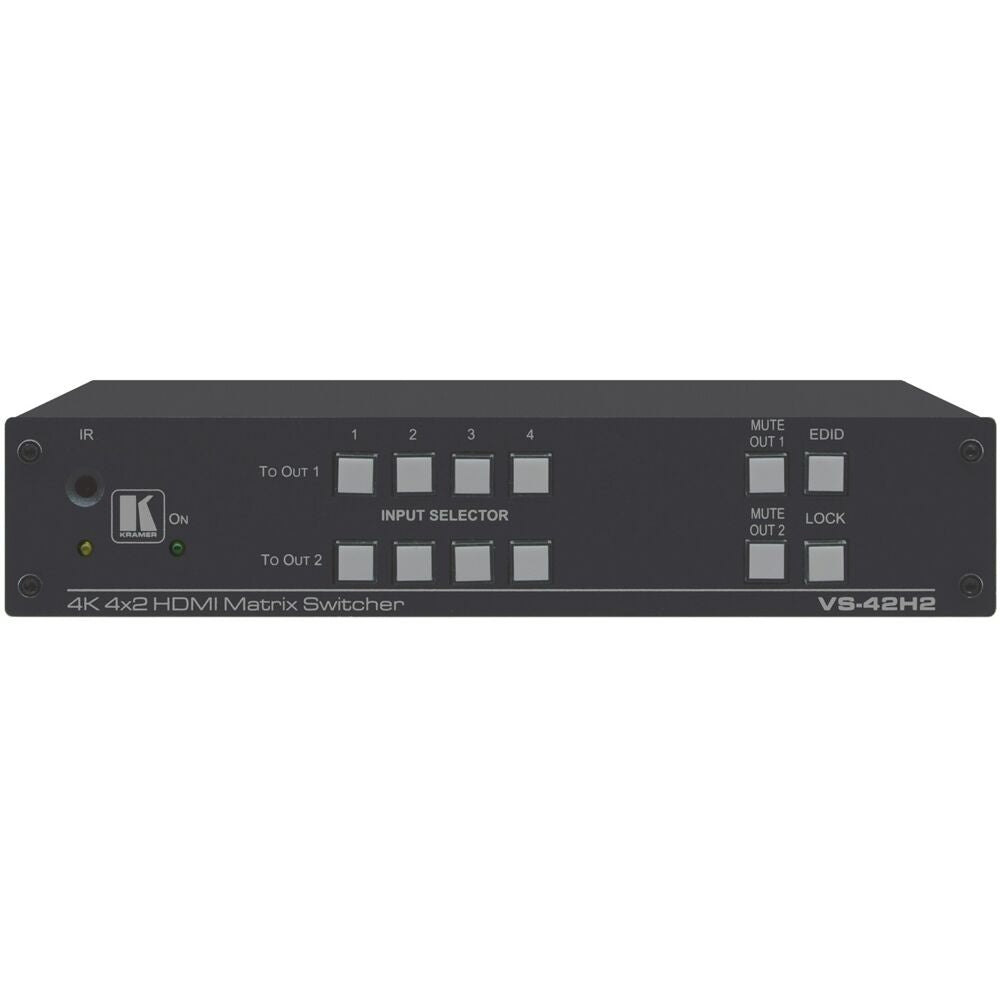

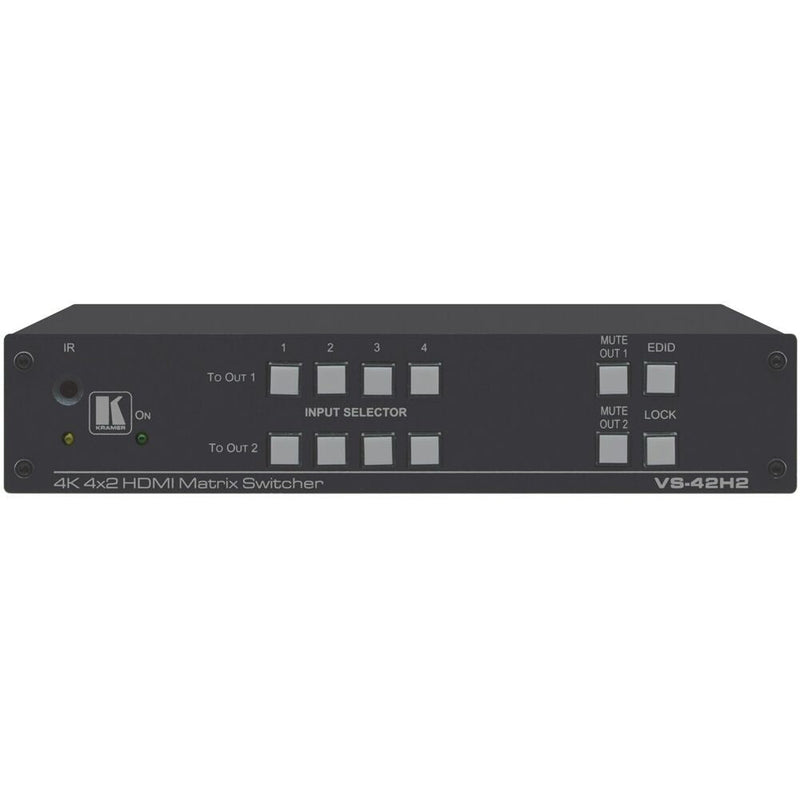

The Kramer VS-42H2 is a high-performance 4x2 HDMI matrix switcher designed for professional AV environments that require reliable 4K UHD signal routing. Supporting 4K@60Hz (4:4:4) with HDR and full HDCP 2.2/1.4 compliance, this matrix allows you to route any of four HDMI sources to one or both outputs simultaneously—ideal for conference rooms, classrooms, digital signage, and multi-display installations.
Equipped with Kramer’s advanced equalization and re-clocking technology, the VS-42H2 ensures stable, high-quality signal transmission over longer distances. Flexible EDID management enables optimized communication with connected displays, while selectable HDCP per input enhances content-protection control. The switcher offers intuitive control via front-panel buttons, IR remote, Ethernet with embedded web pages, RS-232, and contact-closure switches—making system integration seamless.
With its compact half-19" 1U form factor, robust aluminum enclosure, and support for field-upgradeable firmware, the VS-42H2 delivers professional-grade performance, easy deployment, and long-term reliability for modern AV setups.
| Category | Details |
|---|---|
| Inputs | 4 HDMI (female connectors) |
| Outputs | 2 HDMI (female connectors) |

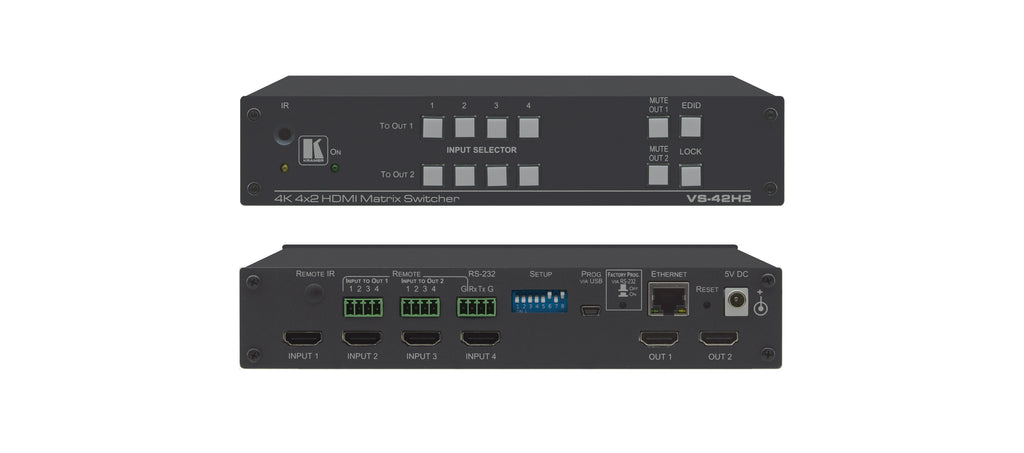

| Ports | 1 Ethernet (RJ-45), 1 RS-232 (3-pin terminal block), 1 mini-USB, 8 remote contact-closure switches |
| Max Resolution | 4K@60Hz (4:4:4) |
| Max Data Rate | 18Gbps (6Gbps per channel) |
| Compliance | HDCP 2.2/1.4 |
| User Controls | Input selection, output mute, EDID capture, panel lock; HDCP DIP switches |
| Indicators | Switching, IR, and power LEDs |
| Power | 5V DC, 2.5A |
| Operating Conditions | 0°C to +40°C (32°F to 104°F) |
| Storage Conditions | –40°C to +70°C (–40°F to 158°F) |
| Humidity | 10%–90% non-condensing |
| Compliance Standards | CE, RoHS, WEEE |
| Enclosure | Half-19" 1U aluminum, convection-cooled |
| Included Accessories | Power adapter, rubber feet, IR remote (upon request) |
| Product Dimensions (W×D×H) | 21.46 × 16.30 × 4.36 cm (8.45" × 6.42" × 1.72") |
| Product Weight | 1.0 kg (2.1 lbs) |
| Shipping Dimensions | 35.10 × 21.20 × 7.20 cm (13.82" × 8.35" × 2.83") |
| Shipping Weight | 1.6 kg (3.5 lbs) |
