Description

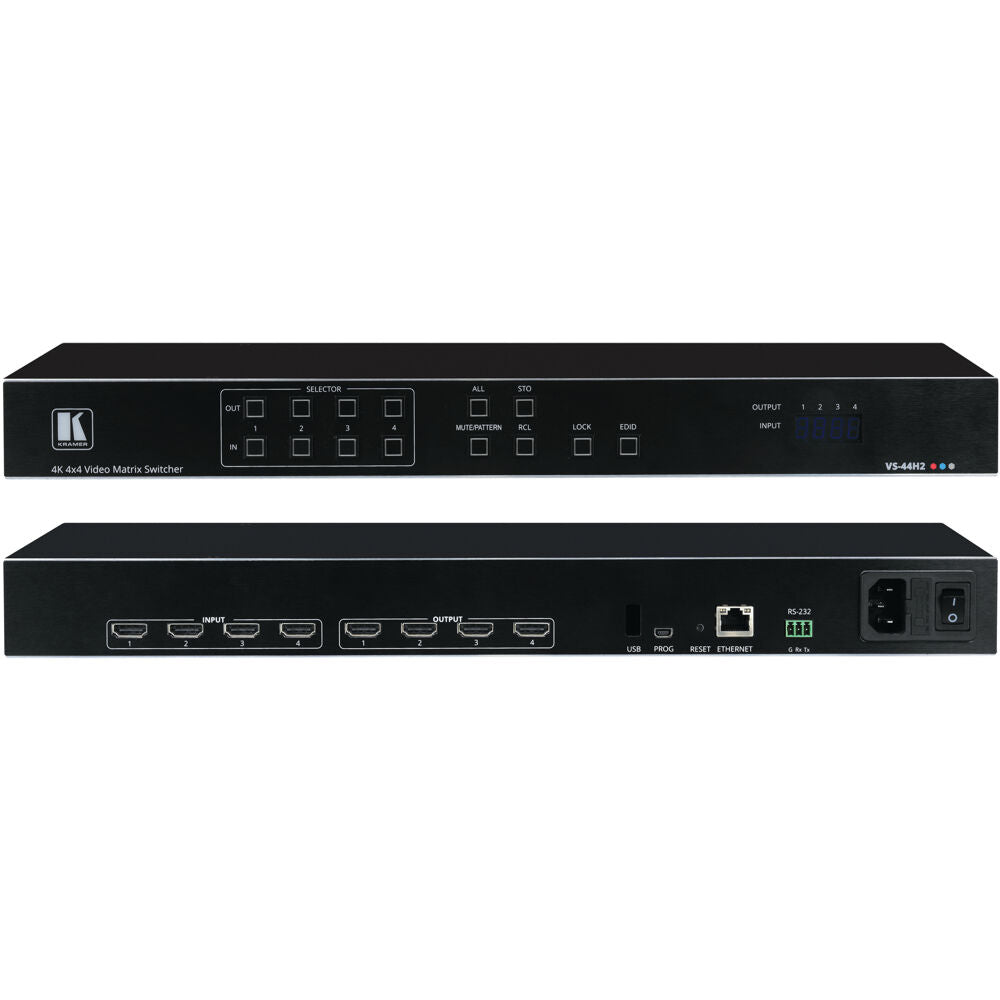

The Kramer VS-44H2 is a high-performance 4x4 HDMI matrix switcher designed for modern 4K HDR environments. Supporting 4K@60Hz (4:4:4), HDR, Deep Color, and HDCP 2.2/1.4, it enables routing of any four HDMI sources to any or all outputs simultaneously with exceptional signal integrity. Built with Kramer’s re-Klocking™ and equalization technology, the VS-44H2 restores and optimizes digital signals so they can travel longer distances without degradation.
This matrix switcher offers advanced EDID management per input, selectable HDCP handling, smart switching with active source/acceptor detection, and an integrated test pattern generator for streamlined diagnostics. For control, users can rely on front-panel operation, RS-232, USB, or the embedded web interface over Ethernet—making it ideal for conference rooms, classrooms, command centers, and AV distribution systems.
With Maestro room automation, preset recall, and durable 1U rack-mount design, the VS-44H2 delivers both professional functionality and ease of integration for demanding UHD workflows.
| Category | Details |
|---|---|
| Inputs | 4 HDMI (female connectors) |
| Outputs | 4 HDMI (female connectors) |
| Ports | 1 Mini-USB (device control), 1 RS-232 (3-pin terminal block), 1 Ethernet (RJ-45), 1 USB Type-A (external device power) |
| Max Resolution | 4K@60Hz (4:4:4) |
| Max Data Rate | 18Gbps (6Gbps per channel) |
| HDMI Support | Deep Color, 3D, up to 7.1 uncompressed audio |
| Content Protection | HDCP 1.4 & HDCP 2.2 |
| User Interface | Input/output LCD display; front-panel buttons for selection, mute, test patterns, memory, and lock |
| Control Options | Front panel, RS-232, USB, embedded web pages via LAN |
| Power | 100–240V AC, 50–60Hz |
| Power Consumption | 54VA |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Storage Temperature | –40°C to +70°C (–40°F to 158°F) |
| Humidity | 10% to 90% RH non-condensing |
| Accessories Included | Rack ears, power cord, rubber feet |
| Product Dimensions (W × D × H) | 43.64 × 23.72 × 4.36 cm (17.18" × 9.34" × 1.72") |
| Product Weight | 1.4 kg (3.1 lb) approx. |
| Shipping Dimensions | 55.20 × 27.80 × 10.50 cm (21.73" × 10.94" × 4.13") |
| Shipping Weight | 2.2 kg (4.9 lb) approx. |
