Description

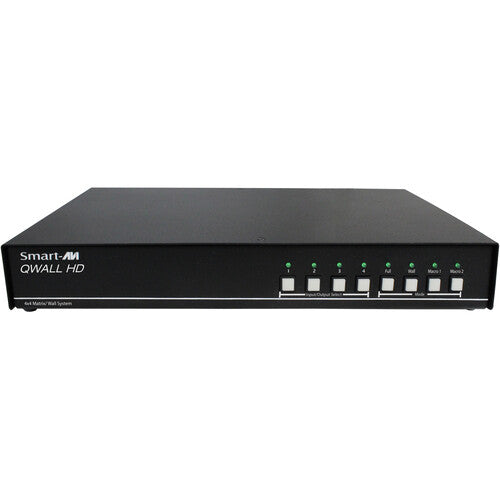

The SmartAVI QWALL-HD-S is a powerful and compact 4x4 HDMI video wall processor designed for seamless multi-display environments. Engineered for simplicity and flexibility, it allows users to distribute and manipulate up to four HDMI sources across four displays in a wide range of configurations, including full video wall, matrix switching, cloning, and splicing modes.
Ideal for control rooms, digital signage, command centers, and professional AV installations, the QWALL-HD-S delivers smooth and reliable performance with support for up to 1080p resolution. Its intuitive control options, including web-based interface, RS-232, IR remote, and front panel controls, make system management effortless from virtually anywhere.
With automatic input equalization, stable signal transmission, and versatile layout capabilities, this video wall processor ensures high-quality visuals and operational efficiency in demanding environments.
| Feature | Specification |
|---|---|
| Video Format | HDMI 1.4 |
| Input Ports | 4 x HDMI |
| Output Ports | 4 x HDMI |
| Supported Resolutions | 480i, 480p, 720i, 720p, 1080i, 1080p |
| Video Wall Modes | 2x2 video wall, matrix switching, clone mode, quad view, custom splicing |
| Audio Output | 1 x 3.5mm stereo |
| Control Methods | Web UI (IP), RS-232, IR Remote, Front Panel Buttons |
| Web Interface Access | Browser-based control via Ethernet (RJ45) |
| Input Equalization | Automatic |
| Maximum Cable Length | Up to 20 ft (input and output) |
| Power Supply | 12V DC, 3A adapter (center-positive) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 0–80% RH, non-condensing |
| Installation | Plug-and-play with fast system initialization |
| Use Cases | Video walls, control rooms, digital signage, AV integration |
