Description

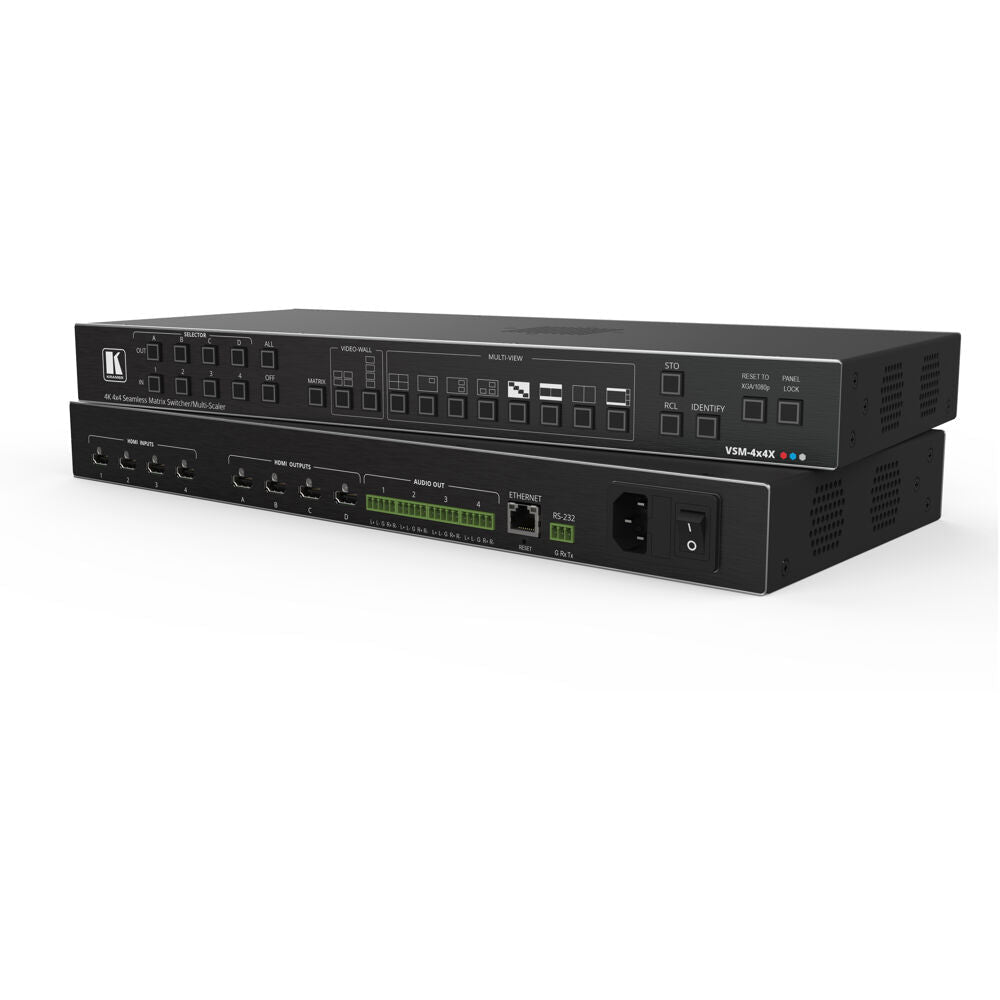

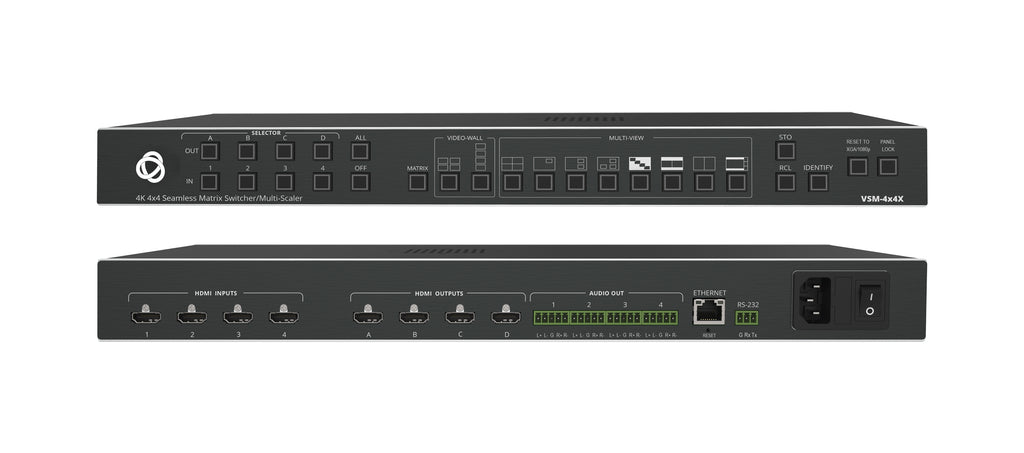

The Kramer VSM-4X4X is a powerful 4x4 seamless HDMI matrix switcher designed for professional AV environments that demand versatility, ultra-fast switching, and pristine 4K60 (4:4:4) image quality. Serving as a matrix switcher, videowall processor, or multiviewer, it enables clean, frame-to-frame switching with zero video freeze, delivering a highly polished visual experience for control rooms, corporate installations, education, and digital signage.
Powered by PixPerfect™ scaling technology, the VSM-4X4X ensures accurate pixel mapping, exceptional upscaling/downscaling, and superb image clarity. It supports advanced multiview layouts—including split, side-by-side, quad, POP, PIP, and stacked views—as well as bezel correction for videowall setups.

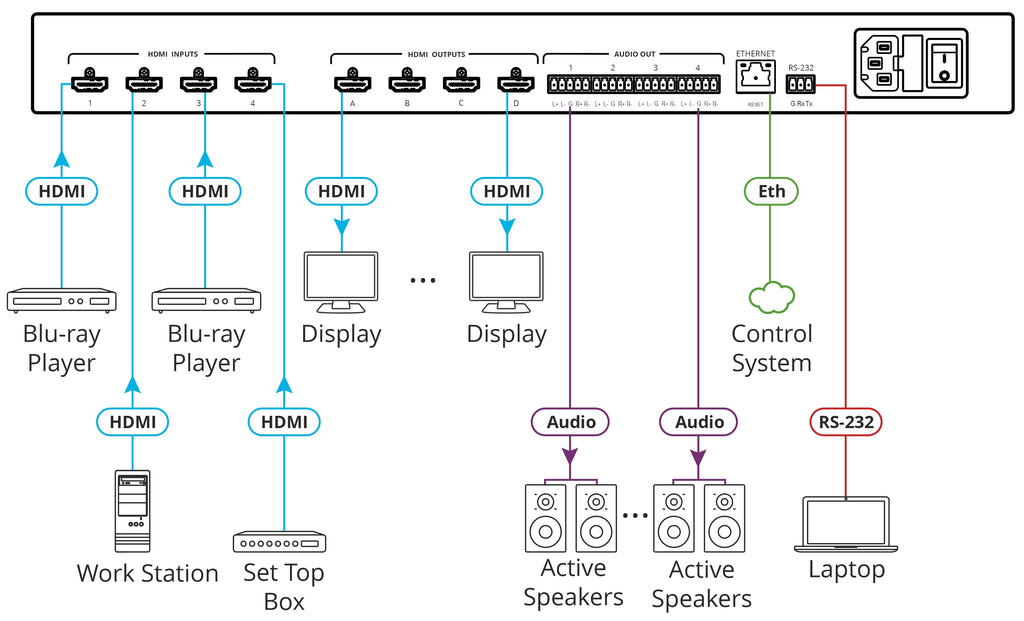

The unit supports HDMI 2.0 and HDCP 2.2, with independent EDID management per input, 4 channels of embedded audio, and analog audio de-embedding on each output. Front-panel controls, RS-232, and Ethernet connectivity enable flexible integration and easy configuration in any professional installation. With robust build quality, fan ventilation, and non-volatile memory for saving presets, the VSM-4X4X delivers exceptional performance and long-term reliability.
| Category | Details |
|---|---|
| Operating Modes | 4×4 seamless matrix switcher, 2×2 or 1×4 videowall, multiviewer (split, side-by-side, PIP, POP, stacked, quad) |
| Video Inputs | 4 HDMI (female connectors) |
| Video Outputs | 4 HDMI (scaled, female connectors) |
| Max Resolution | 4K @ 60Hz (4:4:4), 24bpp |
| Max Bandwidth | 18Gbps (6Gbps per graphic channel) |
| Compliance | HDMI 2.0, HDCP 2.2 |
| Latency | Up to 20ms |
| Audio Outputs | 4 balanced stereo line-level outputs (5-pin terminal block) |
| Embedded Audio | Embedded audio passed through HDMI inputs/outputs |
| Audio Performance | Max level 4.1Vrms; Impedance 500Ω; THD+N 0.005% @1kHz; Crosstalk −114dB; S/N ratio −89dB |
| Control Interfaces | RS-232 (3-pin terminal block), Ethernet (RJ-45), front-panel controls |
| EDID Management | Advanced per-input EDID control |
| Scaling & Processing | PixPerfect™ scaling, picture enhancement, noise reduction, bezel correction, built-in ProcAmp (color, hue, contrast, sharpness, brightness) |
| Power Requirements | 100–240V AC, 98VA max |
| Heat Dissipation | 55W (188 BTU/hr) |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Storage Temperature | −40°C to +70°C (−40°F to 158°F) |
| Humidity | 10%–90% non-condensing |
| Regulatory Compliance | Safety: CE, FCC; Environmental: RoHS, WEEE |
| Enclosure | 19" 1U aluminum; fan-ventilated |
| Dimensions (W × D × H) | 43.6 × 18.3 × 4.4 cm (17.2" × 7.2" × 1.7") |
| Net Weight | approx. 1.8–1.9 kg (4–4.1 lbs) |
| Accessories Included | Power adapter cord |
