Description

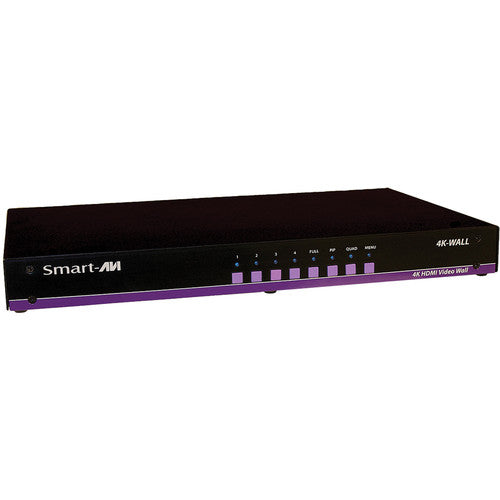

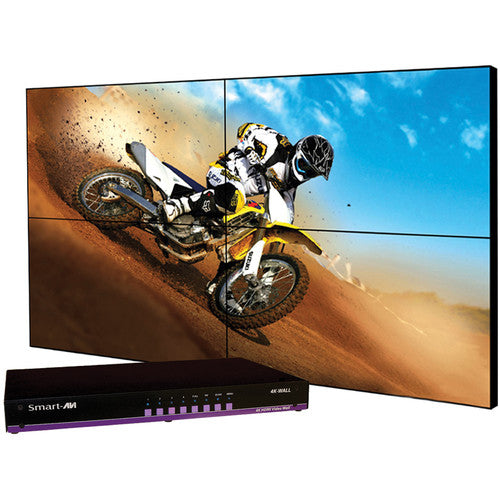

The Smart-AVI 4K Video Wall Controller and Matrix (SM-4KWL-S) is a powerful, stand-alone solution designed to deliver dynamic multi-display content across a 2x2 video wall configuration. Supporting up to 4K resolution (3840 x 2160) using four Full HD displays, this controller enables seamless image scaling, routing, and layout customization without the need for external software or dedicated computers.
Built for flexibility, the SM-4KWL-S features four HDMI inputs and four HDMI outputs, allowing users to distribute and manage content across multiple screens with ease. Whether you need to display a single large image across all screens, assign different inputs to individual displays, or create advanced layouts such as quad-view or picture-in-picture, this device delivers enterprise-grade performance with intuitive control.
Configuration is simple through the integrated on-screen display (OSD), accessible via front panel controls or the included IR remote. For remote management, the built-in web server enables browser-based control, while RS-232 support ensures seamless integration into professional AV systems. With plug-and-play operation, HDCP compliance, and robust EDID management, this controller is ideal for digital signage, control rooms, corporate environments, and more.
| Specification | Details |
|---|---|
| Video Wall Configuration | 2x2 video wall (4 displays) |
| Maximum Resolution | Up to 4K (3840 x 2160 combined output) |
| Supported Display Resolution | Up to 1920 x 1080 per screen |
| Video Inputs | 4 x HDMI |
| Video Outputs | 4 x HDMI |
| HDMI Standard | HDMI 1.4 |
| DVI Support | Single-link DVI-D (up to 1920 x 1200) |
| HDCP Compliance | Supports HDCP 1.0 and 2.0 |
| Video Bandwidth | 340 MHz (10.2 Gbps) |
| Supported Formats | 480i, 480p, 720p, 1080i, 1080p |
| PC Resolution Support | 800 x 600 up to 1920 x 1200 |
| Display Modes | Video Wall, Matrix Routing, Quad Mode, Picture-in-Picture |
| Control Methods | Front panel buttons, IR remote, RS-232, Web interface |
| On-Screen Display | Integrated OSD for configuration |
| EDID Management | Learnable EDID with internal database |
| Cable Distance Support | Up to 20 ft (6.1 m) output cable |
| Power Input | 100–240V AC internal power supply |
| Rack Mount Size | 1U rack mountable |
| Dimensions | 17.0 x 1.7 x 10.2 inches |
| Weight | 4.05 lbs |
| Compliance & Certifications | UL, CE, CSA, CEC, RoHS compliant |
