Description

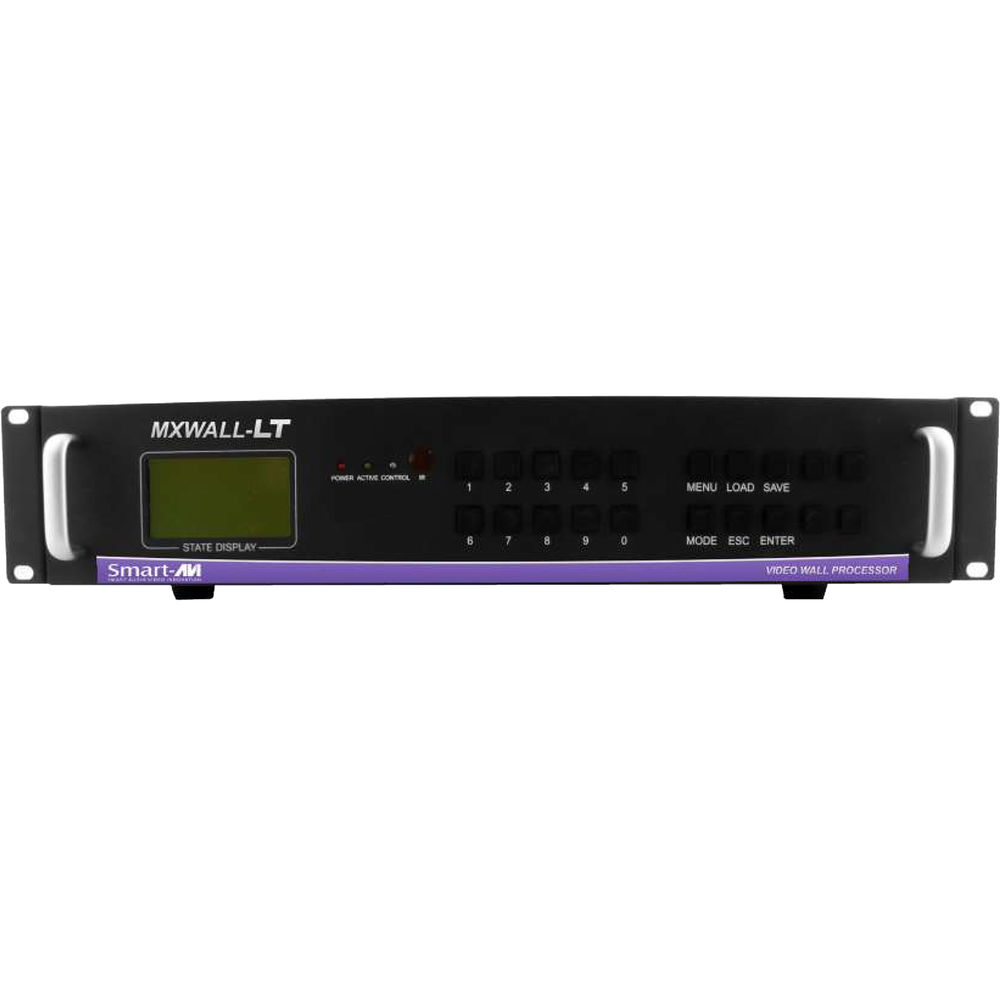

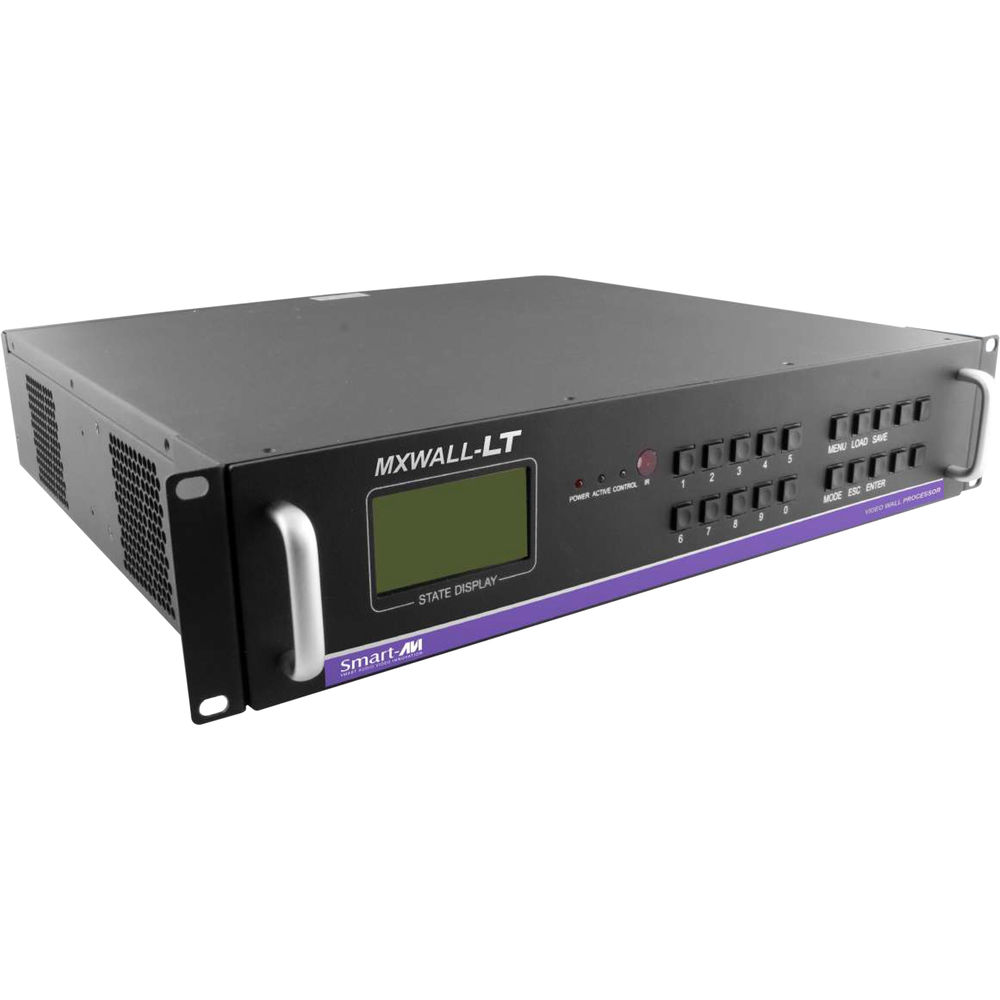

The SmartAVI MXWall-LT 4x8 HDMI Matrix Switch with Integrated Video Wall Controller is a powerful all-in-one solution designed for professional AV environments that demand flexibility, reliability, and seamless video distribution. Engineered for control rooms, digital signage, corporate displays, and large-scale video walls, this system combines matrix switching, video wall processing, and signal scaling into a single, efficient platform.
Supporting up to Full HD 1080p resolution, the MXWall-LT enables users to route and distribute multiple HDMI or DVI sources across multiple displays while creating dynamic video wall layouts. Its scalable architecture allows for flexible input and output configurations, making it ideal for evolving installations. With intuitive control via front panel, software, RS-232, or TCP/IP, users can easily switch layouts, manage sources, and customize display arrangements in real time.
Built for 24/7 operation, this solution ensures stable, uninterrupted performance in mission-critical environments. The included management software and mobile control options further enhance usability, allowing quick adjustments and advanced configuration with minimal effort.
| Feature | Specification |
|---|---|
| Video Inputs | 4 HDMI/DVI inputs (configurable via modular cards) |
| Video Outputs | Up to 8 HDMI outputs (scalable architecture) |
| Max Resolution | Up to 1920 x 1080 @ 60Hz |
| Video Formats | RGB and YCbCr, multiple bit depths supported |
| Switching Capability | Matrix switching with independent routing |
| Video Wall Modes | Video Wall, Quad View, Individual Routing, Custom Layouts |
| Scaling | Integrated scaler for flexible display configurations |
| Control Interfaces | Front panel controls, RS-232, TCP/IP (LAN) |
| Software Control | Dedicated management software for layout and scheduling |
| Mobile Control | Android companion app for quick switching |
| Compliance | HDMI 1.4, HDCP compliant |
| Operating Temperature | 0°C to 50°C |
| Power Supply | 100–230V AC, 50/60Hz |
| Form Factor | Rack-mountable chassis |
| Build | Designed for continuous 24/7 operation |
| Included Accessories | Power cable and quick start guide |
