Description

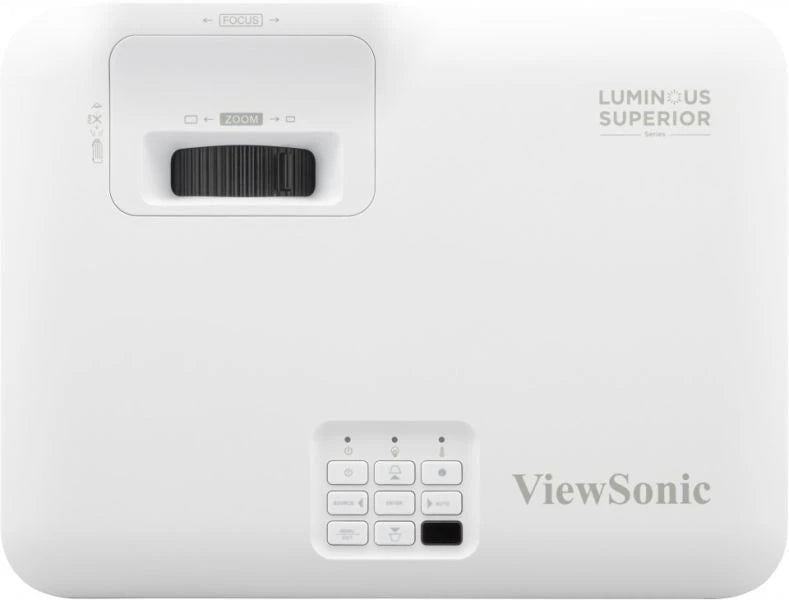

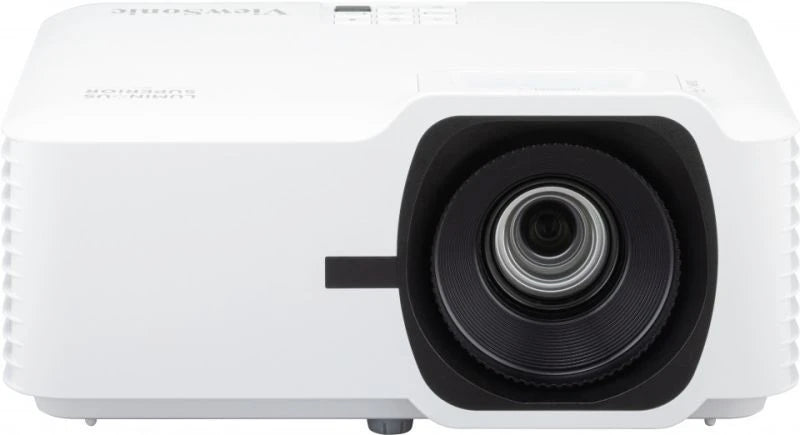

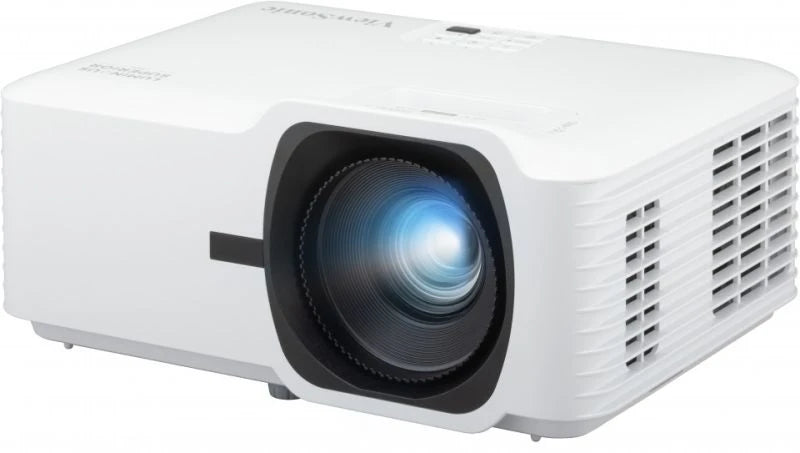

Illuminate every space with exceptional clarity using the ViewSonic® LS740HD Laser Installation Projector. Powered by advanced laser phosphor technology, the LS740HD delivers an impressive 5,000 ANSI lumens of brightness, ensuring vibrant, razor-sharp visuals even in rooms with ambient light. Designed for versatility, this compact yet powerful projector offers Full HD 1080p resolution, a 300-inch screen size, and 1.3x optical zoom—ideal for boardrooms, lecture halls, auditoriums, and other large venues.
Engineered for maintenance-free operation, it provides up to 30,000 hours of light source life and supports 24/7 continuous use. The projector’s 360° projection, portrait mode, H/V keystone, and 4-corner adjustment features allow flexible installation in virtually any environment. With an eco-friendly design, built-in 15W speaker, and multiple connectivity options including dual HDMI ports, USB-A power output, and RS232 control, the LS740HD is built for seamless professional integration.
| Feature | Details |
|---|---|
| Model | LS740HD |
| Display Technology | DLP Laser |
| Resolution | Full HD (1920 x 1080) |
| Brightness | 5,000 ANSI Lumens |
| Contrast Ratio | 3,000,000:1 (Dynamic) |
| Aspect Ratio | 16:9 |
| Color Depth | 1.07 Billion Colors |
| Light Source Life | 20,000 hrs (Normal) / 30,000 hrs (Dynamic Eco Mode) |
| Projection Size | 30" – 300" (0.76 – 7.62 m) |
| Throw Distance | 1 – 8 m (100" @ 2.5 m) |
| Throw Ratio | 1.13 – 1.47 |
| Zoom / Focus | 1.3x Optical Zoom |
| Keystone Correction | ±19° Vertical / ±19° Horizontal |
| Projection Orientation | 360° and Portrait Mode Supported |
| Input Lag | 37 ms |
| Input Frequency | Horizontal: 15K–102KHz / Vertical: 24–120Hz |

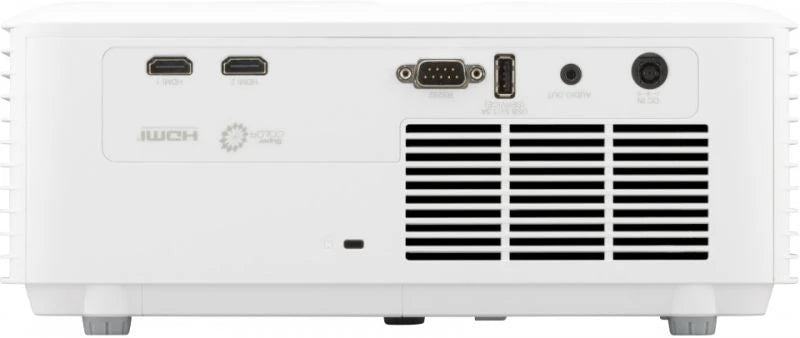

| Inputs / Outputs | HDMI 1.4 (x2, HDCP 1.4), USB 2.0 Type-A (x1), 3.5mm Audio Out (x1), RS-232 (x1) |
| Speaker | 15W Mono |
| Power Supply | 100–240V ±10%, 50/60Hz |
| Power Consumption | 210W (Typical) / <0.5W (Standby) |
| Operating Temperature | 0 – 40°C (32 – 104°F) |
| Dimensions (W x D x H) | 286 x 216 x 129 mm (11.3 x 8.5 x 5 in) |
| Weight | 3.0 kg (6.6 lbs) |

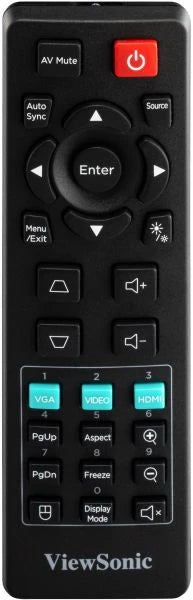

| Package Contents | Projector, Power Cable, Remote Control, Quick Start Guide |
| Certifications | cTUVus |
| Warranty | 3-Year Limited on Parts & Labor; 1-Year Express Exchange (with registration) |
