Description

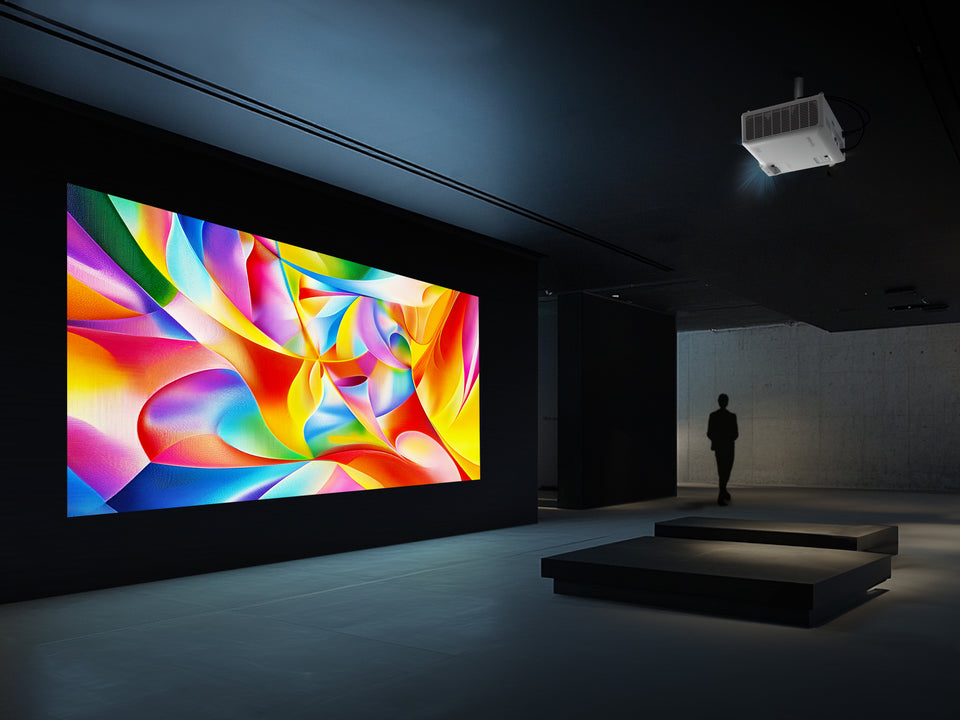

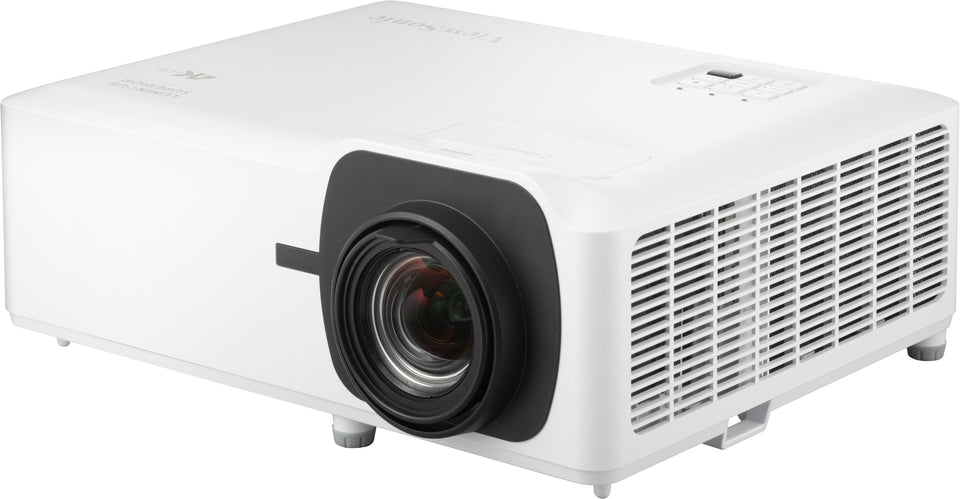

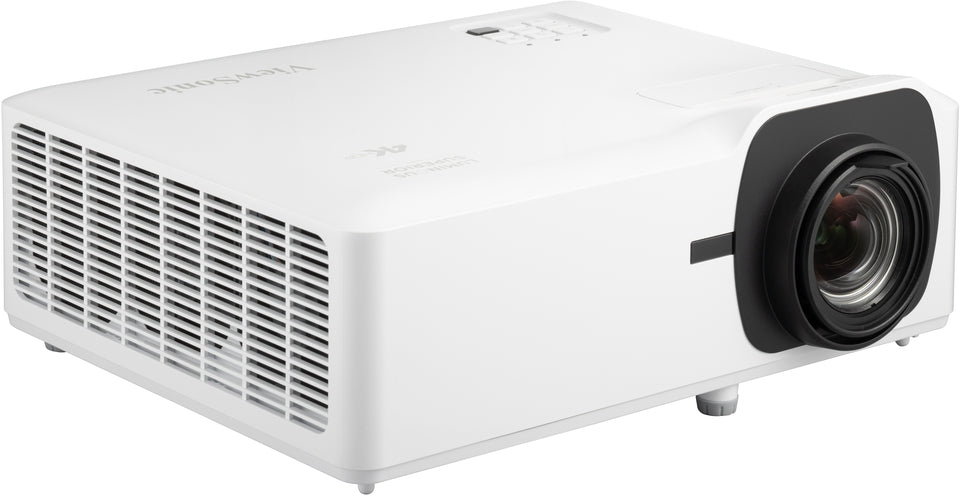

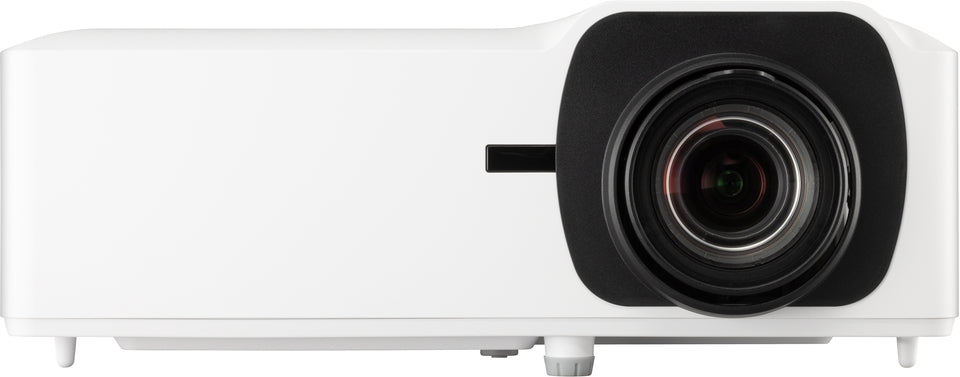

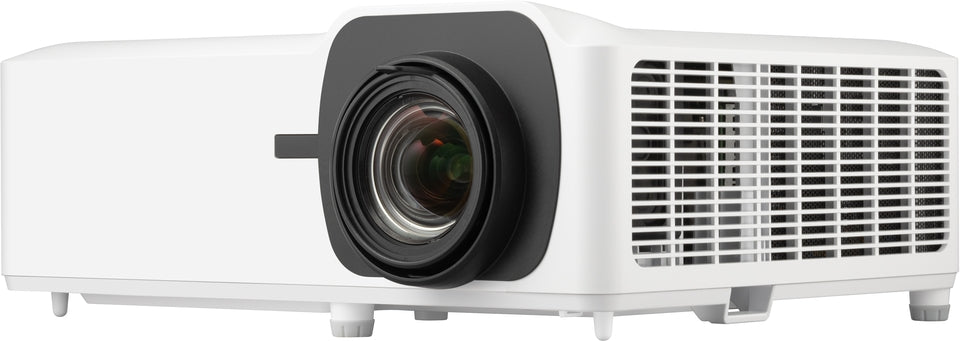

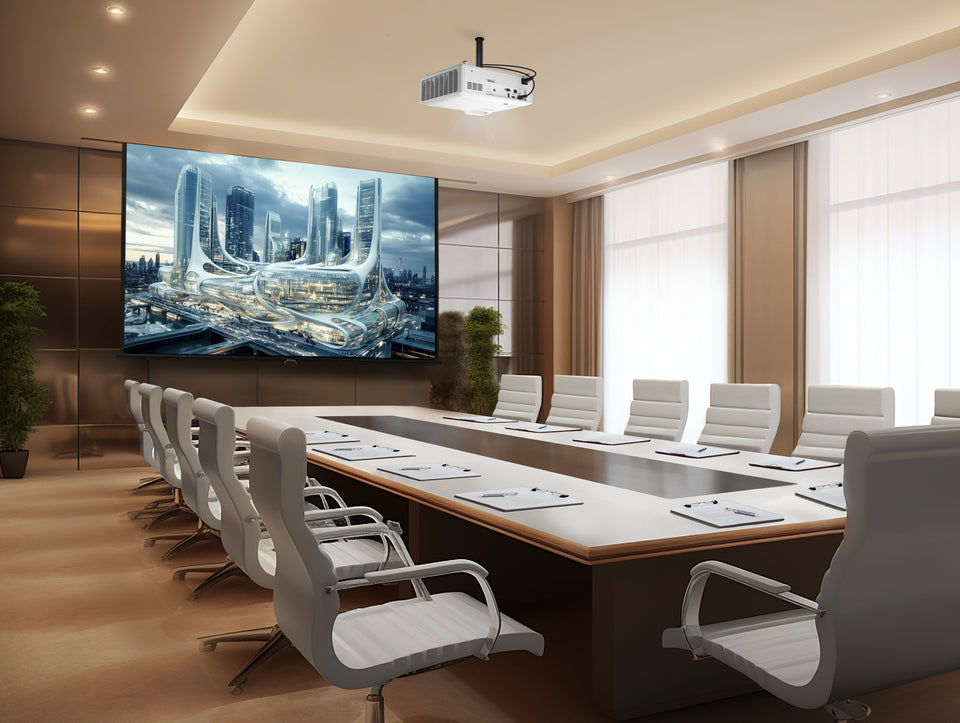

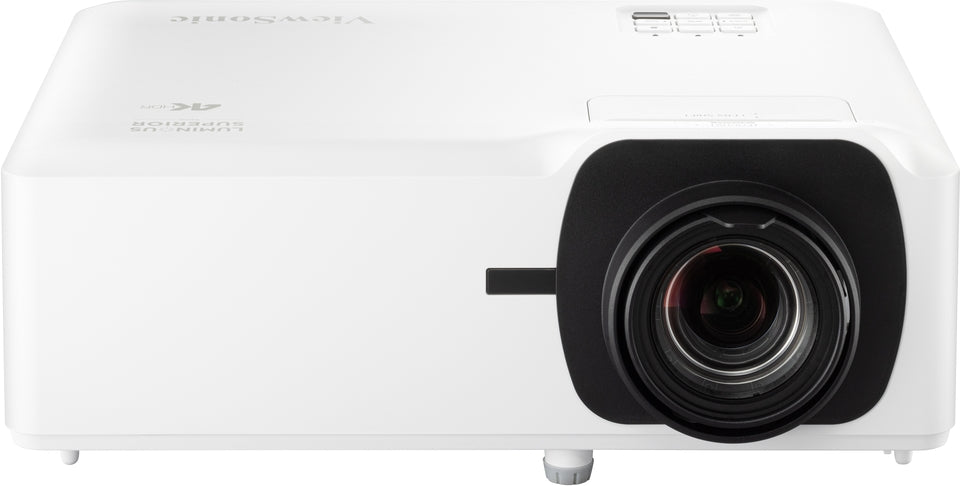

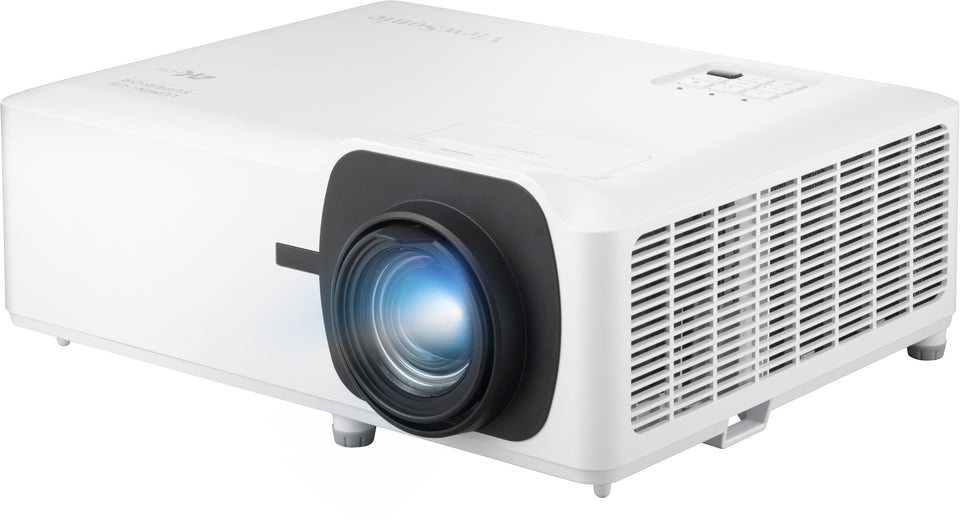

Experience next-level visual brilliance with the ViewSonic® LS901-4K, a high-brightness 4K HDR laser installation projector from the Luminous Superior Series. Designed for large venues, museums, and educational spaces, this projector delivers 5,500 ANSI lumens of brightness and a high native contrast ratio through DLP® technology with a 0.65” DMD chip — ensuring vivid, detailed images even in brightly lit environments.

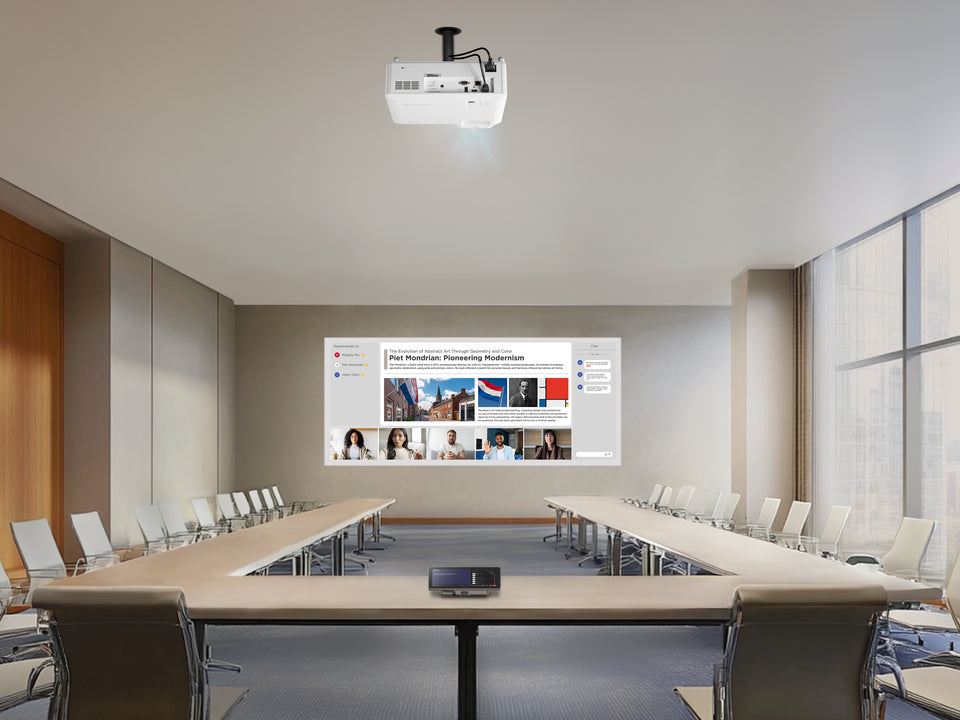

With True 4K UHD resolution (3840x2160) and HDR/HLG support, the LS901-4K offers lifelike detail and dynamic color performance. Its 21:9 aspect ratio enables an enhanced meeting experience for Microsoft Teams Rooms Front Row mode, allowing more collaborative screen layouts.

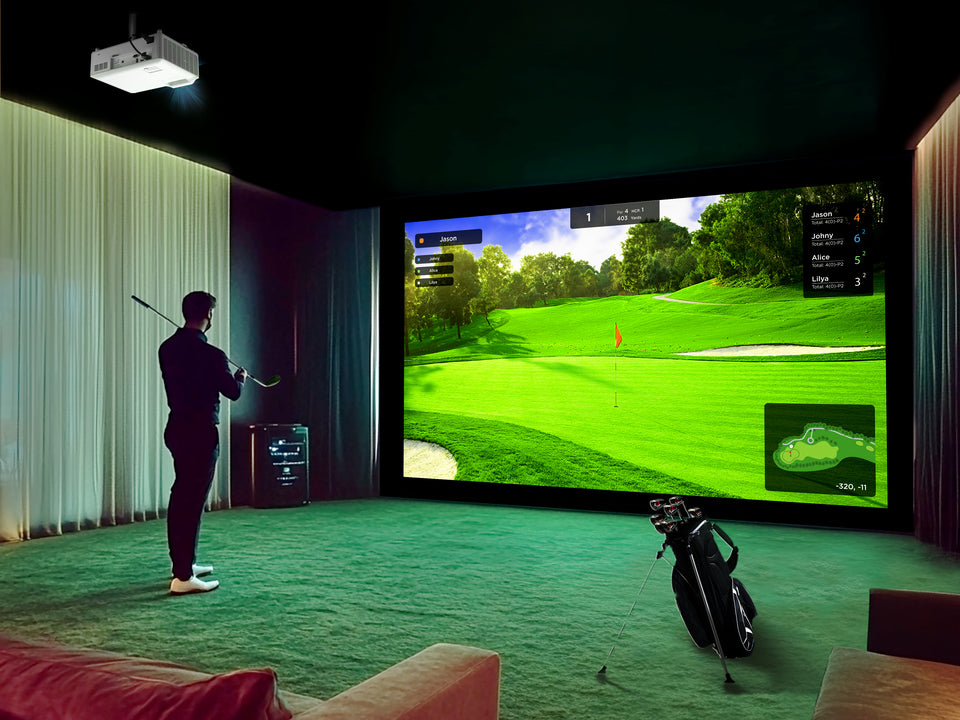

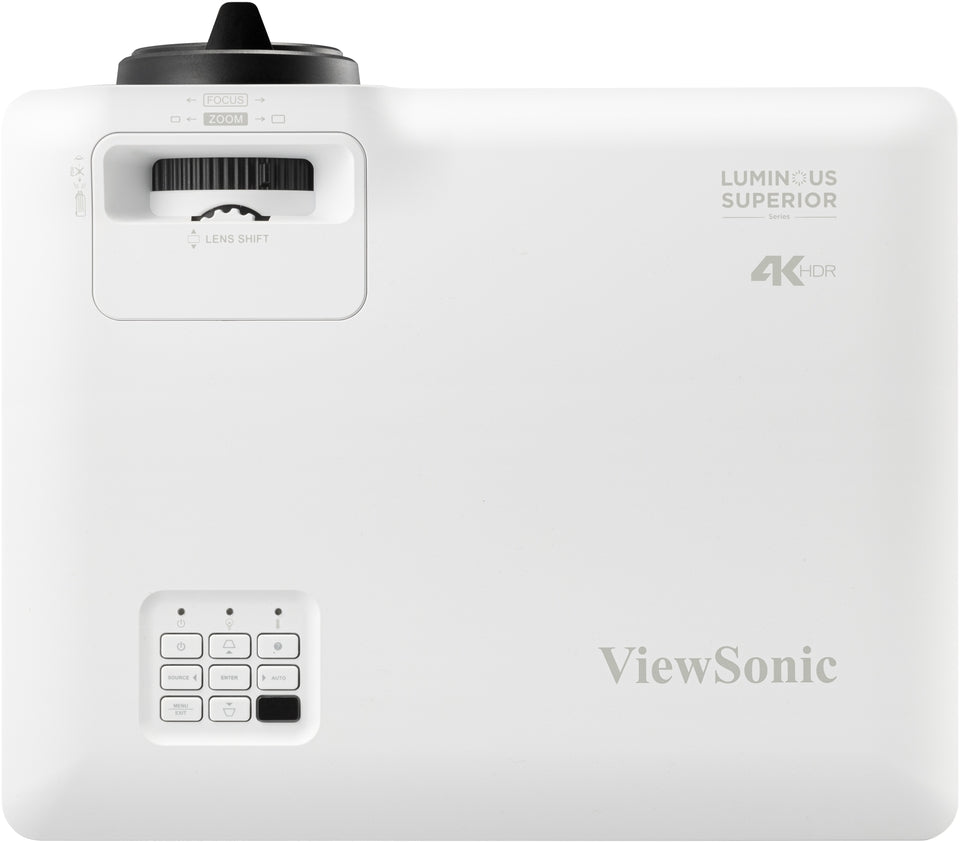

Installation is effortless with 1.7x optical zoom, vertical lens shift, H/V keystone correction, and 360° projection for creative applications such as projection mapping and ceiling or floor displays. Engineered with 3rd generation laser phosphor technology, the LS901-4K provides up to 30,000 hours of maintenance-free operation, while LAN control compatibility with Crestron, AMX, Extron, and PJ Link systems simplifies centralized management.
Compact, bright, and durable — the LS901-4K delivers professional-grade visuals and long-term reliability for business, education, and immersive installations.
| Specification | Details |
|---|---|
| Display Technology | DLP® with 0.65" 4K UHD DMD Chip |
| Native Resolution | 3840 × 2160 (True 4K UHD) |
| Brightness | 5,500 ANSI Lumens (6,000 Center Lumens) |
| Contrast Ratio | 3,000,000:1 |
| Display Color | 1.07 Billion Colors |
| Light Source | 3rd Gen Laser Phosphor |
| Light Source Life | 20,000 hrs (Normal) / 30,000 hrs (Eco) |
| Aspect Ratio | 16:9 (Supports 21:9) |
| Throw Ratio | 1.2–2.04 |
| Optical Zoom | 1.7x |
| Lens Shift (Vertical) | 0% to -21% |
| Keystone Correction | ±30° (H/V) + 4-corner adjustment |
| Image Size | 30”–300” |
| Input Lag | 4.2 ms |
| Projection Distance | 0.8–13.55 m (100” @ 2.66 m) |
| Built-in Speaker | 15W × 2 |

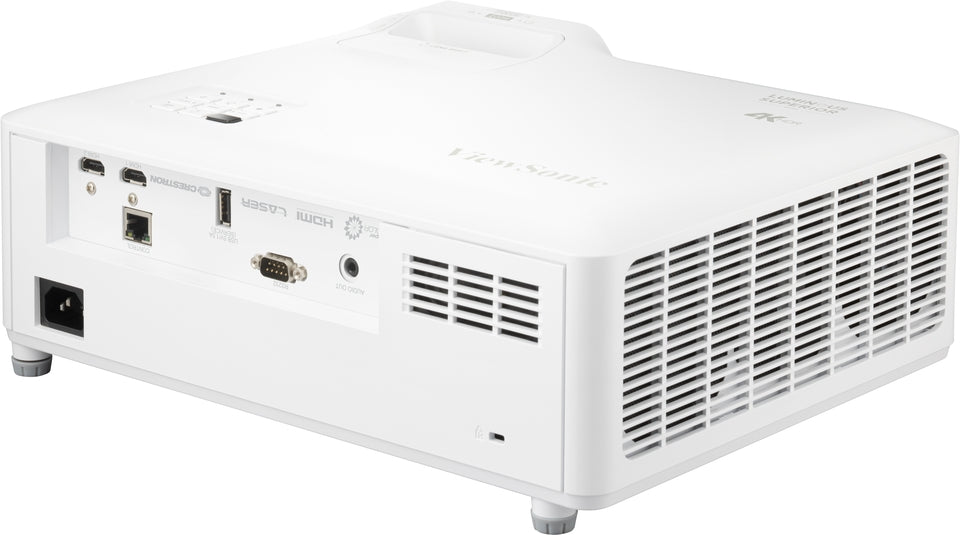

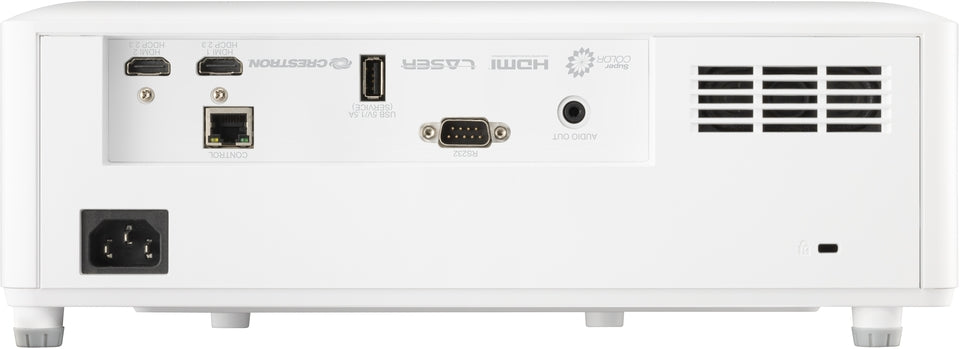

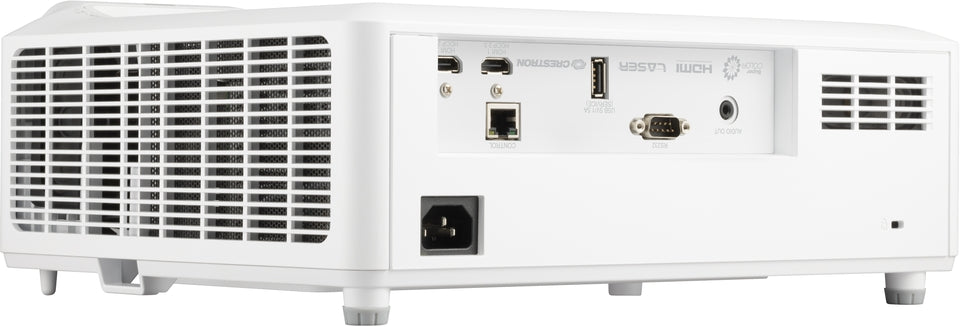

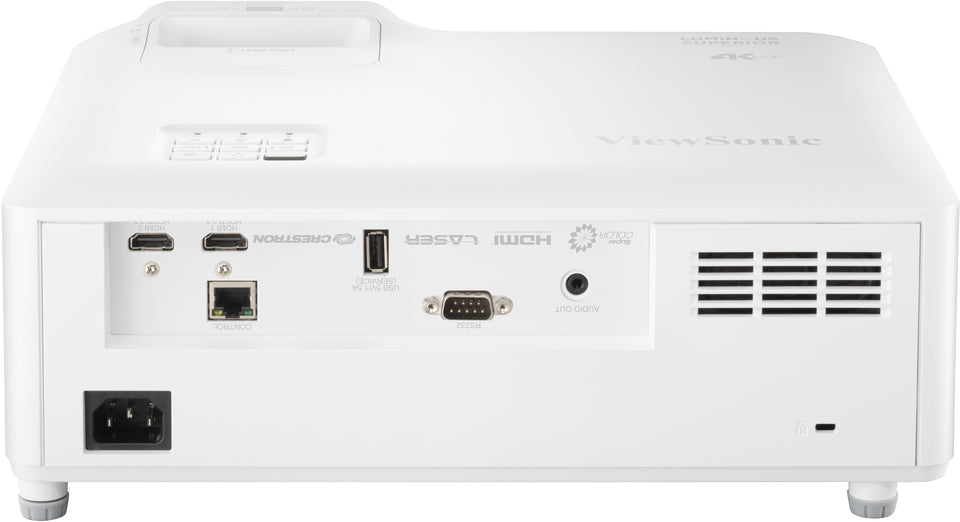

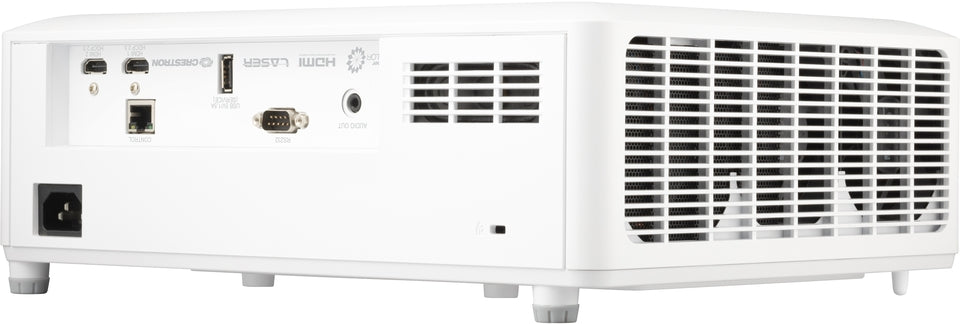

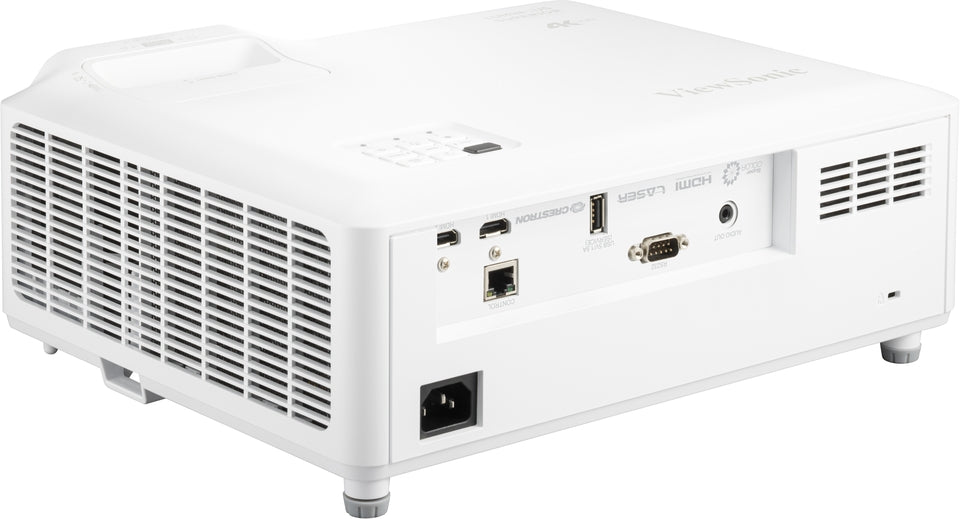

| Connectivity | 2× HDMI 2.0/HDCP 2.3, Audio Out (3.5mm), 1× USB Type-A (5V/1.5A), RS-232, RJ45 (LAN) |
| LAN Control Compatibility | Crestron, AMX, Extron, ATEN, PJ Link |
| Power Supply | 100–240V ±10%, 50/60Hz |
| Power Consumption | 245W (Normal), <0.5W (Standby) |
| Operating Temperature | 0–40°C |
| Noise Level | 31dB (Normal) / 25dB (Eco) |
| Dimensions (W×D×H) | 337 × 280 × 132 mm |
| Weight | 4.85 kg |

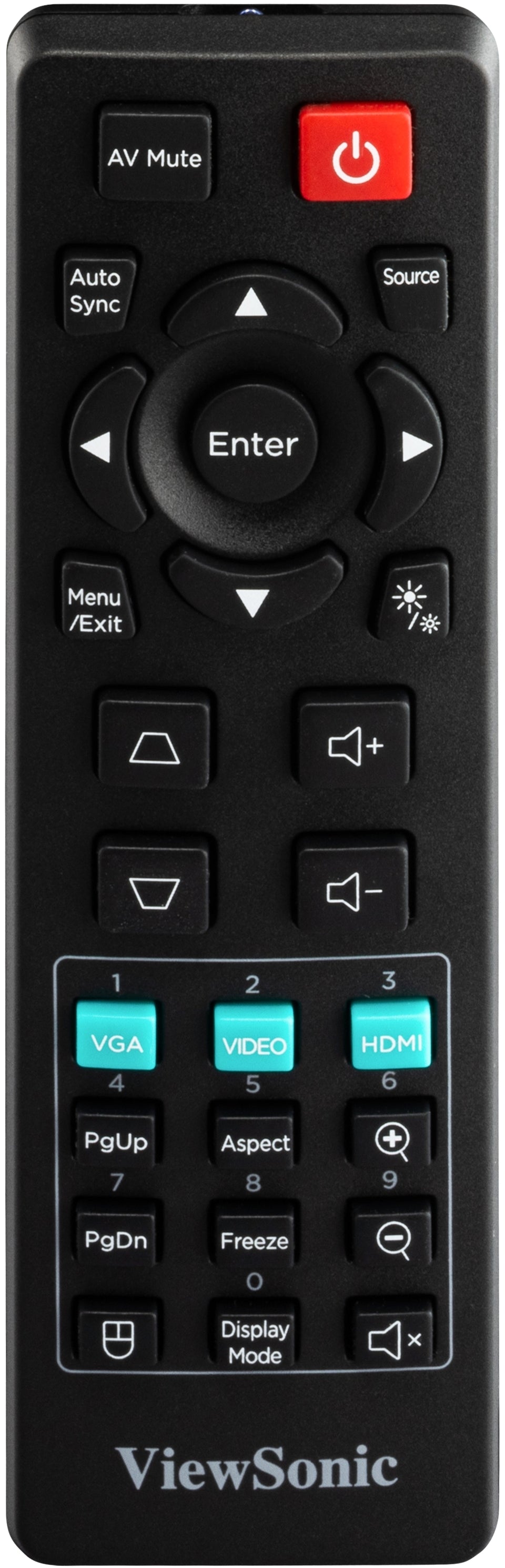

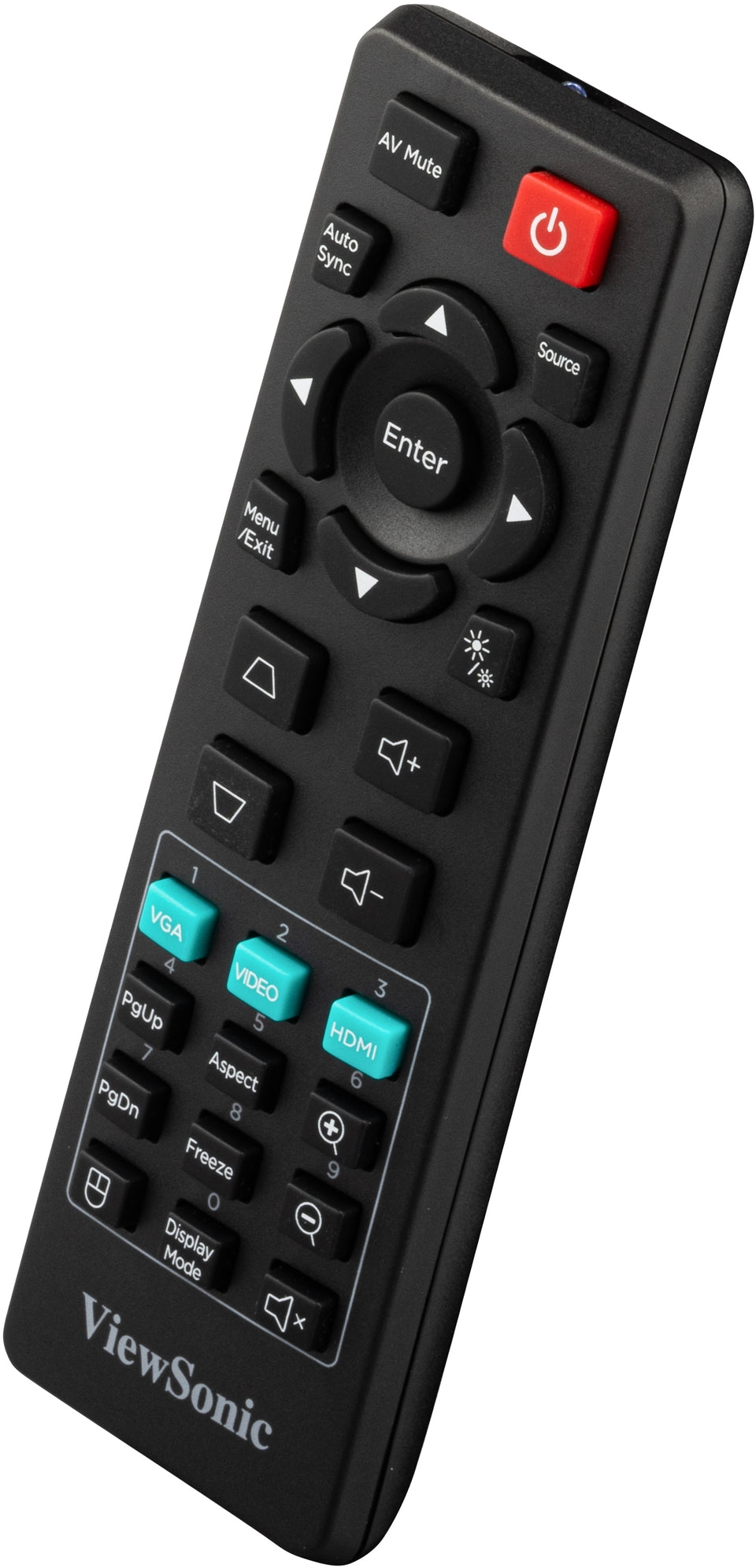

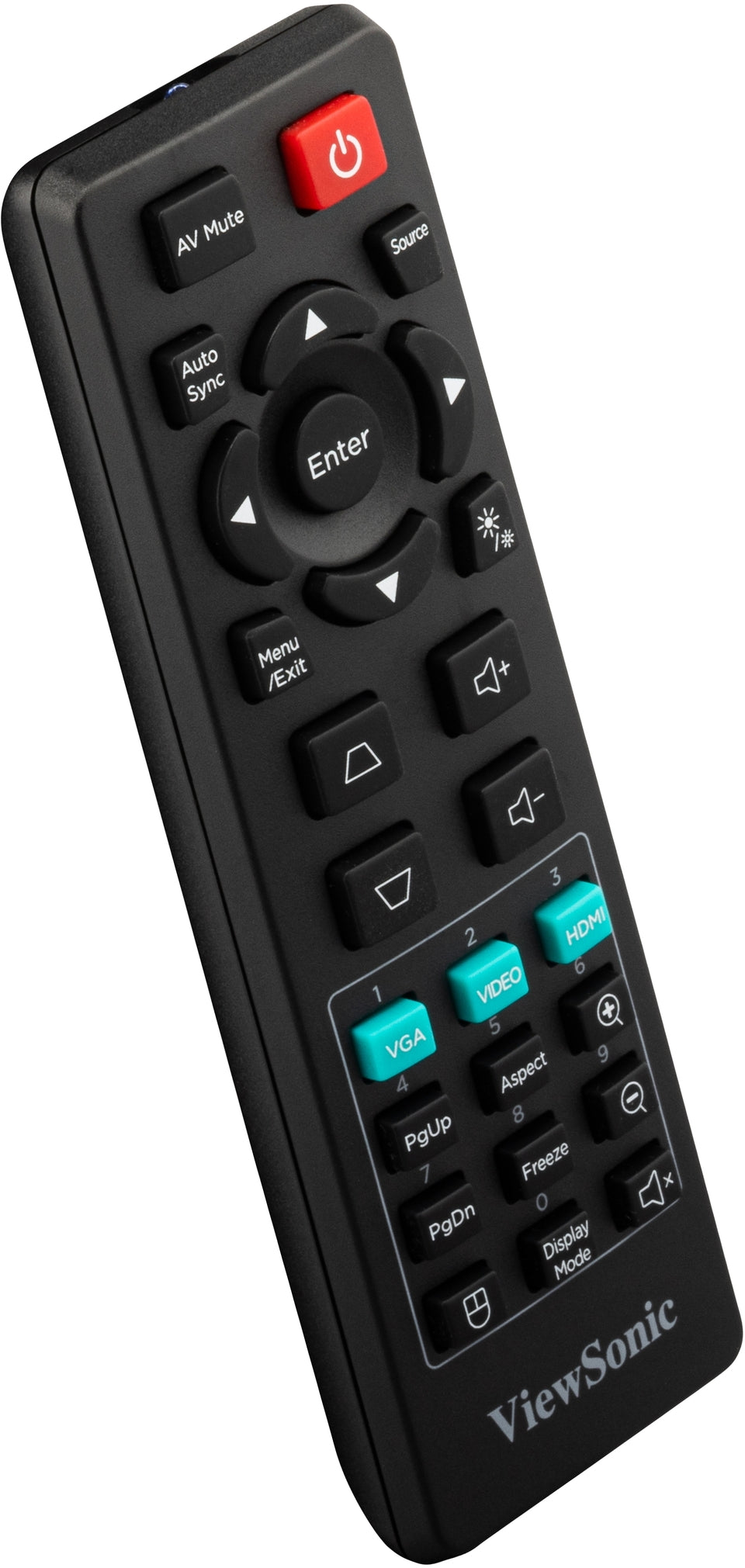

| Included Accessories | Power Cord, Remote Control, Quick Start Guide |
| Optional Mount | PJ-WMK-007 Ceiling/Wall Mount |
