Description

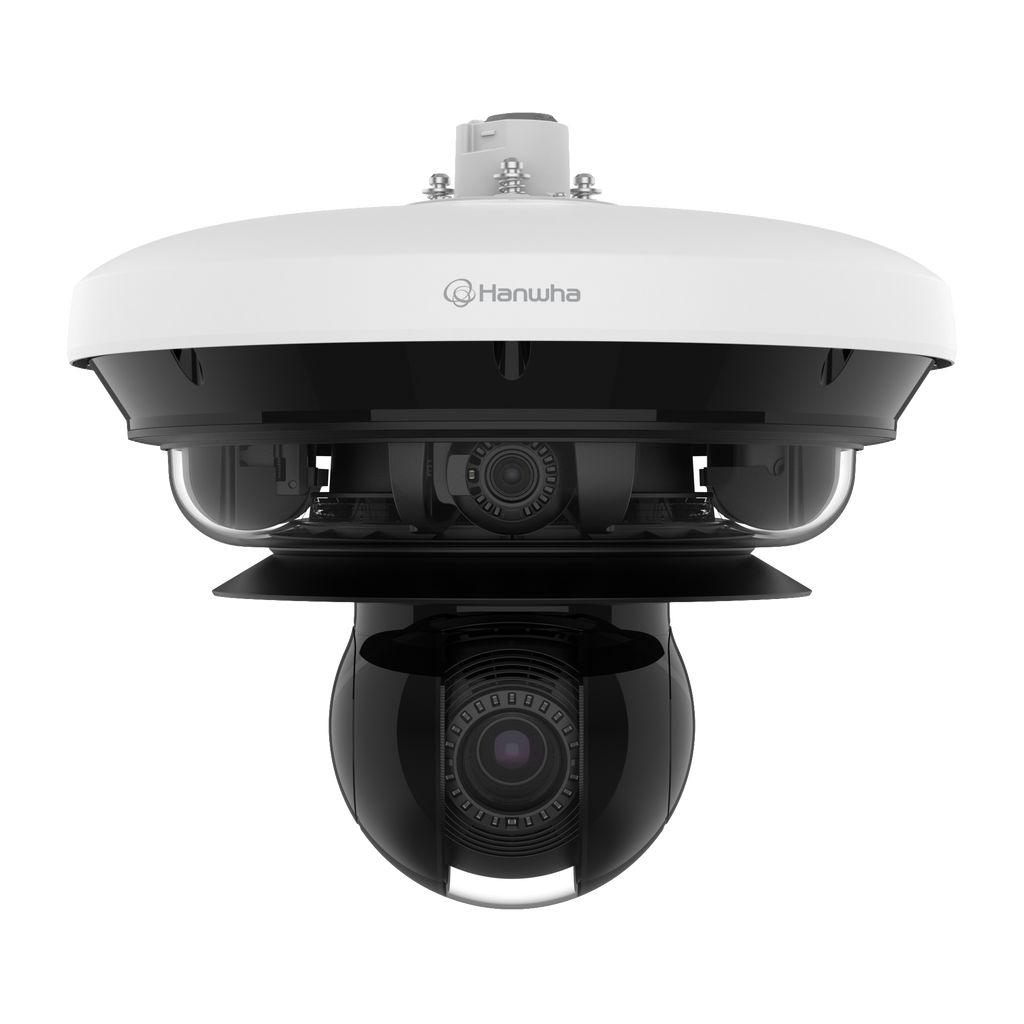

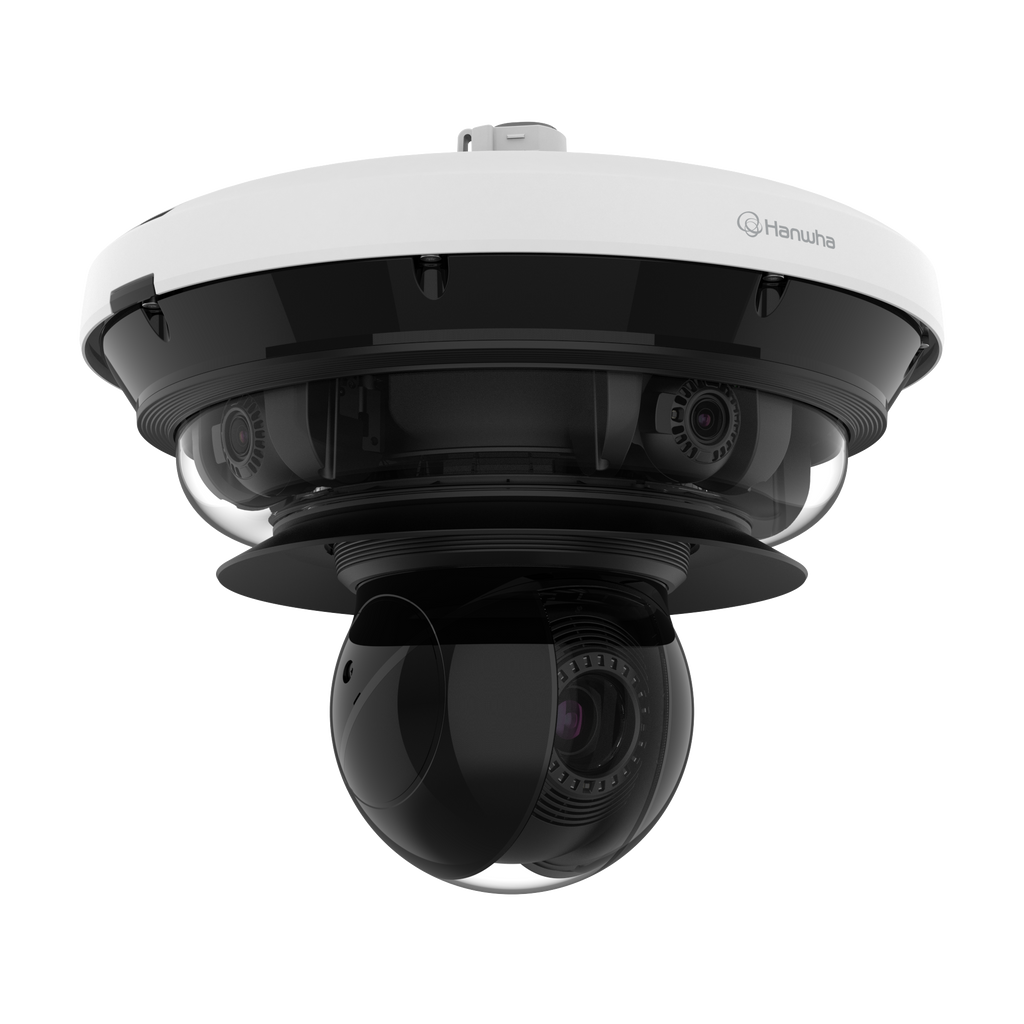

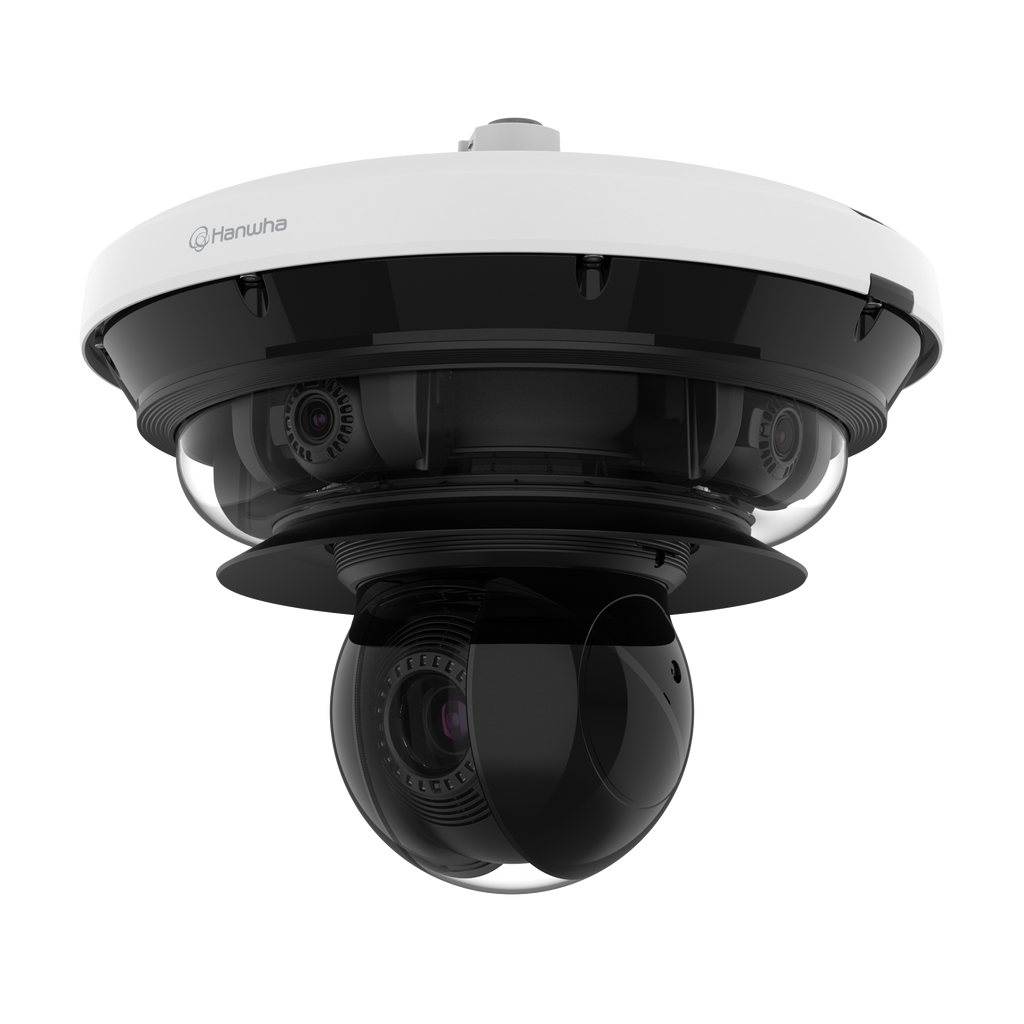

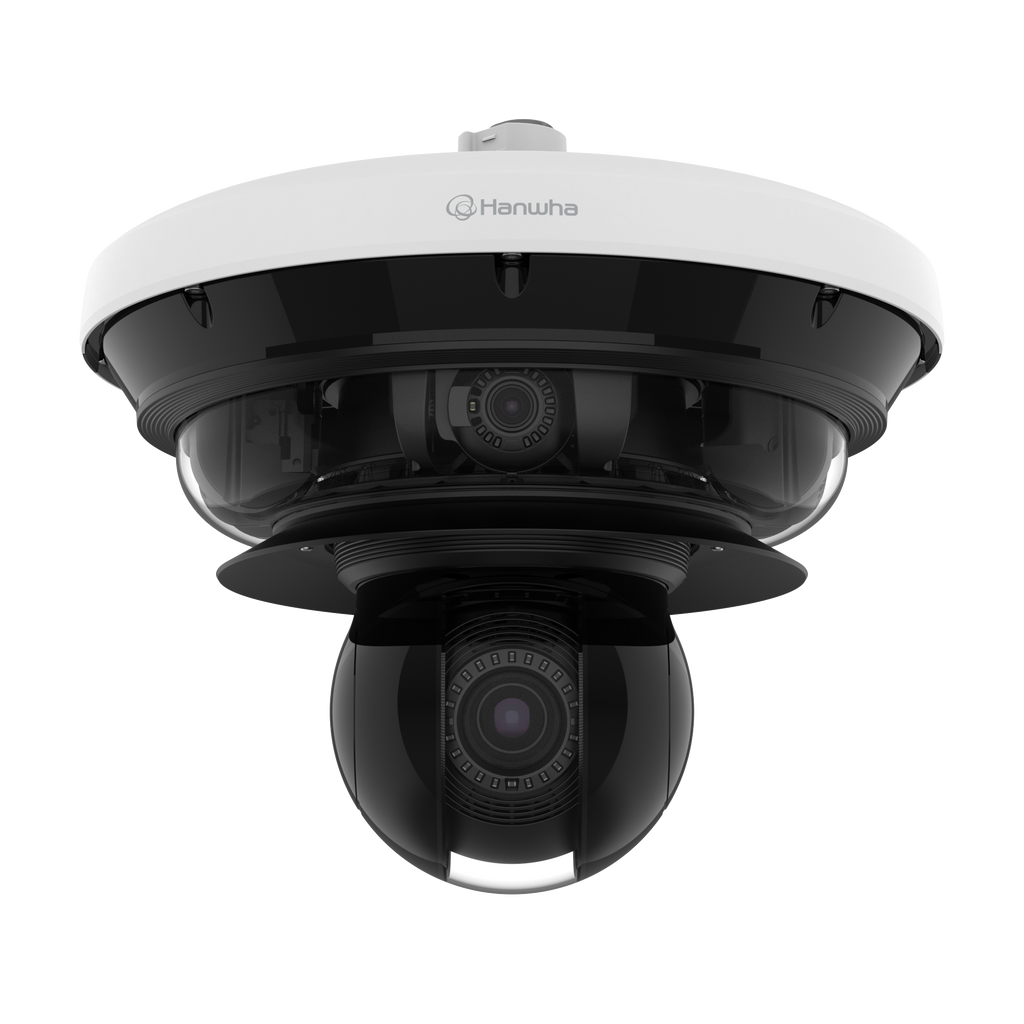

The Hanwha Vision PNM-C34404RQPZ is a next-generation multi-sensor AI camera that combines four 4K PTRZ adjustable sensors with a powerful 2MP 40x PTZ module, delivering complete 360° situational awareness and long-range detail capture in a single unified system. Designed for complex environments such as campuses, airports, city surveillance, logistics yards, and critical infrastructure, it provides advanced analytics, extreme durability, and exceptional imaging performance in all conditions.
Each of the four 4K sensors supports remote PTRZ adjustment for effortless installation, while the integrated 40x PTZ offers high-speed pan/tilt tracking and up to 200m IR illumination. The camera features AI-based object classification (person, face, vehicle, license plate), 360° attribute search, AI-powered noise reduction, and an advanced event analytics suite for precise monitoring and faster post-event review.
With IP66/IK10/NEMA 4X rugged protection, TPM 2.0 cybersecurity, and dual microSD edge storage options, the PNM-C34404RQPZ delivers maximum performance, reliability, and operational intelligence for enterprise-grade security systems.
| Category | Specification |
|---|---|
| Camera Type | 4× 4K PTRZ sensors + 1× 2MP 40x PTZ AI camera |
| Sensor Resolution | 4CH: Up to 3840×2160 (4K); PTZ: Up to 1920×1080 |
| Lens (4CH) | 3.3–5.7mm, fixed iris, 1.7× optical zoom |
| Lens (PTZ) | 4.25–170mm, 40× optical zoom, DC auto-iris |
| Field of View (4CH) | H: 109°–56° / V: 55°–31° / D: 136°–65° |
| Field of View (PTZ) | H: 65.66°–1.88° / V: 39.40°–1.09° |
| Illumination | 4CH: 0.1 Lux (color), 0.01 Lux (B/W); PTZ: 0.05 Lux (color), 0.005 Lux (B/W) |
| IR Illumination | 4CH: 20m; PTZ: 200m (850nm) |
| AI Analytics | Object detection, line crossing, loitering, intrusion, appearance/disappearance, BestShot thumbnails |
| Object Classification | Person, face, vehicle, license plate; vehicle type (car/bus/truck/motorcycle/bicycle) & color |
| Pan/Tilt (PTZ) | 360° endless pan, 0–110° tilt; up to 700°/sec preset speed |
| Image Enhancements | WDR (4CH: 120dB; PTZ: 150dB), WiseNR II, defog, DIS with gyro (PTZ) |
| Compression | H.265/H.264 (Main/High), MJPEG, WiseStream III |
| Network | IPv4/IPv6, HTTPS, SRTP, ONVIF S/T/M, MQTT |
| Edge Storage | Dual microSD: up to 1TB ×2 (OnCloud) |
| Audio / Alarm I/O | Via optional I/O box |
| Operating Temperature | –40°C to +50°C (startup above –30°C) |
| Ingress / Impact Rating | IP66 / IK10 / NEMA 4X |
| Power Requirement | PoE++ (IEEE 802.3bt Type 4, Class 8) |
| Power Consumption | Max 64W (typ. 45W) |
| Dimensions | Ø379.8 × 301.9 mm (14.95 × 11.89 in) |
| Weight | 7.9 kg (17.42 lb) |
| Certifications | FCC, CE, UL, IEC 62471, ETSI EN 303 645, IEC 62443-4-1 |
