Description

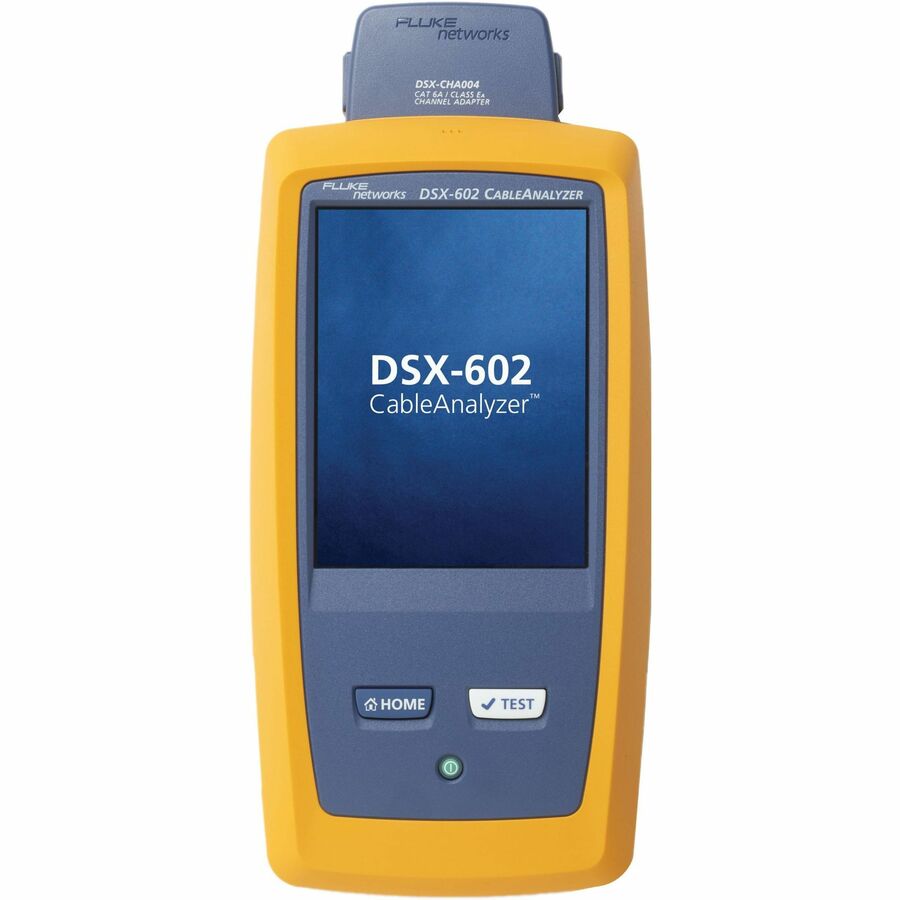

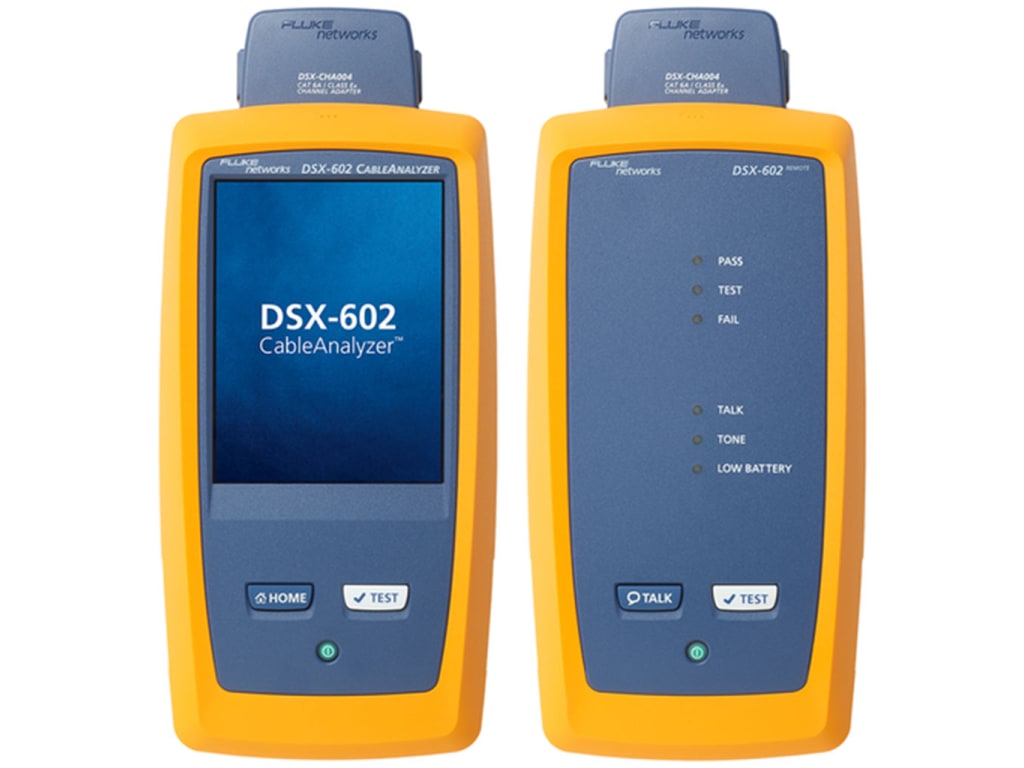

The Fluke Networks DSX-602-PRO is a high-performance 500 MHz CableAnalyzer PRO V2 with integrated Wi-Fi, designed for fast, accurate copper certification. Delivering Class EA/Cat 6A certification in just 10 seconds and Class E/Cat 6 certification in 9 seconds, it meets the industry’s most stringent accuracy requirements.
Its advanced gesture-based touchscreen interface streamlines operation, while simplified project management tools make setup fast and foolproof. Built-in diagnostics pinpoint common cabling faults instantly, reducing downtime and rework. The DSX-602-PRO includes Permanent Link and Channel Adapters, enabling full testing flexibility, and supports wireless results upload via LinkWare™ Live, allowing remote job and tester management from any smart device.
Built with Fluke Networks’ legendary ruggedness and backed by worldwide support, this kit is the ideal solution for professional installers who demand speed, accuracy, and reliability in copper certification.
| Feature | Specification |
|---|---|
| Maximum Frequency | 500 MHz |
| Autotest Speed | Cat 6: 9 s; Cat 6A: 10 s |
| Supported Tests | Wire Map, Length, Propagation Delay, Delay Skew, DC Loop Resistance, Insertion Loss, Return Loss, NEXT, ACR-N, ACR-F, PS ACR-F, PS NEXT, PS ACR-N |
| Test Result Storage | 12,000 Cat 6A with plots |
| Display | 5.7" LCD projected capacitance touchscreen |
| Dimensions (Main & Remote) | 2.625 in × 5.25 in × 11.0 in (6.67 cm × 13.33 cm × 27.94 cm) |
| Weight | 3 lbs (1.36 kg) |
| Battery | 7.2 V lithium-ion, 8 h typical runtime |
| Charge Time | 4 h (below 40 °C, unit off) |
| Wi-Fi | IEEE 802.11 a/b/g/n, dual-band (2.4 GHz & 5 GHz) |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Storage Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Humidity | 0–90% RH (0–35 °C), 0–70% RH (35–45 °C) |
| Shock/Vibration | 1 m drop tested; random vibration 2 g, 5–500 Hz |
| Altitude | Up to 4,000 m (13,123 ft) |
| Calibration Interval | 1 year |
