Description

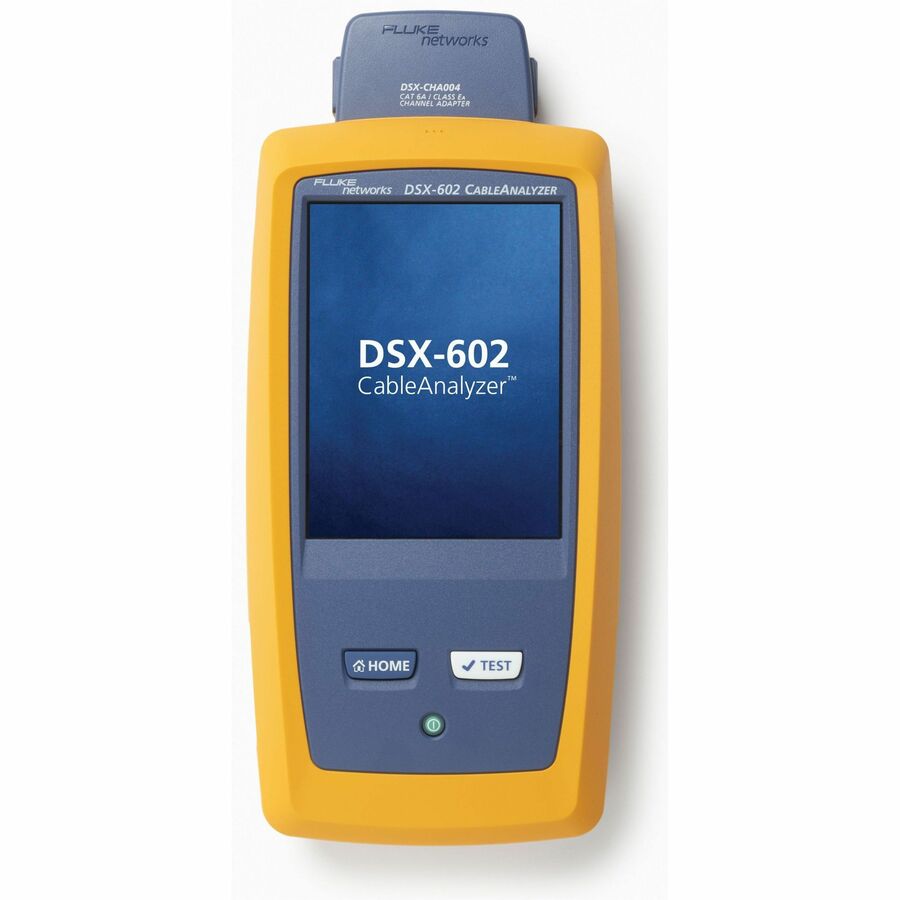

The Fluke Networks DSX-602-NW CableAnalyzer™ V2 delivers fast, accurate copper certification testing for Cat 5e, Cat 6, and Cat 6A/Class EA cabling. Designed for professional installers, it simplifies project management, ensures compliance with industry standards, and pinpoints faults quickly with built-in diagnostics. The advanced gesture-based touchscreen interface and intuitive workflow reduce setup time and errors, while high-speed certification delivers Cat 6 results in just 9 seconds and Cat 6A results in 10 seconds.
Featuring LinkWare™ Live integration, you can manage jobs, upload test results, and generate reports directly from the jobsite over Wi-Fi. Rugged, reliable, and backed by Fluke Networks’ world-class support, the DSX-602-NW is the essential tool for high-performance copper certification.
| Specification | Details |
|---|---|
| Frequency Range | Up to 500 MHz |
| Autotest Speed | Cat 5e/6: 9 sec; Cat 6A/Class EA: 10 sec |
| Supported Tests | Wire Map, Length, Propagation Delay, Delay Skew, DC Loop Resistance, Insertion Loss, Return Loss, NEXT, ACR-N, ACR-F, PS ACR-F, PS NEXT, PS ACR-N |
| Test Result Storage | 12,000 Cat 6A with plots |
| Display | 5.7 in LCD capacitive touchscreen |
| Dimensions | 2.625 in × 5.25 in × 11 in (6.67 cm × 13.33 cm × 27.94 cm) |
| Weight | 3 lbs (1.36 kg) |
| Battery | 7.2 V Li-ion, 8-hour typical runtime, 4-hour charge time |
| Wi-Fi | IEEE 802.11 a/b/g/n, dual band 2.4/5 GHz |
| Operating Temp | 32°F to 113°F (0°C to 45°C) |
| Storage Temp | -22°F to 140°F (-30°C to 60°C) |
| Humidity | 0–90% RH (0–35°C), 0–70% RH (35–45°C) |
| Durability | 1 m drop tested, random vibration (2 g, 5–500 Hz) |
| Calibration Interval | 1 year |
| Compliance | CSA 22.2 No. 61010, IEC 61010-1 3rd Ed, EN 61326-1 |
| Country of Origin | United States |
