Description

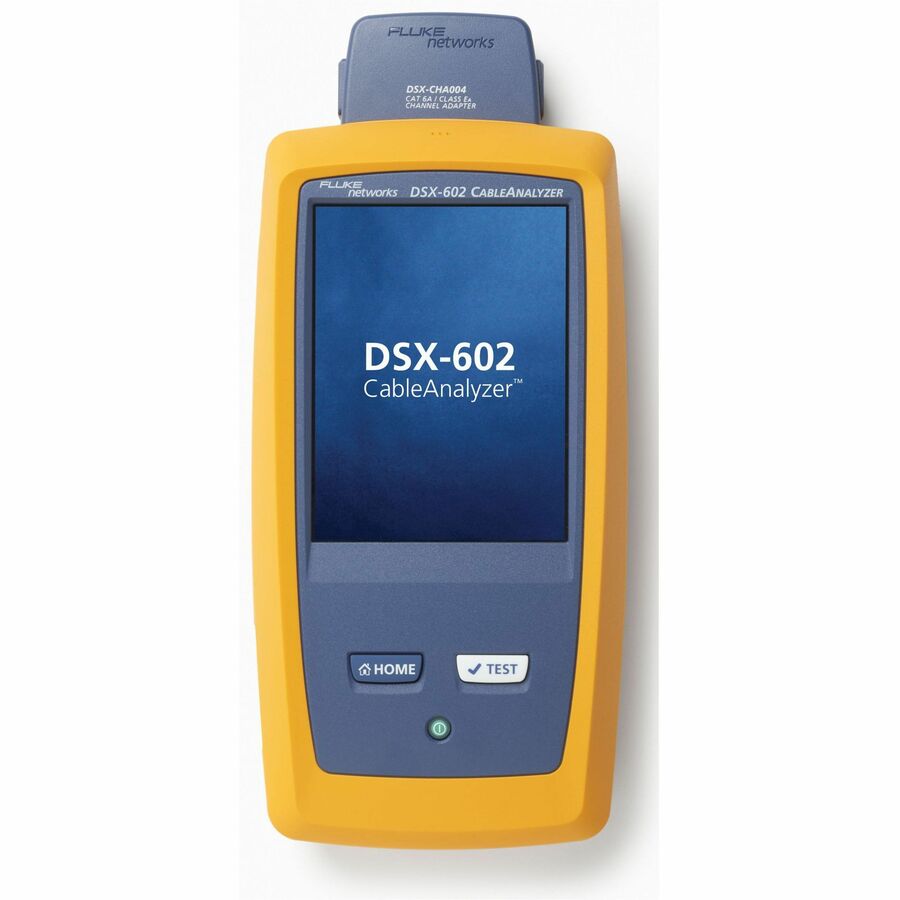

The Fluke Networks DSX-602 CableAnalyzer™ V2 with Wi-Fi delivers fast, reliable copper certification for Class E/Cat 6 and Class EA/Cat 6A cabling, meeting the industry’s most stringent accuracy standards. Engineered for efficiency, it completes Class E/Cat 6 tests in just 9 seconds and Class EA/Cat 6A in 10 seconds. The intuitive gesture-based touchscreen and ProjX™ project management system simplify setup and ensure foolproof operation. Built-in diagnostics quickly pinpoint and help resolve common faults, reducing troubleshooting time. Integrated Wi-Fi with LinkWare™ Live allows you to manage jobs, testers, and upload results directly from the jobsite. Built to Fluke Networks’ legendary durability standards, the DSX-602 is an essential tool for installers who demand speed, accuracy, and reliability.
| Feature | Specification |
|---|---|
| Model | DSX-602 CableAnalyzer™ V2 with Wi-Fi |
| Max Frequency | 500 MHz |
| Autotest Speed | Class E/Cat 6: 9 sec; Class EA/Cat 6A: 10 sec |
| Test Parameters | Wire Map, Length, Propagation Delay, Delay Skew, DC Loop Resistance, Insertion Loss, Return Loss, NEXT, ACR-N, ACR-F, PS ACR-F, PS NEXT, PS ACR-N |
| Display | 5.7" LCD, gesture-based touchscreen |
| Test Result Storage | 12,000 Cat 6A results with plots |
| Battery | Lithium-ion, 7.2 V; 8 hrs typical life; 4 hrs charge time |
| Dimensions (H x W x D) | 11.0 in x 5.25 in x 2.625 in (27.94 cm x 13.33 cm x 6.67 cm) |
| Weight | 3 lbs (1.36 kg) |
| Wi-Fi | IEEE 802.11 a/b/g/n; 2.4 GHz & 5 GHz dual band |
| Operating Temp | 32 °F to 113 °F (0 °C to 45 °C) |
| Storage Temp | -22 °F to +140 °F (-30 °C to +60 °C) |
| Humidity | 0–90% RH (≤35 °C); 0–70% RH (>35 °C to 45 °C) |
| Safety | CSA 22.2 No. 61010, IEC 61010-1 3rd Ed |
| Drop Resistance | 1 m drop, with/without module attached |
| Calibration Interval | 1 year |
