Description

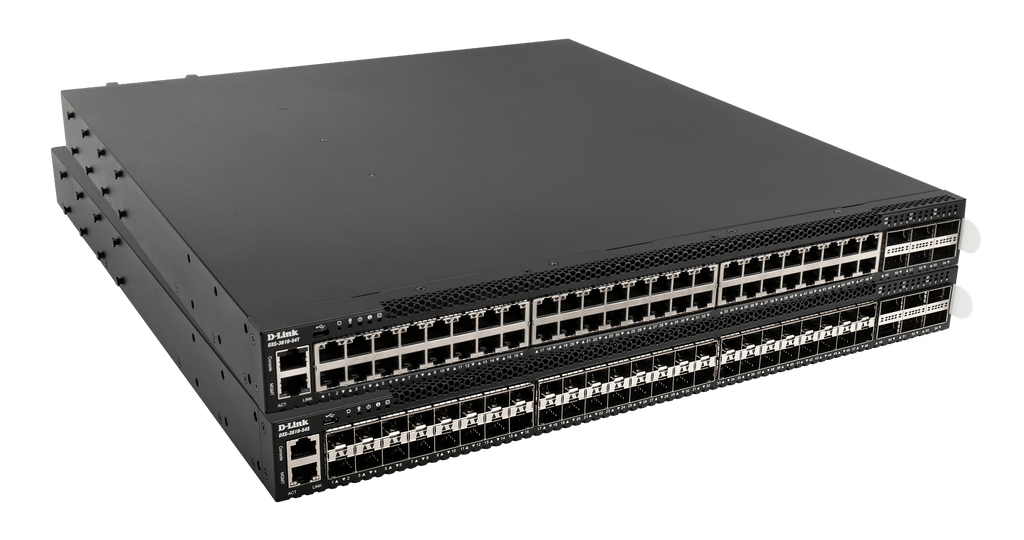

The D-Link DXS-3610-54T/SI is a high-performance Layer 3 stackable managed switch engineered for enterprise and data center aggregation environments that demand ultra-low latency, high throughput, and maximum reliability. Featuring 48 x 10GbE Base-T ports and 6 x 100GbE QSFP28 uplinks, this switch delivers powerful scalability for modern network infrastructures supporting bandwidth-intensive applications, virtualization, and cloud services.
Designed with resiliency in mind, the DXS-3610 Series incorporates hot-swappable redundant power supplies and fan modules, ensuring continuous operation and minimal downtime. Its advanced Layer 3 capabilities, including dynamic routing protocols and robust QoS, provide intelligent traffic management and optimized performance across critical workloads.
With flexible stacking capabilities and support for software-defined networking, this switch enables simplified management and future-ready network expansion. Ideal for enterprise cores, campus aggregation, and high-density deployments, the DXS-3610-54T/SI ensures consistent performance, reliability, and operational efficiency.
| Specification | Details |
|---|---|
| Switching Type | Layer 3 Managed Switch |
| Total Ports | 54 Ports |
| 10GbE Ports | 48 x 10GBase-T |
| Uplink Ports | 6 x 100G QSFP28 |
| Switching Capacity | 2.16 Tbps |
| Forwarding Rate | Up to 1607 Mpps |
| Packet Buffer Memory | 32 MB |
| MAC Address Table | Up to 288K entries |
| IPv4 Routing Table | Up to 32K entries |
| IPv6 Routing Table | Up to 16K entries |
| Stacking Capability | Up to 12 switches |
| Stacking Bandwidth | Up to 1200 Gbps |
| Jumbo Frame Support | Up to 9436 bytes |
| Redundancy | Dual hot-swappable power supplies (1+1) |
| Cooling System | 5 hot-swappable fans with N+1 redundancy |
| Management Interfaces | Web GUI, CLI, SNMP, Telnet |
| Security Features | ACLs, 802.1X, RADIUS, TACACS+, DHCP Snooping |
| QoS Features | 8 queues per port, traffic prioritization |
| VLAN Support | 802.1Q, Q-in-Q, Private VLAN |
| SDN Support | OpenFlow v1.3 |
| Mounting Type | 19-inch rack mount (1U) |
| Dimensions | 441 x 487.44 x 43.5 mm |
| Operating Temperature | 0°C to 45°C |
| Power Input | 100–240V AC |
| Maximum Power Consumption | Approx. 330W |
