Description

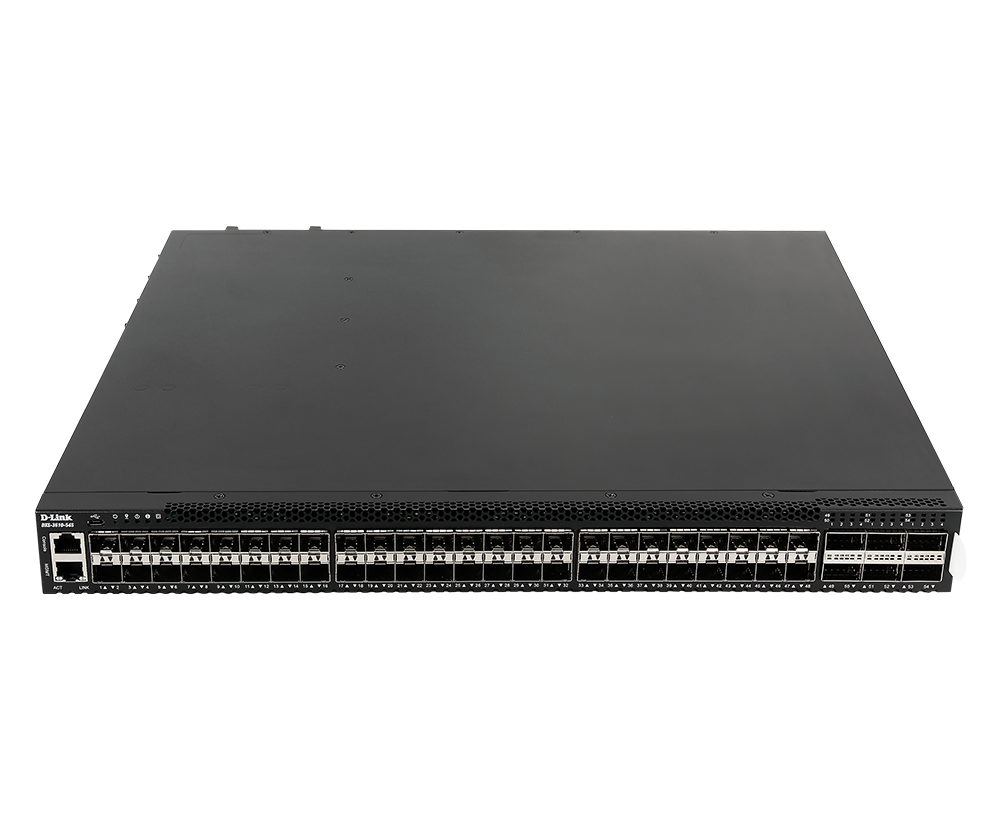

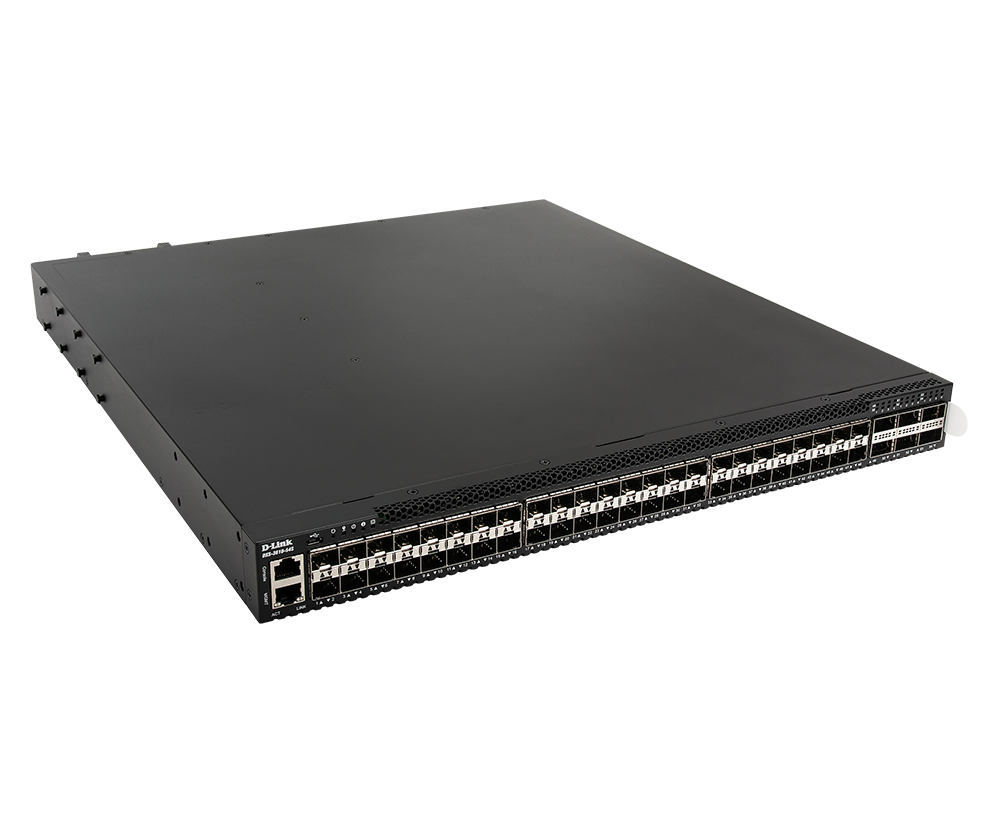

The D-Link DXS-3610-54S/SI is a high-performance Layer 3 stackable 10G managed switch engineered for enterprise, campus, and data center aggregation environments. Designed for ultra-low latency and high throughput, this switch features 48 10G SFP+ optical ports and 6 high-speed 100G QSFP28 uplink ports, enabling scalable and future-ready network infrastructure.

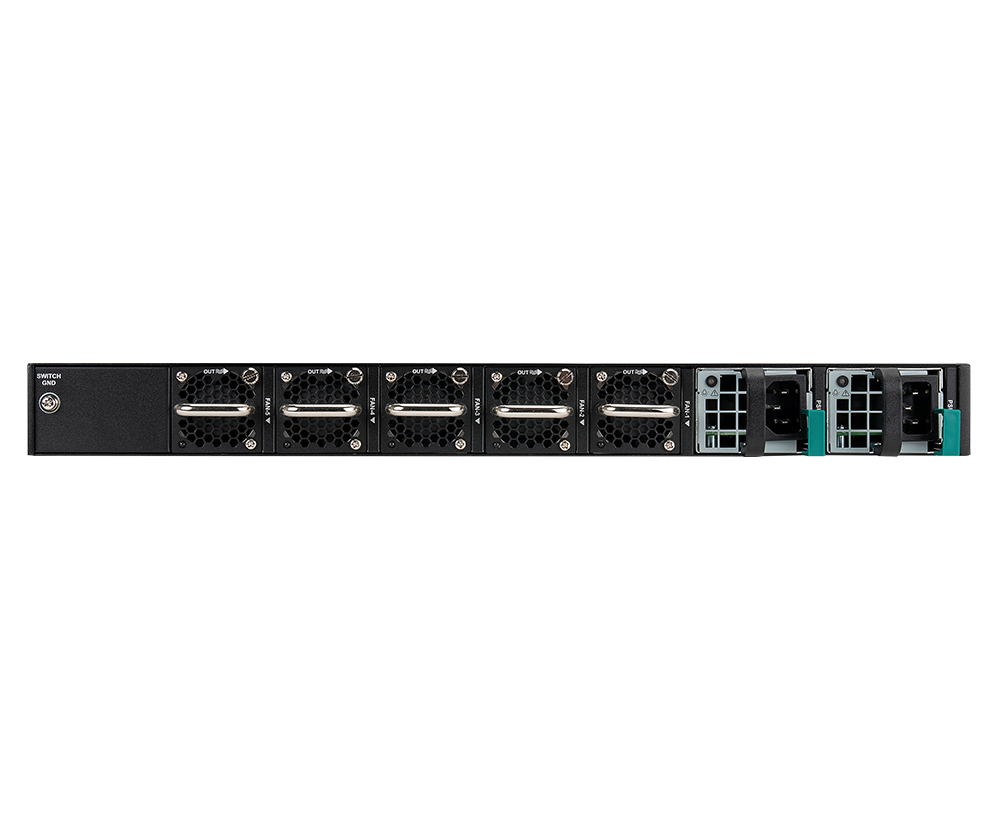

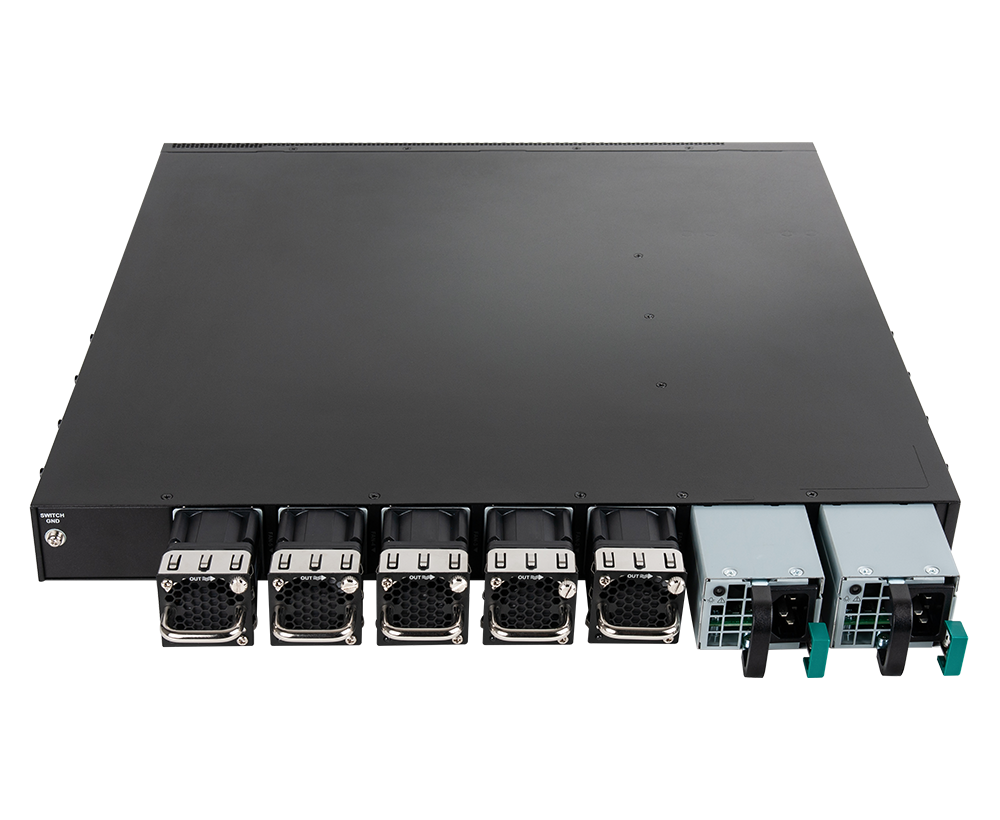

Built for reliability and continuous operation, the DXS-3610-54S/SI supports redundant power supplies, hot-swappable fan modules, and high-capacity stacking. Its advanced Layer 3 capabilities, combined with comprehensive security, QoS, and multicast features, make it ideal for demanding network deployments requiring performance, flexibility, and resilience.
With support for virtualization, SDN integration, and extensive management options, this switch ensures seamless scalability while maintaining control and visibility across your network.
| Specification | Details |
|---|---|
| Switch Type | Layer 3 Stackable Managed Switch |
| Port Configuration | 48 x 1G/10G SFP/SFP+ Optical Ports |
| Uplink Ports | 6 x 40G/100G QSFP+/QSFP28 |
| Switching Capacity | 2.16 Tbps |
| Forwarding Rate | Up to 1607 Mpps |
| Packet Buffer | 32 MB |
| MAC Address Table | Up to 288K entries |
| IPv4 Routing Table | Up to 32K entries |
| IPv6 Routing Table | Up to 16K entries |
| Jumbo Frame Support | Up to 9436 bytes |
| Stacking Capability | Up to 12 units, up to 1200 Gbps stacking bandwidth |
| Layer 3 Features | Static Routing, RIP, OSPF, VRRP |
| VLAN Support | 802.1Q VLAN, Q-in-Q, Private VLAN, up to 4094 VLAN IDs |
| QoS Features | 8 queues per port, DSCP, bandwidth control, traffic shaping |
| Security Features | 802.1X authentication, ACLs, DHCP snooping, IP-MAC binding |
| Management Interfaces | Web GUI, CLI, SNMP, SSH, Telnet |
| Console Port | RJ-45 |
| Management Port | 10/100/1000 Mbps Ethernet |
| USB Port | 1 x USB 2.0 Type-A |
| Power Supply | Dual redundant hot-swappable (1+1) |
| Cooling | Hot-swappable fan modules with N+1 redundancy |
| Power Input | 100 to 240 VAC |
| Maximum Power Consumption | Approx. 320.8 W |
| Operating Temperature | 0°C to 45°C |
| Dimensions | 441 x 487.44 x 43.5 mm |
| Form Factor | 1U Rackmount |
