Description

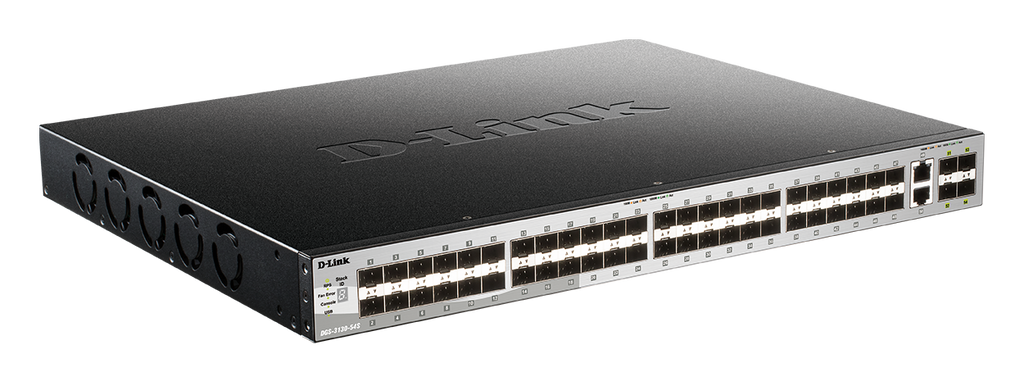

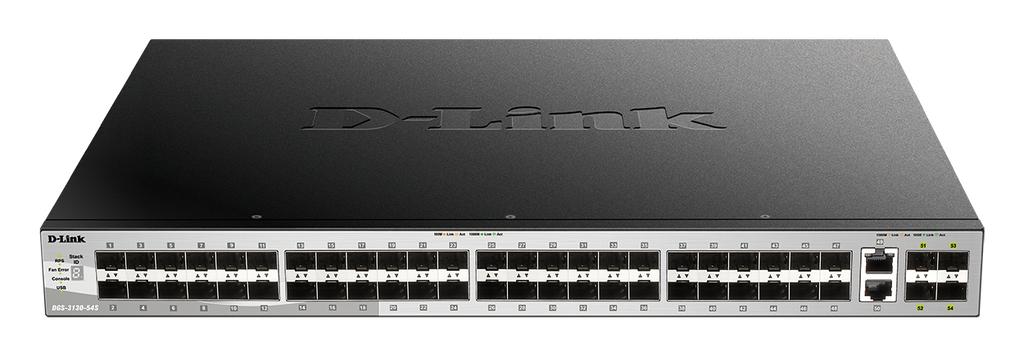

The D-Link DGS-3130-54S is a high-performance Layer 3 stackable managed switch designed for enterprise and metro Ethernet environments that demand scalability, resilience, and advanced network control. Featuring 48 Gigabit SFP ports and integrated 10G uplinks, this switch enables high-density fiber connectivity with flexible deployment options for aggregation or access layer use.
Built with robust Layer 2 and Layer 3 capabilities, the DGS-3130-54S supports advanced routing protocols, multicast optimization, and comprehensive QoS to ensure reliable delivery of critical applications such as VoIP, video conferencing, and surveillance. Physical stacking of up to multiple units simplifies management while delivering high availability and redundancy.
With enterprise-grade security features, including access control, DHCP snooping, and IP-MAC-Port binding, the switch protects network integrity while enabling granular policy enforcement. Enhanced reliability mechanisms such as ERPS, spanning tree protocols, and redundant power supply support ensure maximum uptime in mission-critical environments.
| Specification | Details |
|---|---|
| Switch Type | Layer 3 Stackable Managed Switch |
| Total Ports | 54 Ports |
| SFP Ports | 48 x Gigabit SFP |
| Uplink Ports | 2 x 10GBASE-T, 4 x 10G SFP+ |
| Switching Capacity | 216 Gbps |
| Forwarding Rate | 161 Mpps |
| Packet Buffer Memory | 4 MB |
| Stacking Capability | Physical stacking supported |
| Stacking Bandwidth | Up to 80 Gbps per unit |
| Routing Features | Static Routing, RIP, OSPF, IPv4/IPv6 |
| VLAN Support | Up to 4,000 VLAN groups |
| QoS Features | 8 queues per port, traffic shaping, prioritization |
| Multicast Support | IGMP Snooping, MLD Snooping |
| Security Features | ACLs, DHCP Snooping, IP-MAC-Port Binding, 802.1X |
| Link Aggregation | IEEE 802.3ad |
| Spanning Tree Support | STP, RSTP, MSTP |
| Management Interfaces | Web GUI, CLI, SNMP, Telnet, SSH |
| Console Port | RJ-45 |
| Management Port | RJ-45 |
| USB Port | 1 x USB 2.0 |
| Power Input | 100 to 240 VAC, 50/60 Hz |
| Redundant Power Support | Yes (Optional RPS) |
| Operating Temperature | 0°C to 50°C |
| Dimensions | 440 x 430 x 44 mm |
| Weight | 5.6 kg |
| Cooling | Smart fan system |
