Description

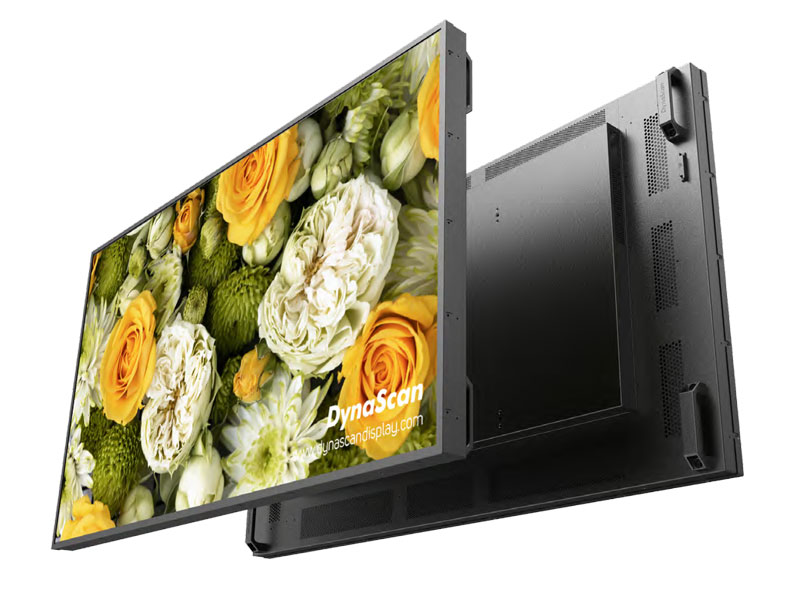

The DynaScan DS552LT5-2 is a professional 55-inch digital signage display designed for high ambient light environments. With an impressive 4000 nits of brightness, it delivers vivid, sunlight-viewable imagery ideal for storefronts, transportation hubs, and public spaces.
Engineered with a fanless cooling system, it ensures reliable 24/7 operation with low noise and reduced power consumption. The built-in Android™ 11 media player with Wi-Fi provides a flexible content management experience, eliminating the need for external players.
Equipped with advanced features such as SNMP remote monitoring, auto-orientation sensor, image retention protection, and ambient light adjustment, the DS552LT5-2 ensures both performance and efficiency. Its slim bezel, lightweight design, and versatile portrait/landscape orientation make it the perfect solution for professional digital signage installations.
| Category | Specification |
|---|---|
| Model | DS552LT5-2 |
| Display Size | 55" (54.64" viewable) |
| Resolution | 1920 × 1080 (Full HD) |
| Brightness | 4000 nits |
| Contrast Ratio | 3000:1 |
| Response Time | 9 ms |
| Viewing Angle | 178° / 178° |
| Color Depth | 8-bit |
| Backlight Lifetime | 100,000 hrs |
| Polarized Sunglasses Support | Yes |
| Power Supply | 100–240V AC, 50/60Hz |
| Power Consumption | 115 W (typ.), 260 W (max) |
| Power Saving Mode | <0.5 W |
| Bezel Width (T/B/L/R) | 10.7 mm |
| Cabinet Color | Black |
| Dimensions (WxHxD) | 1239.3 × 710.3 × 87.5 mm |
| Weight | 27.5 kg |
| Orientation | Portrait / Landscape |
| VESA Mounting | 400 × 400 mm |
| Carrying Handles | Yes |
| Fanless Design | Yes |
| Operating Temp. | 0° ~ 45°C |
| Storage Temp. | -20° ~ 60°C |
| Humidity | 10% ~ 80% RH, non-condensing |
| OS | Android 11.0 |
| Processor | Quad-core A53, 1.5 GHz |
| Memory | 2 GB DDR4 |
| Storage | 8 GB eMMC |
| Graphics | Mali G52 |
| Multimedia | 4K video decoding, H.264 / VP9 / MPEG-1/2/4 |
| Wi-Fi | 802.11 a/b/g/n/ac (2T2R) |
| Inputs | 2 × HDMI 2.1 (HDCP 2.3), 2 × USB 2.0 |
| Outputs | Audio Out |
| Control Interfaces | RS-232, RJ-45 (LAN), ETK (thermal), ESK (IR, ambient) |
| Certifications | CE, CB, FCC, WiFi, ETL, RCM, RoHS, PSE, VCCI |
| Included Accessories | Quick Start Guide, Power Cord, Remote Control, Batteries, IR & Ambient Sensor |
