Description

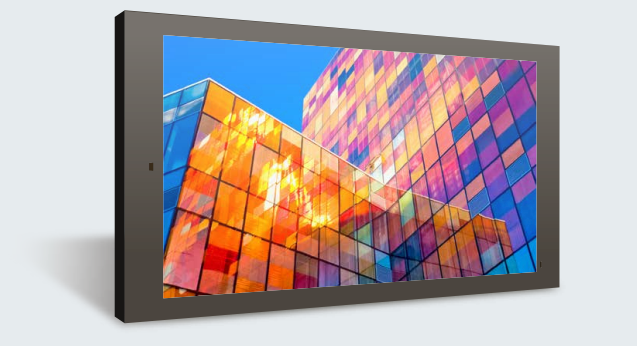

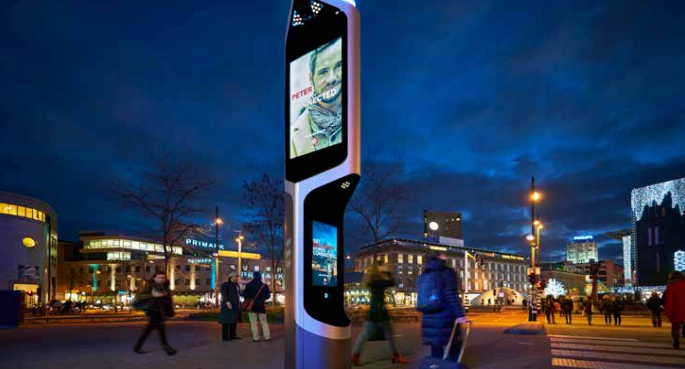

The DynaScan DO552LR5 is a professional-grade 55-inch LCD display engineered for full outdoor applications. With an impressive 3,500 nit brightness, it delivers a sunlight-viewable image ideal for outdoor kiosks, digital signage, drive-thru menu boards, transportation hubs, and smart city deployments.
Built to withstand the elements, the DO552LR5 is IP66 weather resistant, features an IK10 vandal-resistant tempered glass surface, and rugged all-metal construction for durability and rust prevention. Its blackening defect-free panel tolerates high temperatures up to 110°C (230°F), ensuring consistent performance in direct sunlight.
An integrated Android™ player with Wi-Fi offers flexible media playback, while multiple connectivity options—including HDMI, DisplayPort, DVI-D, RS-232, LAN, and USB—make integration seamless. With support for both portrait and landscape orientations, true color calibration, and polarized sunglasses compatibility, the DO552LR5 is the ultimate solution for high-visibility outdoor signage.
| Category | Specification |
|---|---|
| Manufacturer | DynaScan Technology, Inc. |
| Model / SKU | DO552LR5 |
| Screen Size | 55" (54.64" viewable) |
| Resolution | Full HD 1920 × 1080 |
| Brightness | 3,500 nits |
| Contrast Ratio | 3,000:1 (static) |
| Response Time | 9 ms (typical) |
| Viewing Angle | 178° / 178° |
| Color Depth | 8-bit |
| Light Life Time | 100,000 hrs (typical) |
| Blackening Defect Free | Up to 110°C (230°F) |
| Weather Resistance | IP66 |
| Vandal Resistance | IK10 Tempered Glass |
| Orientation | Portrait / Landscape |
| Operating Temp. | -30°C to 50°C (-22°F to 122°F) |
| Storage Temp. | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 10%–100% RH (non-condensing) |
| Internal Player | Android™ 7.1, Quad-Core Cortex-A17, Mali764 GPU, 2GB DDR3, 8GB eMMC storage, MicroSD up to 32GB |
| Video Decoders | 4K 10bit VP9/H265/H264 @ 60fps; 1080P VC-1, MPEG-1/2/4, VP8 |
| Wi-Fi | 802.11 b/g/n |
| Inputs / Outputs | HDMI, DVI-D, DisplayPort, RS-232, RJ-45 (LAN), USB, SD slot, Audio Out |
| Power Supply | Internal, 100–240 V AC, 50/60 Hz |
| Power Consumption | 320 W (typ.), 470 W (max), <1 W (standby) |
| Bezel Width (T/B/L/R) | 97.6 / 97.6 / 57.5 / 57.5 mm |
| Dimensions (W×H×D) | 1408.8 × 799.4 × 155.7 mm (55.5 × 31.5 × 6.1 in) |
| Weight | 104 kg (set) / 112 kg (packaged) |
| Mounting | VESA 500 × 800 mm; 500 × 1000 mm |
| Certifications | CE, FCC, RoHS |
| Accessories | Quick start guide, power cable, remote control with batteries |
