Description

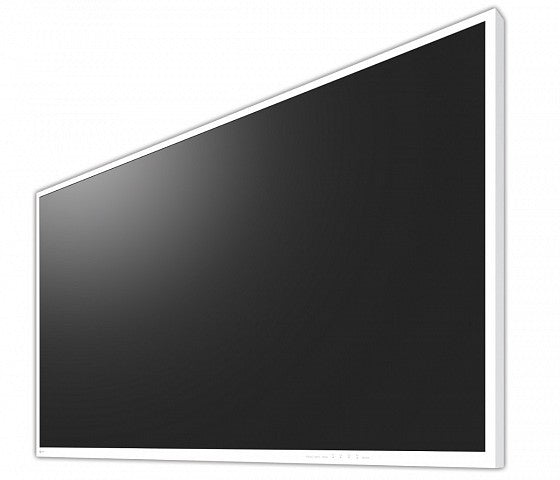

The EIZO CuratOR EX5542 is a premium-grade 55-inch 4K UHD surgical display designed to deliver outstanding visual precision for endoscopy, microsurgery, and other high-precision medical procedures. Featuring a native resolution of 3840 x 2160, this large-format monitor offers four times the clarity of Full HD, ensuring surgical teams see every critical detail with exceptional sharpness and accuracy.
Engineered to meet the rigorous demands of modern operating rooms, the EX5542 supports the BT.2020 wide color gamut, enabling surgeons to distinguish subtle tonal variations — crucial for differentiating tissue types during procedures. Its HDR support with PQ and HLG curves ensures true-to-life image reproduction without black crush, closely mimicking human visual perception.
The EX5542’s fully flat, IP45-rated front design simplifies disinfection and prevents contamination, while its lightweight 29.3 kg body and VESA-compatible mounting offer easy installation in surgical environments. A comprehensive set of connectivity options — including 12G-SDI, 3G-SDI, DisplayPort, HDMI, and DVI-D — ensures seamless integration with a wide range of surgical imaging systems, supporting 4K/60 fps transmission over a single cable.

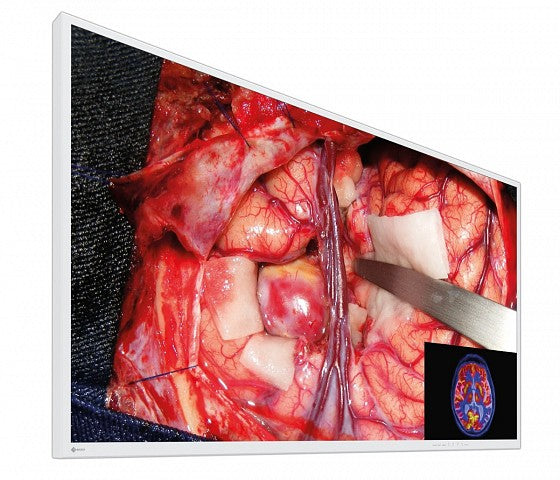

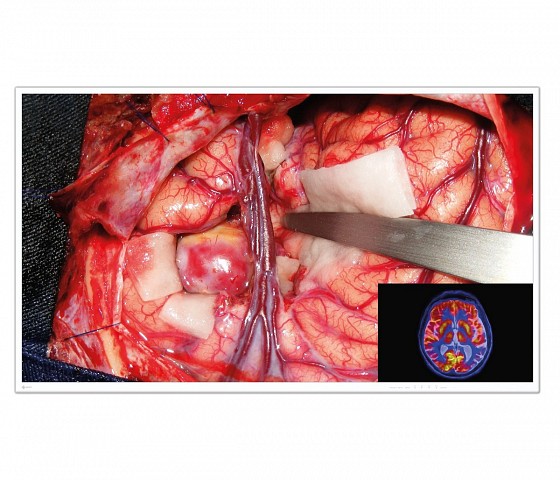

Additional features like Picture-in-Picture (PinP) and Picture-by-Picture (PbyP) modes, auto input detection, and pass-through video output enhance workflow efficiency, while the included cable cover promotes a hygienic and organized setup.
| Specification | Details |
|---|---|
| Model | EX5542 |
| Display Type | 55" TFT Color-LCD (IPS) |
| Backlight | LED |
| Native Resolution | 3840 x 2160 (4K UHD), 16:9 |
| Viewable Image Size (H x V) | 1209.6 x 680.4 mm |
| Pixel Pitch | 0.315 x 0.315 mm |
| Display Colors | 10-bit (SDI): 1.07 billion; 8-bit: 16.77 million |
| Viewing Angles (H/V) | 178° / 178° |
| Brightness (Typical) | 700 cd/m² |
| Contrast Ratio (Typical) | 1100:1 |
| Response Time (Gray-to-Gray) | 8 ms |
| Gamut Coverage | BT.2020 emulation |
| HDR Support | PQ curve, HLG |

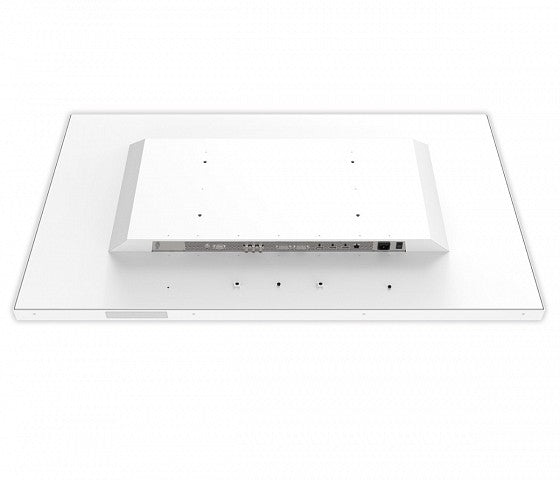

| Video Inputs | BNC (3G-SDI), BNC (12G-SDI), DVI-D, DisplayPort, HDMI |
| Video Outputs (Loop-Through) | BNC (12G-SDI), DVI-D, DisplayPort |
| Power Requirements | 100 – 240 V, 50 – 60 Hz |
| Max Power Consumption | 170 W |
| Features | PbyP, PinP, Auto Input Detection, Gamma/Color Temp Switch, RS-232C Remote |
| Protective Screen | Laminated glass, 9H hardness |
| Net Weight | Approx. 29.3 kg |
| Screen-to-Body Ratio | 91% |

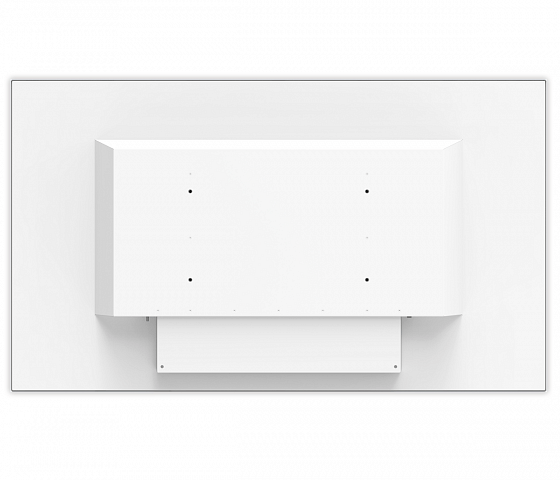

| Mounting (VESA) | 400 x 200 mm (M8, depth 11–16 mm) |
| Environmental Rating | IP45 (front), IP32 (rear) |
| Certifications | CE, UKCA (Medical), ANSI/AAMI ES60601-1, IEC/EN 60601-1, FCC-B, RoHS, WEEE, CCC |
| Included Accessories | Cable cover, mounting screws, cable ties, utility disk |
| Optional Accessories | Wall mount FWM6300 |
| Color | White |
| Cabinet Design | Fully flat for easy cleaning and space efficiency |
