Description

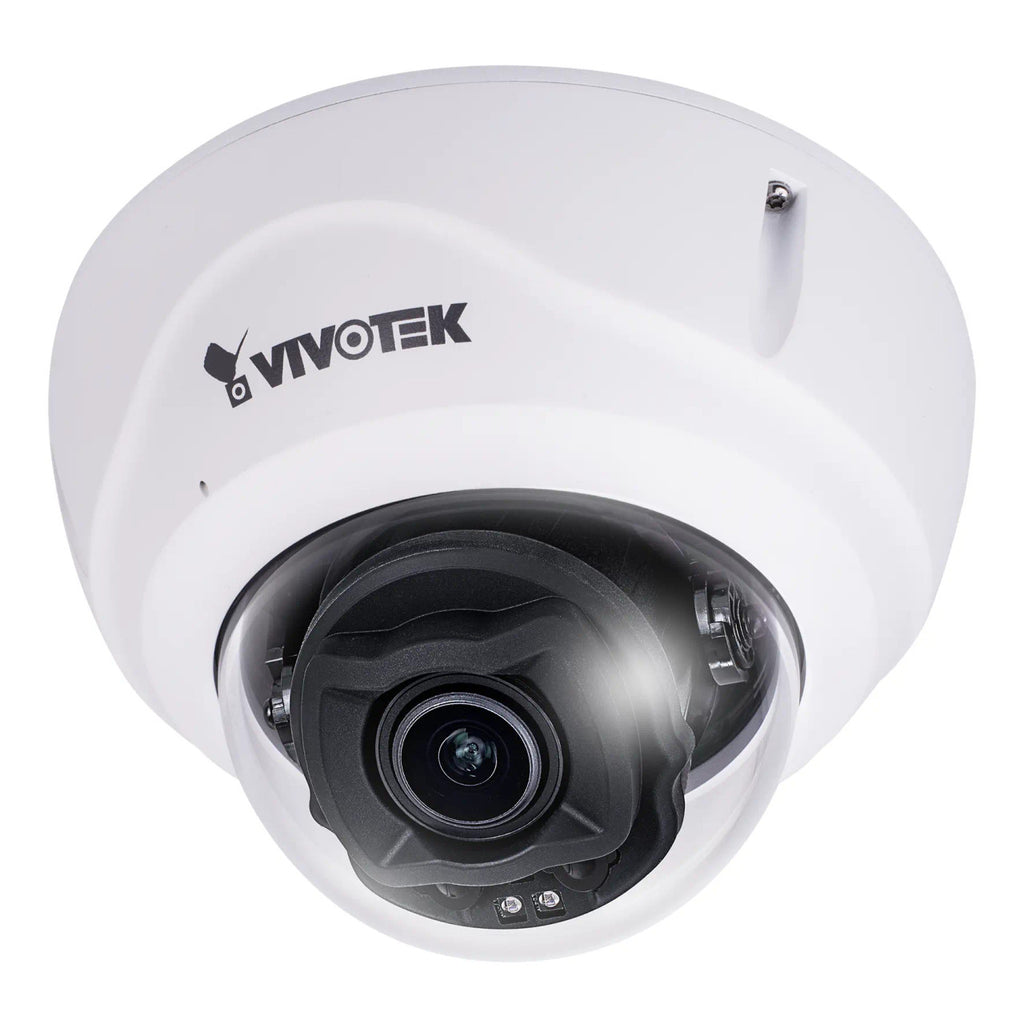

The Vivotek FD9387-FR-v2 is a high-performance 5MP fixed dome facial recognition network camera engineered for advanced security, access control, and identity management applications. With facial recognition accuracy of up to 99% and the ability to store up to 10,000 profiles on the edge, it delivers enterprise-grade performance without the need for middleware or external servers.
Featuring serverless architecture, the FD9387-FR-v2 enables seamless synchronization with up to five cameras, simplifying deployment while reducing operational costs. Its powerful recognition capabilities include support for face detection with masks, gender and age estimation, and automatic profile creation for unregistered individuals. A built-in privacy mode allows organizations to hide sensitive data or disable third-party sharing, ensuring compliance with privacy regulations.
Designed for all-day surveillance, the camera offers supreme night visibility (SNV), WDR Pro for optimal performance in challenging lighting conditions, and 50-meter Smart IR II illumination. It integrates easily with Vivotek VAST, Milestone, Genetec, and March Networks platforms and includes built-in Trend Micro IoT Security for enhanced cyber protection. With its robust IP66/IP67 weatherproof and IK10 vandal-resistant housing, the FD9387-FR-v2 is ideal for indoor and outdoor deployments across government, transportation, corporate, and critical infrastructure environments.
| Category | Details |
|---|---|
| Model | FD9387-FR-v2 |
| Image Sensor | 1/2.8" Progressive CMOS |
| Maximum Resolution | 2560 × 1920 (5MP) |
| Frame Rate | 30 fps @ 2560 × 1920 |
| Lens Type | Motorized, Vari-focal, Remote Focus |
| Focal Length | 2.7 – 13.5 mm |
| Aperture | F1.4 – F2.8 |
| Iris Type | P-iris |
| Field of View | 95° – 30° (H) / 70° – 23° (V) / 128° – 38° (D) |
| Minimum Illumination | 0.075 lux (Color), <0.01 lux (B/W), 0 lux with IR |
| IR Illuminators | Built-in, up to 50 m with Smart IR II |
| Day/Night | Yes, with removable IR-cut filter |
| WDR Technology | WDR Pro |
| Video Compression | H.265, H.264, MJPEG |
| Video Streams | Up to 3 simultaneous streams (9 configurable profiles) |
| Dynamic Range | 120 dB |
| S/N Ratio | 61 dB |
| Facial Recognition Accuracy | Up to 99% |
| Profile Capacity | Up to 10,000 profiles |
| Face Capture Rate | 30 faces per second |
| Recognition Features | Mask support, gender/age estimation, automatic stranger profile creation |
| Audio | Two-way (full duplex), G.711, G.726 |
| Network Protocols | IPv4/IPv6, HTTPS, SNMP, QoS, RTSP/RTP/RTCP, ONVIF G/S/T |
| Security | HTTPS, IEEE 802.1x, Signed Firmware, Trend Micro IoT Security |
| Event Triggers | Audio detection, tampering, cybersecurity events, digital input, manual/periodic trigger |
| Event Actions | Audio clip, digital output, email, HTTP, FTP/SFTP, NAS, SD card |
| Storage Options | MicroSD/SDHC/SDXC (up to 1TB), NAS |
| Power Input | DC 12V, AC 24V, IEEE 802.3at PoE (Class 4) |
| Power Consumption | Max 23 W (IR ON) |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Ingress Protection | IP66/IP67 weatherproof, IK10 vandal-resistant |
| Dimensions | Ø155 × 103.2 mm |
| Weight | 909 g |
| Certifications | CE, FCC, UL, CB, IK10, IP66/67, BSMI, BIS |
| Integration | VIVOTEK VAST, Milestone, Genetec, March Networks |
| Warranty | 36 months |
