Description

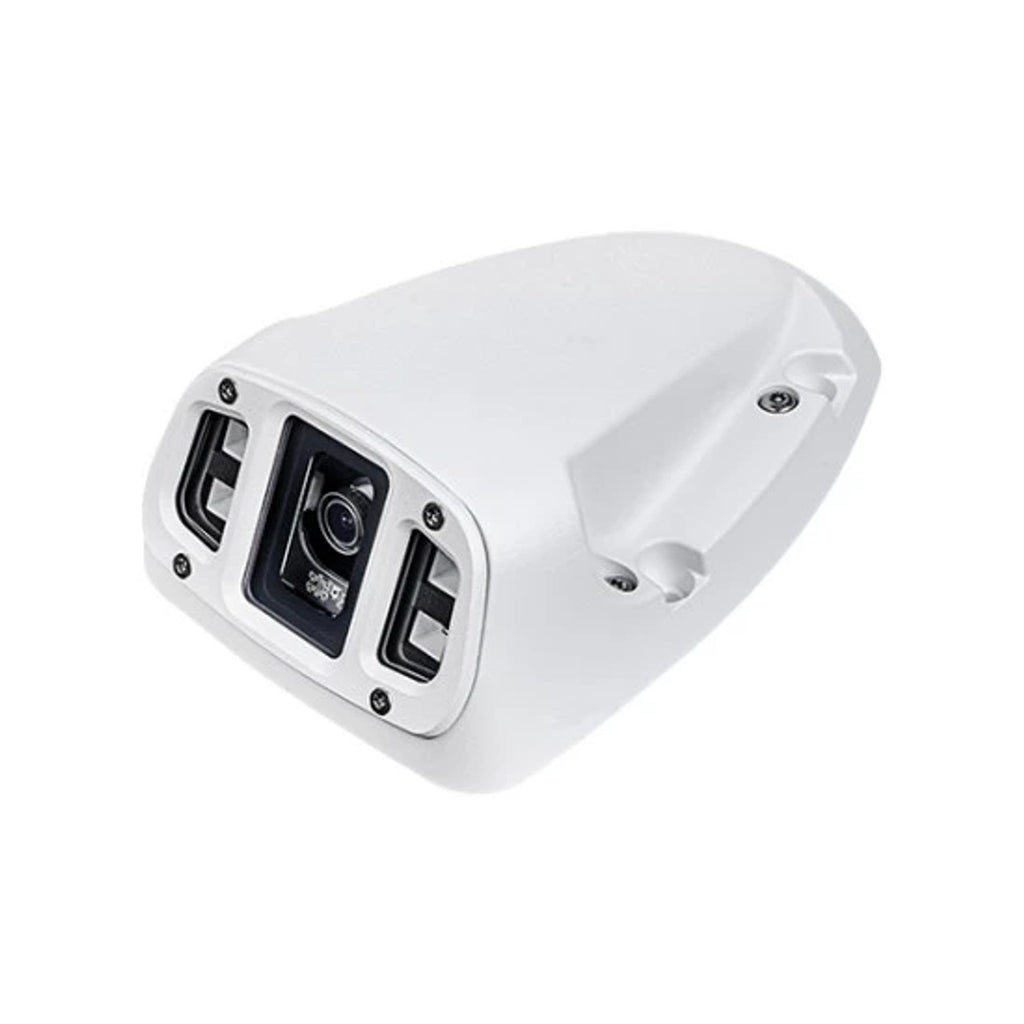

The Vivotek MD9584-HF3 is a professional-grade 5MP outdoor mobile turret IP camera engineered for reliable surveillance in transportation and mobile security applications. Designed for installation on vehicle exteriors, this camera functions as a versatile side-view (back-mirror) or pantograph monitoring solution, providing drivers with enhanced visibility of critical areas for safety and operational awareness.
Equipped with advanced H.265 compression, Smart Stream III technology, and WDR Pro, the MD9584-HF3 delivers high-resolution video with exceptional clarity, even in challenging lighting conditions. Its built-in IR illuminators provide up to 50 meters of night vision, ensuring round-the-clock performance. Built to withstand the toughest environments, the rugged enclosure meets IP68, NEMA 4X, IK10+, and IP6K9K ratings, offering superior protection against water, dust, vibration, and impacts.
Compliant with EN50155 standards and equipped with Trend Micro IoT Security, the MD9584-HF3 ensures reliable, secure, and stable video transmission under extreme conditions ā from heavy rain and dust storms to rapid temperature changes. With additional features like de-icing front glass, two-way audio, and support for ONVIF Profiles G, S, and T, this camera is an ideal choice for advanced mobile surveillance systems.
| Specification | Details |
|---|---|
| Image Sensor | 1/2.7" CMOS |
| Resolution | 5MP (2560 x 1920) |
| Max. Frame Rate | 30 fps @ 2560 x 1920 |
| Compression | H.265, H.264, MJPEG |
| Lens Type | Fixed |
| Lens Size | 3.6mm |
| Aperture | F2.0 |
| Field of View (Horizontal) | 83Ā° |
| IR Night Vision Range | Up to 50 m (164 ft) |
| Minimum Illumination (Color) | 0.1 Lux |
| Minimum Illumination (B/W) | 0.01 Lux |
| Wide Dynamic Range (WDR) | True WDR 120 dB |
| Audio | Two-way audio, G.711 / G.726 compression |
| Audio I/O | 1x input, 1x output |
| Built-in Features | Heater, De-icing function, Power & Status LEDs |
| Special Technologies | Smart Stream III, SNV (Supreme Night Visibility), Trend Micro IoT Security |
| IR LEDs | 4 |
| Digital Zoom | 48x |
| Durability | Weatherproof, Vandal-proof |
| Protection Rating | IP68, NEMA 4X, IP6K9K, IK10+ |
| Certifications | EN50155:2017 OT4, CE, FCC, CB, UKCA, UL |
| Operating Temperature | -40 Ā°C to 70 Ā°C (-40 Ā°F to 158 Ā°F) |
| Operating Humidity | 0% to 98% RH (non-condensing) |
| Power Supply | PoE (IEEE 802.3af), 24 VDC |
| Max Power Consumption | 24 W |
| Dimensions | 122 Ć 180 Ć 59 mm (4.80 Ć 7.08 Ć 2.32 in) |
| Color | White |
| Connection Type | Wired |
| Remote Users | Up to 10 |
| SD Card Support | Yes |
| Browser Support | Chrome, Internet Explorer |
| Warranty | 3-Year Manufacturer Warranty |
