Description

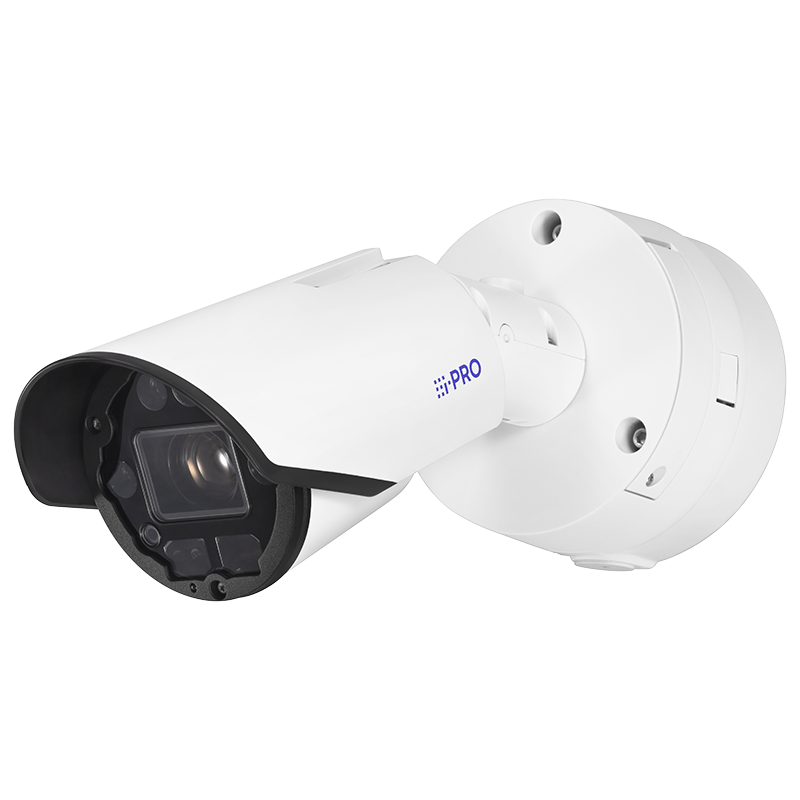

The i-PRO WV-X15501-Z1L is a high-performance 5-megapixel outdoor IR bullet camera built for mission-critical security applications. Powered by an Ambarella CV52 SoC and supporting up to nine Edge AI analytic apps, it delivers powerful on-device intelligence for object detection, face recognition, license plate recognition, and more.
Featuring a 10x optical zoom lens with built-in IR illumination up to 180 m, this camera ensures sharp detail even in total darkness. Its FIPS 140-2 Level 3 Secure Element (EdgeLock® SE050F) provides advanced cybersecurity protection, while IP66/IP67 and IK10 ratings guarantee robust performance in harsh outdoor conditions.
Designed for scalability and compliance, the WV-X15501-Z1L supports ONVIF Profiles G/M/S/T, multi-stream H.265 encoding, and integration with third-party AI applications — making it an ideal choice for city surveillance, transportation, and industrial monitoring systems.
| Category | Specification |
|---|---|
| Camera Type | 5MP AI Outdoor IR Bullet Camera |
| Image Sensor | Approx. 1/2.8-type CMOS image sensor |
| Resolution | Up to 3072 × 2304 (4:3) / 3072 × 1728 (16:9) |
| Minimum Illumination | 0.04 lx (Color, F1.6), 0 lx (B/W IR LED On) |
| Lens Type | Motorized 10× optical zoom (4.7 – 47 mm) |
| Digital Zoom | Up to 160× |
| IR Illumination Range | Up to 180 m (591 ft) with PoE++ |
| Wide Dynamic Range | Max. 132 dB (Super Dynamic On) |
| AI Capabilities | Up to 9 Edge AI apps: People, Vehicle, Face Detection, Scene Change, License Plate Recognition, AI Privacy Guard, etc. |
| AI Sound Classification | Detects Gunshot, Yell, Vehicle Horn, Glass Break |
| Video Compression | H.265 / H.264 / JPEG (MJPEG) |
| Smart Coding | GOP control, Smart VIQS, P-picture control |
| Streaming | Up to 4 streams simultaneously |
| Network Protocols | IPv4/IPv6, HTTP/HTTPS, RTSP, MQTT, SNMP, FTP/SFTP, IEEE 802.1X |
| Storage Support | microSD (2 GB – 512 GB, SD/SDHC/SDXC) |
| Power Options | DC 12 V, PoE+ (IEEE 802.3at), PoE++ (IEEE 802.3bt) |
| Power Consumption | DC 15.6 W / PoE+ 24.8 W / PoE++ 32.4 W |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F, PoE++) |
| Ingress Protection | IP66 / IP67 / Type 4X / NEMA 4X compliant |
| Impact Resistance | IK10 rated |
| Dimensions | Ø168 mm × 403 mm (D), max 456 mm with sunshade |
| Weight | Approx. 3.6 kg (8.0 lb) |
| SoC | Ambarella CV52 |
| Certifications | UL, CE, FCC, NDAA compliant, FIPS 140-2 Level 3 |
| Supported ONVIF Profiles | G / M / S / T |
| Material & Finish | Aluminum die-cast body, i-PRO white, stainless steel screws |
| Optional Accessories | WV-QPL500-W, WV-QCN500-W, WV-QCL101-W, WV-QCL100-W, WV-Q105A, WV-SDB Series SD Cards, WV-QCA501A, WV-PM500, WJ-PU201P / G PoE Injectors |
