Description

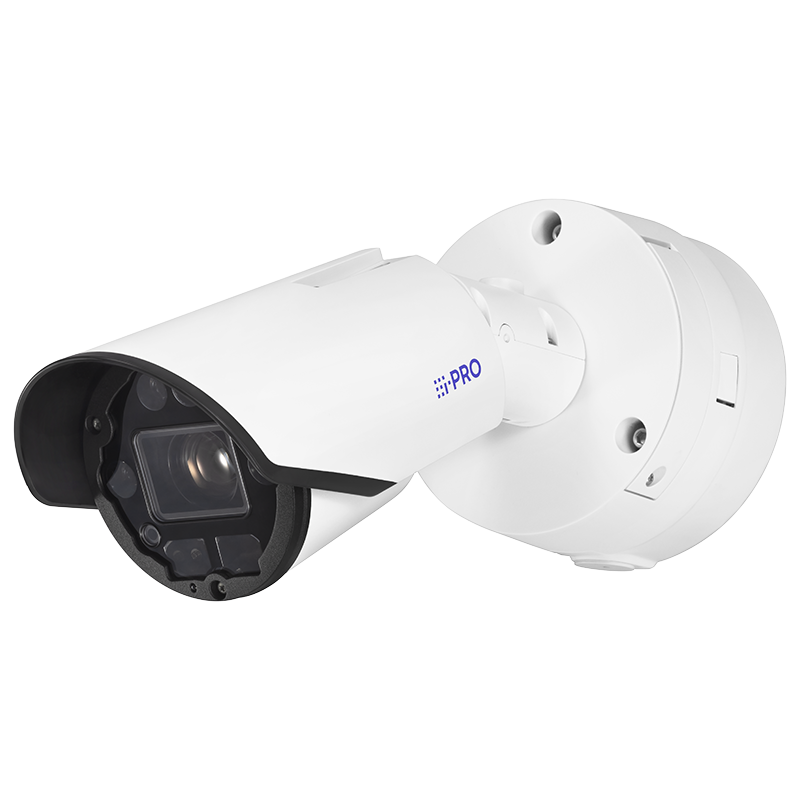

The i-PRO WV-S15501-Z1L is a high-performance 5-megapixel outdoor bullet camera engineered for advanced surveillance with integrated AI analytics. Designed to deliver precise detail and security intelligence, this camera features a 10x optical zoom, Super Dynamic range up to 132 dB, and built-in IR LED illumination up to 180 m (591 ft) for clear imaging in complete darkness.
Built for reliability, it includes IP66/IP67, IK10, and NEMA 4X ratings for extreme weather and impact resistance. The Ambarella CV22 SoC supports up to three Edge AI analytic apps, including AI-powered people, vehicle, and face detection. Security is reinforced with FIPS 140-2 Level 3 Secure Element (EdgeLock SE050F) and NDAA compliance for government and enterprise environments.
With flexible power options (DC 12 V / PoE+ / PoE++), an intuitive browser-based GUI, ONVIF Profile G/M/S/T compatibility, and optional accessories for easy installation, the WV-S15501-Z1L ensures dependable, intelligent surveillance for critical outdoor monitoring applications.
| Category | Specification |
|---|---|
| Image Sensor | Approx. 1/2.8-type CMOS |
| Resolution | Up to 3072 × 2304 (5 MP) |
| Minimum Illumination | 0.04 lx (Color, 30 IRE, F1.6); 0 lx (B/W with IR On) |
| Dynamic Range | Max. 132 dB (Super Dynamic On) |
| Optical Zoom | 10× motorized zoom / motorized focus |
| Digital Zoom | Up to 160× |
| Focal Length | 4.7 – 47 mm (F1.6 – F3.0) |
| IR LED Range | Up to 180 m (PoE++) / 130 m (PoE+) |
| Field of View | Horizontal 6.1° – 58° / Vertical 3.4° – 34° (16:9) |
| AI Analytics | AI Video Motion Detection, AI Privacy Guard, AI Face / People / Vehicle Detection, AI Scene Change Detection (Up to 3 Apps) |
| AI Sound Classification | Gunshot, Yell, Vehicle Horn, Glass Break |
| SoC Processor | Ambarella CV22 |
| Smart Coding | H.265/H.264 with Smart VIQS and P-picture control |
| Audio Compression | G.726, G.711, AAC-LC |
| Network Interface | 10BASE-T / 100BASE-TX (RJ-45) |
| Protocols Supported | IPv4/IPv6, HTTP/HTTPS, RTSP, SNMPv1/v2/v3, FTP/SFTP, MQTT, IEEE 802.1X |
| Simultaneous Users | Up to 14 connections |
| Security Features | FIPS 140-2 Level 3, GlobalSign certification, Signed firmware, Brute-force protection |
| Storage | microSD (2 GB – 512 GB supported) |
| Audio I/O | 3.5 mm stereo mini jack (Mic/Line input, Audio output) |
| Alarm I/O | 3 inputs / 2 outputs |
| Operating Temperature | –40 °C to +60 °C (PoE++); –30 °C to +60 °C (DC 12 V) |
| Ingress / Impact Rating | IP66 / IP67, IK10, NEMA 4X |
| Power Options | DC 12 V, PoE+, PoE++ |
| Power Consumption | 15.6 W (DC 12 V), 24.8 W (PoE+), 32.4 W (PoE++) |
| Dimensions | Φ168 × 403 mm (D) / Φ168 × 456 mm (with sunshade extended) |
| Weight | Approx. 3.6 kg (8.0 lbs) |
| Certifications | UL, CE, FCC Class A, NDAA Compliant |
| Optional Accessories | WV-QPL500-W, WV-QCN500-W, WV-QCL101-W, WV-QCA501A, WV-PM500, WJ-PU201P, i-PRO SD Cards (32 GB – 512 GB) |
