Description

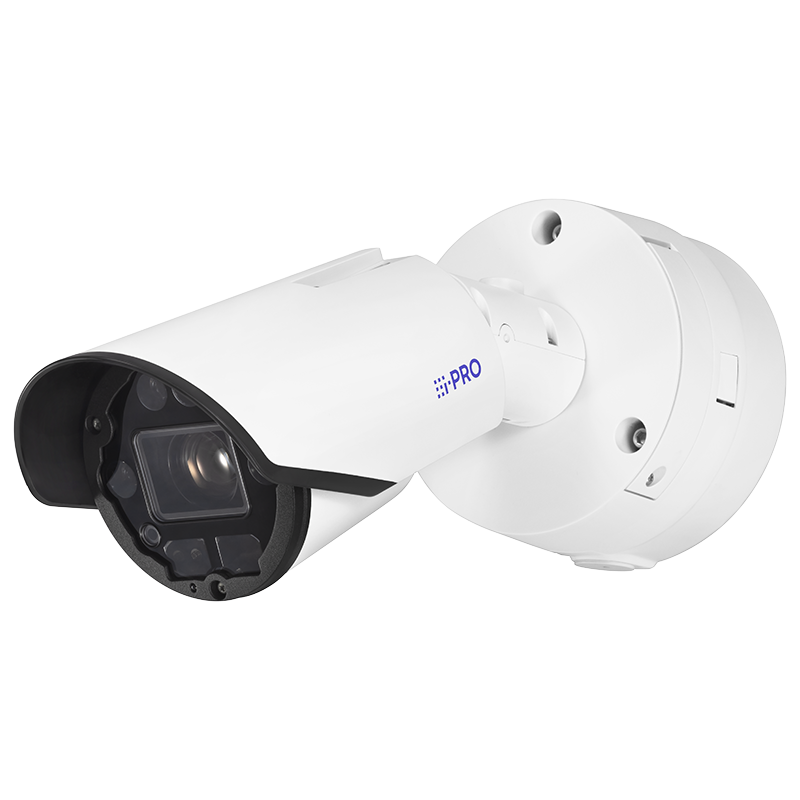

The i-PRO WV-X15501-Z3L is a 5MP AI-powered outdoor IR bullet camera engineered for advanced surveillance and security intelligence. Featuring a 30x motorized optical zoom lens and built-in IR illumination up to 180 meters, it delivers sharp imaging performance even in complete darkness.
Equipped with an Ambarella CV52 System-on-Chip and supporting up to 9 Edge AI analytics applications, this camera provides intelligent monitoring functions such as AI People and Vehicle Detection, AI Scene Change Detection, and License Plate Recognition (with third-party apps).
The WV-X15501-Z3L is IP66/IP67 and IK10 certified, ensuring durability in harsh environments, and includes a FIPS 140-2 Level 3 Certified Secure Element (EdgeLock® SE050F) for enhanced cybersecurity compliance. Its multi-codec support (H.265/H.264/JPEG), flexible power options (DC12V/PoE+/PoE++), and wide operating temperature range make it ideal for city surveillance, perimeter protection, and industrial monitoring applications.
| Category | Details |
|---|---|
| Image Sensor | Approx. 1/2.8-type CMOS image sensor |
| Resolution | Up to 3072×2304 (5MP) |
| Minimum Illumination | Color: 0.06 lx (F1.8, AGC:11); B/W: 0 lx (IR On) |
| Lens | 30x optical zoom (4.5–135 mm, F1.8–4.7), motorized focus |
| IR Illumination | Built-in IR LED, up to 180 m (PoE++) |
| Field of View | H: 2.3°–58° (WIDE–TELE); V: 1.3°–34° (WIDE–TELE) |
| Dynamic Range | Up to 132 dB (Super Dynamic On) |
| Intelligent Features | AI People/Vehicle/Face Detection, AI Motion, AI Privacy Guard, AI Scene Change Detection, License Plate Recognition (supported) |
| Edge AI Apps | Supports up to 9 applications |
| SoC | Ambarella CV52 |
| Video Compression | H.265 / H.264 / JPEG |
| Frame Rate | Up to 60 fps (16:9 mode) |
| Audio Support | G.726, G.711, AAC-LC (16 – 128 kbps) |
| Network Protocols | IPv4/IPv6, HTTPS, SNMPv3, SRTP, MQTT, ONVIF Profiles G/M/S/T |
| Simultaneous Streams | Up to 4 |
| Storage | microSD / SDHC / SDXC (Up to 512 GB) |
| Security | FIPS 140-2 Level 3 certified Secure Element, GlobalSign® certificates, Secure boot / signed firmware |
| Power Source | DC 12 V (15.6 W), PoE+ (24.8 W), PoE++ (32.4 W) |
| Operating Temperature | -40 °C to +60 °C (PoE++); IR LED On: Up to +50 °C |
| Ingress Protection | IP66 / IP67 / NEMA 4X / Type 4X |
| Impact Resistance | IK10, 4M4 vibration compliant |
| Dimensions (Ø × L) | Ø168 mm × 403 mm (17.9 in max with sunshade extended) |
| Weight | Approx. 3.6 kg (8.0 lbs) |
| Finish | Aluminum die-cast body, i-PRO white |
| Optional Accessories | WV-QPL500-W, WV-QCN500-W, WV-QCL101-W, WV-QCL100-W, WV-Q105A, WV-PM500, WV-SDB Series SD Cards, WJ-PU201 PoE Injectors |
