Description

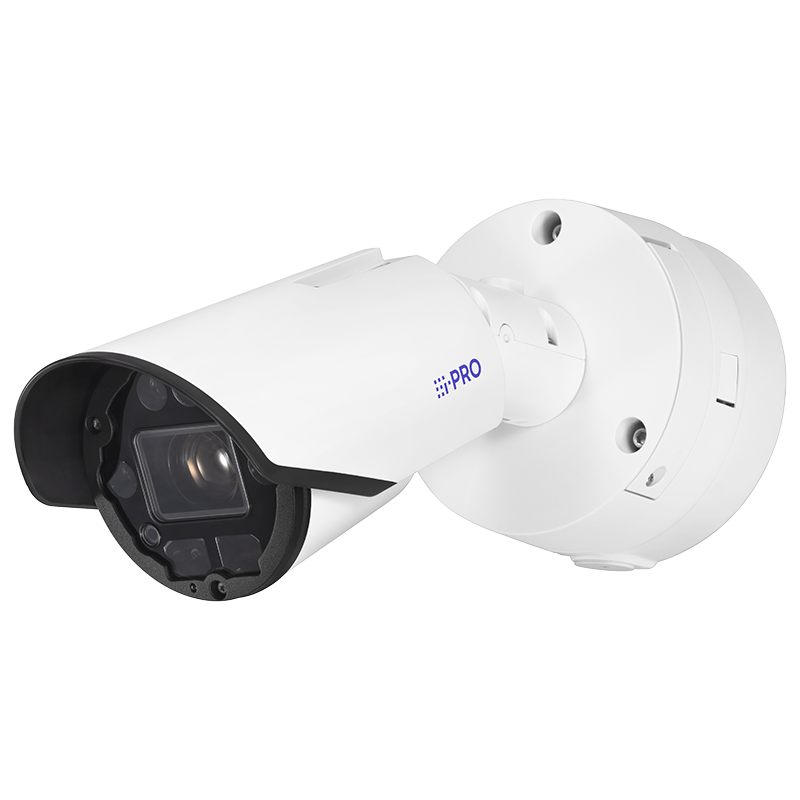

The i-PRO WV-S15501-Z3L is a high-performance 5MP AI outdoor IR bullet camera engineered for advanced security surveillance applications. Featuring a 30x optical zoom, built-in IR LED with up to 180m range, and edge AI analytics, it delivers precise monitoring in any lighting condition. With support for up to three Edge AI applications, FIPS 140-2 Level 3 certified security, and NDAA compliance, this camera ensures powerful performance and cybersecurity for critical installations.
Designed for outdoor durability, it carries IP66, IP67, IK10, and Type 4X (NEMA 4X) ratings, guaranteeing protection against harsh weather and impact. Built on the Ambarella CV22 SoC, it supports AI-based detection features, including people, face, vehicle, occupancy, and scene change analytics. Whether for perimeter protection, traffic monitoring, or public area surveillance, the WV-S15501-Z3L delivers exceptional clarity, reliability, and intelligence in one robust form factor.
| Category | Details |
|---|---|
| Camera Type | 5MP AI Outdoor IR Bullet Camera |
| Image Sensor | Approx. 1/2.8 type CMOS image sensor |
| Resolution (Max) | 3072 × 1728 (16:9) / 3072 × 2304 (4:3) |
| Optical Zoom | 30x motorized zoom (4.5–135 mm) |
| Digital Zoom | Up to 480x |
| Minimum Illumination | Color: 0.06 lx (F1.8, AGC:11) / B/W: 0 lx (IR LED On) |
| IR LED Range | Up to 180 m (PoE++), 130 m (PoE+), 85 m (DC12V) |
| Dynamic Range | Max. 132 dB (Super Dynamic: On) |
| AI Analytics | AI People Detection, AI Vehicle Detection, AI Face Detection, AI Scene Change, AI Privacy Guard, AI Occupancy Detection |
| AI Sound Classification | Gunshot, Yell, Vehicle Horn, Glass Break |
| Edge AI App Support | Up to 3 simultaneous AI applications |
| System on Chip (SoC) | Ambarella CV22 |
| Compression Formats | H.265, H.264, MJPEG |
| Video Streams | Up to 4 simultaneous streams |
| Frame Rates | 30 fps (16:9), 25 fps (4:3) |
| Smart Coding | GOP control (Low/Mid/Advanced), Smart VIQS, Smart P-picture control |
| Audio | G.711, G.726, AAC-LC compression; input/output supported |
| Network Interface | 10BASE-T / 100BASE-TX, RJ45 connector |
| Protocols Supported | IPv4, IPv6, HTTP/HTTPS, RTP/RTSP, SNMPv3, FTP/SFTP, MQTT, IEEE 802.1X |
| Security | FIPS 140-2 Level 3 (EdgeLock SE050F), GlobalSign® certificate, HTTPS encryption, signed firmware, brute-force protection |
| ONVIF Support | Profile G / M / S / T |
| SD Card Slot | microSDXC (up to 512 GB) |
| Operating Temperature | -40 °C to +60 °C (PoE++); up to +50 °C with IR LED On |
| Ingress Protection | IP66 / IP67 / Type 4X (UL50E) / NEMA 4X |
| Impact Resistance | IK10 (IEC 62262) |
| Vibration Resistance | IEC 60721-3-4 4M4 compliant |
| Wind Resistance | Up to 40 m/s (approx. 89 mph) |
| Power Source | DC 12V, PoE+ (IEEE802.3at), PoE++ (IEEE802.3bt) |
| Power Consumption | 15.6 W (DC12V), 24.8 W (PoE+), 32.4 W (PoE++) |
| Dimensions (Ø × D) | 168 mm × 403 mm (15.9 in), up to 456 mm with sunshade |
| Weight | Approx. 3.6 kg (8.0 lbs) |
| Material & Finish | Aluminum die-cast body, i-PRO white finish |
| Certifications | UL, CE, FCC Class A, NEMA 4X, IK10, NDAA compliant |
| Compatible Accessories | WV-QPL500-W, WV-QCN500-W, WV-QCL101-W, WV-QCL100-W, WV-Q105A, WV-SDB032G–WV-SDB256G SD cards, WV-QCA501A I/O cable, WV-PM500 mic unit, WJ-PU201P PoE injector |
