Description

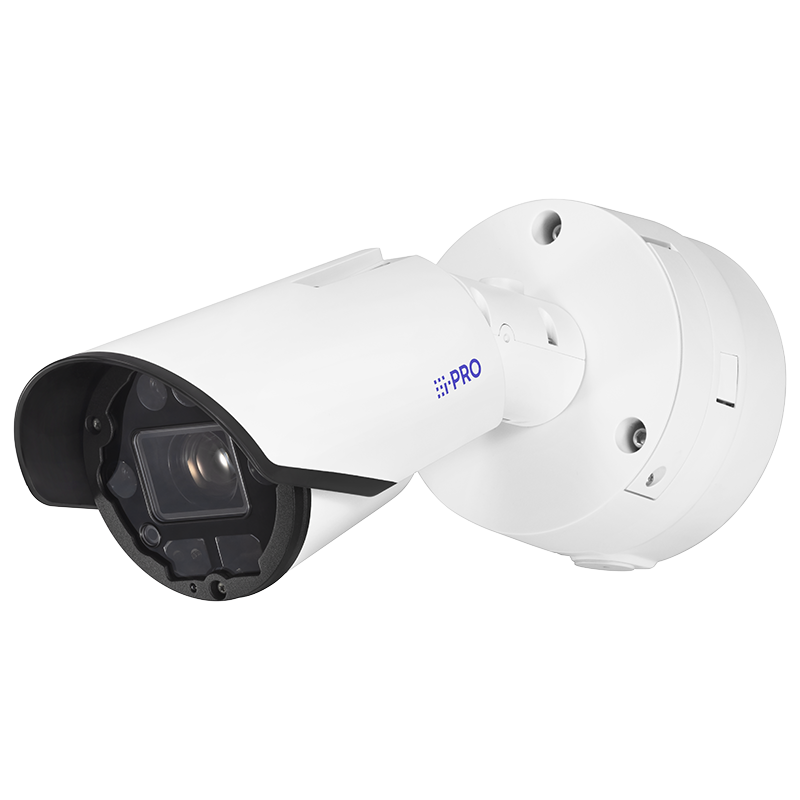

The i-PRO WV-X15502-Z1L is a high-performance 5MP AI-powered outdoor IR bullet camera optimized for license plate recognition (LPR) in demanding surveillance environments. Equipped with a 10x motorized optical zoom lens, built-in IR LED illumination up to 180 m (591 ft), and Edge AI analytics, this camera delivers exceptional detail and reliability in both day and night operations.
It supports up to 9 Edge AI analytic applications, enabling advanced functions such as AI vehicle detection, license plate recognition, AI face detection, occupancy monitoring, and scene change detection. The camera is FIPS 140-2 Level 3 certified, features NXP EdgeLock® SE050F secure element, and is NDAA compliant for government and enterprise deployments.
With rugged IP66/IP67 and IK10 ratings, the WV-X15502-Z1L ensures durability in extreme outdoor conditions, offering long-term performance with a wide operating temperature range of –40 °C to +60 °C.
| Category | Details |
|---|---|
| Image Sensor | Approx. 1/2.8-type CMOS image sensor |
| Resolution | Up to 3072 × 2304 (5 MP) |
| Minimum Illumination | Color: 0.04 lx (F1.6, 1/30 s, AGC 11) / B/W: 0 lx (IR On) |
| Dynamic Range | Max. 132 dB (Super Dynamic On, Level 31) |
| Optical Zoom | 10× (Motorized Zoom / Focus) |
| Digital Zoom | Up to 160× |
| Focal Length | 4.7 mm – 47 mm |
| Field of View (16:9) | Horizontal 6.1° – 58° / Vertical 3.4° – 34° |
| IR LED Illumination Range | Up to 180 m (591 ft) with PoE++ |
| License Plate Recognition (LPR) | Optimized for LPR with embedded Long Pass Filter (LPF) |
| Supported Vehicle Speed | Up to 130 km/h (81 mph) at 30 m distance (PoE++) |
| AI Analytics | AI VMD, AI Privacy Guard, AI Face Detection, AI People Detection, AI Vehicle Detection, AI Scene Change, AI Occupancy, AI On-site Learning, LPR (Vaxtor VaxALPR Trial) |
| Max. AI Apps | 9 Edge AI applications supported |
| SoC | Ambarella CV52 |
| Compression | H.265, H.264, MJPEG / Smart Coding (GOP, VIQS, P-picture) |
| Streaming | Up to 4 streams simultaneously |
| Audio Support | G.711, G.726, AAC-LC / Line in and out via ø3.5 mm jack |
| Network Protocols | IPv4/IPv6, HTTP/HTTPS, SSL/TLS, SNMP, RTSP, SRTP, FTP/SFTP, MQTT, ONVIF Profile G/M/S/T |
| Storage | microSD/microSDHC/microSDXC (2 GB – 512 GB) |
| Security | FIPS 140-2 Level 3, EdgeLock SE050F, GlobalSign Certificate, Secure Boot, Signed Firmware |
| Power Options | DC 12 V (15.6 W) / PoE+ (24.8 W, Class 4) / PoE++ (32.4 W, Class 5) |
| Operating Temperature | –40 °C to +60 °C (PoE++), –30 °C to +60 °C (DC 12 V) |
| Ingress Protection | IP66 / IP67 / Type 4X / NEMA 4X compliant |
| Impact Resistance | IK10 (IEC 62262) |
| Dimensions | Ø 168 mm × 403–456 mm (D) / Weight ≈ 3.6 kg |
| Certifications | UL, CE, FCC (Class A), ICES-003 (Class A), NDAA Compliant |
| Optional Accessories | WV-QPL500-W, WV-QCN500-W, WV-QCL101-W, WV-QCL100-W, WV-Q105A, WV-SDB Series SD Cards, WV-QCA501A I/O Cable, WV-PM500 Mic, WJ-PU201 PoE Injectors |
