Description

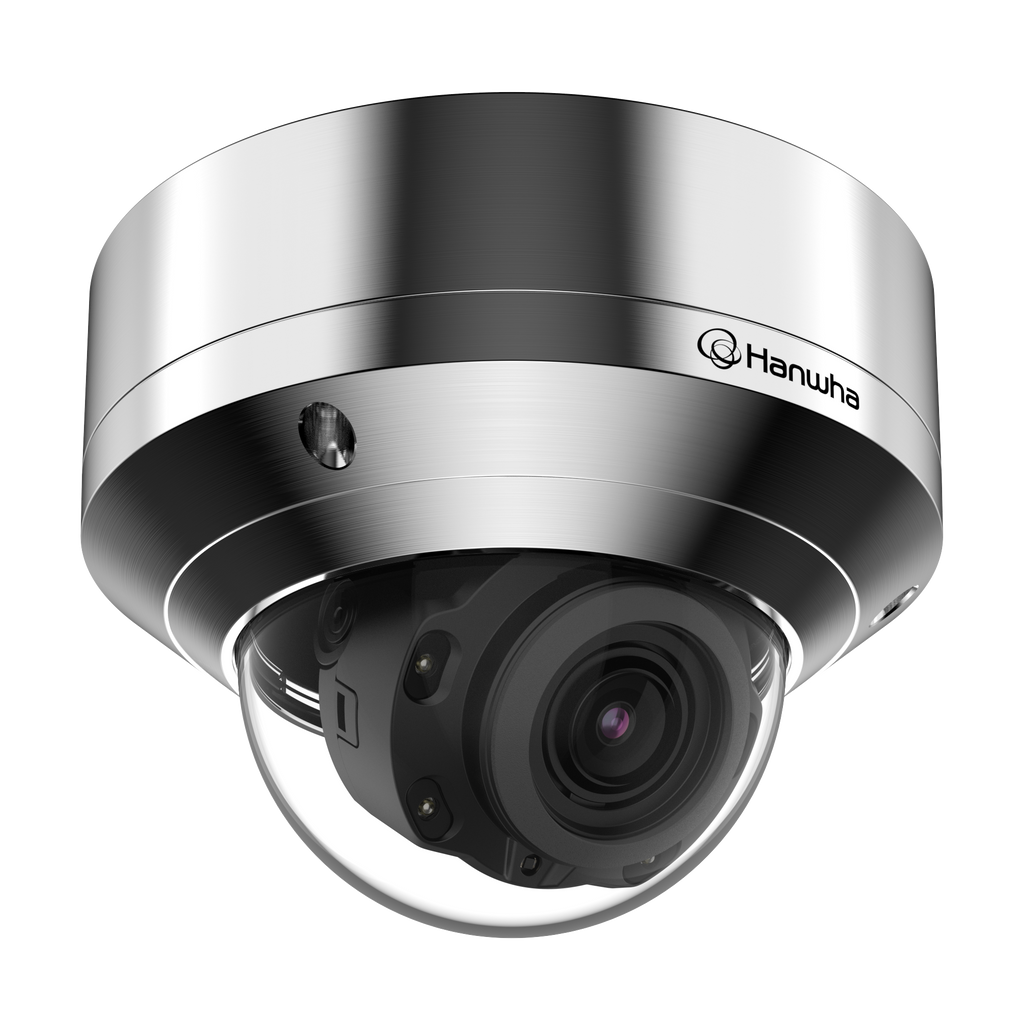

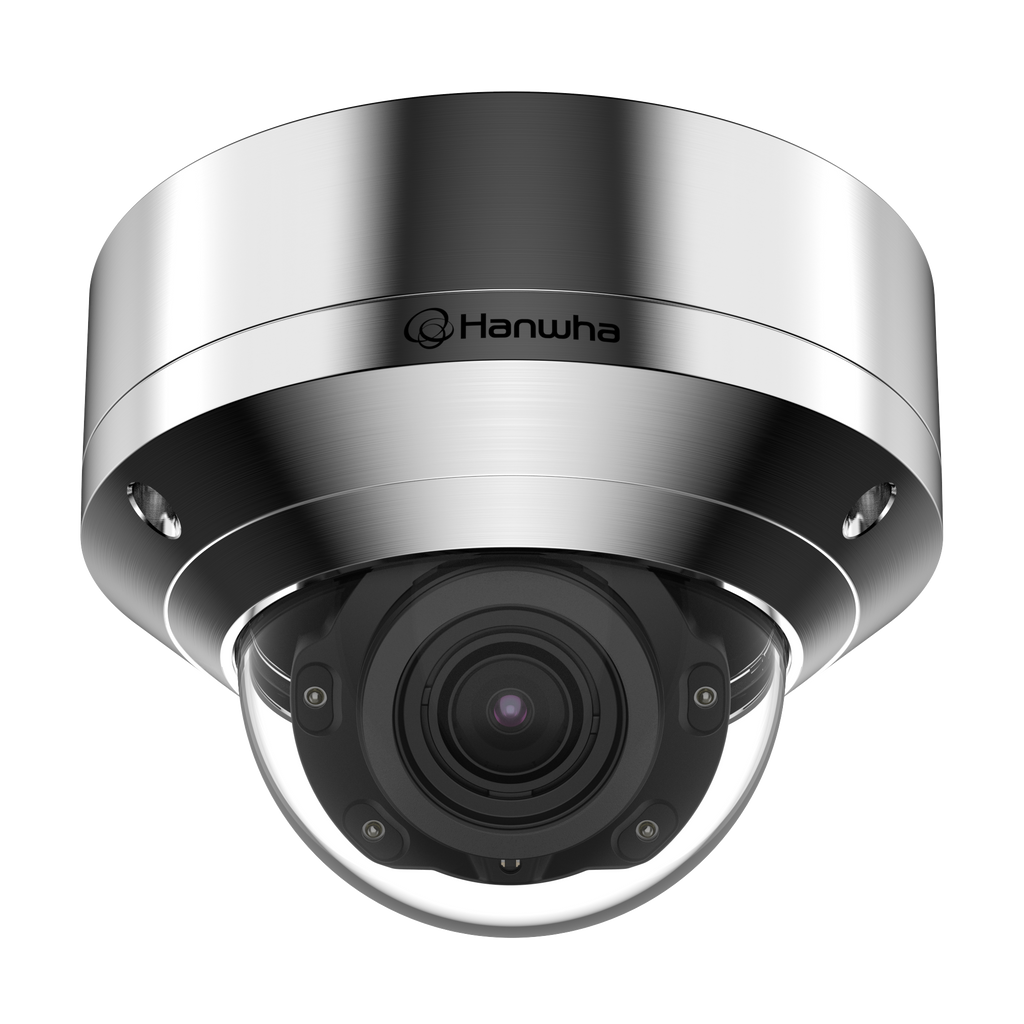

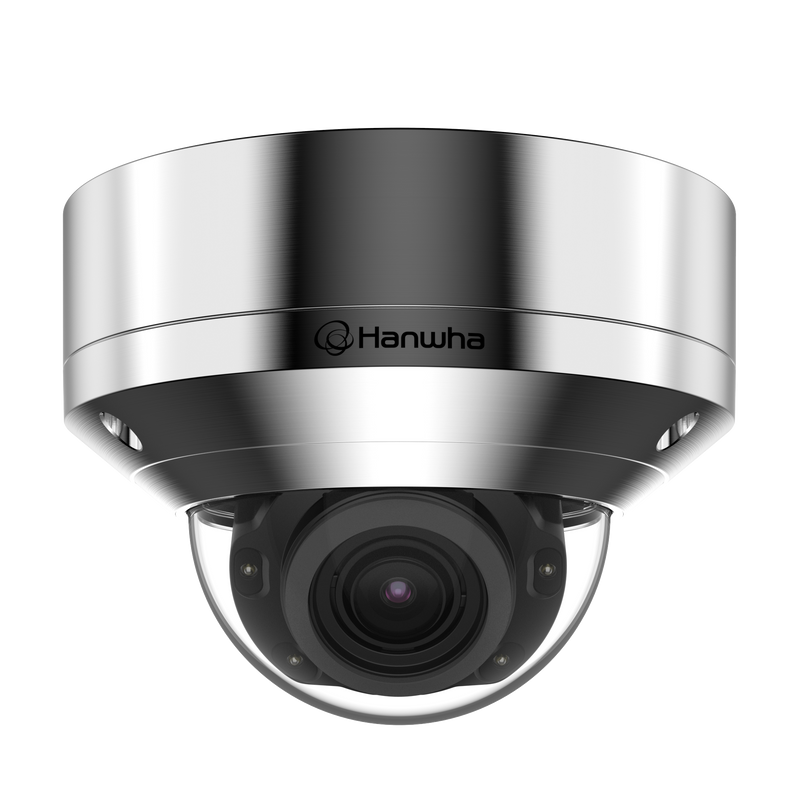

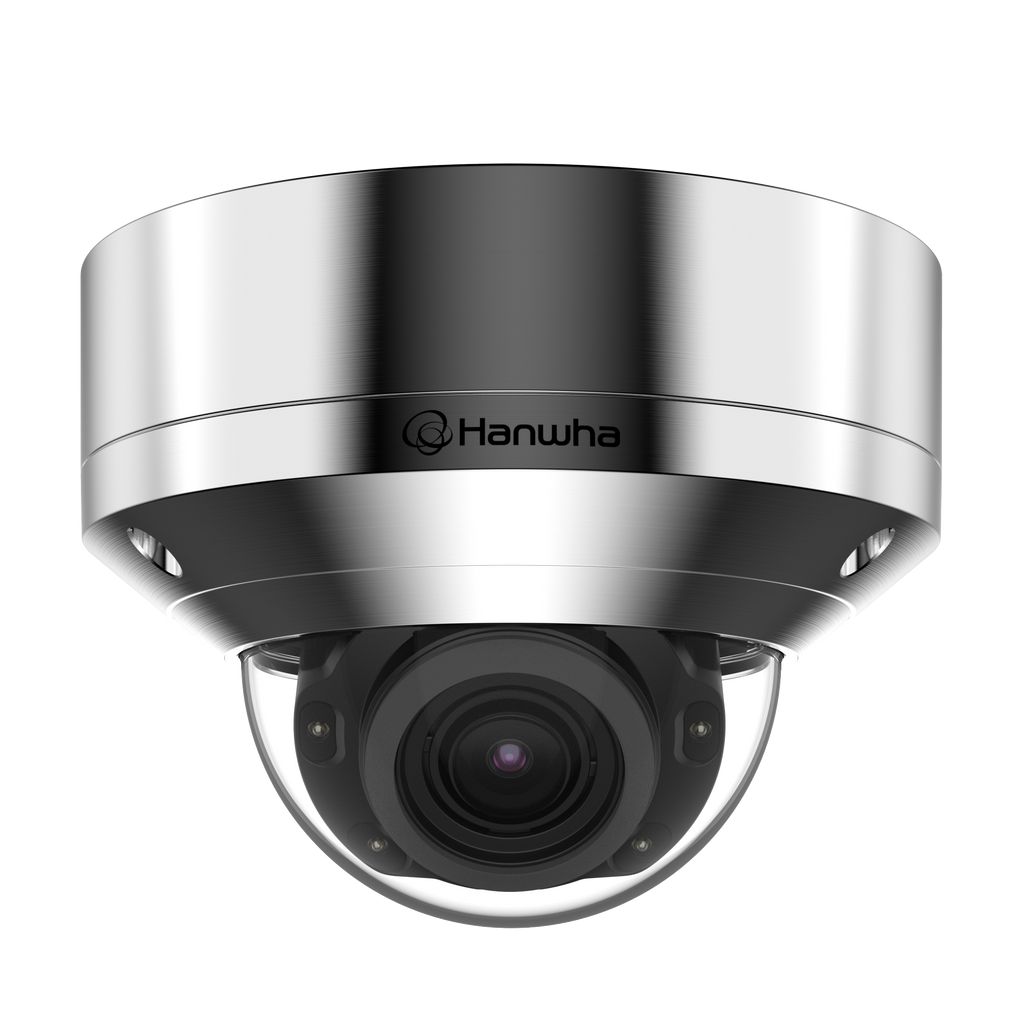

The Hanwha XNV-8080RSA is a rugged 5MP stainless steel outdoor dome camera engineered for harsh, corrosive, and mission-critical environments. Built with durable STS316L stainless housing and certified to IP66, IP6K9K, IK10+, and NEMA 4X, it provides reliable protection against dust, water jets, high-pressure steam, impact, and chemical exposure.
Powered by Hanwha’s advanced imaging technology, the camera delivers 5MP resolution with up to 30fps, enhanced by 120dB WDR, low-light performance down to 0.07 Lux (color), and a built-in IR range of 50m for clear nighttime visibility. The motorized 3.9–9.4mm varifocal lens offers wide-to-tele coverage with simple autofocus.
Intelligent video analytics—including loitering detection, virtual line crossing, sound classification, fog detection, and digital auto-tracking—enhance situational awareness and automated event response. With support for dual SD/SDHC/SDXC cards (up to 512GB total), secure HTTPS communication, ONVIF compatibility, and WiseStream II compression, the XNV-8080RSA is optimized for efficient, reliable, and secure surveillance in industrial, transportation, marine, and chemical facility applications.
| Category | Specification |
|---|---|
| Imaging | 5MP (2560×1920) CMOS, 1/1.8" sensor |
| Lens | 3.9–9.4mm motorized varifocal, 2.4× optical zoom |
| Max Frame Rate | 30fps (H.265/H.264), 30fps MJPEG |
| Min. Illumination | Color: 0.07 Lux, B/W: 0.007 Lux |
| Day/Night | ICR Auto |
| WDR | 120dB |
| Compression | H.265, H.264 (Main/Baseline/High), MJPEG |
| Smart Codec | WiseStream II |
| Analytics | Motion, Tampering, Fog, Face, Audio detection, Sound classification, Virtual area & line detection, Digital auto-tracking |
| IR Illumination | 50m range, 850nm IR LEDs |
| Pan/Tilt/Rotate | Pan: 0°–354°, Tilt: 0°–67°, Rotate: 0°–355° |
| Edge Storage | Dual microSD/SDHC/SDXC slots (up to 512GB total) |
| Audio I/O | 1× mic/line in, 1× line out |
| Alarm I/O | 1× input, 1× output |
| Network | RJ-45 (10/100BASE-T), IPv4/IPv6, ONVIF S/G/T |
| Power Options | PoE (802.3af Class 3), 12VDC, 24VAC |
| Power Consumption | PoE: Max 12.95W; 12VDC: Max 11.5W; 24VAC: Max 14W |
| Operating Temperature | −40°C to +55°C (−40°F to +131°F) |
| Ingress/Impact Ratings | IP66, IP6K9K, IK10+, NEMA 4X |
| Material / Color | Stainless Steel STS316L / Silver |
| Dimensions | Ø162 × 120.5 mm (6.38 × 4.74 in) |
| Weight | 2.8 kg (6.17 lb) |
