Description

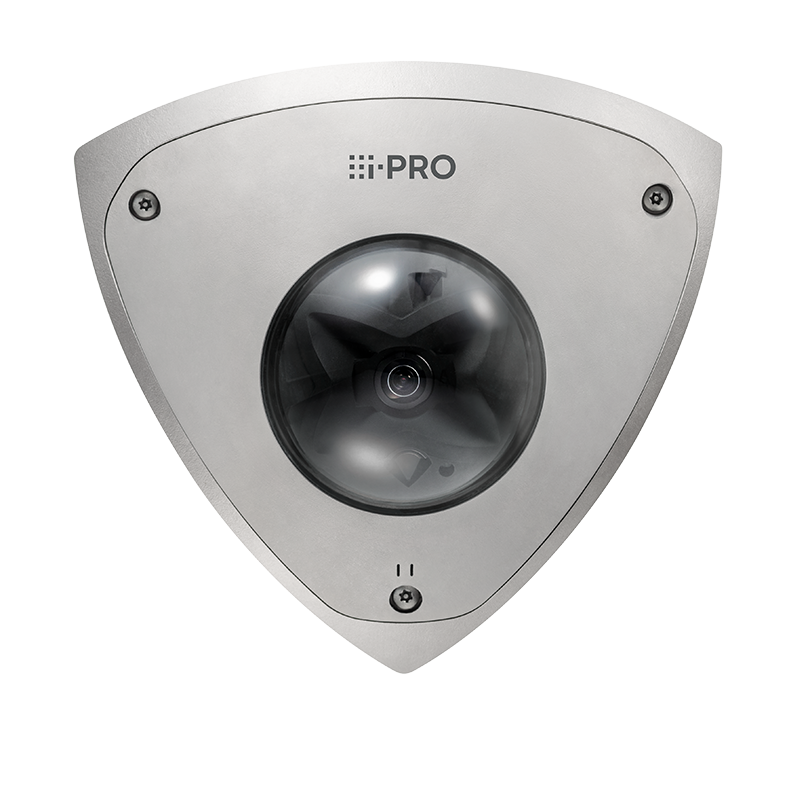

The i-PRO WV-X25580-F2LN2 is a high-performance 5-megapixel corner network camera engineered for environments demanding maximum safety, durability, and situational awareness. Featuring an AI engine that supports up to three edge-based analytic applications, this camera enables intelligent detection for people, faces, vehicles, and more — ideal for correctional, healthcare, and public safety facilities.
Its anti-ligature design with IK11+ (70J) impact resistance and IP66/IP67/IP69 protection ensures reliability even under extreme conditions. The built-in FIPS 140-2 Level 3 Secure Element (EdgeLock® SE050F) safeguards data integrity and device authentication, while the invisible 940 nm IR LEDs, wide 131° field of view, and removable microphone provide comprehensive coverage with discreet operation.
Compliant with NDAA standards and made in Japan, the WV-X25580-F2LN2 exemplifies i-PRO’s excellence in security innovation, performance, and reliability.
| Category | Details |
|---|---|
| Model | WV-X25580-F2LN2 |
| Type | 5MP AI Vandal-Resistant Anti-Ligature Corner Network Camera |
| Image Sensor | Approx. 1/2.8-type CMOS sensor |
| Effective Pixels | 5 megapixels |
| Minimum Illumination | Color: 0.08 lx (F2.2, 1/30 s, AGC 11) / B&W: 0 lx with IR LED On |
| Dynamic Range | Max. 132 dB (Super Dynamic On, Level 31) |
| Lens Type | Fixed focal 2.3 mm / F2.2 |
| Field of View | Horizontal 131°, Vertical 70° (16:9) |
| IR Illumination | 940 nm IR LED (invisible), up to 21 m range |
| AI Analytics | AI Video Motion Detection, Face, People, Vehicle Detection, Privacy Guard, Occupancy Detection, Non-Mask Detection, Scene Change |
| AI App Support | Up to 3 Edge AI applications |
| Audio Features | Built-in removable microphone, AAC-LC / G.711 / G.726 compression |
| Compression Formats | H.265 / H.264 / JPEG (MJPEG) |
| Max Streams | 4 simultaneous streams |
| Network Interface | 10BASE-T / 100BASE-TX (RJ-45) |
| Protocols Supported | IPv4/IPv6, HTTP, HTTPS, RTSP, RTP, SNMP, FTP, SFTP, MQTT, IEEE 802.1X and more |
| Security | FIPS 140-2 Level 3 certified (NXP EdgeLock® SE050F), GlobalSign® certificate pre-installed |
| Storage Options | microSD card slot (2 GB – 512 GB supported) |
| Operating Temperature | −40 °C to +55 °C (−40 °F to +131 °F) |
| Ingress Protection | IP66 / IP67 / IP69, NEMA 4X, Type 4X compliant |
| Impact Resistance | IK11+ (70 J) tested |
| Power Source | DC 12 V (1.1 A / 12.6 W) or PoE IEEE 802.3af (11.5 W) |
| Dimensions (W × H × D) | 197 × 128 × 138 mm (7-3/4 × 5-1/32 × 5-5/16 in.) |
| Weight | Approx. 1.9 kg (4.19 lb) |
| Housing Material | Stainless Steel (Silver) + Aluminum Die-Cast (Black Paint) |
| Certifications | UL, CE, FCC, ONVIF Profile G/S/T/M, NDAA Compliant |
| Optional Accessories | WV-QJB506-B (Mount Bracket), WV-QDC509CN (Dome Cover) |
