Description

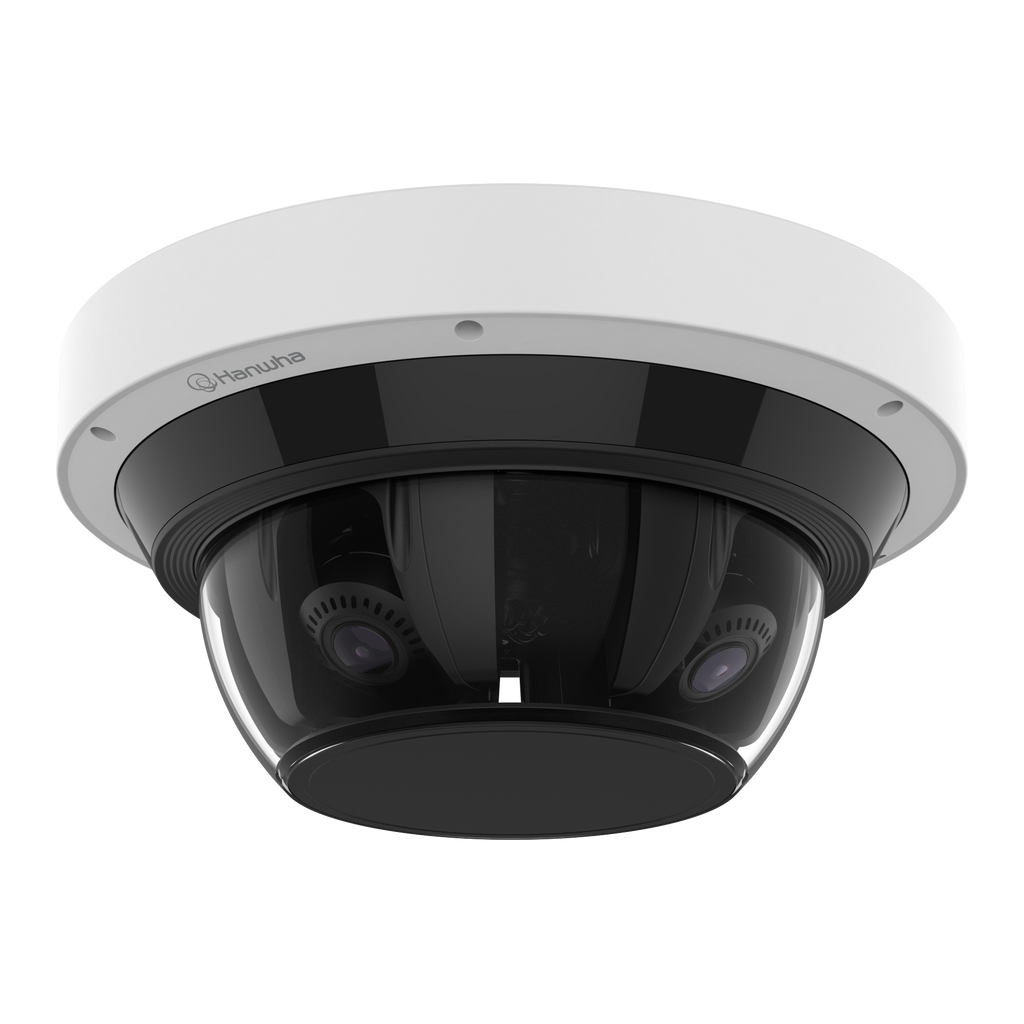

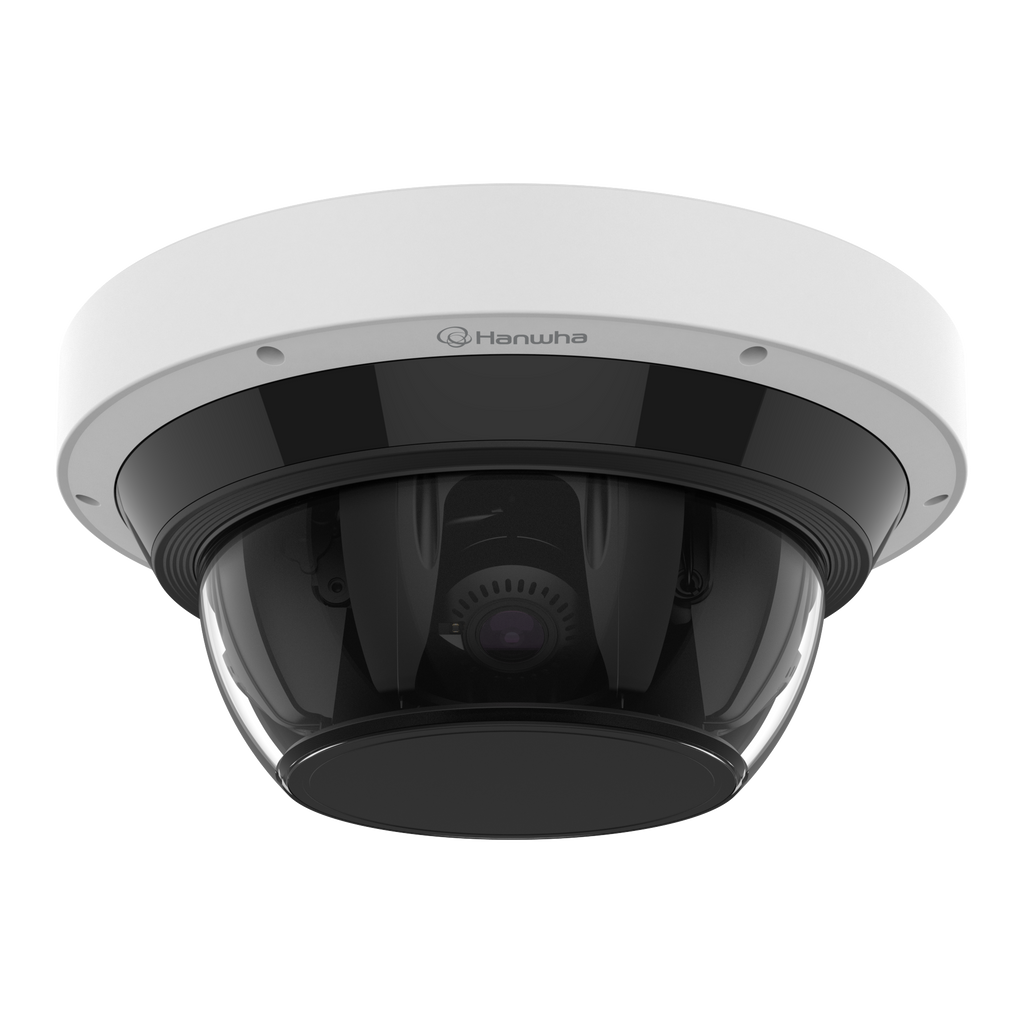

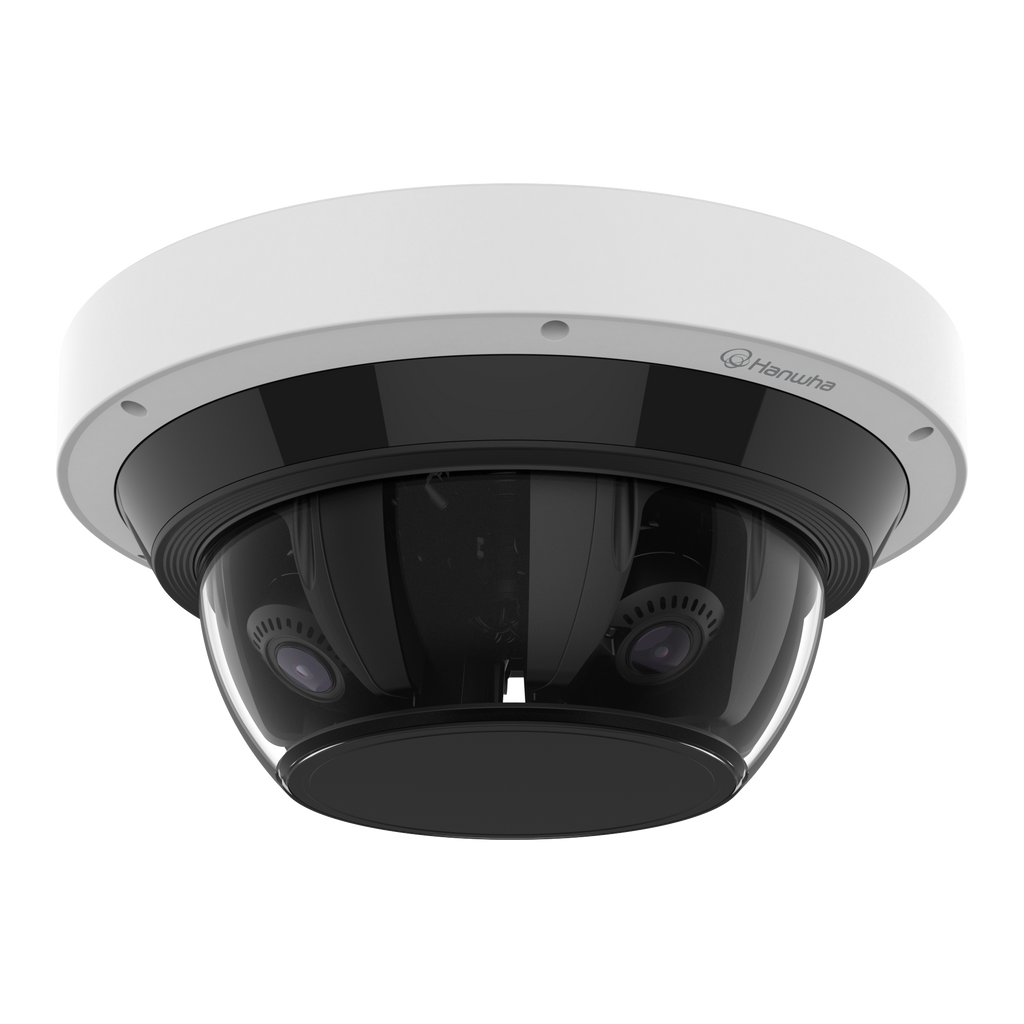

The Hanwha Vision PNM-9085RQZ1 is a high-performance 4-channel multi-directional PTRZ camera, delivering 5MP resolution per sensor and advanced IR illumination up to 30 meters. Designed for wide-area surveillance, each module features motorized pan, tilt, roll, and zoom for precise remote adjustment—making installation faster and eliminating manual lens positioning.
Equipped with a 4.13–9.4mm motorized varifocal lens, WDR (120dB), advanced video analytics, and H.265/H.264/MJPEG codecs with WiseStream II compression, this camera provides outstanding clarity in challenging lighting environments. Built with an IP66, IK10, and NEMA 4X-rated housing, it ensures reliable performance in harsh outdoor conditions.
Ideal for airports, campuses, parking lots, stadiums, and large facilities requiring flexible multi-sensor coverage.
| Category | Details |
|---|---|
| Imaging | 1/1.8" CMOS, 5MP × 4 modules |
| Max Resolution | 2560×1920 (per channel) |
| Framerate | 30fps@5MP (H.265/H.264), 30fps MJPEG |
| Min. Illumination | Color: 0.11 lux; B/W: 0.011 lux |
| Lens | 4.13–9.4mm motorized varifocal, 2.3x optical zoom, DC auto-iris |
| Field of View | H: 88°–37°, V: 65°–28°, D: 113°–46° |
| PTRZ Functions | Motorized Pan/Tilt/Rotate/Zoom, remote adjustment (max 200 cycles) |
| IR Illumination | Up to 30m (850nm) |
| Day & Night | Auto (ICR) |
| WDR | 120 dB |
| Noise Reduction | SSNR V |
| Image Enhancements | Defog, stabilization, flip/mirror, digital PTZ |
| Analytics | Motion, tampering, face detection, intrusion, loitering, virtual lines, fog detection, audio detection, defocus |
| Audio | Mic/Line-in selectable, Line-out |
| Network | RJ-45 (10/100/1000BASE-T), IPv4/IPv6, ONVIF S/T, SUNAPI |
| Compression | H.265, H.264 (Main/Baseline/High), MJPEG, AAC-LC, G.711, G.726 |
| Streaming | Up to 10 profiles, unicast (20 users), multicast |
| Security | HTTPS, IEEE 802.1X, IP access control, encrypted credentials, AES-256 SD partition |
| Edge Storage | 4 × microSD/SDHC/SDXC (up to 256GB each, total 1TB) |
| Operating Temperature | –40°C to +55°C (–40°F to +131°F) |
| Ingress / Impact Rating | IP66, IK10, NEMA 4X |
| Power | HPoE (IEEE802.3bt Type 4, Class 8) or 12VDC |
| Power Consumption | PoE: Max 45W / Typ 33.7W; 12VDC: Max 42W / Typ 32W |
| Dimensions | Ø315 × 145.9mm (12.40 × 5.74") |
| Weight | 5.2kg (11.5lb) |
| Material / Color | Aluminum / White (RAL9003) |
