Description

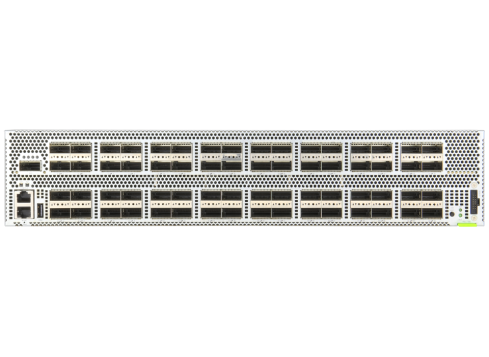

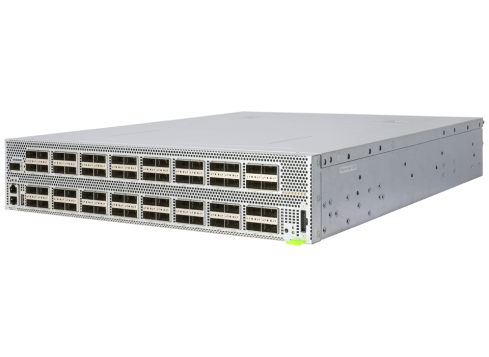

The Edgecore Wedge100BF-65X-O-AC-F-US is a high-density, 2RU 65-port 100 GbE data center switch engineered for open networking environments. Built on the Barefoot Networks Tofino 6.5 Tbps programmable switch silicon, it delivers line-rate L2/L3 forwarding at 6.4 Tbps and supports up to 65 × QSFP28 ports, each configurable for 1×100 GbE, 1×50 GbE, 1×40 GbE, or 4×25/10 GbE connections via breakout cables.
Designed for Top-of-Rack (ToR) or spine deployments, the Wedge100BF-65X provides flexible 25/50 GbE server connectivity and 40/50/100 GbE uplinks. It ships pre-loaded with the Open Network Install Environment (ONIE) for rapid installation of compatible open-source or commercial network operating systems such as SONiC or Open Network Linux (ONL).

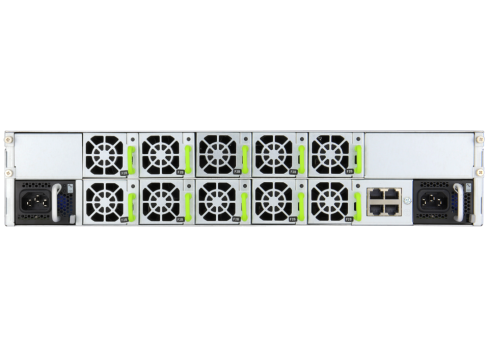

The system includes dual hot-swappable AC power supplies, redundant fan modules with port-to-power airflow, and an Intel Broadwell-DE CPU for control-plane performance. Ideal for cloud-scale data centers and programmable network fabrics, the Wedge100BF-65X offers reliability, efficiency, and open network flexibility.
| Category | Specification |
|---|---|
| Model Number | Wedge100BF-65X-O-AC-F-US |
| Form Factor | 2RU rack-mountable |
| Ports | 65 × QSFP28 (1×100/50/40 GbE or 4×25/10 GbE per port) |
| Switch Silicon | Barefoot Networks Tofino (6.5 Tbps) |
| CPU Module | Intel x86 Broadwell-DE Pentium D-1517 |
| Memory | 4 / 8 / 16 GB DDR4 SO-DIMM |
| Storage | 16 MB SPI Flash, 8 GB NAND Flash, 32 GB M.2 SSD |
| Switching Capacity | 6.4 Tbps (full duplex) |
| Forwarding Rate | 9.5 Bpps |
| Packet Buffer | 22 MB integrated buffer |
| Jumbo Frames | Up to 9216 bytes |
| Management Ports | 1×RJ-45 console, 1×RJ-45 1G BASE-T mgmt, 1×USB Type A |
| Airflow | Port-to-Power (Front → Rear) |
| Power Supplies | 2× hot-swappable AC PSUs (90–240 VAC 50–60 Hz) |
| Fans | 10× hot-swappable, redundant modules |
| Operating Temperature | 0 °C – 40 °C (32 °F – 104 °F) |
| Operating Humidity | 0 % – 95 % non-condensing |
| Dimensions (W×D×H) | 509 × 440 × 87 mm (20.03 × 17.32 × 3.42 in) |
| Weight | 14.3 kg (31.5 lb) |
| Certifications | CE, FCC Class A, UL, CSA, RoHS-6 compliant |
| Software | ONIE pre-installed; compatible with SONiC & ONL |
| LED Indicators | Link status, activity, system diagnostics, PSU & fan status |
| Warranty | Standard Edgecore Limited Warranty |
