Description

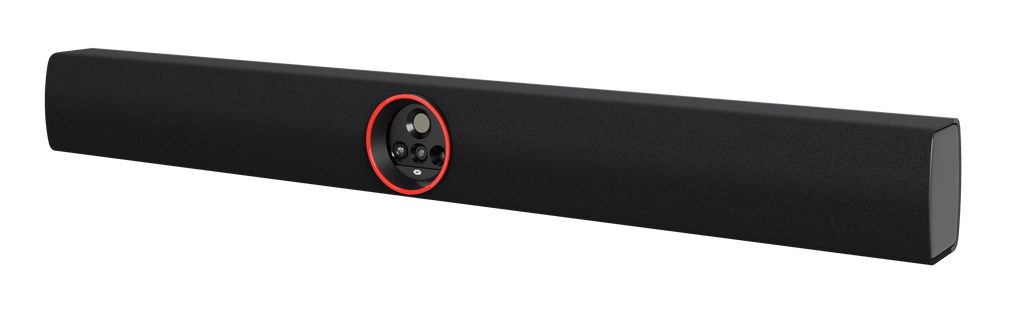

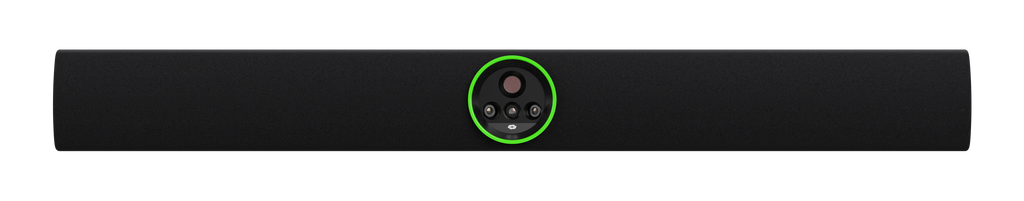

The Crestron Flex Videobar 70 (UC-SB2-CAM-A-T) is an all-in-one video conferencing solution designed for medium to large meeting spaces running Microsoft Teams Rooms. Combining advanced video, audio, and computing capabilities into a single front-of-room device, it simplifies deployment while delivering enterprise-grade collaboration performance.
Featuring a powerful quad-camera system with AI-driven auto-framing and tracking, the Videobar 70 ensures every participant is clearly visible. Its integrated 24-microphone array with adaptive beamforming captures voices across the room with precision, while dual 10 W speakers and advanced DSP technologies provide rich, natural sound with echo cancellation and noise suppression.
Running on an Android-based platform, the system delivers a secure, consistent Teams Rooms experience with support for dual 4K displays, flexible BYOD connectivity, and centralized management through XiO Cloud. With minimal setup requirements and versatile mounting options, it is ideal for organizations seeking scalable, high-performance conferencing with reduced hardware complexity.
| Category | Specification |
|---|---|
| Conferencing Platform | Microsoft Teams Rooms |
| System Type | All-in-one videobar conferencing solution |
| Operating System | Android OS (QCS8250 chipset) |
| Camera System | Quad camera configuration with AI auto-framing |
| Main Camera | 20 MP, 1-inch sensor |
| Camera Resolution | Main: 5472 × 3078; Sub cameras: 3840 × 2160 |
| Field of View | Main: 84.3° H / 53.8° V; Sub: 41° H / 23° V |
| Zoom | 7.5x digital zoom |
| Microphones | 24-microphone linear array |
| Microphone Range | Up to 29.5 ft (9 m), environment dependent |
| Audio Features | Echo cancellation, dereverberation, AGC, noise suppression, beamforming |
| Speakers | Dual 10 W speakers |
| Display Support | Up to two displays |
| Display Output Resolution | Up to 4K |
| Video Input | HDMI (up to 1080p30) |
| Video Output | HDMI (up to 4K30) |
| Content Sharing | HDMI input or direct sharing |
| BYOD Support | HDMI and USB-C local connection or external solutions |
| Ethernet | Dual RJ-45, 10/100/1000 Mbps |
| Wi-Fi | Wi-Fi 6, dual-band 2x2 |
| Bluetooth | Bluetooth 5.2 (reserved for future use) |

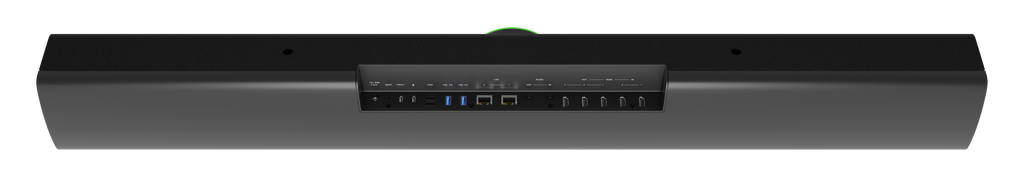

| USB Ports | 2 × USB-A 3.0, 2 × USB-C |
| HDMI Ports | 2 × HDMI In, 3 × HDMI Out |
| Audio Ports | 3.5 mm line in/out (reserved for future use) |
| Management | XiO Cloud service support |
| Indicators | LED (green = unmuted, red = muted) |
| Power Input | 19VDC via external 100–240VAC adapter |
| Mounting Options | Wall mount (included), optional tabletop or VESA mount |
| Construction | Black plastic enclosure with integrated bracket |
| Dimensions | 38.58" W × 4.33" H × 3.77" D |
| Weight | 13.2 lb (6 kg) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Compliance | FCC Class B, UL, TÜV SÜD, WEEE |
