Description

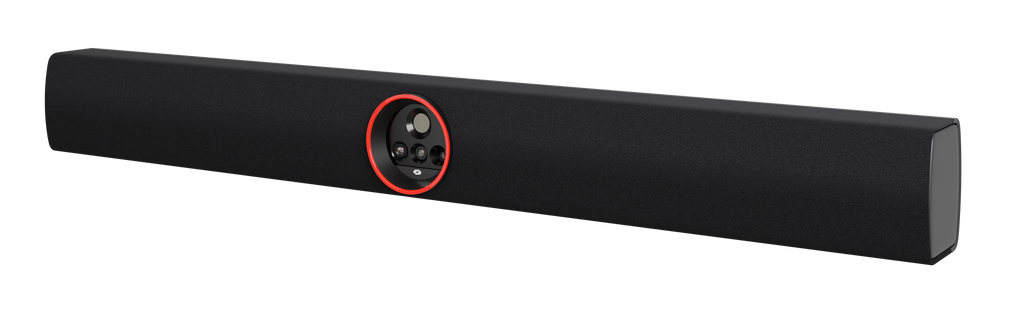

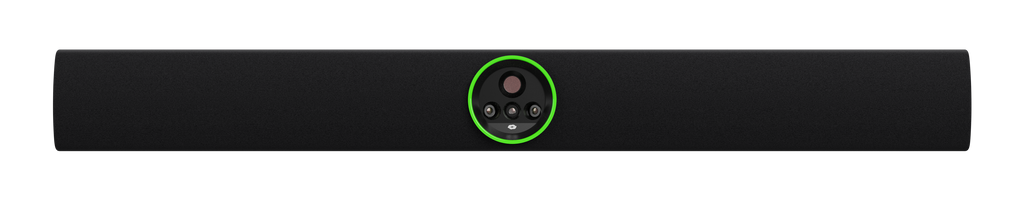

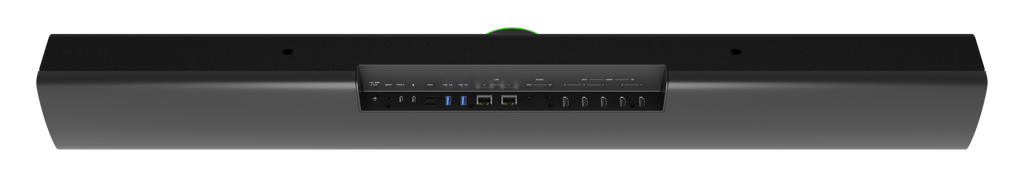

The Crestron Flex UC-SB2-CAM-A-Z Videobar 70 delivers a powerful all-in-one video conferencing solution designed for medium to large meeting rooms using Zoom Rooms software. Built on an Android-based platform, this enterprise-grade videobar integrates intelligent 4K video, premium audio, and advanced AI-driven features into a single, streamlined device.
Equipped with a quad-camera system, the Videobar 70 provides full-room coverage with automatic speaker tracking and intelligent framing, ensuring every participant is clearly visible. A 24-microphone array with adaptive beamforming and AI noise cancellation captures voices with exceptional clarity, while dual 10W speakers deliver rich, immersive sound.
Designed for rapid deployment, the UC-SB2-CAM-A-Z requires no custom programming or complex setup. It supports up to two 4K displays and integrates seamlessly with Crestron XiO Cloud for centralized provisioning, monitoring, and management. With enterprise-grade security and scalable deployment capabilities, it is ideal for corporate, education, healthcare, and government environments seeking reliable and high-performance collaboration solutions.
| Category | Specification |
|---|---|
| Video System | Quad-camera configuration with AI auto-framing and speaker tracking |
| Main Camera | 20 MP sensor with 5472 × 3078 resolution |
| Secondary Cameras | Three 4K cameras (3840 × 2160) with wide coverage |
| Field of View | Main: 84.3° horizontal; Sub cameras: 41° horizontal |
| Zoom Capability | 7.5x digital zoom |
| Audio System | Dual 10W speakers with advanced DSP |
| Audio Processing | Acoustic echo cancellation, noise suppression, automatic gain control, beamforming |
| Microphone Array | 24-microphone linear array |
| Pickup Range | Up to 29.5 ft (9 m), depending on room conditions |
| Operating System | Android OS on QCS8250 chipset |
| Conferencing Platform | Native Zoom Rooms software |
| Display Support | Up to two 4K displays |
| Video Input | HDMI (1080p30) |
| Video Output | HDMI (up to 4K30) |
| Connectivity | Gigabit Ethernet, Wi-Fi 6 (dual-band), Bluetooth 5.2 |
| USB Ports | USB-A and USB-C ports for peripherals and future expansion |
| Content Sharing | HDMI ingest or direct sharing via USB-C/BYOD |
| Network Management | Crestron XiO Cloud platform support |
| Security | Enterprise-grade secure communication over SMB networks |
| Mounting Options | Wall mount (included), optional tabletop or VESA display mount |
| Power Supply | External power pack (100–240VAC input) |
| Dimensions | 38.58 in. (W) x 4.33 in. (H) x 3.77 in. (D) |
| Weight | 13.2 lb (6 kg) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Indicators | LED status for microphone mute/unmute |
