Description

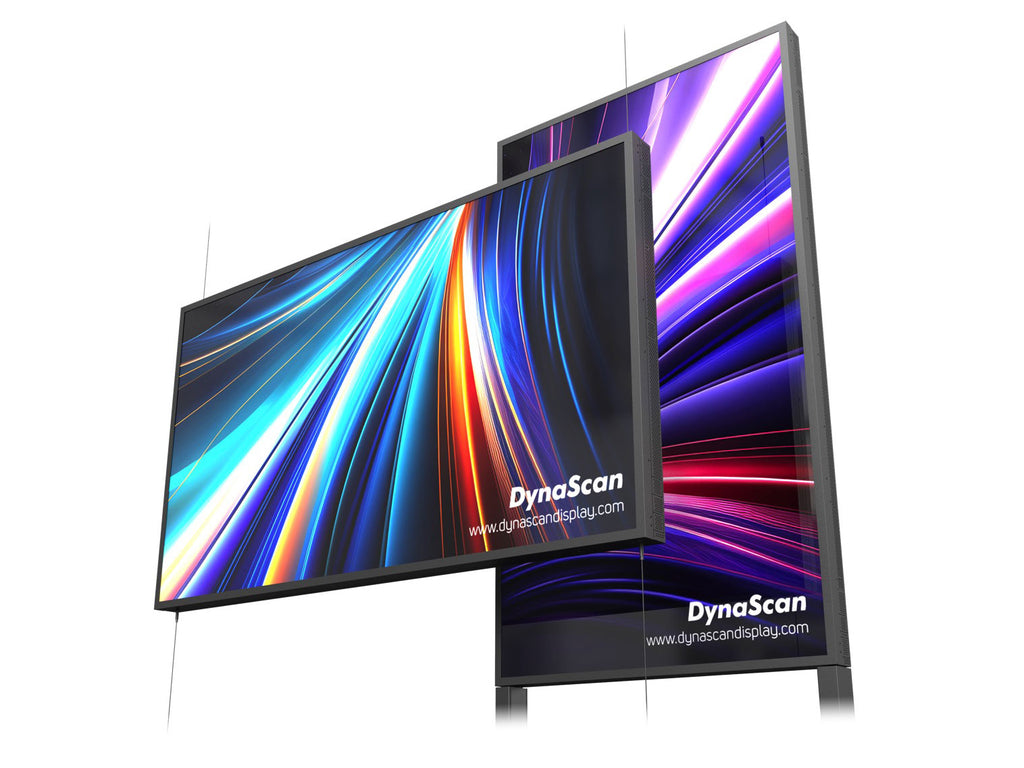

The DynaScan DW652LR5 is a professional-grade 65-inch high brightness LCD built for demanding indoor and semi-outdoor digital signage applications. With an ultra-bright 4000 nit display, the DW652LR5 delivers sunlight-viewable images that remain vivid and clear even in high ambient light environments.
Its sleek clean-back design and support for ceiling-suspended installations make it ideal for retail storefronts, airports, and public spaces where aesthetics matter. The integrated Android™ 11 media player with Wi-Fi provides flexible playback, content scheduling, and third-party app support.
Designed for 24/7 commercial operation, the display incorporates intelligent features such as an ambient light sensor, auto-orientation sensor, and image retention protection, ensuring long-lasting reliability. With a rated panel life of 100,000 hours, robust connectivity options, and support for Intel® SDM expansion, the DW652LR5 is a premium solution for modern digital signage networks.
| Category | Specification |
|---|---|
| Model | DynaScan DW652LR5 |
| Screen Size | 65" (64.53" viewable) |
| Native Resolution | 3840 × 2160 (4K UHD) |
| Brightness | 4000 nits (sunlight viewable) |
| Contrast Ratio | 3000:1 |
| Color Depth | 10-bit |
| Response Time | 9 ms |
| Viewing Angle | 178° (H) / 178° (V) |
| Light Lifetime | 100,000 hrs |
| Polarized Sunglasses Support | Yes |
| Panel Surface | Blackening defect-free |
| Orientation | Landscape, Portrait, Portrait Flip |
| Bezel Width (T/B/L/R) | 19.0 / 19.0 / 19.0 / 19.0 mm |
| Dimensions (W × H × D) | 1472.2 × 847.4 × 74.3 mm |
| Weight | 39 kg |
| Cabinet Color | Black |
| Power Supply | 100–240V ~ 50/60Hz |
| Power Consumption | 230 W (typ) / 490 W (max) / <1 W (standby) |
| Internal Player OS | Android™ 11.0 |
| Processor | Quad-core A73, 1.8 GHz |
| Memory & Storage | 4GB DDR4 RAM, 16GB eMMC (expandable via MicroSD up to 128GB) |
| Graphics | Mali G52 GPU |
| Multimedia Support | 4K video, H.264 / VP9 10-bit, MPEG-1/2/4 |
| Wi-Fi | 802.11 a/b/g/n/ac, dual-band 2.4GHz & 5GHz |
| Inputs | 2× HDMI 2.1 (HDCP 2.3), 1× USB 3.0, 1× MicroSD |
| Outputs | 1× Audio |
| External Control | RS-232, RJ-45 (LAN), ETK (thermal), ESK (IR, ambient) |
| Expansion Slot | Intel® SDM-S / SDM-L compatible (up to 45W) |
| Environment (Operation) | 0°C ~ 45°C, 10–80% RH non-condensing |
| Environment (Storage) | -20°C ~ 60°C |
| Certifications | CE, CB, FCC, ETL, LVD, RoHS, PSE, JP J62368-1, AS/NZS 62368.1 |
| Optional Accessories | Stand Kit: ISKLR-3000, Hanging Kit: IHK652LR-3000 |
