Description

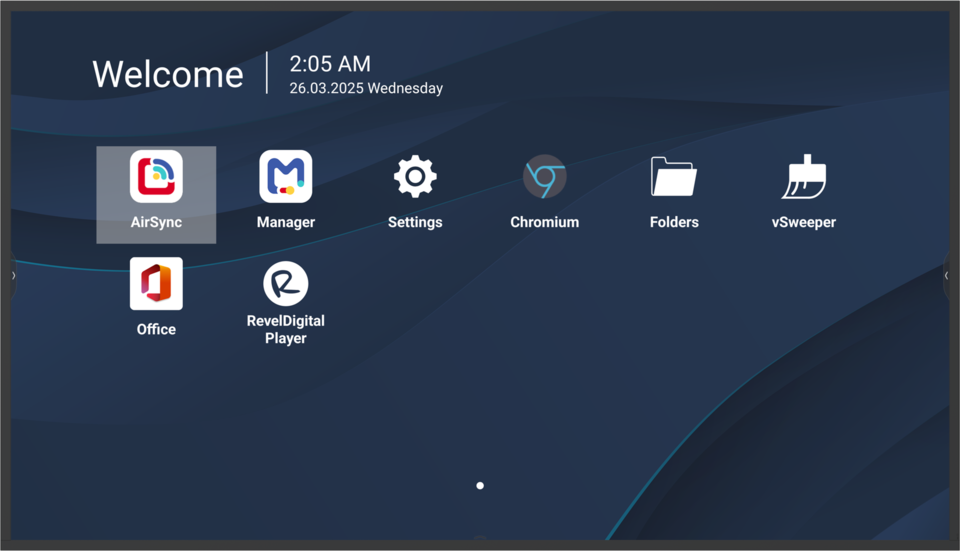

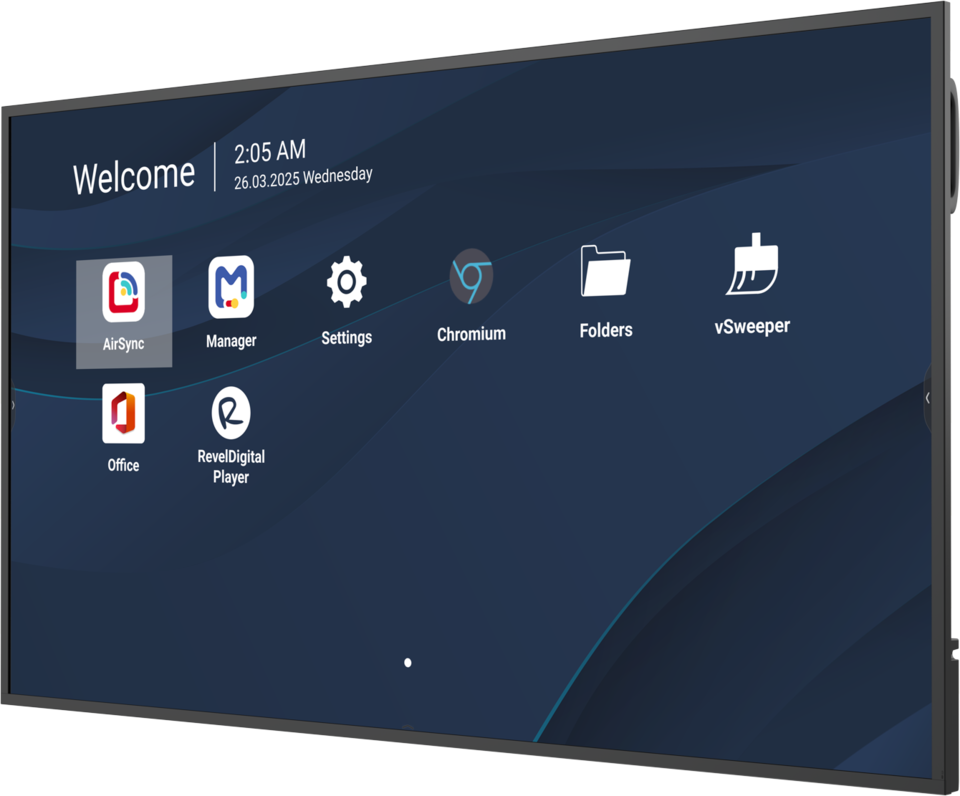

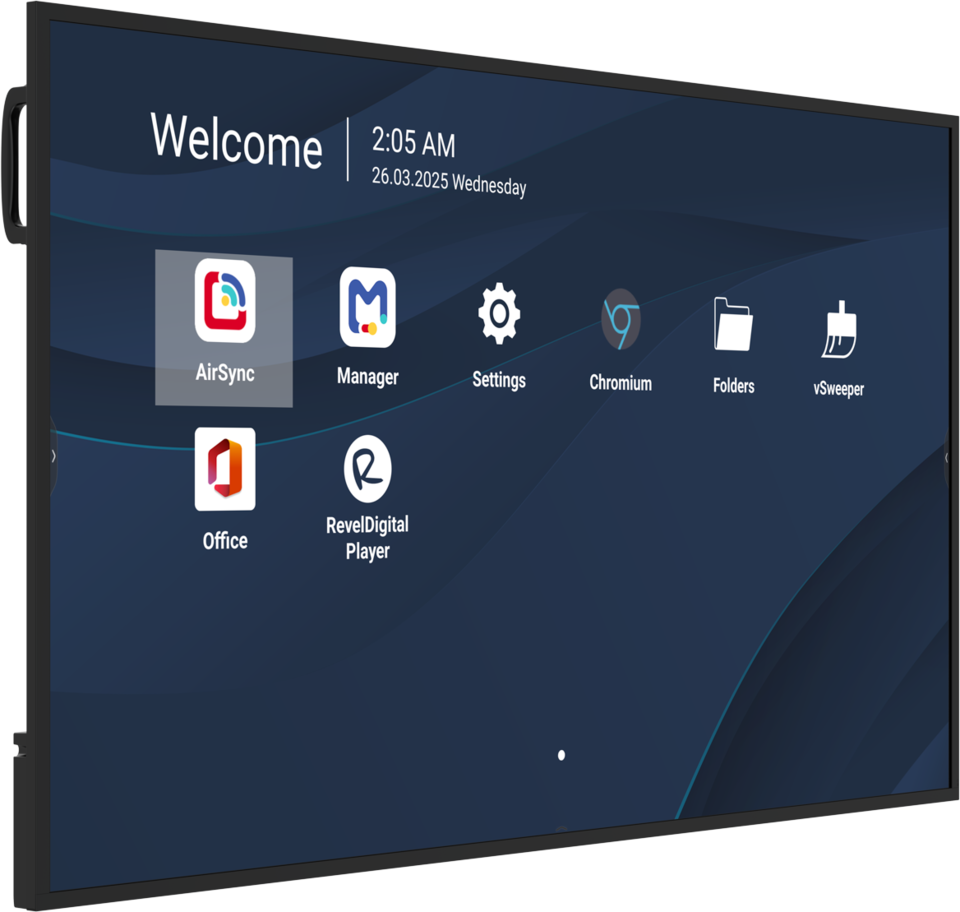

The ViewSonic CDE6531 is a 65-inch 4K UHD commercial display built to deliver high-impact visual communication in enterprise, education, retail, and healthcare settings. Designed for 24/7 operation, it combines ultra-sharp image quality with advanced system-on-chip (SoC) performance powered by a Quad-Core ARM Cortex-A73 processor, 8GB RAM, and Android 14 OS (upgradeable to Android 16).
Featuring Fast Warm Boot, the display launches content in under 7 seconds, ensuring rapid startup and seamless operation. With native 4K UHD resolution, anti-glare coating, and 500 nits brightness, it delivers crisp, vibrant visuals in any orientation. Built-in USB media playback and automatic failover keep your signage running uninterrupted, while ProAV compatibility and centralized management via ViewSonic Manager simplify deployment and remote control.

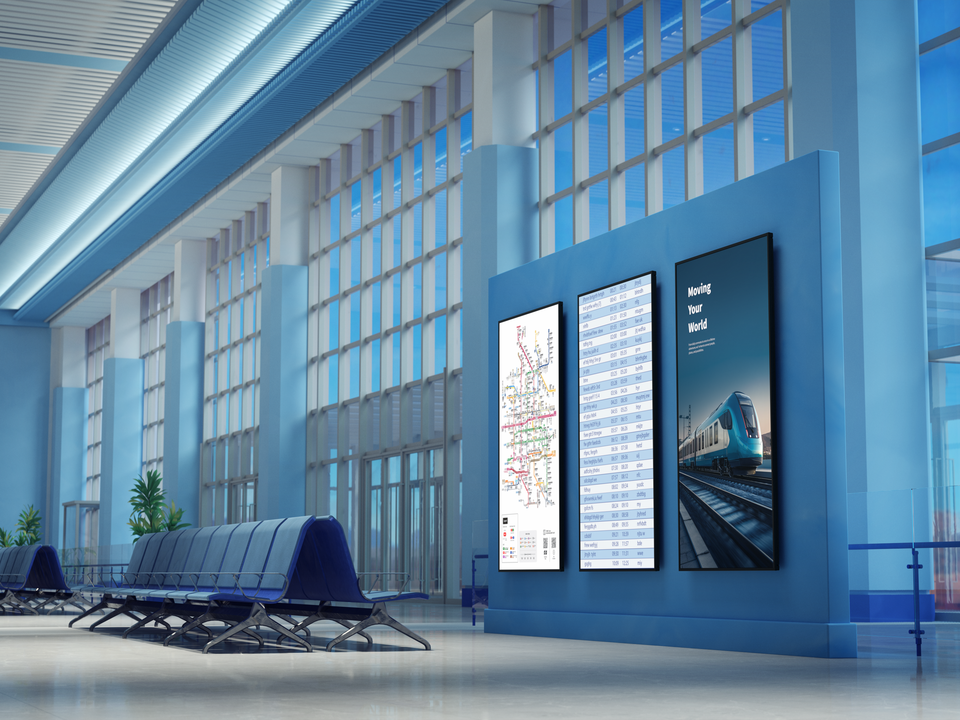

Engineered for continuous reliability and energy-efficient operation, the CDE6531 is ideal for digital signage, meeting rooms, and professional environments that demand consistent, high-quality performance around the clock.
| Category | Specification |
|---|---|
| Display | |
| Panel Size | 65" |
| Technology | TFT LCD with DLED backlight |
| Display Area | 1428.48 (H) x 803.52 (V) mm |
| Native Resolution | 3840 × 2160 (4K UHD) |
| Aspect Ratio | 16:9 |
| Color Depth | 8-bit + FRC |
| Brightness | 500 nits |
| Contrast Ratio | 1200:1 (typ.) / 5000:1 (DCR) |
| Response Time | 6.5 ms |
| Viewing Angles | 178° (H) / 178° (V) |
| Surface Treatment | Anti-glare, 3H hardness, Haze 25% |

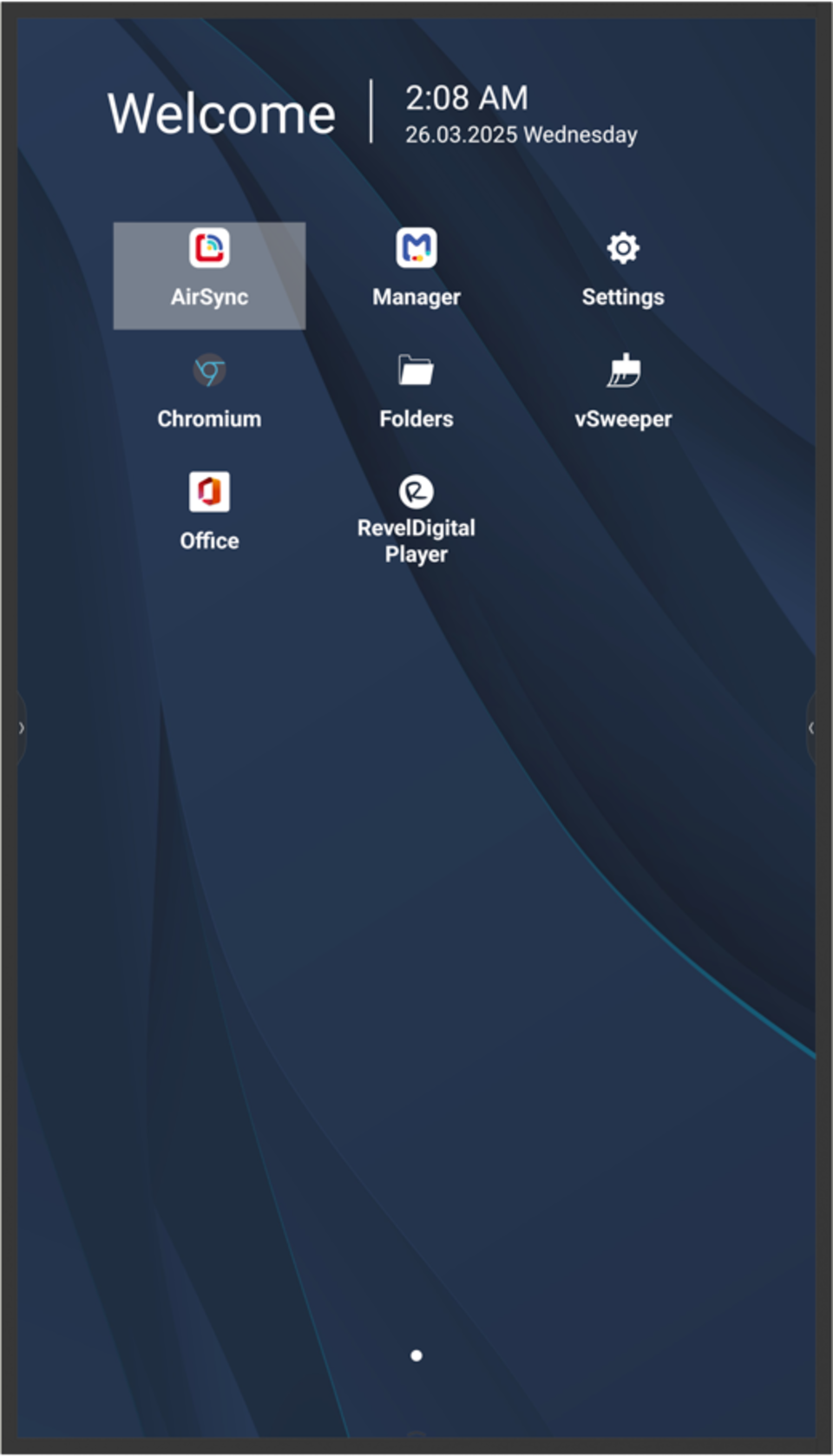

| Orientation | Landscape & Portrait |
| Backlight Life | 50,000 hours |
| Platform | |
| Processor | Quad-core ARM Cortex-A73 |
| RAM | 8 GB DDR4 |
| Storage | 32 GB |
| Operating System | Android 14 AOSP (Upgradeable to Android 16) |
| Input | |
| HDMI | 3 × HDMI 2.0 (HDMI 1 supports ARC) |
| Audio In | 1 × 3.5 mm |
| RS-232 | 1 × RS-232 |
| OPS Slot | 1 × OPS |
| WiFi Slot | 1 × WiFi |
| Output | |
| HDMI Out | 1 × HDMI |
| Audio Out | 1 × 3.5 mm Line Out |
| SPDIF | 1 × SPDIF |
| LAN | 2 × RJ45 (1 LAN-in 10/100M, 1 LAN-out 1000M for OPS) |
| USB Ports | |
| Type A | 2 × (USB 2.0 ×1, USB 3.2 Gen 1 ×1) |
| Type C | 1 × (PD65W/15W, DP1.2, Data USB2.0, 10M/100M sharing) |
| Speakers | 16W × 2 |
| Software & Management | |
| Wireless Presentation | AirSync |
| Device Management | ViewSonic Manager (Web UI / Remote Control) |
| Power | |
| Voltage | 100–240 VAC ±10% |
| Consumption | 74.23 W (Energy Star Certified) |
| Ergonomics | |

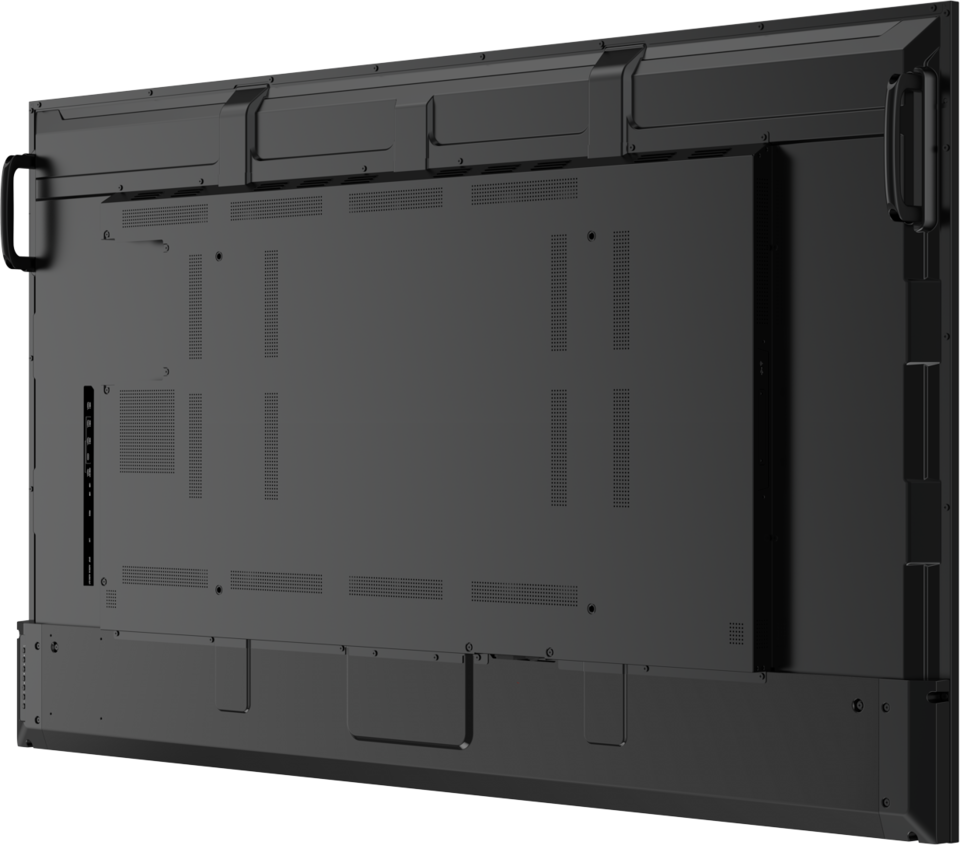

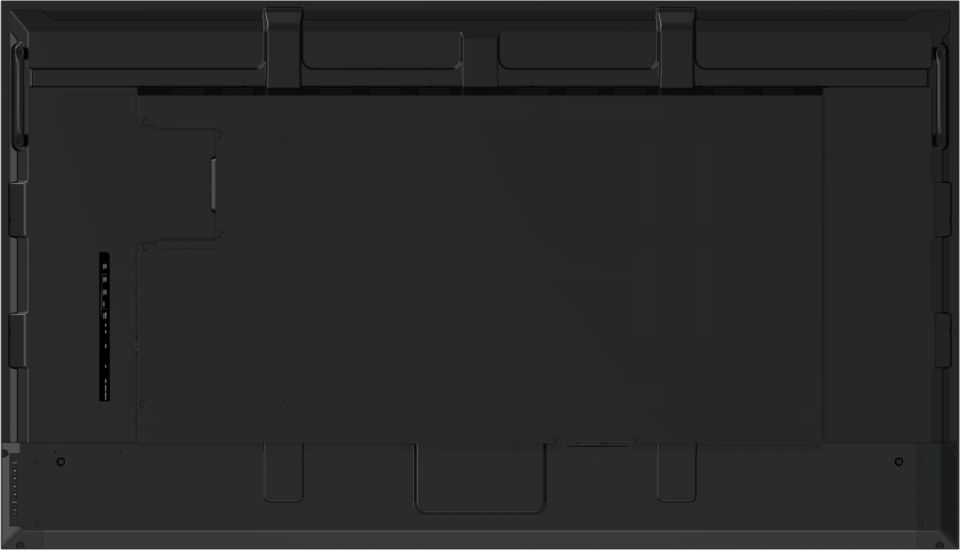

| Mount | VESA 600 × 400 mm |
| Operating Conditions | |
| Temperature | 0°C to 40°C |
| Humidity | 20% – 80% RH |
| Operating Hours | 24/7 continuous operation |
| Dimensions & Weight | |
| Physical (W × H × D) | 1463.3 × 806.5 × 68 mm (57.61 × 31.75 × 2.68 in) |
| Packaging | 1628 × 942 × 185 mm (64.09 × 37.09 × 7.28 in) |
| Net Weight | 23.85 kg / 52.58 lb |
| Gross Weight | 32.16 kg / 70.9 lb |

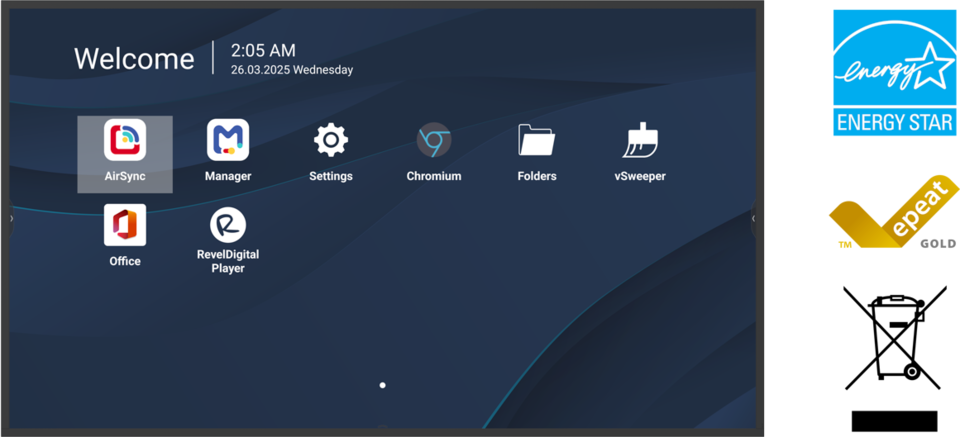

| Certifications | cTUVus, FCC, Energy Star 8.0, EPEAT Gold, RCM, RoHS, REACH, WEEE, CB, CE, ErP-Eco |
| Included Accessories | Power cord, remote control, AAA batteries (x2), HDMI cable (3m), RS232 adapter, clamps (x5), wall mount screws (x4), quick start guide, compliance statement |
