Description

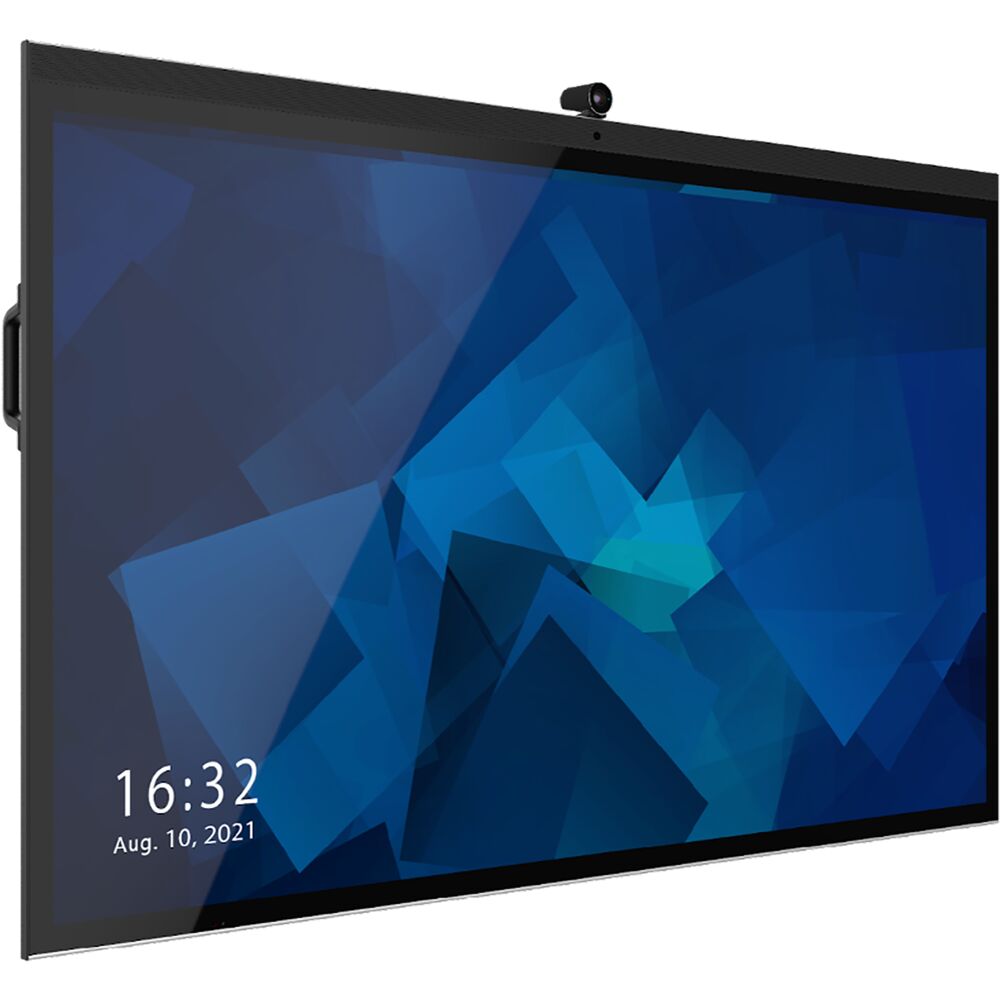

The Newline TT-6522Z-UC is a 65-inch UHD 4K interactive touch display designed for professional collaboration in classrooms, meeting rooms, and training environments. Built on the Z Series platform, it combines ultra-clear visuals with responsive multi-touch performance and an integrated OPS onboard computer for a complete all-in-one solution.
Featuring a 4K resolution panel with optical bonding and anti-glare tempered glass, the display delivers sharp visuals, wide viewing angles, and reduced reflections for comfortable long-term use. The PCAP touch technology supports up to 20 simultaneous touch points, enabling smooth writing, annotation, and multi-user interaction using fingers or passive pens.
The UC model includes an embedded OPS PC powered by an Intel® Core™ i7 processor with Windows 10 Pro, providing seamless access to business applications, video conferencing platforms, and interactive software without the need for an external computer. With built-in speakers, an 8-microphone array, extensive I/O connectivity, and wall-mount or mobile stand support, the TT-6522Z-UC is a powerful, flexible display for modern collaborative spaces.
| Category | Specification |
|---|---|
| Display Size | 65-inch |
| Panel Resolution | 3840 × 2160 (UHD 4K) |
| Aspect Ratio | 16:9 |
| Backlight | LED |
| Brightness | 400 nits |
| Contrast Ratio | 5000:1 (typical) |
| Viewing Angle | 178° |
| Display Technology | Optical Bonding |
| Touch Technology | Projected Capacitive (PCAP) |
| Touch Points | 20-point multi-touch (Windows) |
| Touch Surface | Anti-glare, anti-fingerprint tempered glass |
| Touch Surface Hardness | 7H |
| Touch Input | Fingers or passive pen |
| Speakers | 20W × 2 with subwoofer |
| Microphone | 8-microphone array (upper front) |
| Operating System (Display) | Android 11 |
| RAM (Display) | 8 GB |
| Internal Storage | 64 GB |
| OPS Computer | Integrated OPS PC |
| OPS CPU | Intel® Core™ i7-8565U (up to 4.6 GHz) |
| OPS Graphics | Intel® HD Graphics 620 |
| OPS Memory | 8 GB RAM |
| OPS Storage | 256 GB SATA3 SSD |
| OPS OS | Windows 10 Pro 64-bit |

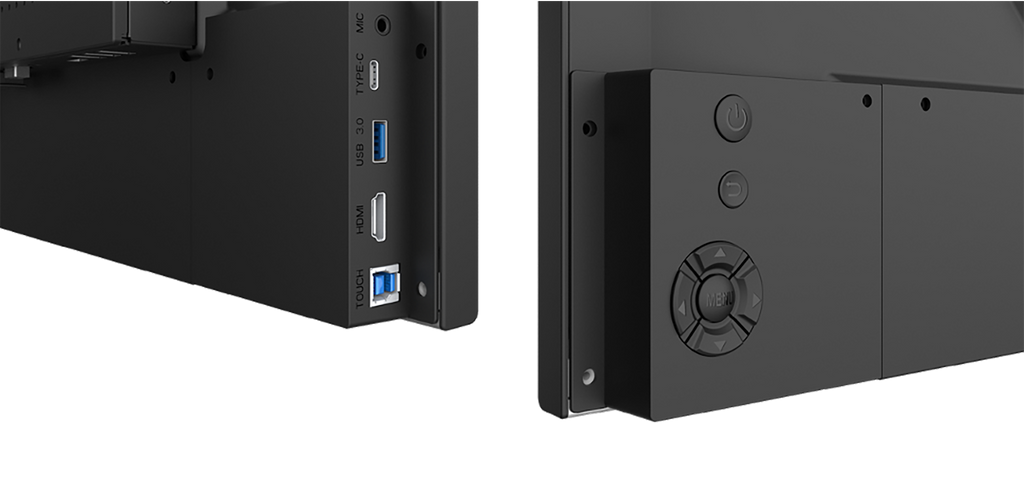

| Connectivity | HDMI, DisplayPort, USB Type-C, USB Type-A/B, LAN (Gigabit), RS-232, Audio Out |
| Wireless | Built-in Wi-Fi (802.11 a/b/g/n/ac) |
| VESA Mount | 600 × 400 mm |
| Installation | Wall mount or mobile stand (optional) |
| Power Input | AC 100–240V |
| Max Power Consumption | ≤400 W |
| Standby Power | <0.5 W |
