Description

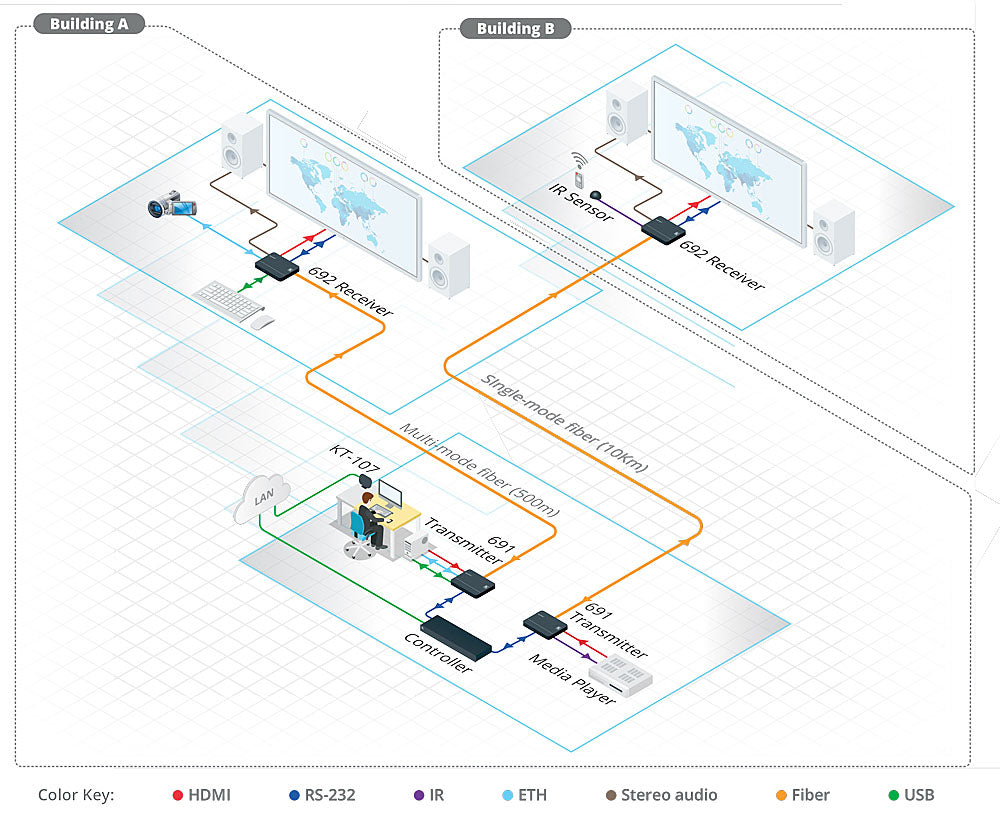

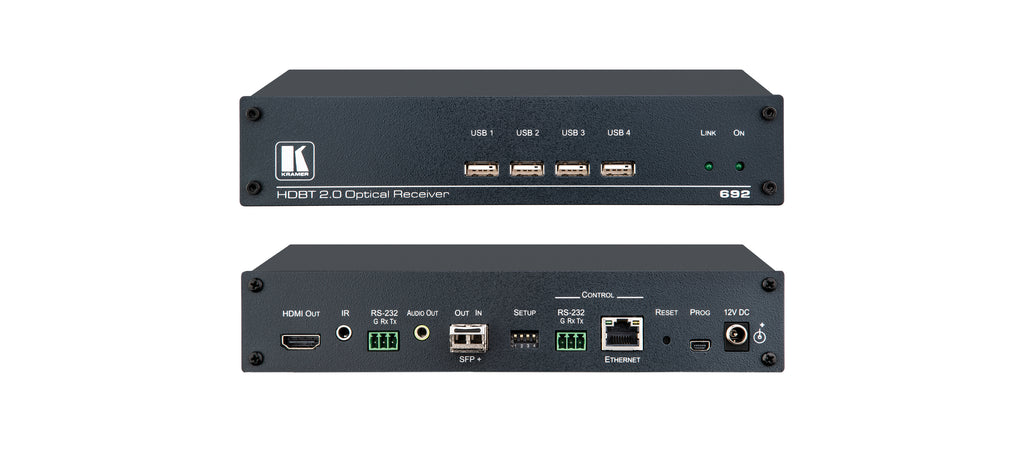

The Kramer 692 is a high-performance HDBaseT 2.0 fiber-optic receiver designed for ultra-long-distance extension of 4K60 (4:2:0) HDMI, USB 2.0, Ethernet, RS-232, IR, and analog stereo audio. Engineered for both multimode and single-mode fiber infrastructures, it converts HDBaseT 2.0 optical signals from a compatible transmitter back into high-quality AV and control outputs.
With support for video extension up to 33 km over OS1 single-mode fiber, the 692 delivers exceptional signal integrity for demanding AV deployments. It also features audio de-embedding, bidirectional control interfaces, integrated USB hub functionality, and robust remote management through a built-in web interface. Compact and fanless, the 692 is ideal for professional AV, command centers, education, enterprise, and long-reach digital signage applications.
| Category | Details |
|---|---|
| Inputs | 1 Fiber Optic (10Gbps SFP+ LC) |
| Outputs | 1 HDMI; 1 Stereo Analog Audio (3.5mm) |
| Ports | 1 IR (3.5mm); 1 USB-B; 2 RS-232 (3-pin terminal block); 1 RJ-45 (100BaseT Ethernet) |
| Video Performance | 10.2Gbps max; up to 4K60 (4:2:0) 24bpp; HDCP 1.4 |
| HDMI Support | Deep Color, x.v.Color™, lip sync, Dolby TrueHD, DTS-HD, 2K/4K/3D (HDMI 2.0) |
| USB Extension | USB 1.1/2.0; up to 127Mbps; supports up to 7 devices and 2 hubs |
| Ethernet Extension | Up to 100Mbps |
| RS-232 Extension | 300–115200 baud, bidirectional |
| Fiber Extension Line | MM (G.651.1) or SM (G.652D) fiber using Kramer 10Gbps SFP+ modules |
| Reach Over Fiber | MM: up to 3 km (OM3 fiber); SM: up to 33 km (OS1 fiber) |
| Optical Specs | 850 nm (MM), 1310 nm (SM); –2.5dBm transmission power |
| Audio Performance | Analog output max level 1 Vrms; 0.03% THD+N @ 1kHz |
| Power | 12V DC, 5A; 2.8A consumption |
| Cooling | Fanless convection |
| Enclosure | ½ 19” 1U aluminum |
| Operating Temp | 0° to +40°C |
| Dimensions (W x D x H) | 21.46 × 16.30 × 4.36 cm (8.45" × 6.42" × 1.72") |
| Weight | 1.0 kg (2.1 lbs) |
| Included Accessories | MM SFP+ transceiver, power adapter |
