Description

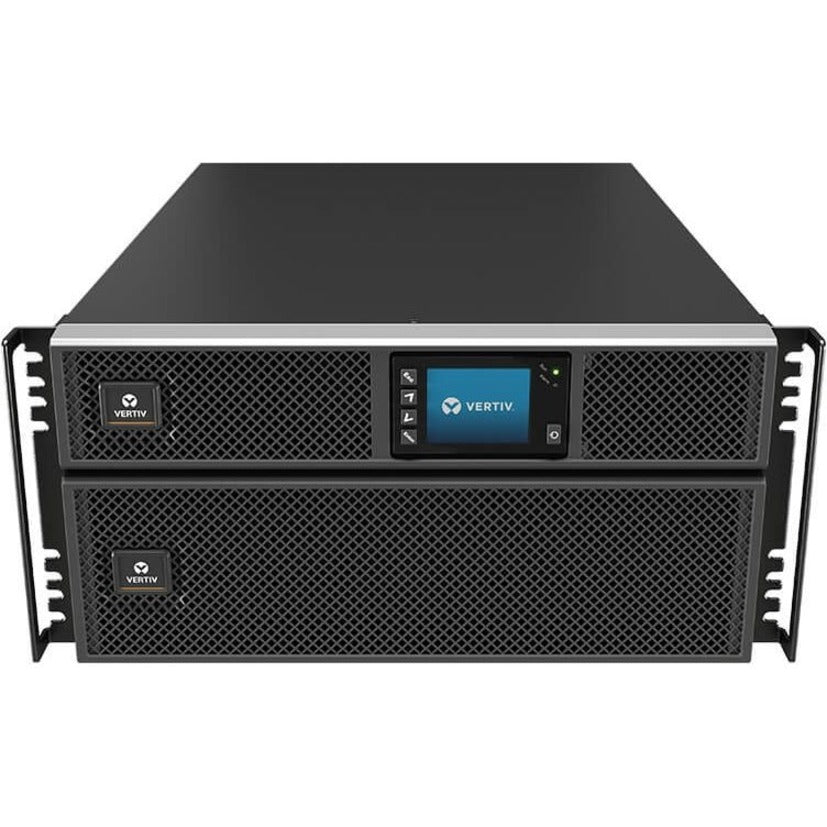

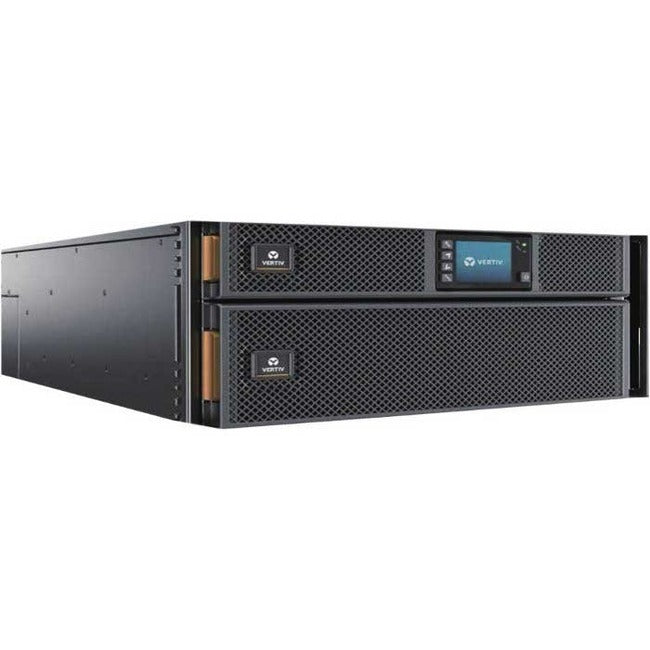

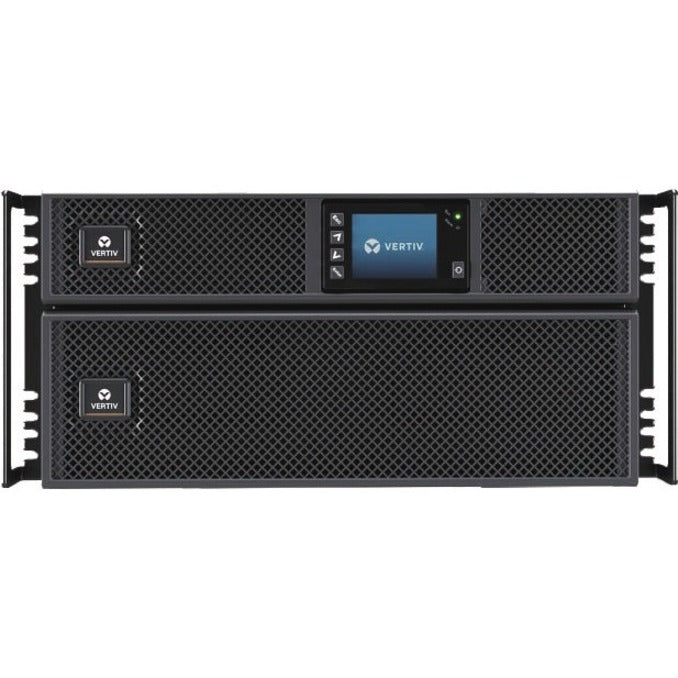

Ensure uninterrupted power for your critical systems with the Vertiv Liebert GXT5-6000IRT5UXLN, a 6kVA/6kW true online double-conversion UPS. This unit delivers continuous, clean power in both centralized and edge locations. Built in a flexible 5U form factor for rack or tower installation, it includes an integrated Vertiv RDU101 SNMP/Web Card and a full-color LCD display for intuitive monitoring.
Key features include:
-
Unity power factor (1.0) for maximum usable capacity
-
ENERGY STAR® 2.0 certification for high efficiency
-
Scalable runtime with optional external battery cabinets
-
Advanced battery management and 5-year battery life
-
Hot-swappable, valve-regulated lead-acid batteries
-
Internal automatic/manual bypass switch
-
USB, serial, and RJ-45 network ports
Perfect for IT, healthcare, telecom, finance, and other mission-critical environments, the GXT5-6000IRT5UXLN ensures resilience and adaptability for modern infrastructures.
| Feature | Details |
|---|---|
| Model | GXT5-6000IRT5UXLN |

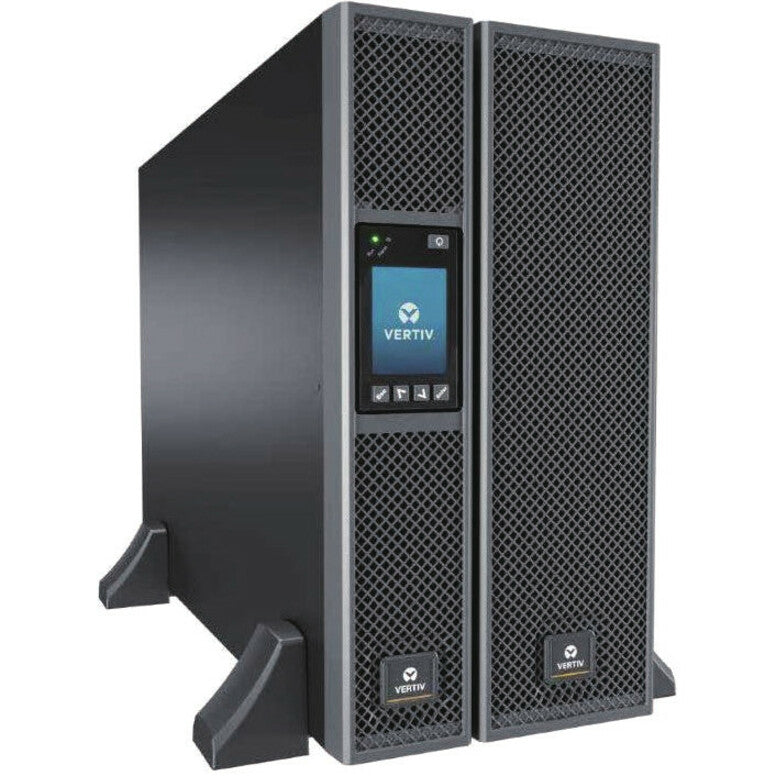

| Form Factor | Rack/Tower (5U) |
| Capacity | 6000 VA / 6000 W |
| Input Voltage | 230V AC (Range: 115–288V) |
| Output Voltage | 200/208/220/230/240V AC |
| Output Waveform | Pure Sine Wave |
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |

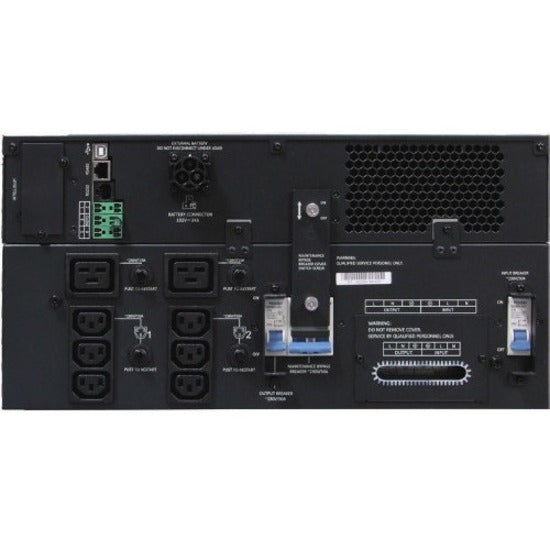

| Receptacles | 6 x IEC C13, 2 x IEC C19, Terminal Block |
| Bypass | Internal Auto/Manual |
| Battery Type | Lead Acid, VRLA, Hot-Swappable |
| Number of Batteries | 16 x 12V |
| Battery Capacity | 9000 mAh |

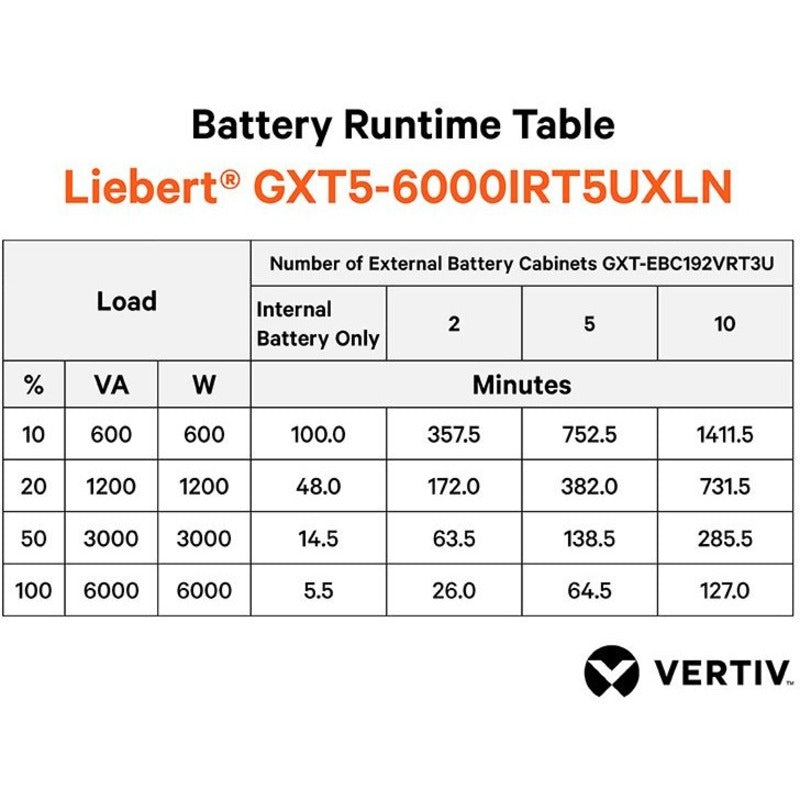

| Backup Time (Full Load) | 5.5 minutes |
| Backup Time (Half Load) | 14.5 minutes |
| LCD Display | Full-Color Graphic (Gravity Sensing) |
| Remote Monitoring | Built-in RDU101 SNMP/Web Card |
| Weight | 156.09 lbs (Shipping: 203 lbs) |
| Dimensions (H x W x D) | 8.5" x 16.9" x 24.8" |
| Certifications | ENERGY STAR 2.0, IEC/EN 62040 |
| Environment Compliance | RoHS, REACH |
| Warranty | 3-Year Limited (5-Year Promo Warranty) |
