Description

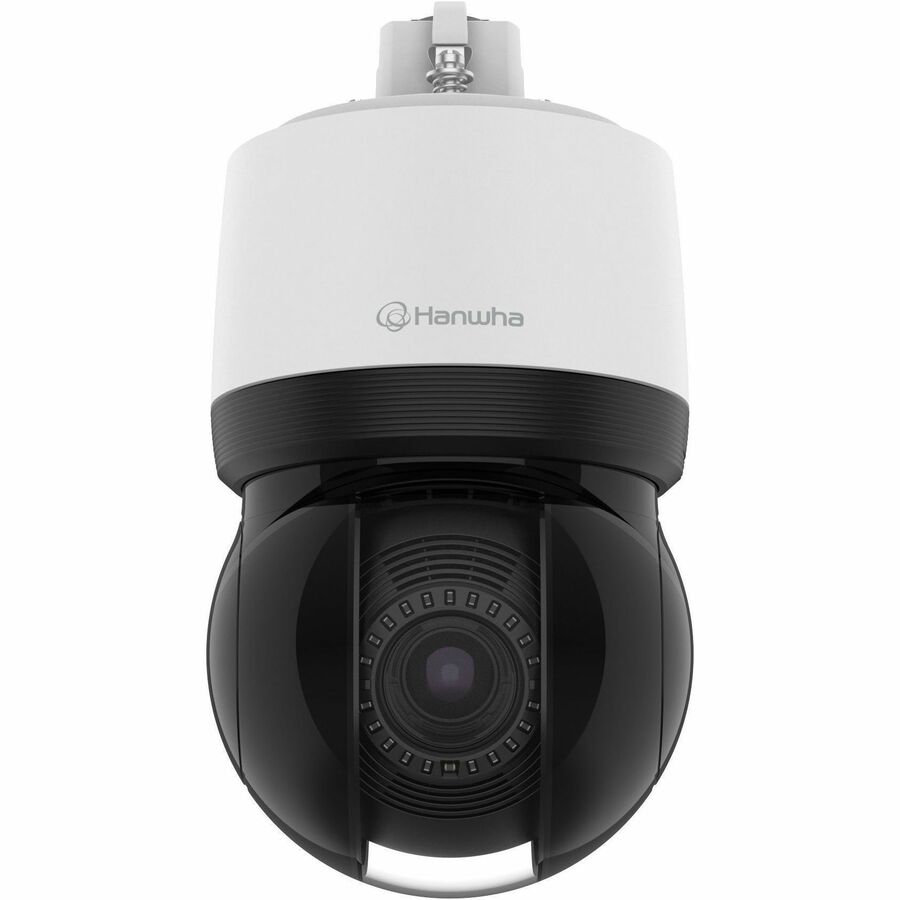

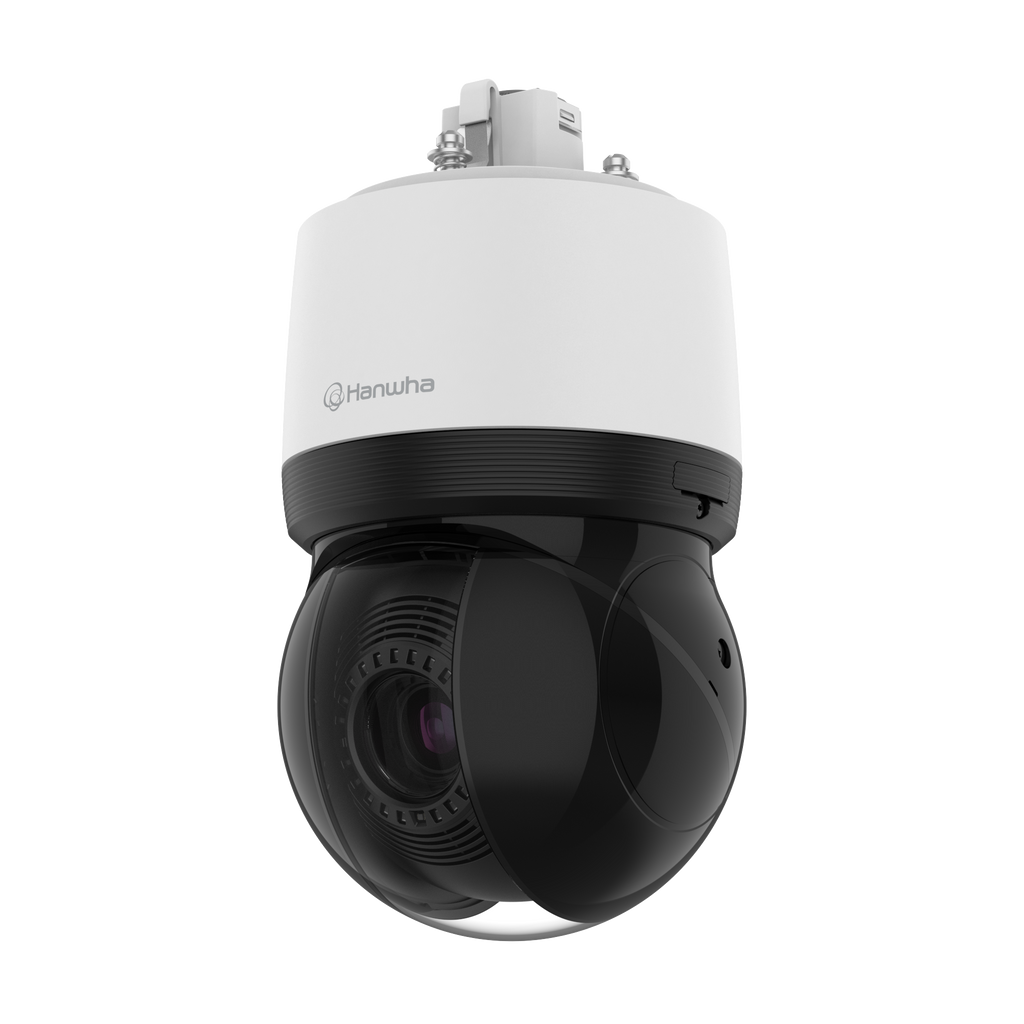

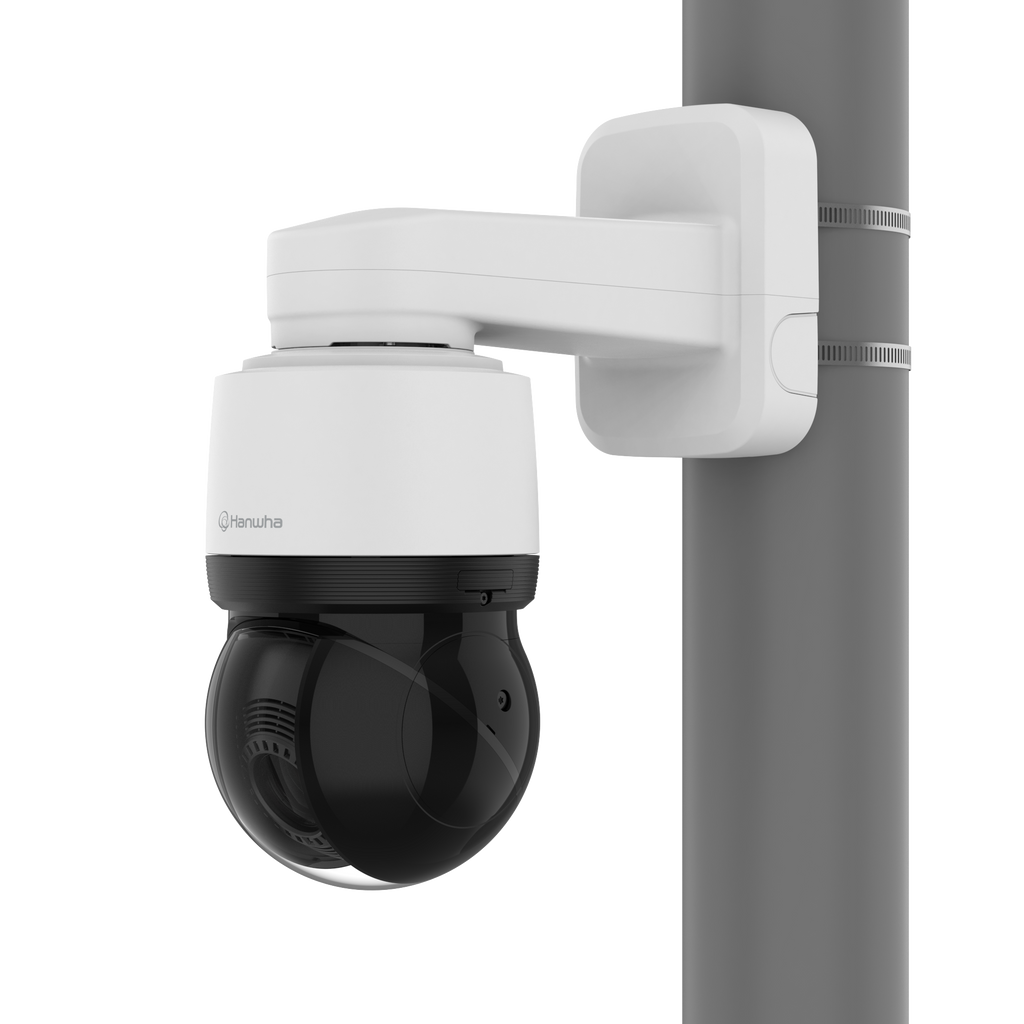

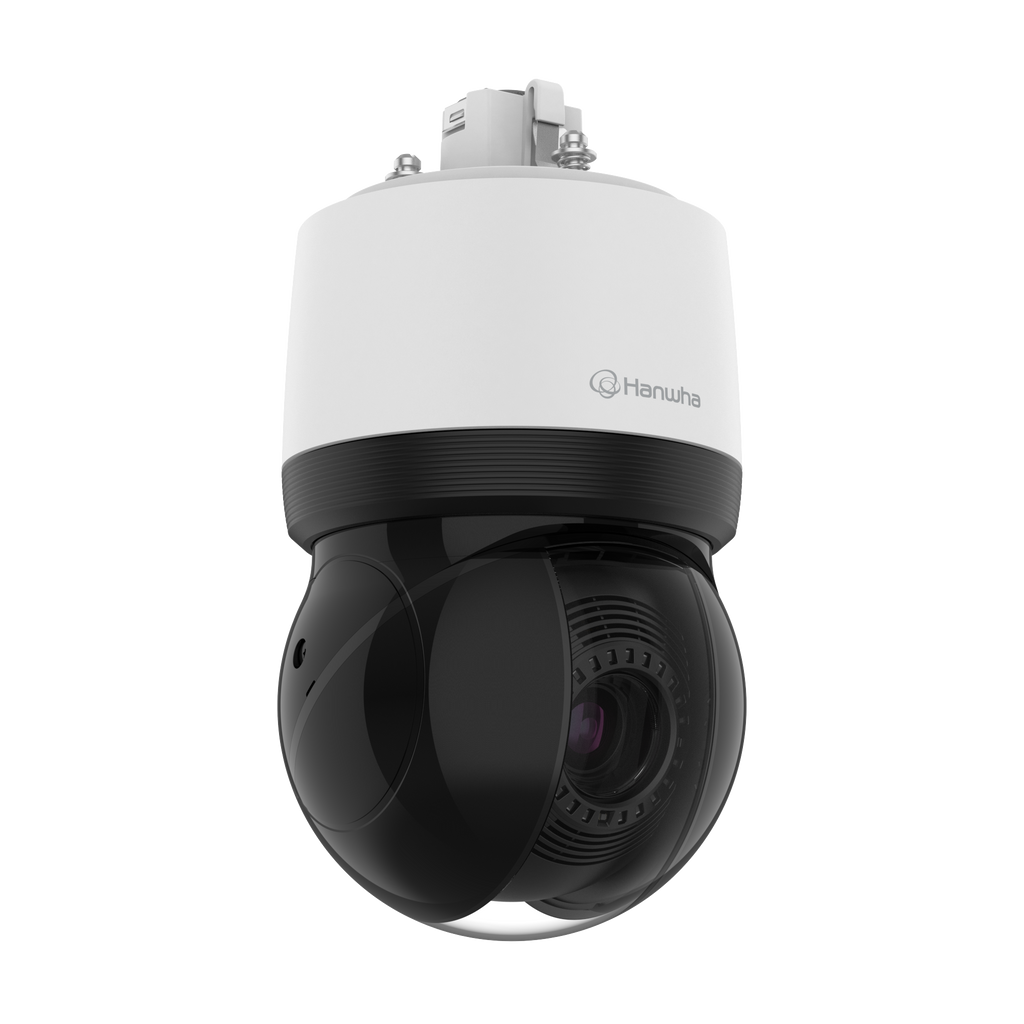

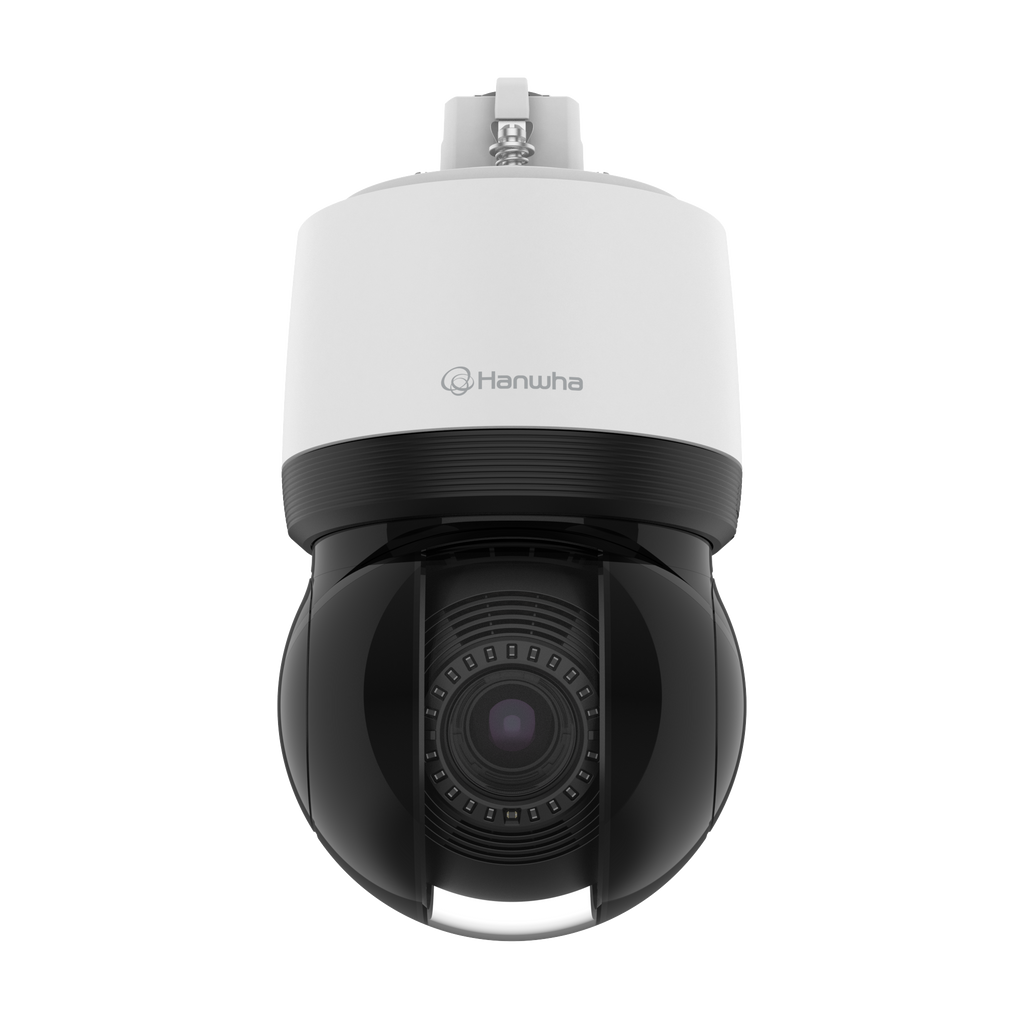

The Hanwha Vision XNP-C8253R is a powerful 6-megapixel AI-driven PTZ PLUS network camera engineered for long-range surveillance, critical infrastructure, transportation, city surveillance, and perimeter security applications. Featuring a 25x optical zoom (5–125mm) and advanced AI video analytics, it delivers highly accurate object detection, tracking, line-crossing, loitering analysis, license plate identification, and more.
With WiseIR up to 200 meters, extreme WDR (120dB), DIS with gyro sensor, and low-light performance down to 0.1 lux, the XNP-C8253R ensures clarity in challenging environments. The PTZ PLUS design provides a lightweight build, simplified cabling, and exceptional preset accuracy (±0.1°). Built for durability, it carries IP66, IK10, NEMA 4X, and NEMA-TS2 certifications for harsh outdoor conditions.
Designed with advanced cybersecurity, dual SD card support (up to 1TB), TPM 2.0, secure boot, and encrypted storage, the XNP-C8253R ensures robust protection for modern security deployments.
| Category | Specification |
|---|---|
| Imaging | 1/2.8" CMOS; Max resolution 3328×1872 (6MP); Min. illumination: Color 0.1 lux, B/W 0.01 lux |
| Lens | 5–125mm motorized; 25x optical zoom; 32x digital zoom; F1.6 (wide) to F3.73 (tele) |
| Field of View | H: 57.42°–2.71°; V: 33.54°–1.55° |
| Video Performance | H.265/H.264 30fps; MJPEG 30fps (6MP max 5fps) |
| Day/Night | ICR auto switching; extreme WDR 120dB; Defog |
| Image Enhancements | WiseNR II (AI-based), DIS with gyro, BLC, HLC, SSDR, Flip & Mirror |
| PTZ Capability | 360° endless pan; Tilt -20° to 90°; 700°/sec pan preset; 500°/sec tilt preset; Presets 300; Tours, swings, groups, traces |
| IR Illumination | WiseIR up to 200m; 850nm wavelength |
| AI Analytics | Object detection (Person/Face/Vehicle/License plate), auto-tracking, virtual line, intrusion, loitering, appear/disappear, sound classification |
| Network | RJ-45 10/100BASE-T; Protocols IPv4/IPv6, TCP/UDP, RTP/RTSP, HTTPS, SRTP, MQTT, SNMP, QoS, ONVIF S/G/T/M |
| Streaming | Up to 20 users unicast; Multicast; Up to 10 video profiles |
| Audio/Alarm | Via optional I/O box: audio in/out, alarm in/out |
| Security | TPM 2.0 with FIPS 140-2 Level 2; Secure boot; Encrypted firmware; AES-256 SD card encryption |
| Edge Storage | Dual SD/SDHC/SDXC slots; Up to 512GB each (1TB total) |
| Operating Conditions | -40°C to +55°C; 0–100% RH (condensing); Wind load 150mph |
| Power | PoE++ (IEEE 802.3bt Type 3, Class 6); Max 40W |
| Construction | Aluminum/Polycarbonate; IP66, IK10, NEMA 4X; Dome hard-coat |
| Dimensions / Weight | Ø158 × 293.3 mm; 3.2 kg (7.05 lb) |
| DORI Range (EN62676-4) | Detect: up to 2813.9m; Recognize: up to 562.8m; Identify: up to 281.4m |
