Description

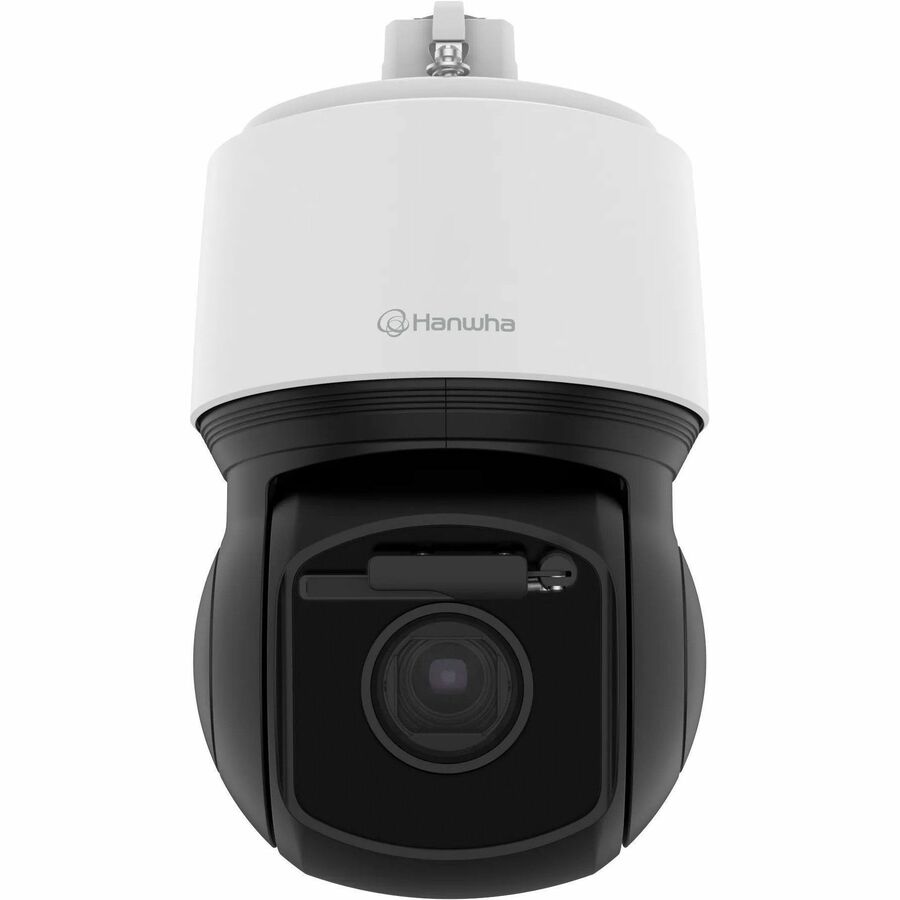

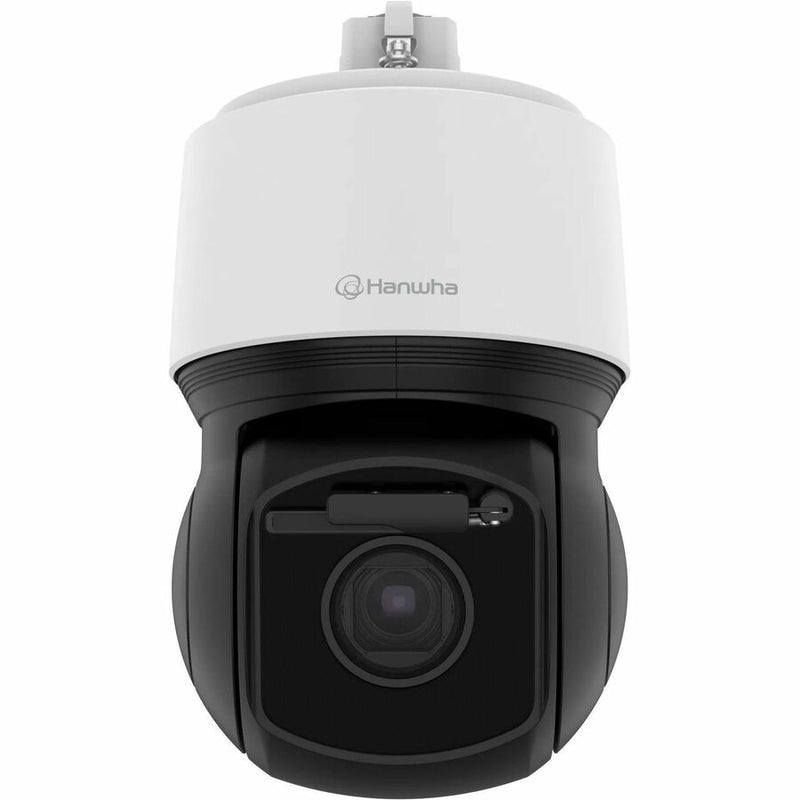

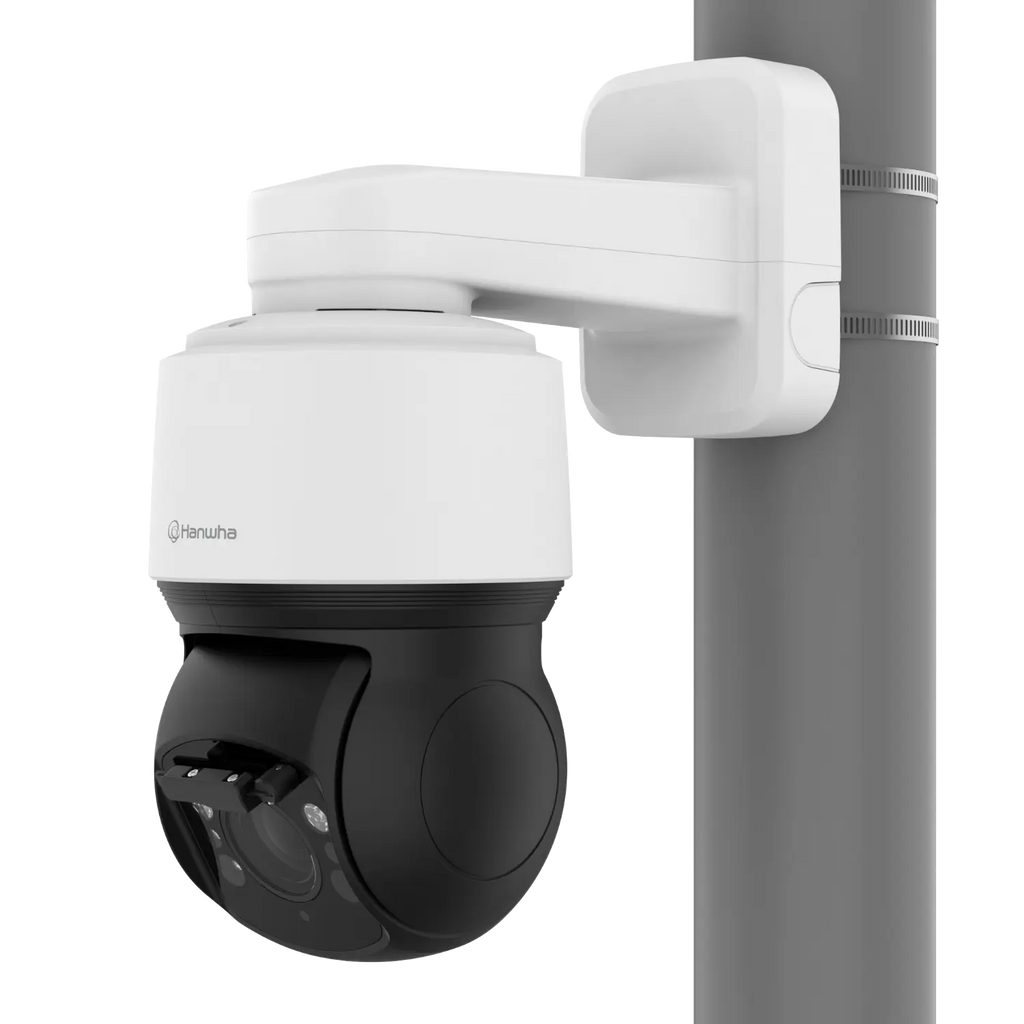

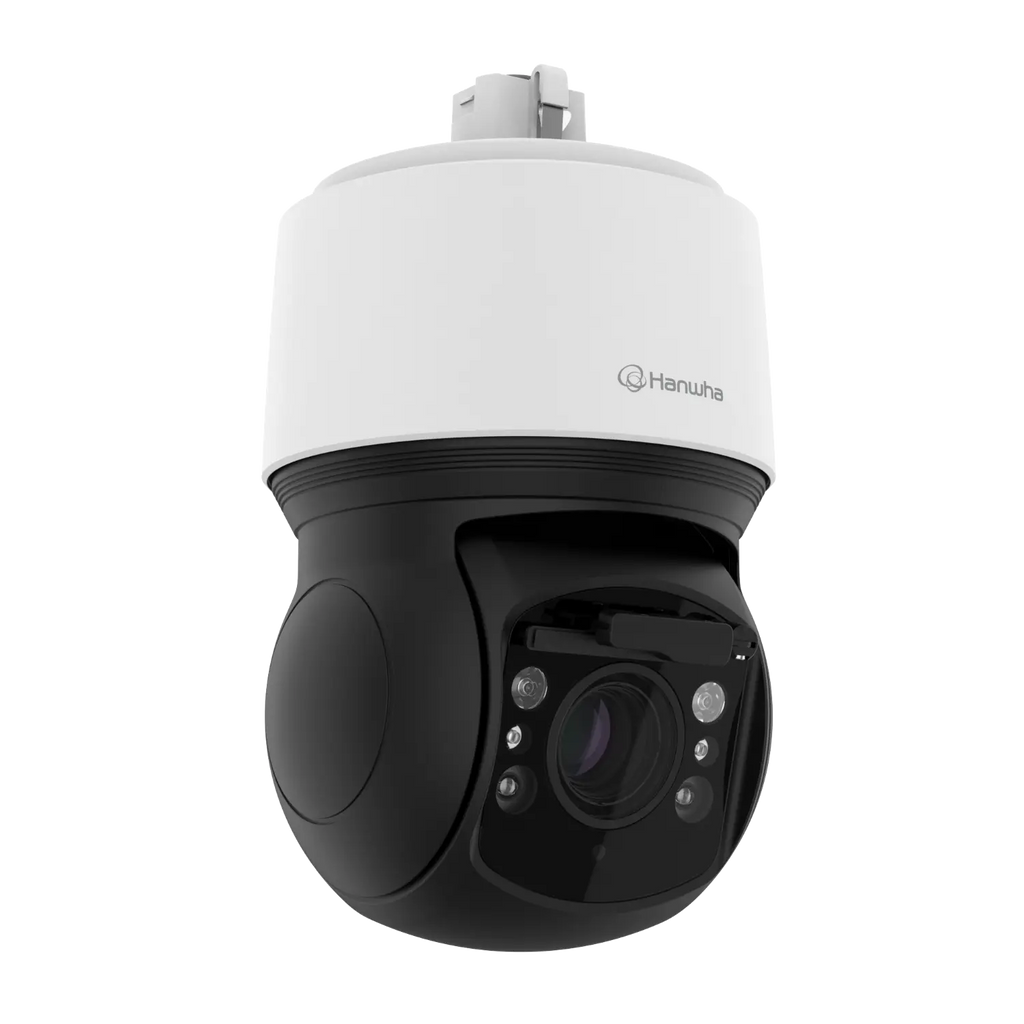

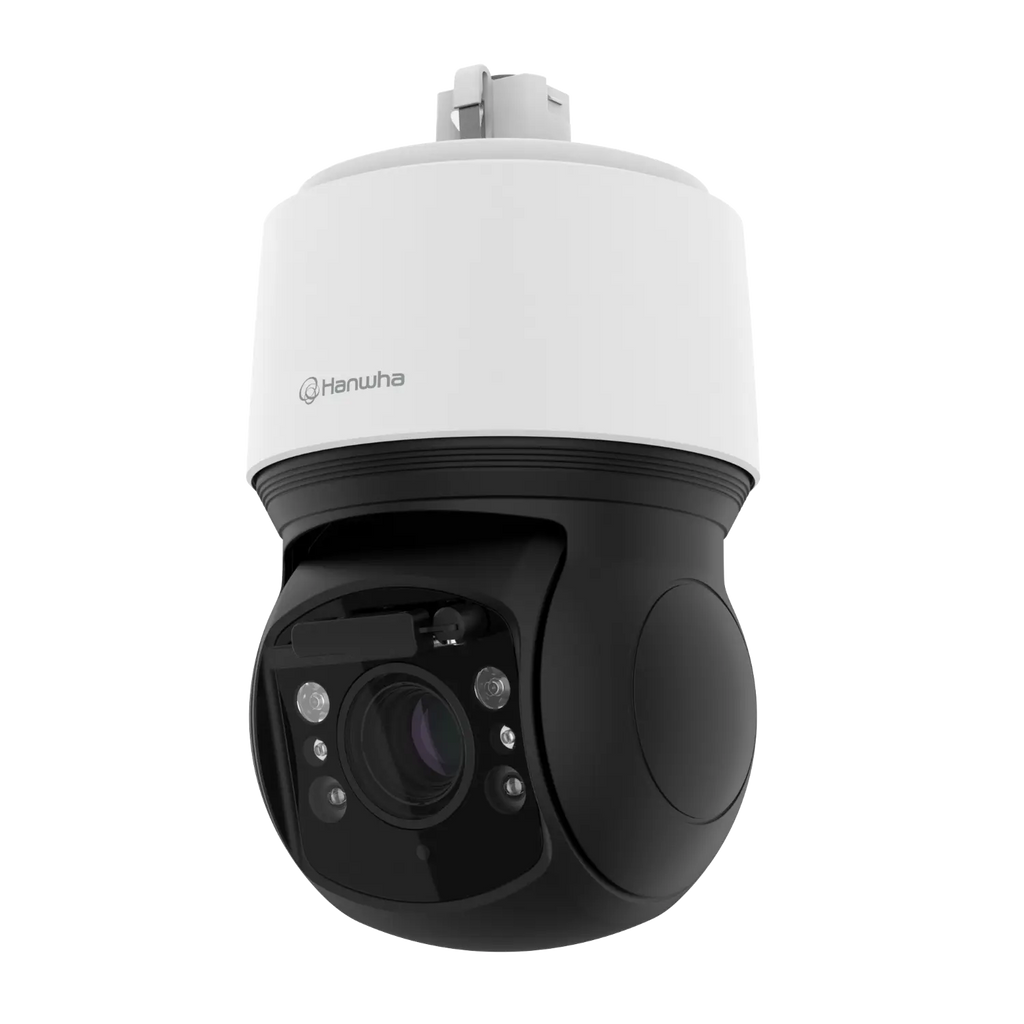

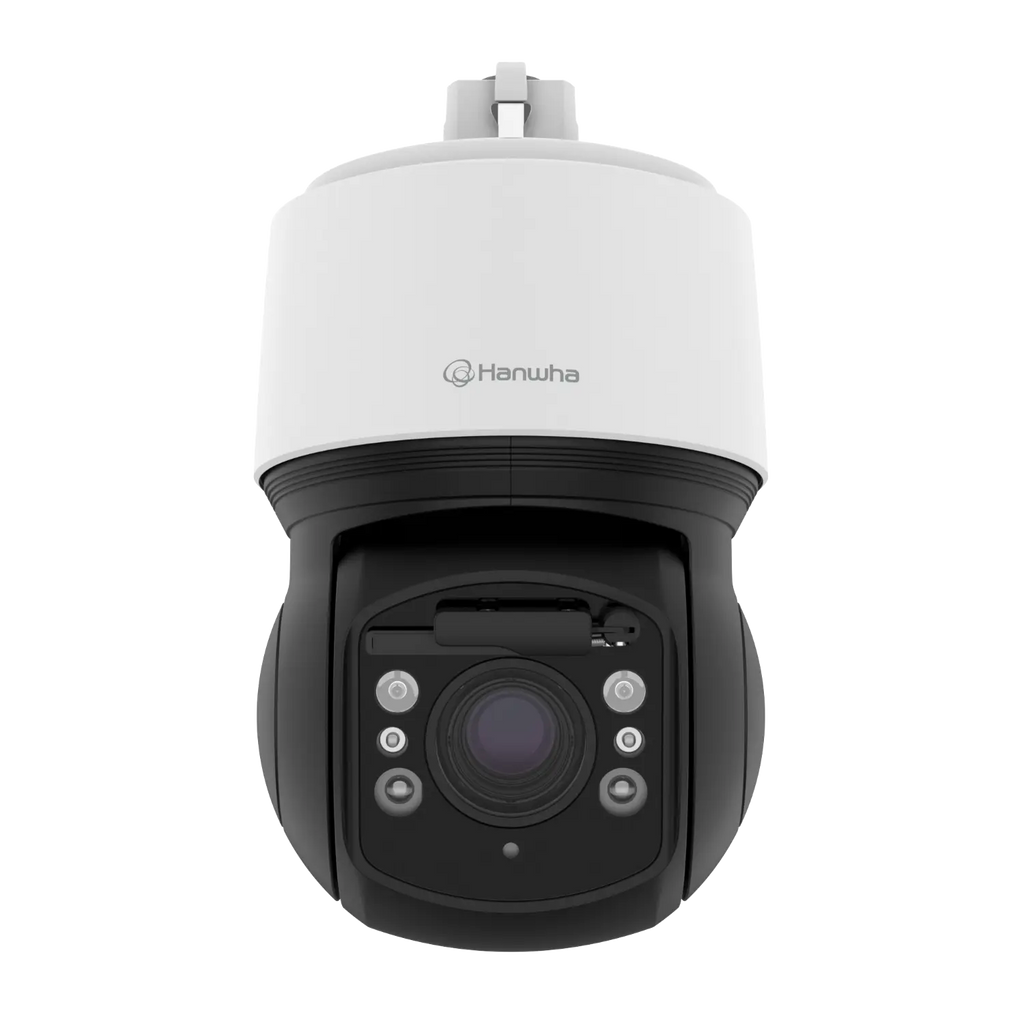

The Wisenet XNP-C8303RW is a high-performance 6MP AI-powered PTZ PLUS network camera engineered for demanding outdoor surveillance environments. With a powerful 30x optical zoom, built-in IR illumination up to 200m, and a rugged IP66/IK10/NEMA4X design, this camera delivers exceptional long-range visibility and reliable operation in harsh conditions.
Equipped with advanced AI video analytics, the camera supports intelligent object classification (person, face, vehicle, license plate), auto-tracking, and target-lock tracking for proactive security monitoring. The built-in gyro-based DIS, extreme WDR (120 dB), and WiseNR II ensure superior clarity in challenging lighting and motion conditions.
The PTZ PLUS platform offers faster installation, simplified cabling, and lighter construction, while the integrated wiper and lens heater maintain clear visibility during rain, snow, and dust exposure. Supporting H.265/H.264/MJPEG with WiseStream III, dual SD card slots (up to 1TB total), and direct cloud connection, the XNP-C8303RW is built for scalable, next-level security deployments.
| Category | Specification |
|---|---|
| Image Sensor | 1/2.8" CMOS |
| Max Resolution | 6MP (3328×1872) |
| Supported Resolutions | 3328×1872, 3072×1728, 2688×1520, 2592×1944, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max Frame Rate | 30fps (H.265/H.264), MJPEG 30fps (@6MP max 5fps) |
| Minimum Illumination | Color: 0.1 Lux (30IRE) • B/W: 0.01 Lux |
| Lens | 5–150mm motorized, 30x optical zoom, 32x digital zoom |
| Aperture | F1.6 (Wide) / F4.56 (Tele) |
| FOV (H/V) | 57.42°–2.19° (H), 33.54°–1.25° (V) |
| Pan/Tilt Range | Pan: 360° endless • Tilt: 90° to –20° |
| Pan/Tilt Speed | Pan: Up to 500°/sec preset • Tilt: Up to 350°/sec preset |
| WDR | 120 dB Extreme WDR |
| Noise Reduction | WiseNR II (AI-based), SSNR V |
| Image Stabilization | DIS with built-in gyro sensor |
| IR Illumination | IR LED, up to 200m (WiseIR) |
| Day/Night | True Day/Night (ICR) |
| Analytics (AI-Based) | Object detection, classification (Person/Face/Vehicle/License Plate), virtual line, intrusion, loitering, auto-tracking, target lock |
| Normal Analytics | Tampering, fog detection, audio detection, sound classification, shock detection |
| Video Compression | H.265/H.264/MJPEG, WiseStream III |
| Streaming | Up to 10 profiles • Up to 20 users |
| Network Protocols | IPv4/IPv6, TCP/IP, UDP/IP, RTSP, HTTPS, SNMP, QoS, MQTT, ONVIF S/G/T/M |
| Audio I/O | Supported via optional I/O box |
| Alarm I/O | Optional I/O box supported |
| Storage | Dual microSD/SDHC/SDXC (max 512GB each, 1TB total) |
| Operating Temperature | –40°C to +55°C (–40°F to +131°F) |
| Ingress/Impact Rating | IP66, IK10, NEMA 4X, NEMA-TS2 |
| Power Input | PoE++ (IEEE 802.3bt Type 3 Class 6) |
| Power Consumption | Max 46W (Typical 26W) |
| Dimensions | Ø184.9 × 318.8 mm (7.28 × 12.55") |
| Weight | 5,600 g (12.34 lb) |
| Construction | Aluminum, Polycarbonate |
| Colors | White, Black |
