Description

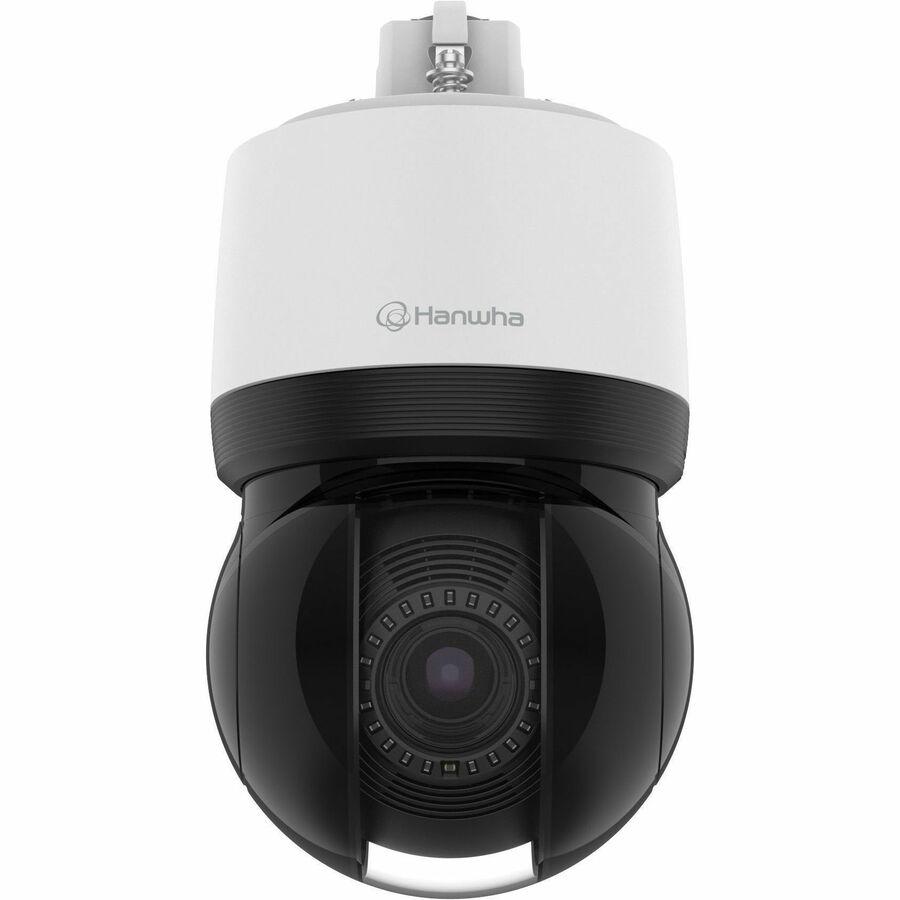

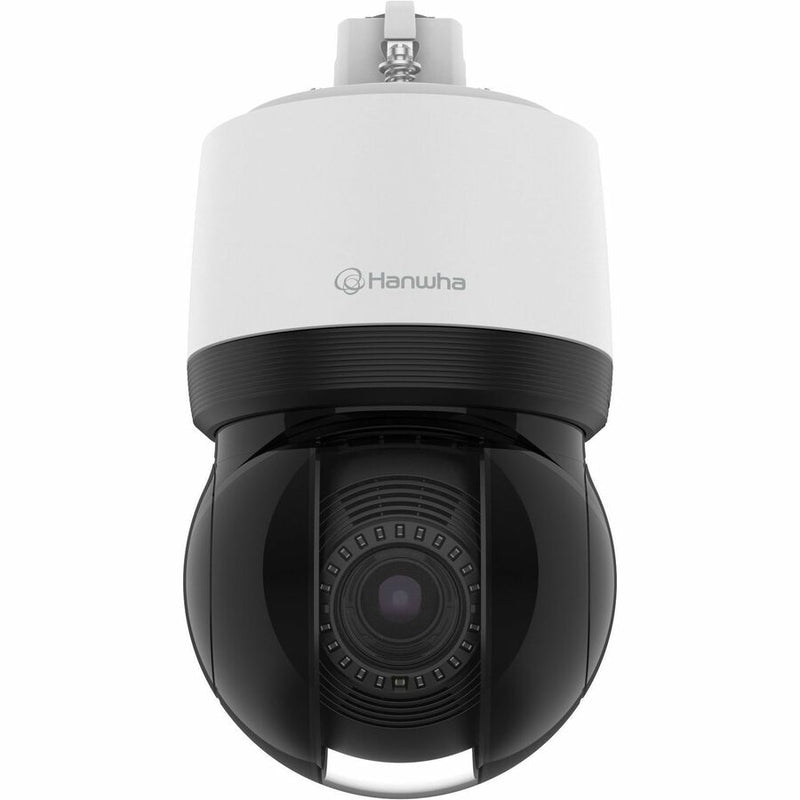

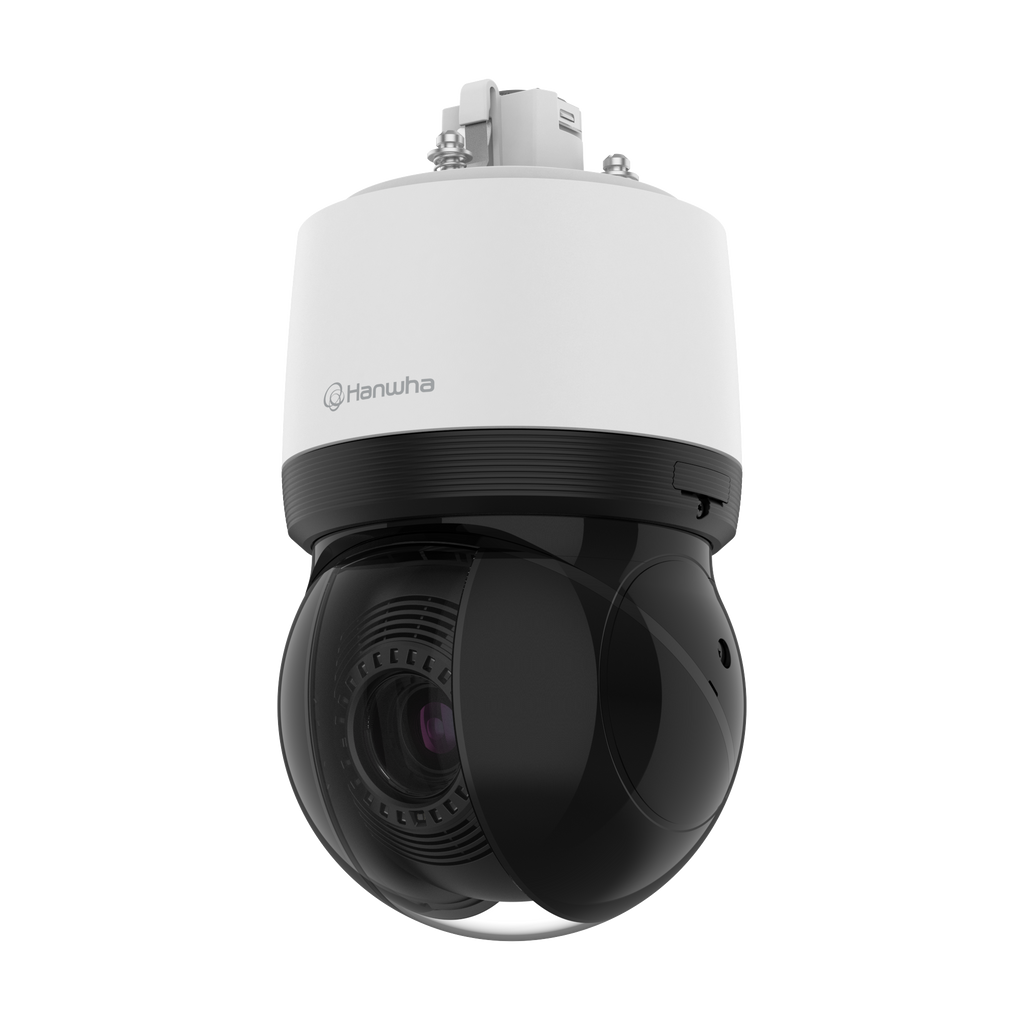

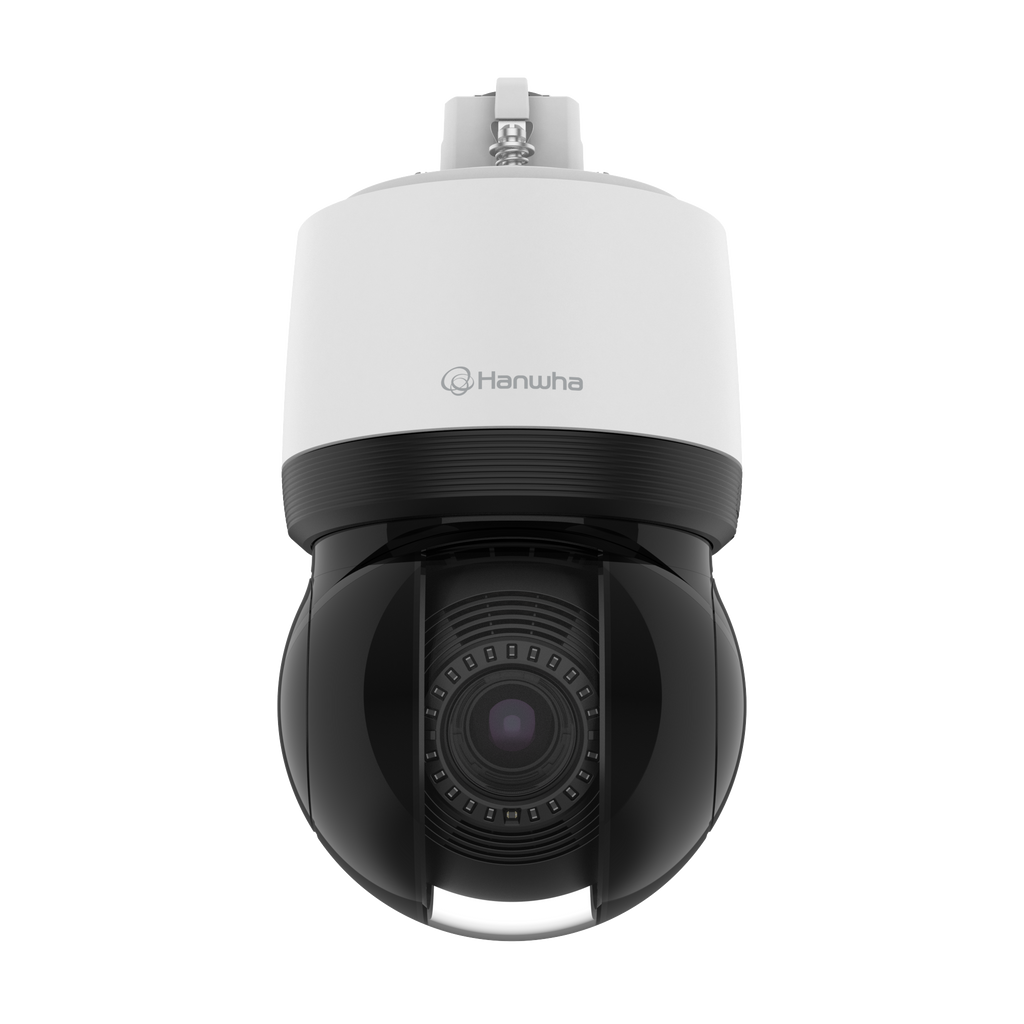

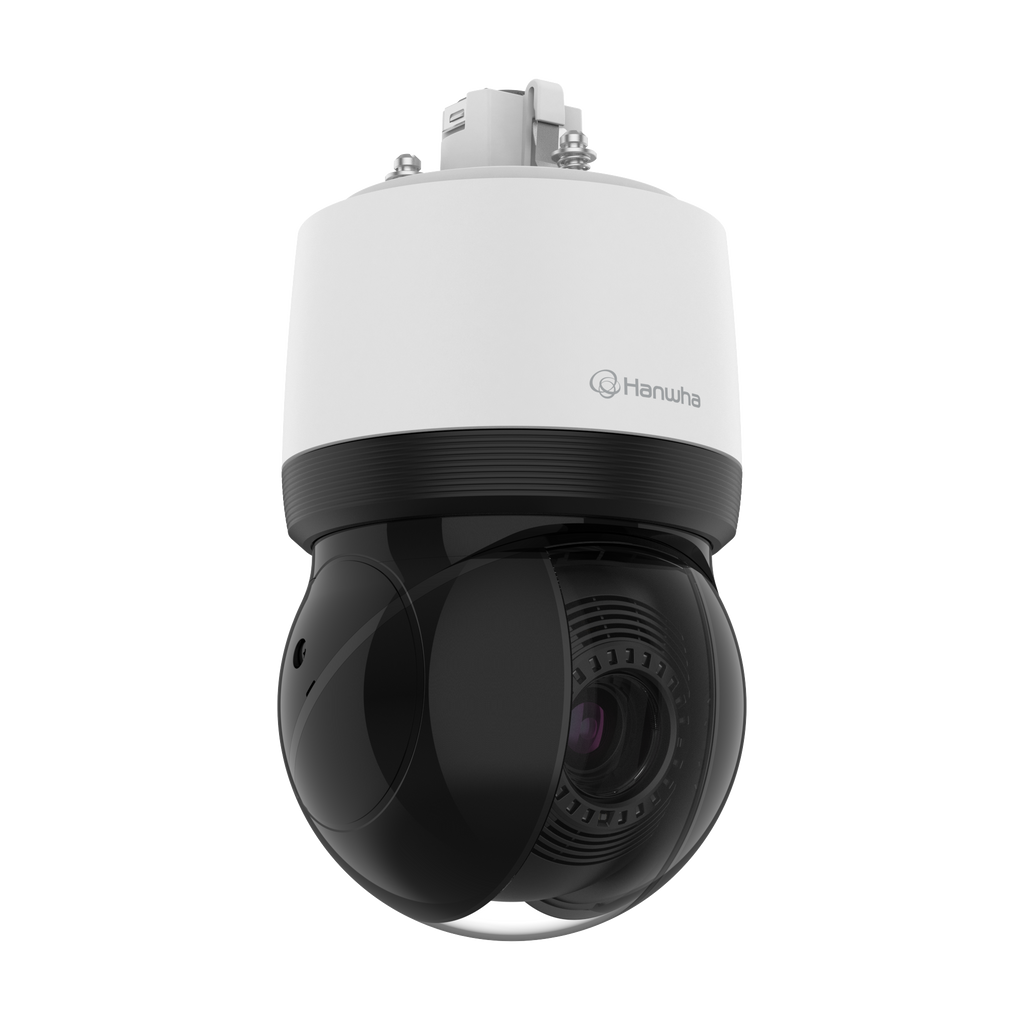

The Hanwha Vision XNP-C8253 is a high-performance 6MP AI-powered PTZ PLUS camera designed for demanding outdoor surveillance applications. Featuring a 25x optical zoom, ultra-low-light performance, and advanced AI analytics, it delivers exceptional clarity and precision for wide-area monitoring, perimeter security, transportation, and critical infrastructure environments.

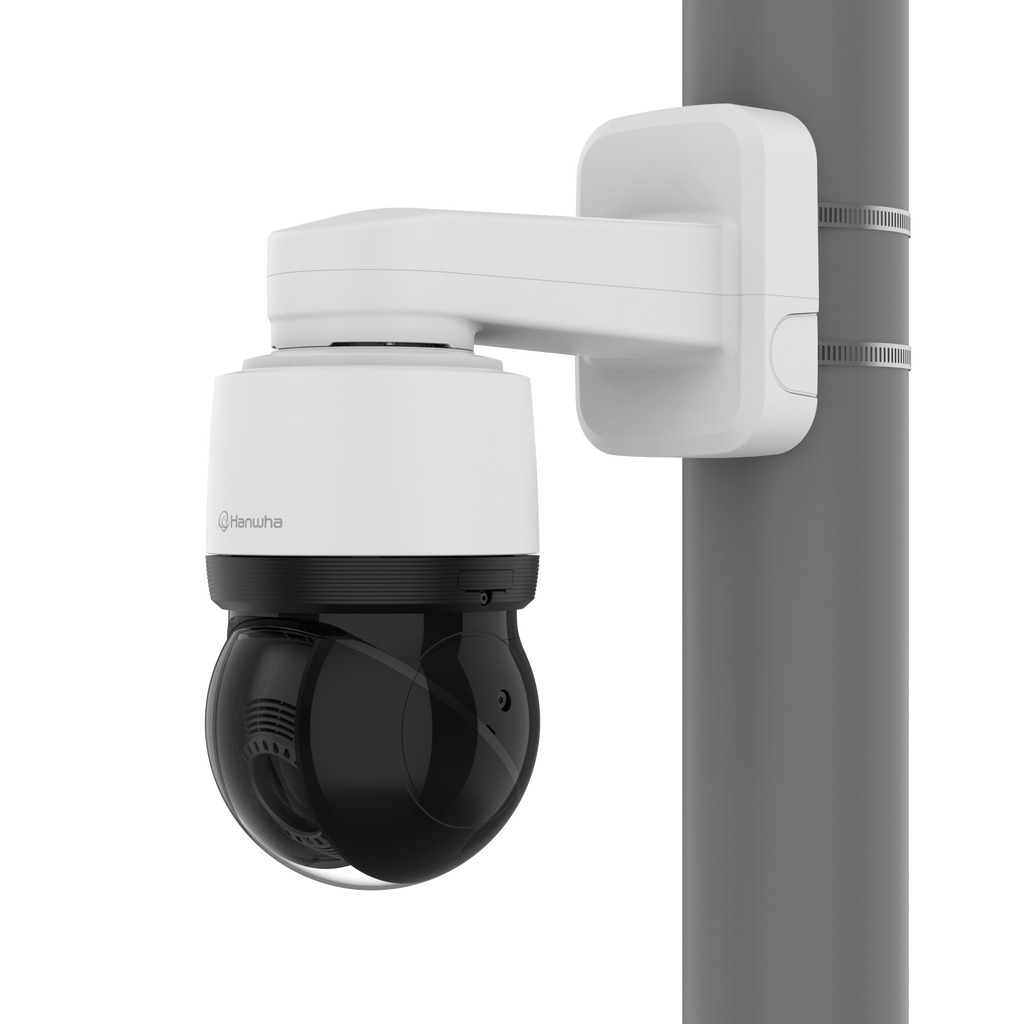

Built with the PTZ PLUS design, the XNP-C8253 is lighter, more compact, and easier to install, simplifying cabling while maintaining rugged durability. With IP66, IK10, and NEMA 4X ratings, the camera withstands harsh weather, high winds, and extreme temperatures as low as –40°C.
AI-based object classification (Person, Face, Vehicle, License Plate), auto-tracking, WiseNR II noise reduction, built-in image stabilization, and Smart Codec (WiseStream III) ensure optimized bandwidth and reliable forensic-quality video. The camera also supports dual SD card slots (up to 1TB total) for edge recording, secure boot, TPM 2.0, and encrypted firmware for enhanced cybersecurity.
| Category | Specification |
|---|---|
| SKU | XNP-C8253 |
| Resolution | Max. 6MP (3328 × 1872) |
| Image Sensor | 1/2.8" CMOS |
| Minimum Illumination | Color: 0.1 Lux (F1.6, 1/30s); B/W: 0.01 Lux |
| Lens | 5–125 mm, 25x optical zoom, 32x digital zoom |
| Aperture | F1.6 (Wide) / F3.73 (Tele) |
| Field of View | H: 57.42°–2.71° / V: 33.54°–1.55° |
| Pan Range | 360° endless |
| Tilt Range | 90° to –20° |
| Pan Speed | Up to 700°/sec (preset) |
| Tilt Speed | Up to 500°/sec (preset) |
| Video Compression | H.265, H.264, MJPEG; WiseStream III |
| Max Frame Rate | 30fps (H.265/H.264) |
| Dynamic Range | 120 dB WDR |
| Noise Reduction | WiseNR II (AI-based), SSNR V |
| Image Stabilization | DIS with built-in gyro sensor |
| Day/Night | IR-cut filter (ICR) |
| AI Analytics | Object detection, classification (Person/Face/Vehicle/License Plate), virtual line/area, intrusion, loitering, audio detection, shock detection |
| Auto-Tracking | Person/Vehicle auto-tracking, Target-lock tracking |
| Edge Storage | Dual SD/SDHC/SDXC slots (up to 512GB × 2, total 1TB) |
| Network Interface | RJ-45 10/100BASE-T |
| Protocols | IPv4/IPv6, TCP/IP, RTP, HTTP/HTTPS, SNMP, MQTT, SRTP, ONVIF S/G/T/M |
| Cybersecurity | Secure boot, encrypted firmware, TPM 2.0 (FIPS 140-2 Level 2), signed firmware |
| Environmental Rating | IP66, IK10, NEMA 4X |
| Operating Temperature | –40°C to +55°C (–40°F to +131°F) |
| Humidity | 0–100% RH (condensing) |
| Wind Load | 150 mph (241 km/h) |
| Power Input | PoE+ (IEEE 802.3at Class 4) |
| Power Consumption | Max 25.5W |
| Dimensions | Ø158 × 293.3 mm (6.22 × 11.55 in) |
| Weight | 3.2 kg (7.05 lb) |
| Material | Aluminum, Polycarbonate, Hard-coated dome |
| Certifications | FCC, CE, UL62368-1, IK10, IP66, NEMA-TS2 |
