Description

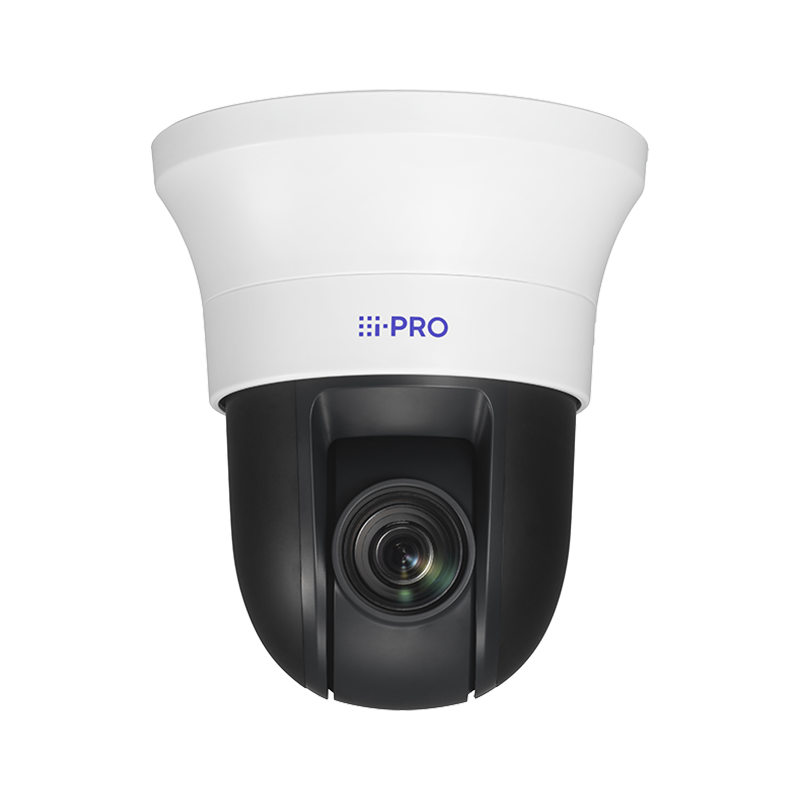

The i-PRO WV-S61602-Z3 is a high-performance 6MP indoor PTZ security camera designed for professional surveillance applications requiring intelligent monitoring and exceptional image quality. Powered by an AI-driven engine and Ambarella CV22 SoC, this camera supports up to three Edge AI analytic applications, enabling advanced real-time object, people, and scene analysis.
With a 30x optical zoom, wide dynamic range of 132 dB, and superior low-light performance down to 0.012 lx, the WV-S61602-Z3 delivers clear visibility in challenging environments. Its AI auto-tracking, durable pan/tilt gear mechanism, and secure FIPS 140-2 Level 3 certified module ensure reliable, intelligent, and compliant monitoring for enterprise installations.
Engineered with NDAA compliance and multiple AI detection modes—including face, people, vehicle, and occupancy detection—this camera enhances situational awareness while reducing bandwidth with Smart Coding (H.265/H.264).
Ideal for airports, retail spaces, campuses, and large facilities, the WV-S61602-Z3 redefines security precision through advanced analytics, fast positioning, and uncompromising image quality.
| Category | Specification |
|---|---|
| Model | i-PRO WV-S61602-Z3 |
| Image Sensor | Approx. 1/2.8-type CMOS image sensor |
| Effective Resolution | 6 megapixels |
| Minimum Illumination | Color: 0.13 lx (F1.8, 1/30 s); B/W: 0.10 lx (F1.8, 1/30 s) |
| Dynamic Range | Max. 132 dB (Super Dynamic On) |
| Lens | Motorized 30× optical zoom (4.5 mm–135 mm) |
| Digital Zoom | Up to 480× |
| Field of View (H/V) | 62°–2.5° (H), 37°–1.4° (V) |
| Pan/Tilt Range | Pan 0°–350° / Tilt −25° to +90° |
| Pan/Tilt Speed | Manual 0.065°/s – 150°/s; Preset Up to 500°/s |
| Preset Positions | 256 |
| AI Functions | Auto Tracking, AI Face Detection, People Detection, Vehicle Detection, Scene Change Detection, Occupancy Detection |
| AI Apps Supported | Up to 3 Edge AI applications |
| AI Sound Classification | Gunshot, Yell, Vehicle Horn, Glass Break |
| Video Compression | H.265/H.264/MJPEG |
| Max Streams | 4 simultaneous streams |
| Smart Coding | Variable/Fixed GOP, Smart VIQS, Smart P-picture control |
| Audio Compression | G.726, G.711, AAC-LC (64/96/128 kbps) |
| Network Interface | 10BASE-T / 100BASE-TX (RJ-45) |
| Security | FIPS 140-2 Level 3, HTTPS, IEEE 802.1X, User Auth, Signed Firmware |
| Storage | microSD (2 GB–512 GB, SD/SDHC/SDXC supported) |
| ONVIF Profiles | G / S / T / M |
| Power Source | DC 12 V (1.25 A, 15 W) / PoE+ IEEE 802.3at (16.7 W) |
| Operating Temperature | −10 °C to +50 °C (14 °F – 122 °F) |
| Humidity | 10 % – 90 % (no condensation) |
| Dimensions | Ø 185 mm × 214 mm (H) (Ø 7.3 in × 8.4 in) |
| Weight | Approx. 1.8 kg (3.97 lbs) |
| Housing Material | Aluminum die-cast / ABS resin (i-PRO white) |
| Compliance | UL, CE, FCC Class A, NDAA Compliant |
| Optional Accessories | Wall/Ceiling Mounts (WV-QWL500-W, WV-QEM101-W, etc.), Dome Covers, SD Cards, Microphone Unit (WV-PM |
