Description

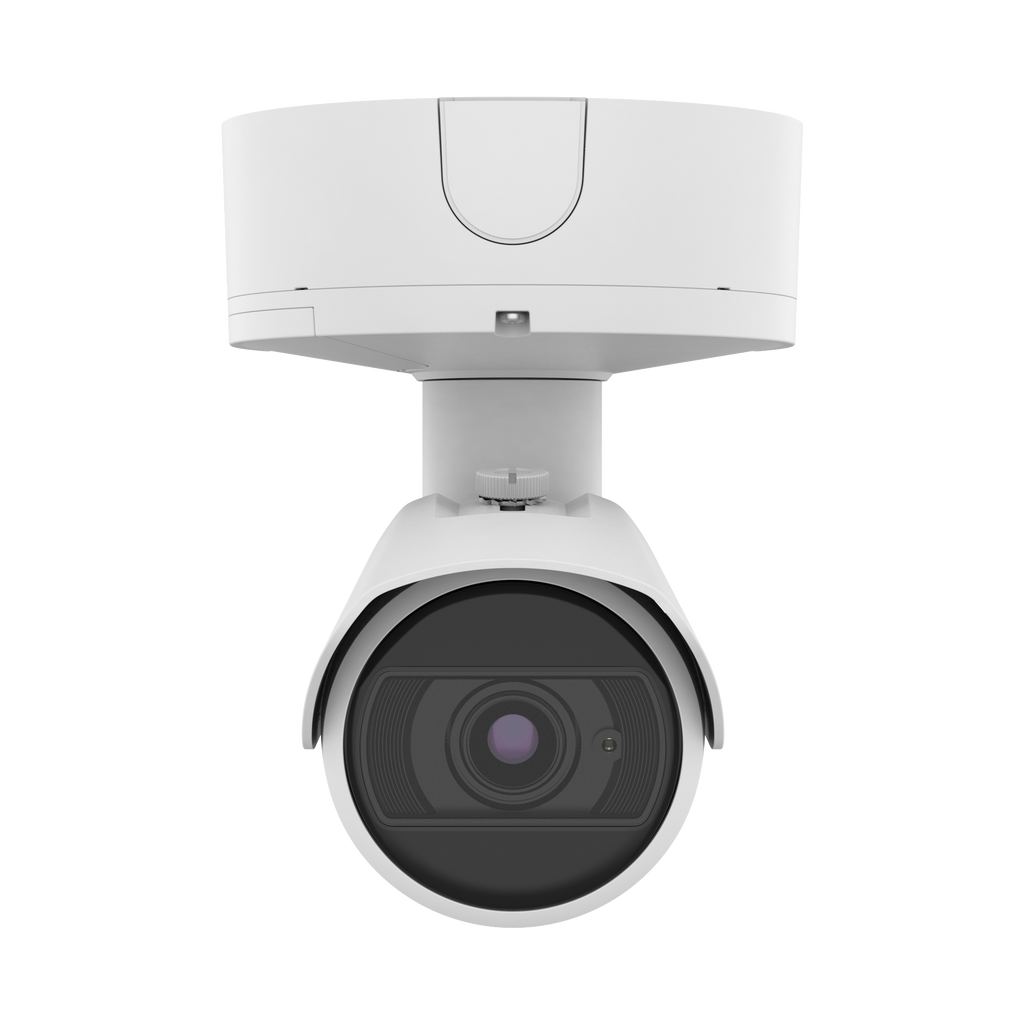

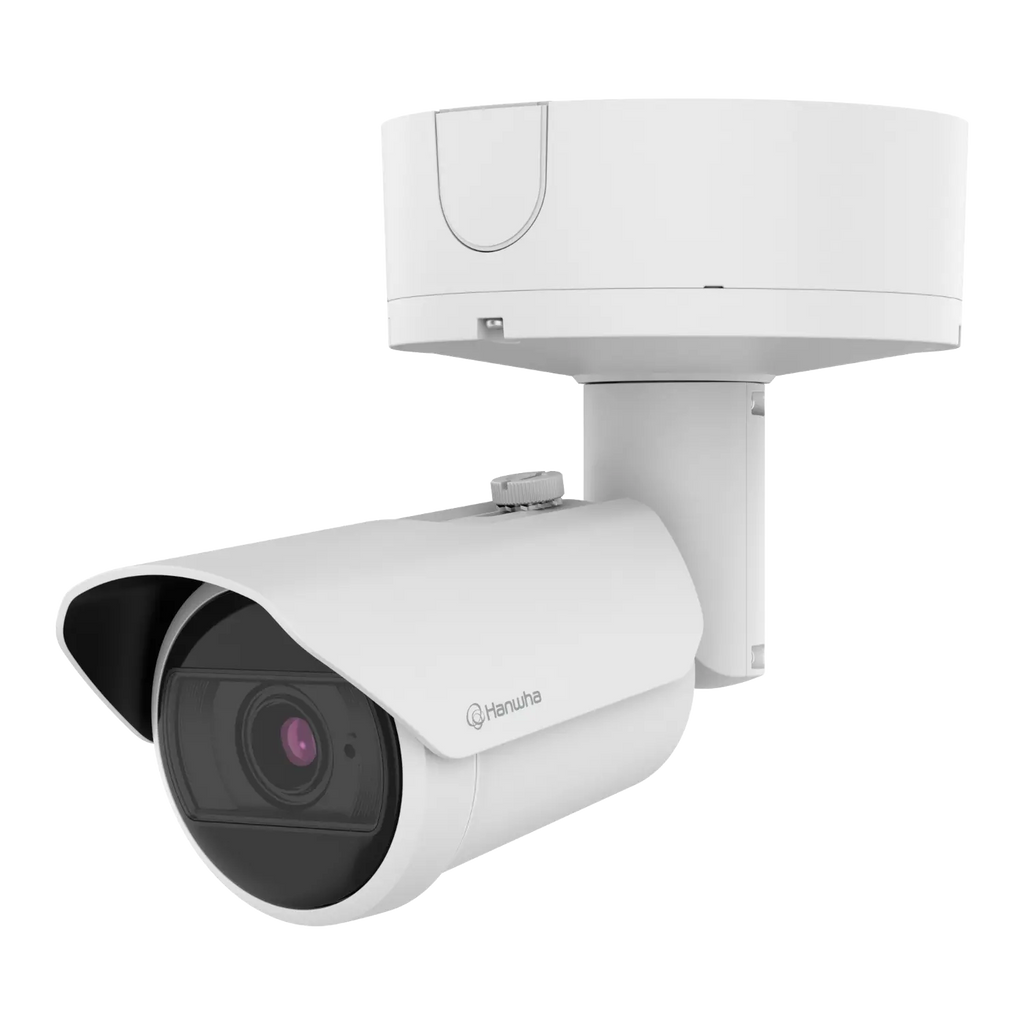

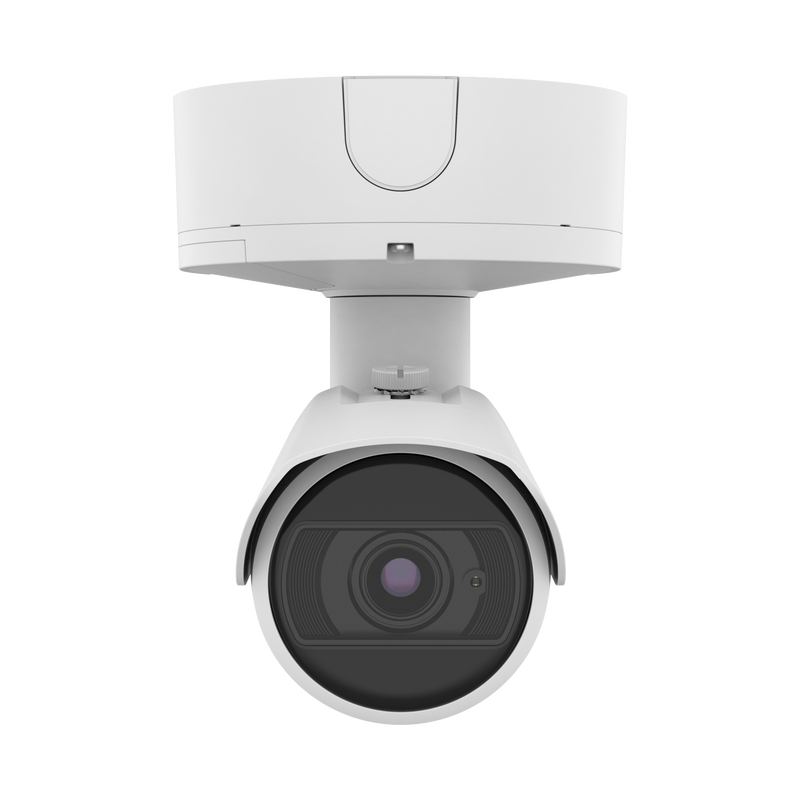

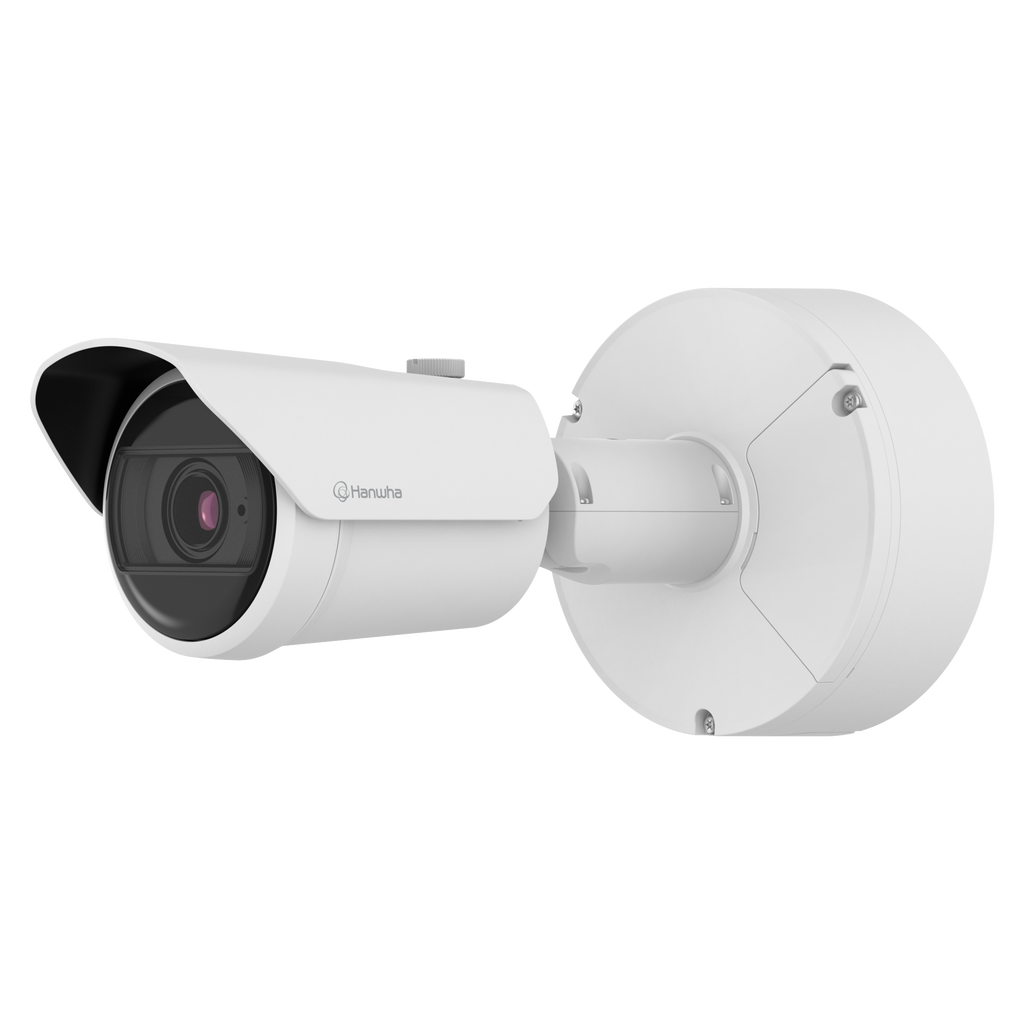

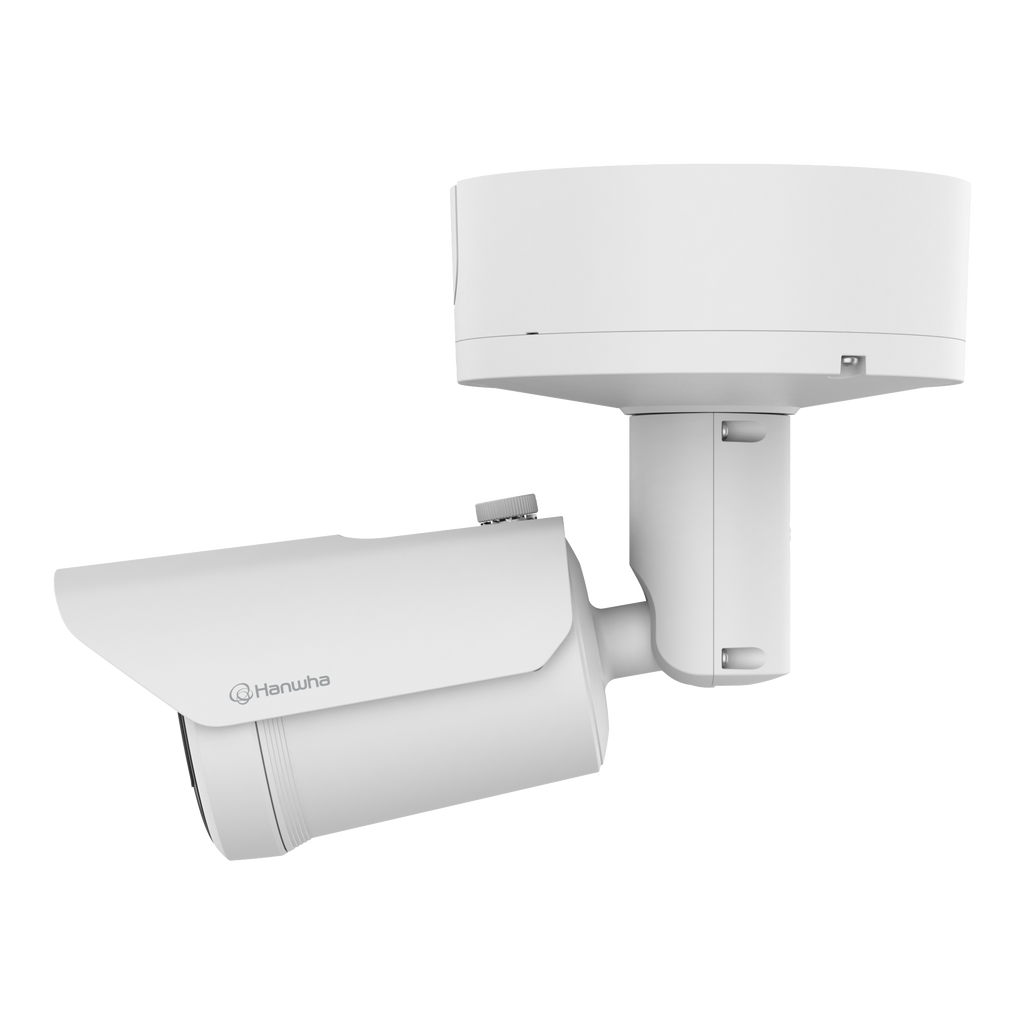

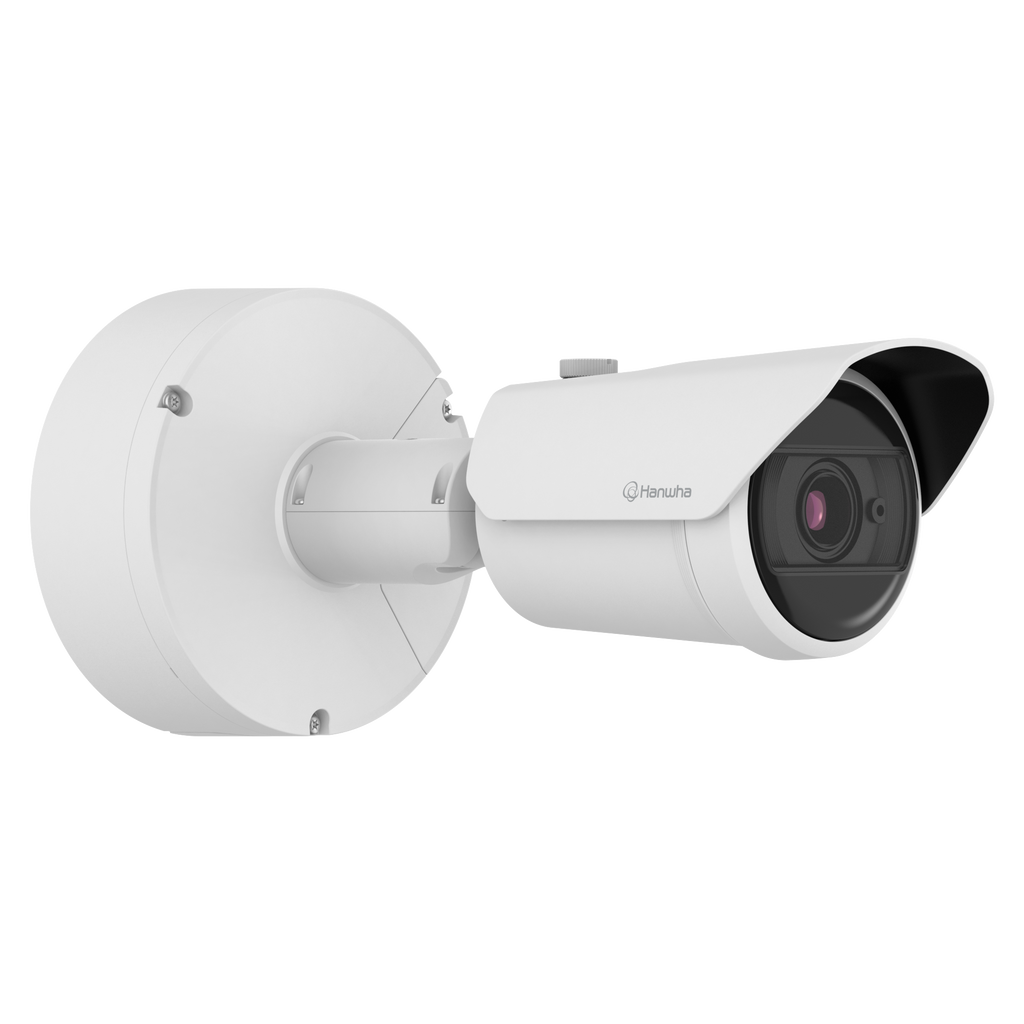

The Hanwha Vision XNO-8083R is a high-performance 6MP AI-powered IR bullet camera designed for demanding indoor and outdoor surveillance environments. With a 1/1.8" CMOS sensor, advanced AI analytics, 120dB extreme WDR, and WiseNR II noise reduction, it delivers clear, accurate imaging in challenging lighting conditions.
Its motorized 4.4–9.3mm P-iris lens, 50m WiseIR illumination, hallway view rotation, gyro-based DIS, and robust IP66/IP67/IK10/NEMA4X ratings make it ideal for critical infrastructure, transportation, campuses, commercial sites, and smart-security applications.
AI-engine features include person/face/vehicle detection, license plate recognition, virtual line/area analytics, sound classification, shock detection, and business-intelligence tools such as heatmaps, people counting, and queue management. The camera supports H.265/H.264/MJPEG, WiseStream III, edge storage up to 2TB, TPM 2.0 security, and encrypted firmware for end-to-end protection.
| Category | Specification |
|---|---|
| Imaging | 1/1.8" CMOS; Max 6MP (3328×1872); Color 0.04 Lux, B/W 0.004 Lux; 30fps (H.265/H.264) |
| Lens | 4.4–9.3mm motorized P-iris; Optical zoom 2.1×; F1.3 (wide) / F2.15 (tele); 113°–47° HFOV |
| IR Illumination | WiseIR up to 50m (164 ft), 850nm |
| Video Features | 120dB extremeWDR, WiseNR II, DIS with gyro, Defog, Privacy masking (32 zones) |
| AI Analytics | Object detection (person, face, vehicle, license plate); IVA (line, area, intrusion, loitering); Audio detection & sound classification; Shock detection; Business intelligence (people counting, queue, heatmap, vehicle counting) |
| Video Compression | H.265/H.264 (Main/Baseline/High), MJPEG; WiseStream III |
| Audio | Mic/line-in selectable; Line-out |
| Network | RJ-45 (10/100/1000); ONVIF S/G/T/M; IPv4/IPv6; HTTPS, SRTP, MQTT, TLS |
| Edge Storage | Dual microSD slots – up to 1TB each (2TB total) |
| Power | PoE+ (IEEE 802.3at) or 12VDC; Max 22.5W (PoE) |
| Operating Conditions | –50°C to +60°C; 0–100% RH (condensing); NEMA-TS2 compliant |
| Construction | Aluminum body; White (RAL9003); IK10, IP66/IP67, NEMA4X |
| Dimensions / Weight | Ø93.4 × 298.4 mm (3.68 × 11.75"); 2,200g (4.85 lb) |
