Description

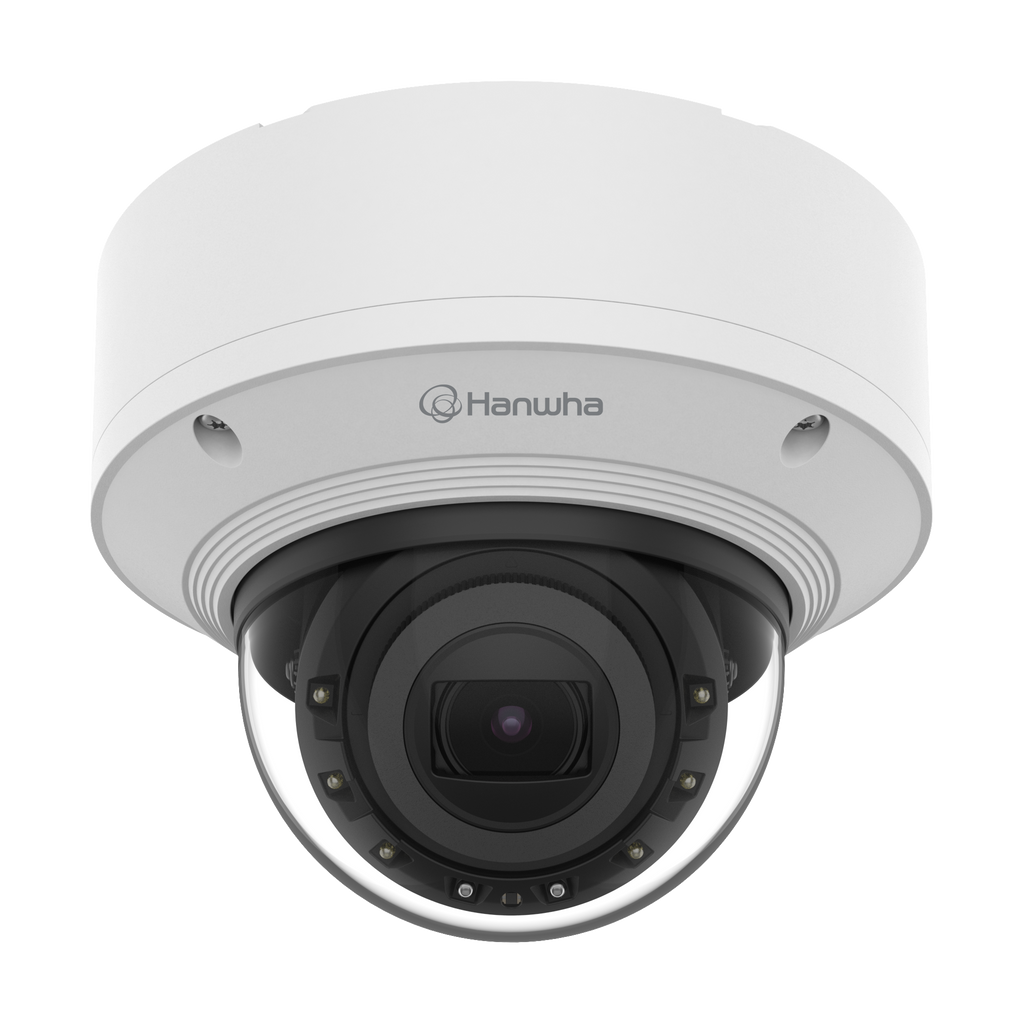

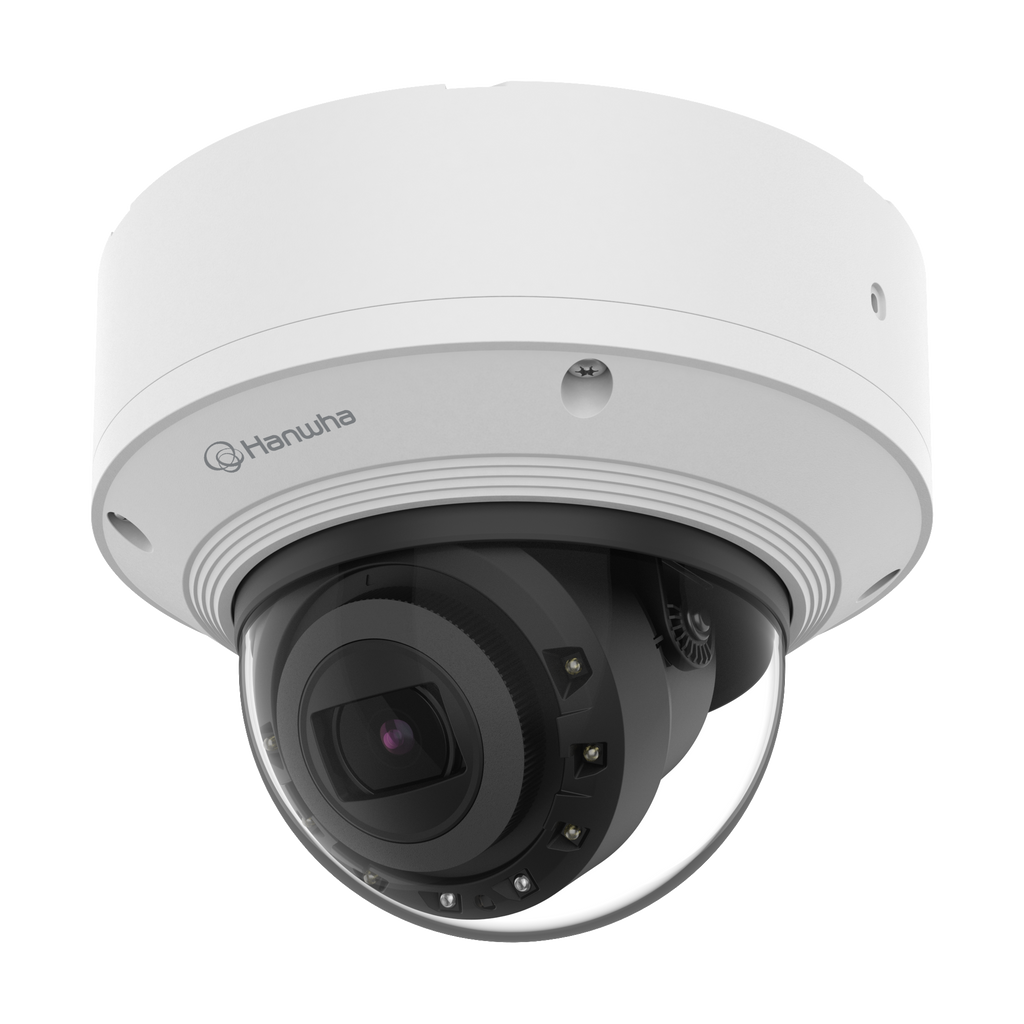

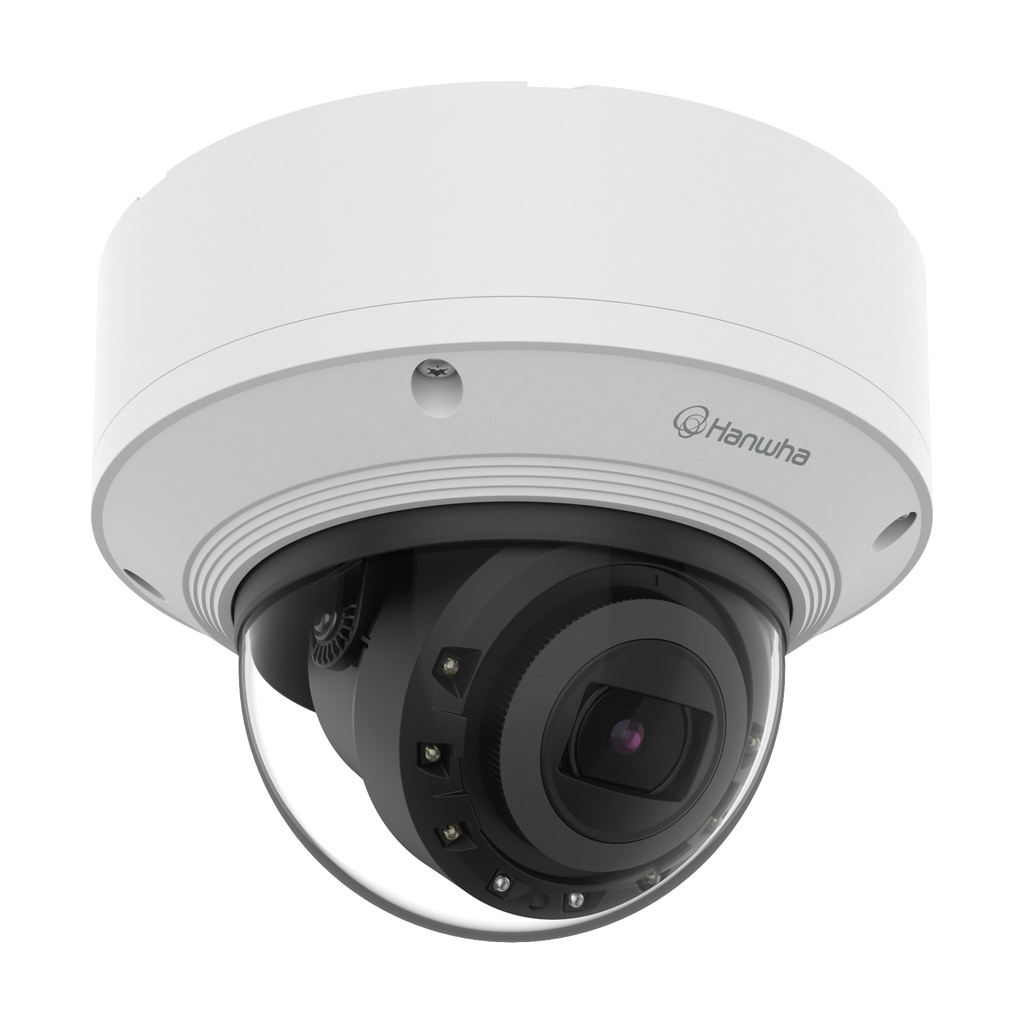

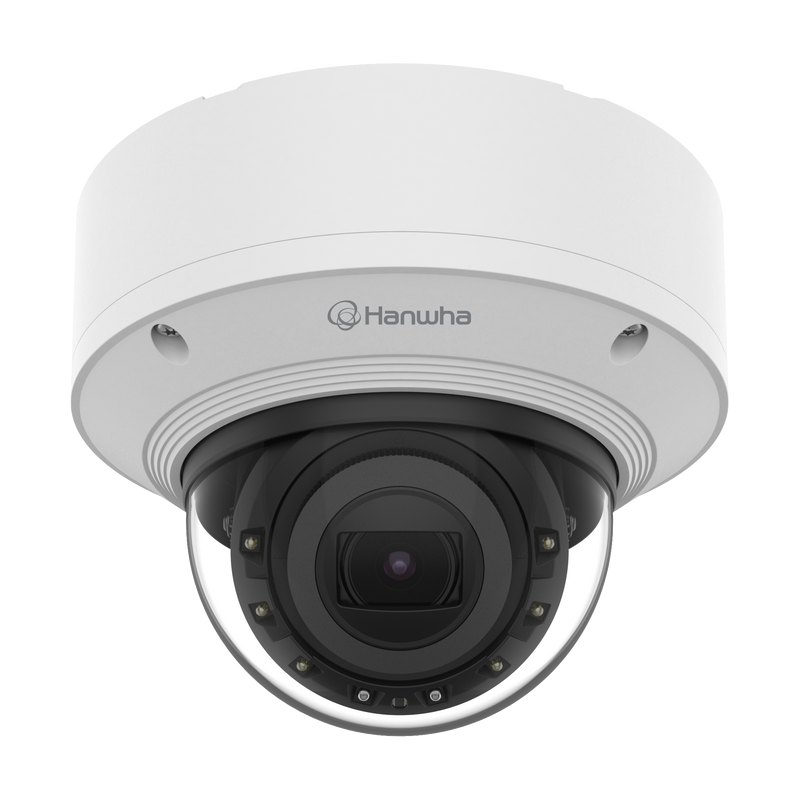

The Hanwha Vision XND-8093RV is a high-performance 6MP AI-powered IR dome camera engineered for demanding indoor surveillance environments. Its advanced 1/1.8" CMOS sensor delivers crisp imaging in low-light conditions, supported by 70-meter WiseIR illumination and extreme 120 dB WDR for balanced exposure in challenging lighting.
Equipped with a 10.9–29mm motorized varifocal lens, the XND-8093RV provides flexible, long-range coverage with 2.7x optical zoom. AI-driven analytics enable precise object detection, vehicle attributes, face detection, people counting, queue management, heat mapping, and other intelligent event triggers.
Built to endure tough conditions, the camera features an IK10-rated vandal-resistant dome, IP52 protection, and offers dependable edge recording with dual microSD slots supporting up to 2TB total. Advanced cybersecurity safeguards—secure boot, encrypted firmware, TPM 2.0—ensure strong protection for mission-critical deployments.
Ideal for retail, transportation hubs, corporate campuses, warehouses, and any location requiring long-range, high-accuracy monitoring with AI-driven insights.
| Category | Details |
|---|---|
| Image Sensor | 1/1.8" CMOS |
| Max Resolution | Up to 3328×1872 (6MP) |
| Frame Rate | H.265/H.264: 30fps (60Hz) / 25fps (50Hz); MJPEG: 30fps (@6MP max 5fps) |
| Min. Illumination | Color: 0.06 Lux; B/W: 0.006 Lux; 0 Lux (IR On) |
| Lens | 10.9–29mm motorized varifocal, 2.7x optical zoom, F1.7–F1.73 |
| Field of View | H: 42°–15° / V: 23°–8° / D: 49°–17° |
| IR Illumination | WiseIR, up to 70m (229.66 ft) |
| WDR | 120 dB Extreme WDR |
| AI Analytics | Object detection (person, face, vehicle, license plate), virtual line, intrusion, loitering, motion, appear/disappear, sound classification, shock detection |
| Business Intelligence | People counting, queue management, heatmap, vehicle counting |
| Compression | H.265/H.264 (Main/High/Baseline), MJPEG |
| Smart Codec | WiseStream III (AI-based) |
| Audio | Built-in mic, audio in/out, G.711/G.726/AAC-LC |
| Network Interface | 10/100/1000BASE-T, ONVIF S/G/T/M |
| Edge Storage | Dual microSD slots up to 2TB total |
| Power | PoE+ (IEEE 802.3at) or 12VDC |
| Power Consumption | PoE+: Max 22.5W; 12VDC: Max 20W |
| Operating Temp | -25°C to +50°C (-13°F to +122°F) |
| Durability Ratings | IK10 vandal-resistant, IP52 |
| Construction | Aluminum housing, white (RAL9003) |
| Dimensions / Weight | Ø160 × 125 mm / 1.6 kg (3.53 lb) |
