Description

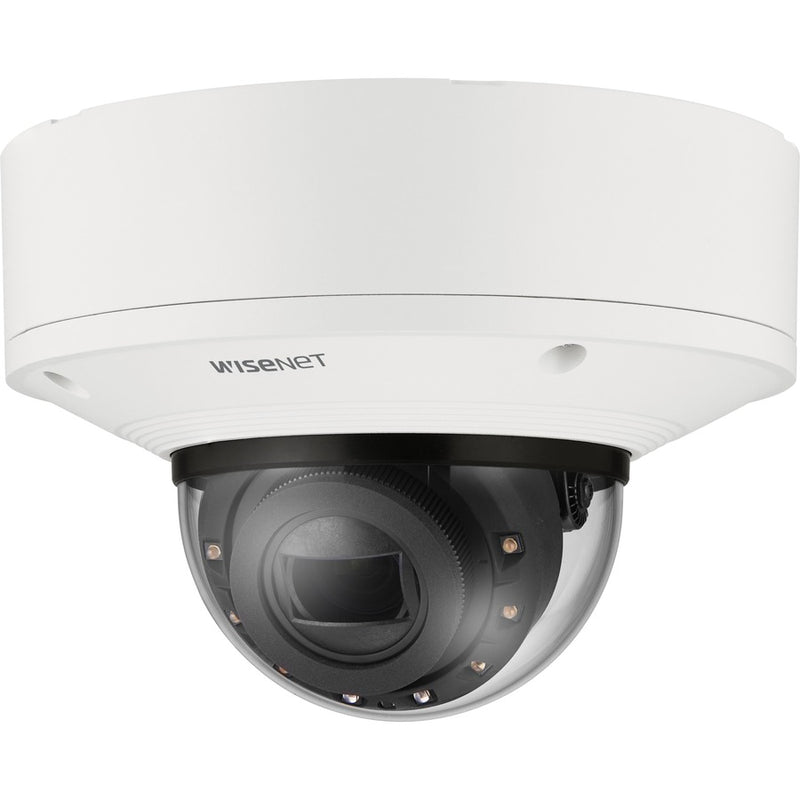

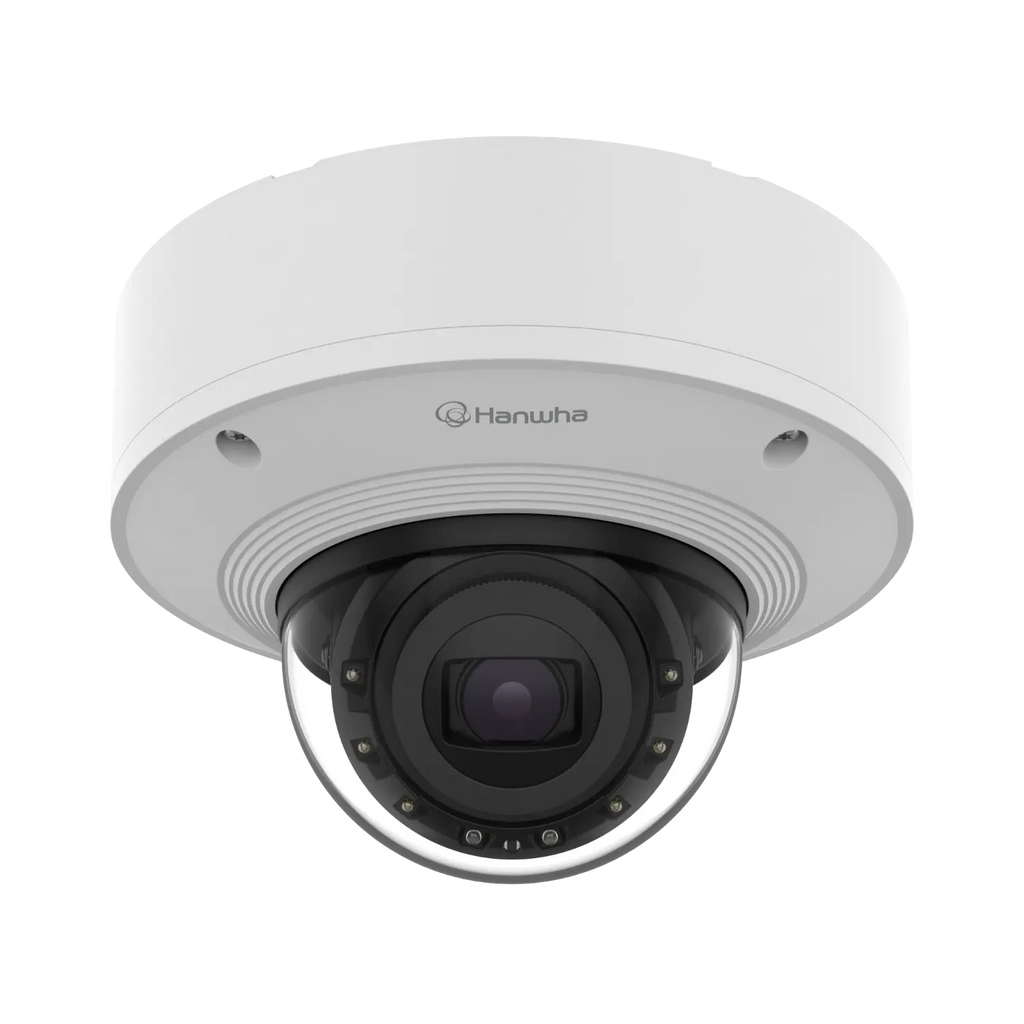

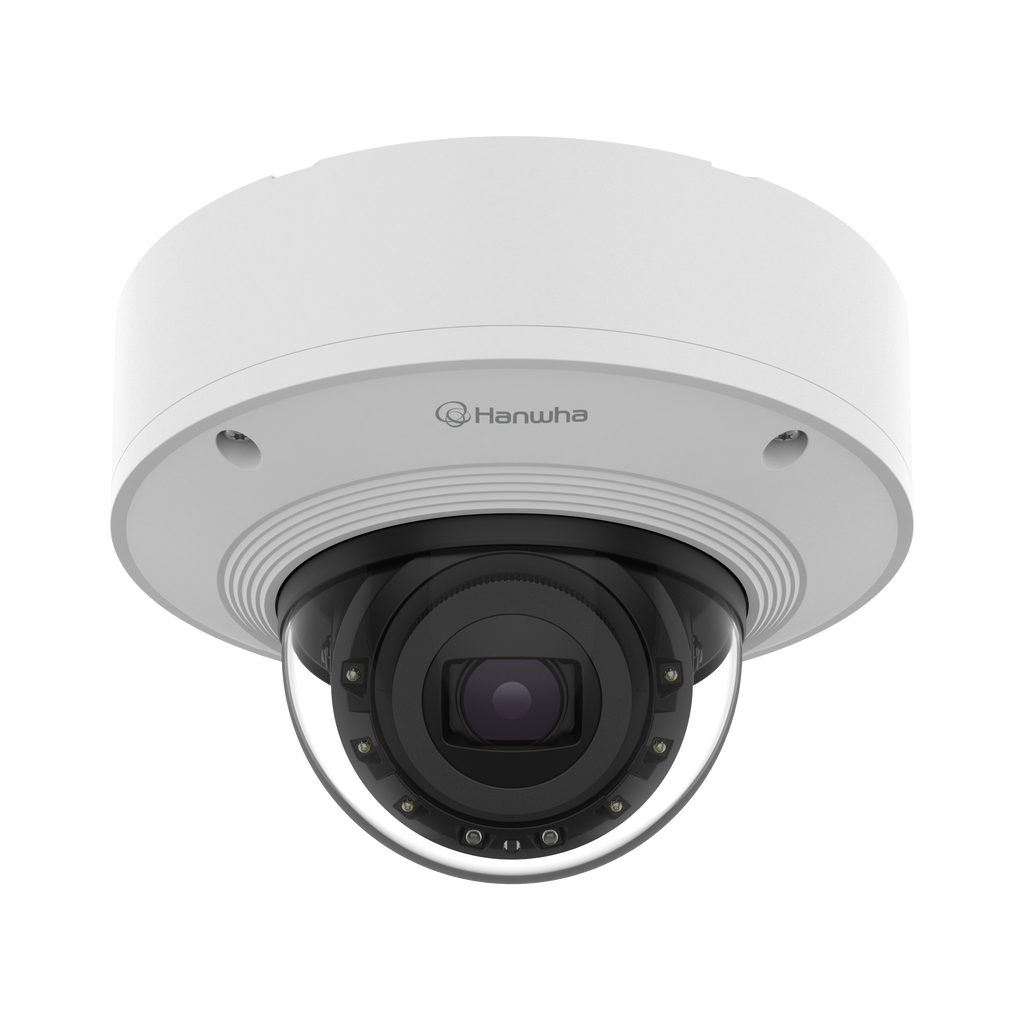

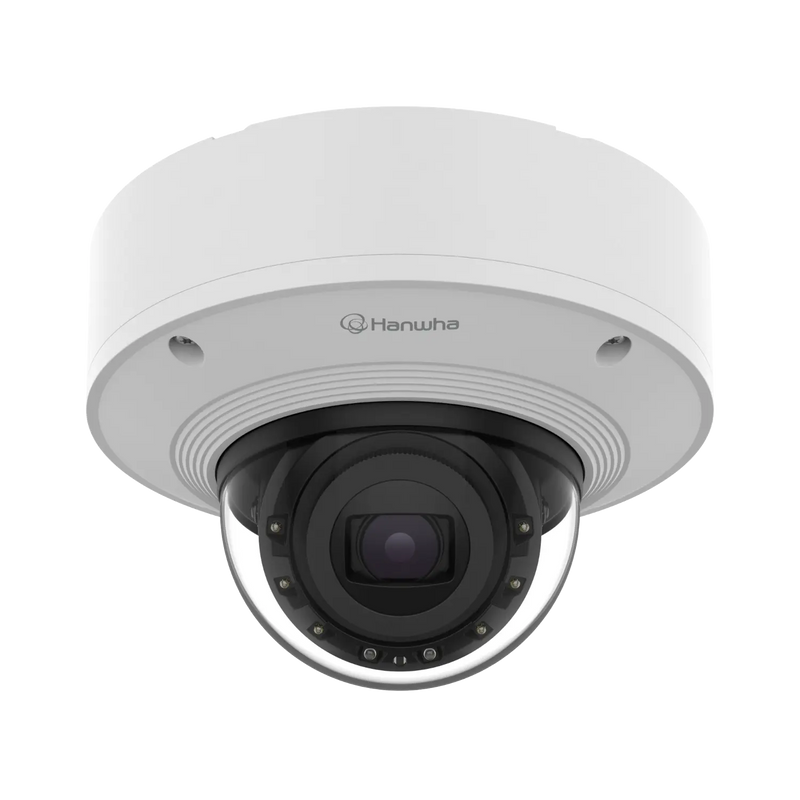

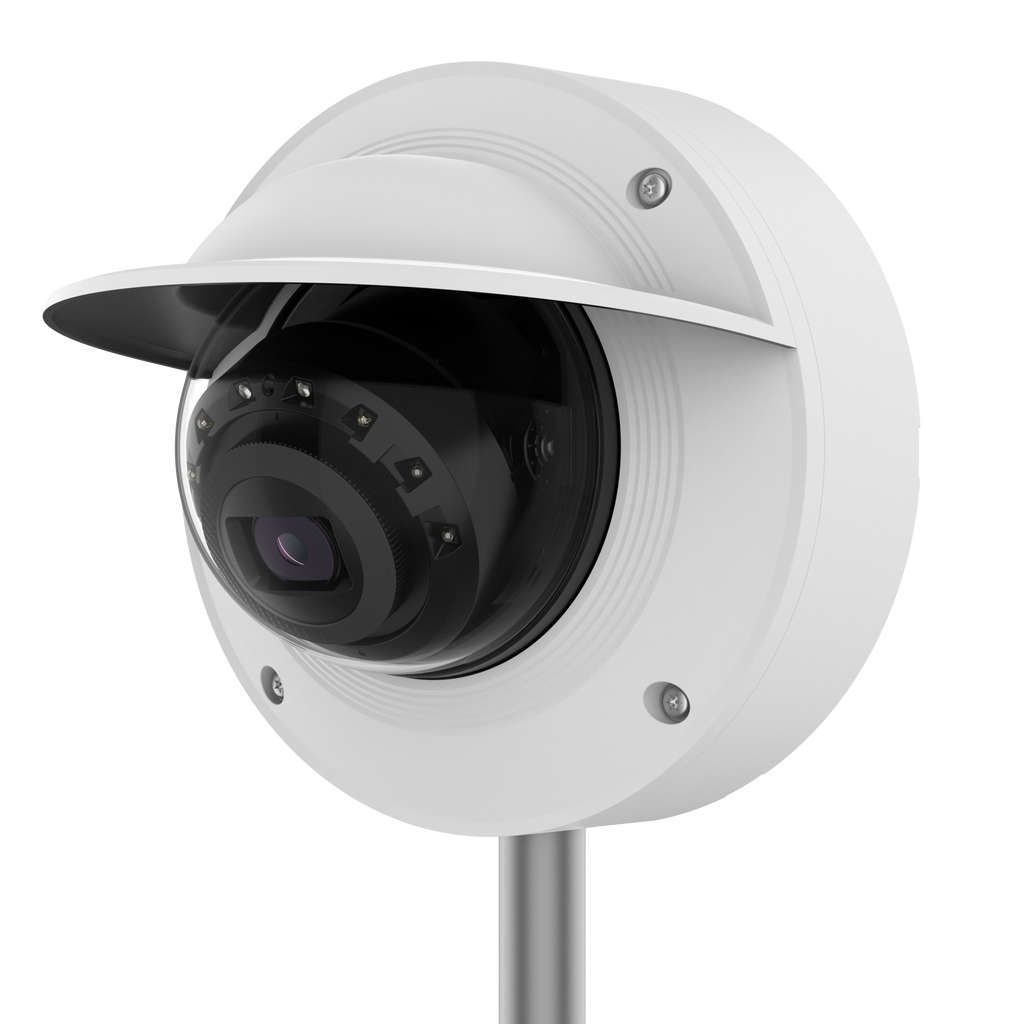

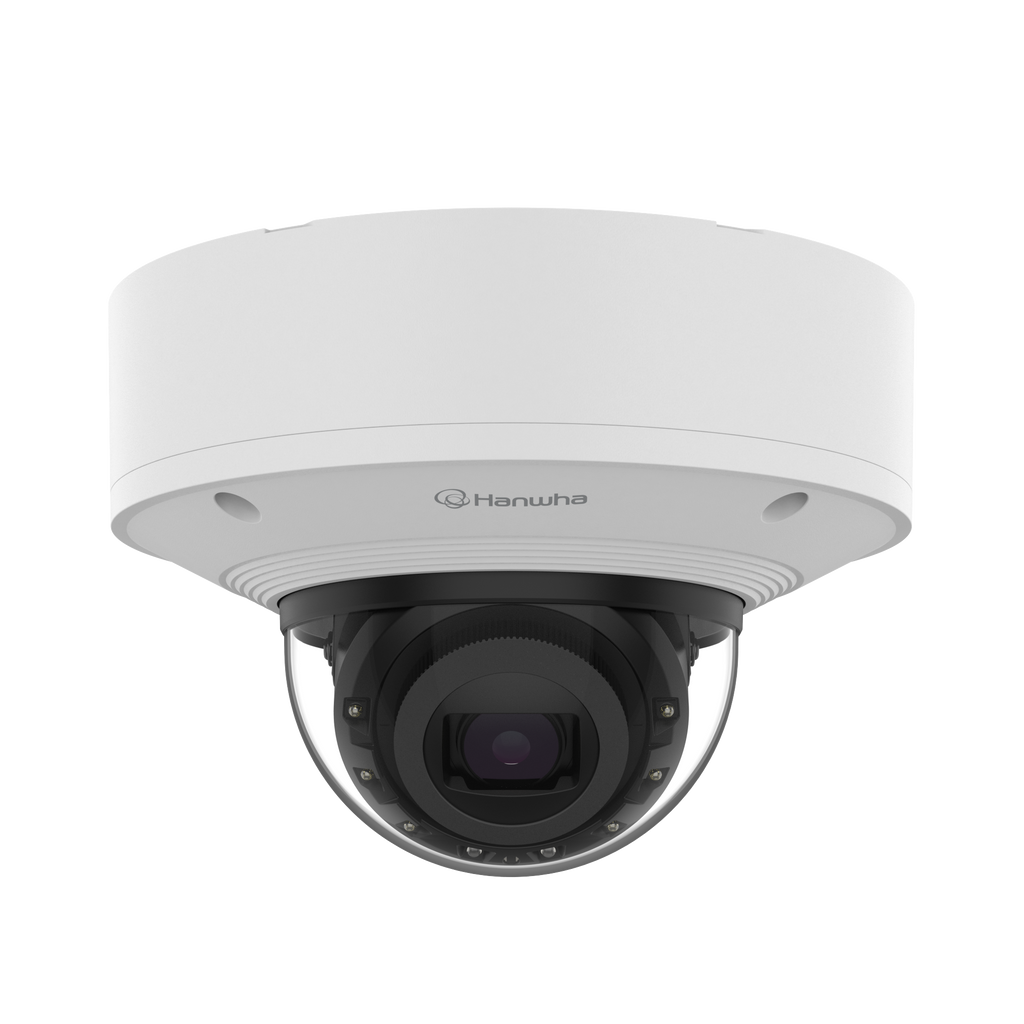

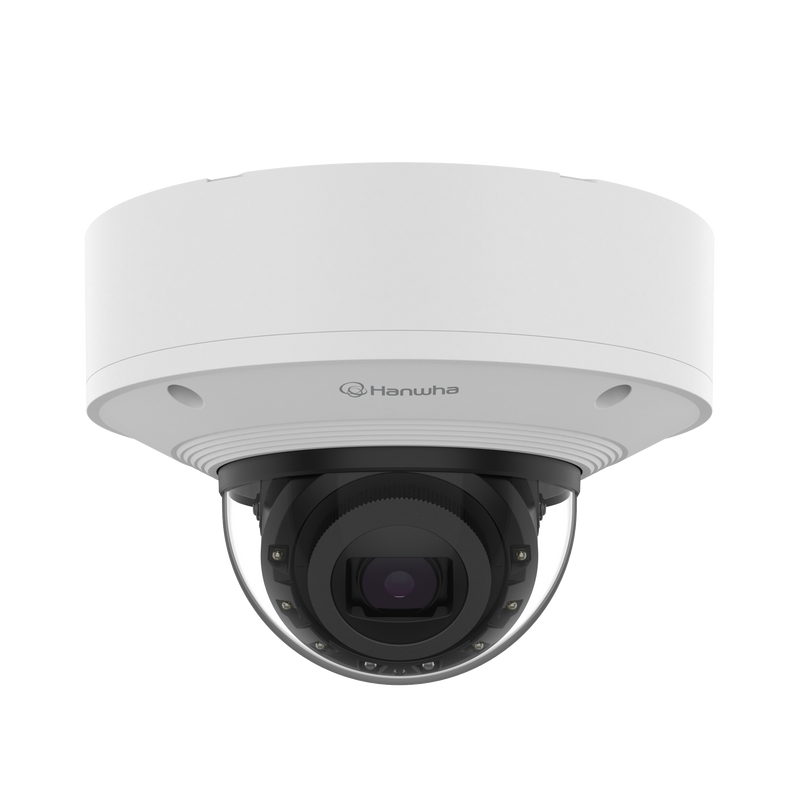

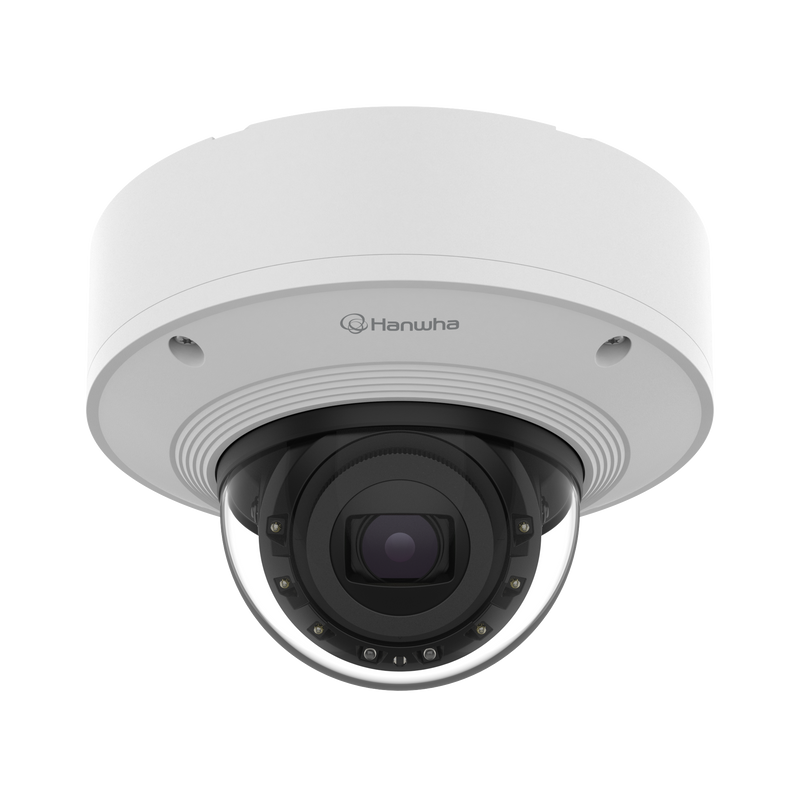

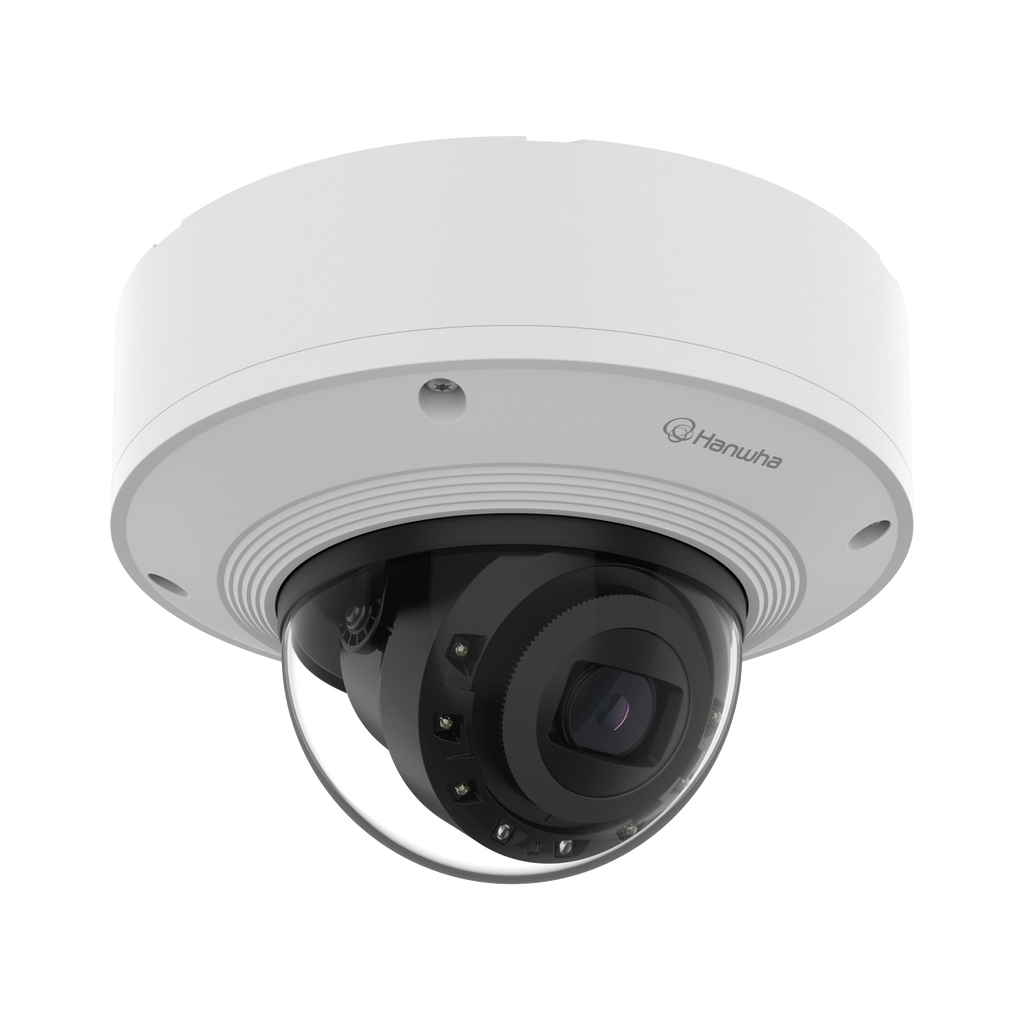

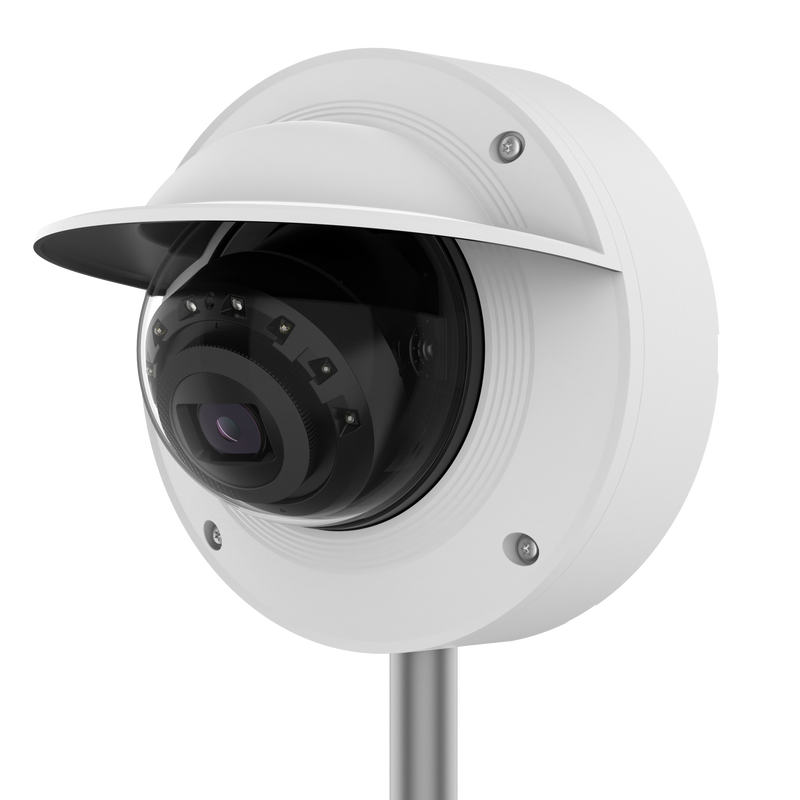

The Hanwha Vision XNV-8093R is a high-performance 6MP outdoor vandal-resistant dome camera engineered for demanding security environments. Built on Hanwha’s advanced AI engine and NPU-powered analytics, it delivers highly accurate object classification—including people, faces, vehicles, license plates, and multiple vehicle types.
With its 10.9–29mm motorized varifocal lens, WiseIR illumination up to 70 meters, and extreme 120dB WDR, it ensures crystal-clear imaging in both day and night conditions. The camera’s IK10+ and IP66/IP67/IP6K9K/NEMA 4X ratings provide exceptional protection against impact, weather, dust, and high-pressure water jets.
Enhanced AI-powered features such as WiseNR II noise reduction, WiseStream III compression, people counting, heatmap analytics, shock detection, audio detection, and queue management make it ideal for advanced surveillance in transportation hubs, city surveillance, industrial sites, commercial buildings, and critical infrastructure.
| Category | Details |
|---|---|
| Camera Resolution | 6MP (3328×1872) |
| Imaging Device | 1/1.8" CMOS |
| Minimum Illumination | Color: 0.06 Lux (F1.7, 1/30s), B/W: 0.006 Lux; 0 Lux with IR |
| Lens Type | Motorized varifocal, 10.9–29mm, 2.7x optical zoom |
| Aperture | F1.7 (Wide) / F1.73 (Tele) |
| Field of View | H: 42°–15° / V: 23°–8° / D: 49°–17° |
| IR Illumination | WiseIR up to 70m |
| WDR | 120dB Extreme WDR |
| Day/Night | Auto (ICR) |
| Image Enhancements | WiseNR II, SSNR V, Defog, Digital Image Stabilization |
| AI Analytics (NPU-based) | Object detection (Person/Face/Vehicle/License Plate), Virtual Line, Virtual Area, Enter/Exit, Loitering, Intrusion, Direction detection |
| Business Intelligence | People counting, Queue management, Heatmap, Vehicle counting |
| Compression | H.265, H.264 (High/Main/Baseline), MJPEG |
| Smart Codec | WiseStream III |
| Audio | Audio in (mic/line selectable), Audio out |
| Network | RJ-45 (10/100/1000 BASE-T), IPv4/IPv6, ONVIF S/G/T/M |
| Security | Secure boot, TPM 2.0 with FIPS 140-2 Level 2, HTTPS, SRTP, IEEE 802.1X |
| Local Storage | Dual microSD slots, up to 1TB total |
| Power Requirements | PoE+ (802.3at) or 12VDC |
| Power Consumption | PoE: Max 22.5W; 12VDC: Max 20W |
| Operating Temperature | –50°C to +55°C |
| Durability Ratings | IK10+, IP66/IP67, IP6K9K, NEMA 4X |
| Body Material / Color | Aluminum, White (RAL9003) |
| Dimensions | Ø180 × 125 mm (7.09 × 4.92 in) |
| Weight | 1.9kg (4.19 lb) |
